Moon Recessed Adjustable
Code / Codice
Power consumption
Consumo di energia
Remote Power supply
Alimentatore Remoto
Foward voltage
Electrical class
Classe elettrica
Weight / Peso
Operating temperature
Temperatura di funzionamento
IP rating / Grado IP
IK rating / Grado IK
Size / Dimensioni
Ø 87 mm
3.4"
0
ALL GLASS
WALK
OVER
Griven S.r.l. - Via Bulgaria, 16
46042 Castel Goffredo
Mantova - Italy
Moon Recessed Adjustable W
SP/NA/ME/WI/EW
8W MAX
Constant Current:
250 mA
35 V
+/- 15° TILT
WALK
OVER
Tel. +39.0376.779483
© Copyright Griven 2018 -Griven reserves the right to make
changes to this product and related instructions at any time
E-mail: sales@griven.com
without prior notice and such changes shall be effective
Web: www.griven.com
immediatly
User's Manual
Rev. 1.0
Date:28/12/2022
AL5311
ULTRASPOT
3W MAX
Constant Current:
800mA
3 V
III
1 Kg / 2,2 lb
-30°C to 40°C / (-22°F to 104°F)
IP68
IK10
Ø100 mm
4.0"
0
+/- 15° TILT
FRAME
200
7.87
.
551182
Moon Recessed Adjustable RGBW /DW
4,6W MAX
Costant Voltage:
24 Vdc
Ø112 mm
4.4"
DRIVEOVER
DRIVE
OVER
TWO SIDE
KNOCKOUT
HOLE
0
+/- 15° TILT
page 1 of 12
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Griven Moon Recessed Adjustable
Summary of Contents for Griven Moon Recessed Adjustable

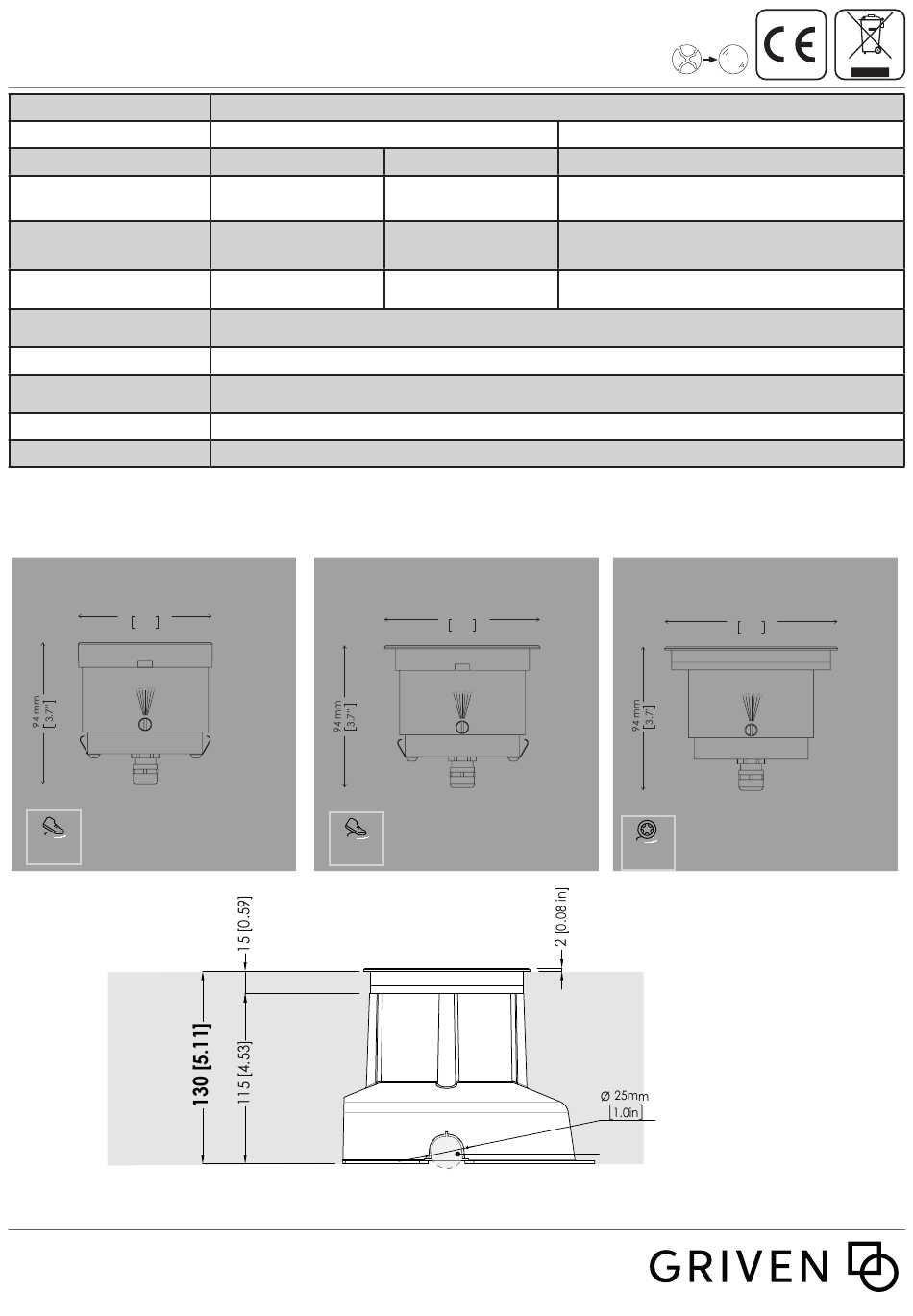

- Page 1 1 of 12 7.87 Griven S.r.l. - Via Bulgaria, 16 Tel. +39.0376.779483 © Copyright Griven 2018 -Griven reserves the right to make changes to this product and related instructions at any time 46042 Castel Goffredo E-mail: sales@griven.com without prior notice and such changes shall be effective Mantova - Italy Web: www.griven.com...
- Page 2 Important notices - Avvisi importanti - This product must be installed in accordance with applicable national and local - Questo prodotto deve essere installato secondo le normative locali, da personale electrical and construction codes by a person familiar with the construction and specializzato.
-
Page 3: Installation - Installazione
Installation - Installazione SOLID SOIL in concrete - Prearrange an adequate support for the formwork as well as a drainage system through a pipe that allows the water to flow without creating stagnations. TERRENO SOLIDO in cemento - Predisporre un adeguato supporto alla cassaforma ed un drenaggio attraverso un tubo che permetta all’ acqua di dreanare senza creare ristagni. - Page 4 INCORRECT DRAINAGE SOIL PAVING Open the formwork on one side for the passage of the corrugated pipe. If necessary, also open it on the other side. MATERIAL Rimuovere dalla cassaforma il primo tassello per il passaggio del tubo corrugato. Se necessario rimuovere anche il secondo tassello. CONCRETE SOFT GROUND WALK OVER APPLICATION...
-
Page 5: Incorrect Installation
ATTENTION: To facilitate the removal of the cap, its recomanded to use a release agent for formworks. ATTENZIONE: Per facilitare l’estrazione del tappo si consiglia di utilizzare un agente distaccante per cassaforme. SOIL PAVING DRAINAGE SOIL PAVING MATERIAL Fill with cement up to the level of the cap and clean off any material in excess that may prevent the removal of the cap Riempire con cemento fino al livello del tappo e rimuovere l’eventuale materiale in eccesso che possa impedire la rimozione del tappo. -
Page 6: Supply Cable
Connect the fixture to the power cable. Put the heat shrink tube fitted with glue “1” on the power cable. Connect to the mains through the connectors “2”, pressing them with the appropriate tool “3”. Heat the tube using the heater “ 4” until it completely shrinks. This connection will feature an IP67 protection degree. - Page 7 BEAM ORIENTATION - The beam can be tilted by 15° by using a screwdriver on the brass pin, as shown in the image below. ORIENTAMENTO DEL FASCIO - E’ possibile inclinare il fascio del proiettore di 15° agendo con un cacciavite sul perno in ottone come indicato nell’immagine sotto.
- Page 8 Configuration scheme - MOON RECESSED ADJUSTABLE W Schemi di configurazione - MOON RECESSED ADJUSTABLE W MINIMUM 1 FIXTURE MAXIMUM 3 FIXTURE Distance between PSU and the last xture: 20 meters CABLE/CAVI USE/UTILIZZO RED / ROSSO BLACLK / NERO 1.5 m...
- Page 9 Configuration scheme - MOON RECESSED ADJUSTABLE W ULTRASPOT Schemi di configurazione - MOON RECESSED ADJUSTABLE W ULTRASPOT MINIMUM 1 FIXTURE MAXIMUM 8 FIXTURE Distance between PSU and the last xture: 42 meters CABLE/CAVI USE/UTILIZZO RED / ROSSO BLACLK / NERO 1.5 m Fixture Cable length...
- Page 10 Configuration scheme - MOON RECESSED ADJUSTABLE RGBW and DW Schemi di configurazione - MOON RECESSED ADJUSTABLE RGBW and DW MAXIMUM 10 FIXTURE Distance between PSU and the last fixture: max. 50 meters AL4487/2 Dmx DATA + CONTROLLER Dmx DATA -...
-
Page 11: Dmx Chart
DMX Chart RGBW and DW Mode Channel Function Value Mode 4 channel - “RGBW 4ch” 0-100% Red 0-255 0-100% Green 0-255 0-100% Blue 0-255 0-100% White 0-255 Mode 5 channel - “RGBW 5ch” 0-100% Red 0-255 0-100% Green 0-255 0-100% Blue 0-255 0-100% White 0-255... - Page 12 Note: Allowed operation only between sunset and sunrise Nota: Accensione dell’apparecchio ammessa soltanto tra gli orari di tramonto e alba page 12 of 12 Moon Rev. 1.0 551182...
