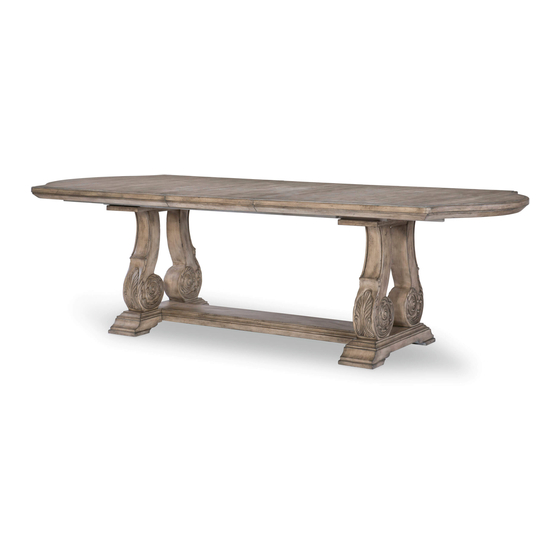

Legacy Classic Furniture TRESTLE TABLE TOP BASE 1630-622 Assembly Instructions

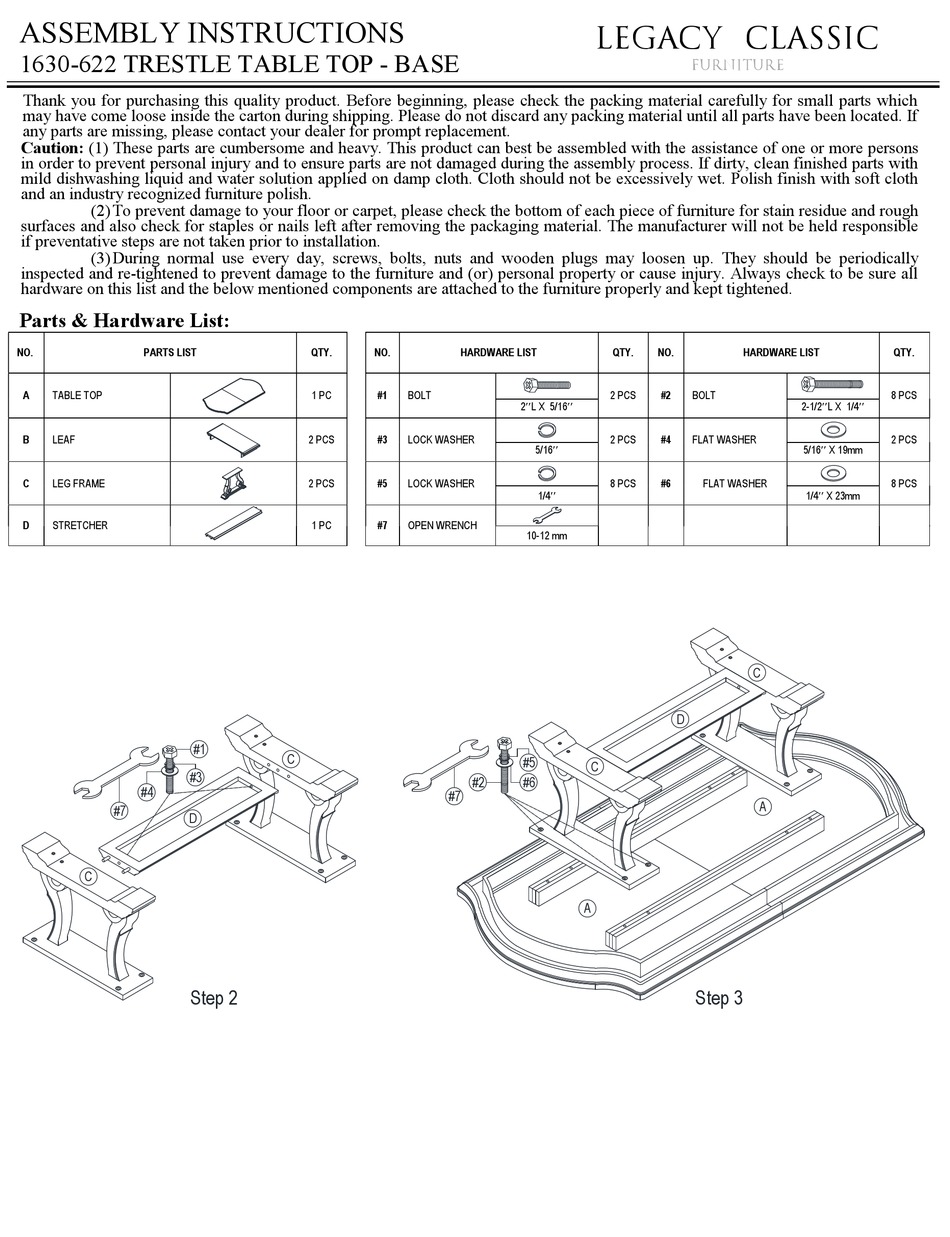

ASSEMBLY INSTRUCTIONS
1630-622 TRESTLE TABLE TOP - BASE
Thank you for purchasing this quality product. Before beginning, please check the packing material carefully for small parts which
may have come loose inside the carton during shipping. Please do not discard any packing material until all parts have been located. If
any parts are missing, please contact your dealer for prompt replacement.
Caution: (1) These parts are cumbersome and heavy. This product can best be assembled with the assistance of one or more persons
in order to prevent personal injury and to ensure parts are not damaged during the assembly process. If dirty, clean finished parts with
mild dishwashing liquid and water solution applied on damp cloth. Cloth should not be excessively wet. Polish finish with soft cloth
and an industry recognized furniture polish.
(2) To prevent damage to your floor or carpet, please check the bottom of each piece of furniture for stain residue and rough
surfaces and also check for staples or nails left after removing the packaging material. The manufacturer will not be held responsible
if preventative steps are not taken prior to installation.
(3) During normal use every day, screws, bolts, nuts and wooden plugs may loosen up. They should be periodically
inspected and re-tightened to prevent damage to the furniture and (or) personal property or cause injury. Always check to be sure all
hardware on this list and the below mentioned components are attached to the furniture properly and kept tightened.
Parts & Hardware List:
NO. PARTS LIST
A TABLE TOP
B LEAF
C LEG FRAME
D
STRETCHER
#1
#3
#4
#7
D
C
Step 2
QTY. NO. HARDWARE LIST
1 PC #1 BOLT
2 PCS #3 LOCK WASHER
2 PCS #5 LOCK WASHER
#7
1 PC OPEN WRENCH
C
#7
LEGACY CLASSIC
QTY.
2 PCS
2L X 5/16
2 PCS
5/16
8 PCS
1/4
10-12 mm
#5
C
#2 #6
A
FURNITURE
NO. HARDWARE LIST
#2 BOLT
2-1/2L X 1/4
#4 FLAT WASHER
5/16 X 19mm
#6 FLAT WASHER
1/4 X 23mm
C
D
A
Step 3
QTY.
8 PCS
2 PCS
8 PCS
