ASSEMBLY INSTRUCTIONS:
931-622 RECTANGULAR TRESTLE TABLE
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts, which may have come loose
inside the carton during shipment. Identify and count all parts and compare with the Parts List below.
Caution:
(1) These parts are cumbersome and heavy. This product can best be assembled with the assistance of one or more persons in order to
prevent personal injury and to insure parts are not damaged during the assembly process.
(2) If handled improperly, the act of installing and removing table leaf may damage the table. Please use caution and delicate handling when
installing and removing table leaf to prevent damaging the table top surface and edges. It is best two (2) persons are involved when installing
or removing table leaf.
(3)To prevent damage to your floor or carpet, please check the bottom of each piece of furniture for stain residue and rough surfaces and
also check for staples or nails left after removing the packaging material. The manufacturer will not be held responsible if preventative steps
are not taken prior to installation.
(4) Use only the hardware included in the package. Using different sizes could cause the wood to split or come out from the other side.
During normal use everyday, screws, bolts, nuts and wooden plugs may loosen up. They should be periodically inspected and
(5)
re-tightened to prevent damage to the furniture and (or) personal property or cause injury. Always check to be sure all hardware
on this list and the above mentioned components is attached to the furniture properly and kept tightened at all times.
NOTE: A Philips head screwdriver is required.

Assembly procedures:

Step 1:Turn the table top face down on a smooth, soft surface.
Step 2: Attach the center stretcher to the two end leg frames as shown in Diagram A.
Step 3: Attach the slanting stretcher to the two end leg frames and the center stretcher as shown in Diagram B.
Step 4:Attach mounting plates to the two end leg frames as shown in Diagram C.
Step 5:Attach fully assembled base to the table as shown in Diagram D.
Step 6:Attach two storage boxes to table slides as shown in Diagram E.
Step 7:Turn the assembled table to the upright position. Then place the leaves in the table as shown in Diagram F.

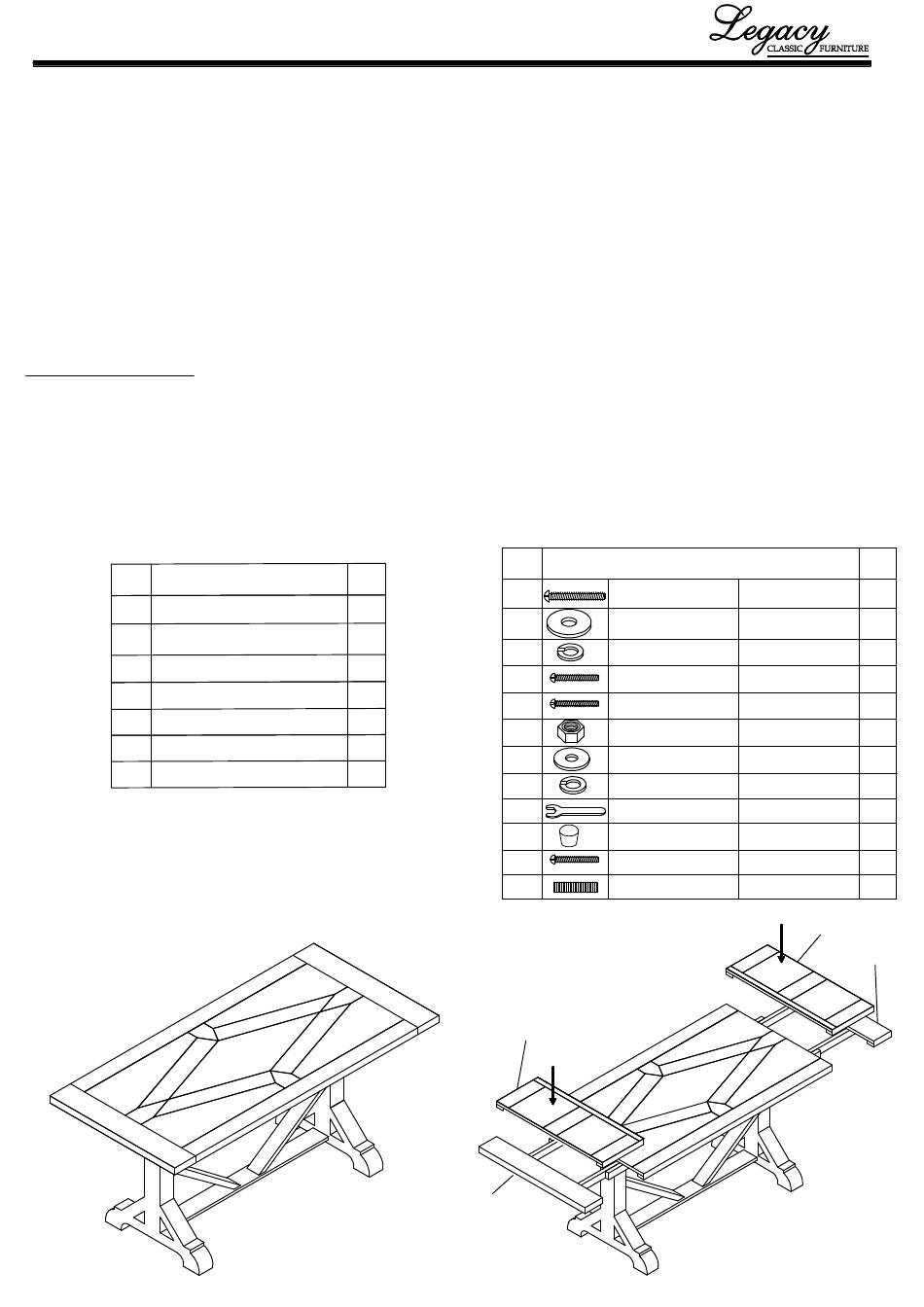

PARTS LIST

NO.
1 TABLE TOP
2
LEAF
MOUNTING PLATE
3
4
END LEG FRAME
5 CENTER STRETCHER
6
SLANTING STRETCHER
7
STORAGE BOX
NO.
Q'ty
1
2
2
2
1
2
2
END TABLE A
1
www.legacyclassic.com

Hardware List

A Bolt
B
Flat Washer
Lock Washer
C
D
Bolt
E Bolt
F
Nut
G
Flat Washer
H
Lock Washer
I
Wrench
J
Wood Plug
K
Bolt
L Dowel Pin
LEAF A
Q'ty
8
1/4"x3-1/16"
1/4"
8
8
1/4"
8
5/16"x2-5/16"
1/4"x1-3/4" 4
5/16"
4
5/16"
14
5/16"
14
1
5/16"
2
8
1/4"x1
Ø8x40 2
LEAF B
END TABLE B
