Legacy Classic Furniture QUEEN 5/0 8460-4105 Assembly Instructions

ASSEMBLY INSTRUCTIONS:

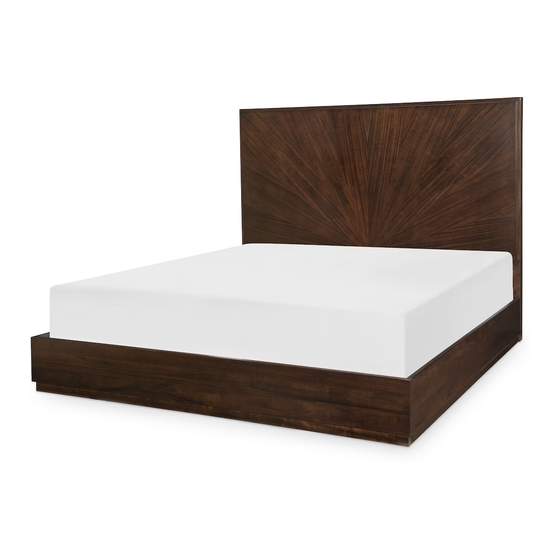

8460-4105/4115/4901 PANEL BED, QUEEN 5/0
Thank you for purchasing this quality product. Before beginning, please check the packing material carefully for small parts which
may have come loose inside the carton during shipping. Please do not discard any packing material until all parts have been located. If
any parts are missing, please contact your dealer for prompt replacement.
Caution: (1) These parts are cumbersome and heavy. This product can best be assembled with the
assistance of one or more persons in order to prevent personal injury and to insure parts are not damaged during the assembly process.
If dirty, clean finished parts with mild dishwashing liquid and water solution applied on damp cloth. Cloth should not be excessively
wet. Polish finish with soft cloth and an industry recognized furniture polish.
(2) To prevent damage to your floor or carpet, please check the bottom of each piece of furniture for stain residue and
rough surfaces and also check for staples or nails left after removing the packaging material. The manufacturer will not be held
responsible if preventative steps are not taken prior to installation.
(3) During normal use everyday, screws, bolts, nuts and wooden plugs may loosen up. They should be periodically inspected and re-
tightened to the prevent damage to the furniture and (or) personal property or cause injury. Always check to be sure all hardware on this list and
the below mentioned components are attached to the furniture properly and kept tightened.
Parts & Hardware List:
DIAGRAM DESCRIPTION
PART
Headboard
A
Left Post
B
Right Post
C
Stretcher
D
Footboard
E
Side Rail
F
Slats
G
Suppport Leg
H
A
B
D
C
QTY
1 PC
1 PC
1 PC
1 PC
1 PC
2 PCS
3 PCS
3 PCS
Step 3
Step 2
PART DIAGRAM DESCRIPTION
1
Wrench
Hexigon Bolt
2
1/4" x 2-1/2"
Hexigon Bolt
3
1/4" x 1-3/4"
Spring Washer
4
1/4"*11*2mm
Flat Washer
5
1/4"*18*2mm
Screw
6
Ø8*30mm
7
Wrench
Hexagonal Nut
8
5/16"*12*6mm
Spring Washer
9
5/16"*13*2mm
Curve Washer
10
30"*15*7.5mm
Thread Rod
11
5/16*90mm
A
F
Step 4
QTY
1 PC
6 PCS
4 PCS
10 PCS
10 PCS
6 PCS
1 PC
8 PCS
8 PCS
8 PCS
8 PCS
E
