DeLOCK 89889 User Manual

Declaration of conformity
Products with a CE symbol fulfill the EMC directive (2014/30/EU) and
RoHS directive (2011/65/EU+2015/863+2017/2102), which were released by the
EU-comission.
The declaration of conformity can be downloaded here:
https://www.delock.de/produkte/G_89889/merkmale.html
WEEE-notice
The WEEE (Waste Electrical and Electronic Equipment)-directive, which became
effective as European law on February 13th 2003, resulted in an all out change
in the disposal of disused electro devices. The primarily purpose of this directive
is the avoidance of electrical waste (WEEE) and at the same time the support of
recycling and other forms of recycling in order to reduce waste. The WEEE-logo
on the device and the package indicates that the device should not be disposed
in the normal household garbage. You are responsible for taking the disused
electrical and electronical devices to a respective collecting point. A separated
collection and reasonable recycling of your electrical waste helps handling the
natural resources more economical. Furthermore recycling of electrical waste is
a contribution to keep the environment and thus also the health of men. Further
information about disposal of electrical and electronical waste, recycling and
the collection points are available in local organizations, waste management
enterprises, in specialized trade and the producer of the device.
Cet appareil et
ses accessoires
se recyclent
Points de collecte sur www.quefairedemesdechets.fr
EU Import: Tragant Handels- und Beteiligungs GmbH
Beeskowdamm 13/15, 14167 Berlin, Germany
Support Delock
If you have further questions, please contact our customer support
support@delock.de
You can find current product information on our homepage: www.delock.com
Final clause
Information and data contained in this manual are subject to change without notice
in advance. Errors and misprints excepted.
Copyright
No part of this user's manual may be reproduced, or transmitted for any purpose,
regardless in which way or by which means, electronically or mechanically, without
explicit written approval of Delock.
Edition: 02/2023
User manual
Mode d'emploi
Uživatelská příručka
Manuale utente
Manual de utilizare
Korisnički priručnik

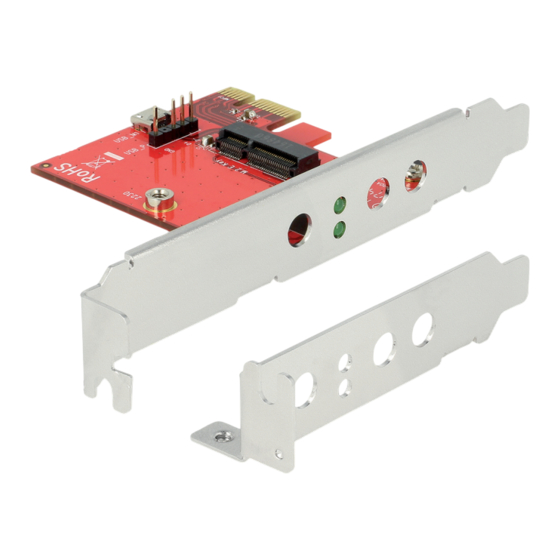

M.2 PCI Express x1 Card
1 x internal M.2 Key E slot
English
Description
This PCI Express card by Delock expands the PC by one M.2 key E slot. Different
M.2 modules with USB and PCIe signals can be inserted in the card. On the M.2
key A or key E interface can be used e.g. WLAN, Bluetooth, GNSS, 3G, HSPA and
NFC modules. Further it is possible to use both functions of a module which has
e.g. WLAN and Bluetooth. The USB modules need to be connected via the USB
interface of the card to the system.
Specification
• Connectors:
1 x 67 pin M.2 key E slot
1 x PCI Express x1
1 x USB 2.0 Type Micro-B female (for M.2 USB modules)
1 x USB 2.0 pin header male (for M.2 USB modules)
• Interface: PCIe + USB
• Supports modules in format 2230, 1630 and 3030 with key E or key A+E based
on PCIe and USB
• Maximum height of the components on the module: 1.5 mm, application of
double-sided assembled modules supported
• 2 x LED indicator
• Each slot bracket with 3 x hole for antenna connector
• OS independent, no driver installation necessary
Bedienungsanleitung
Manual del usuario
Instrukcja obsługi
Bruksanvisning
Használati utasítás
Εγχειρίδιο χρήστη
Product-No: 89889
User manual no: 89889-a
www.delock.com
