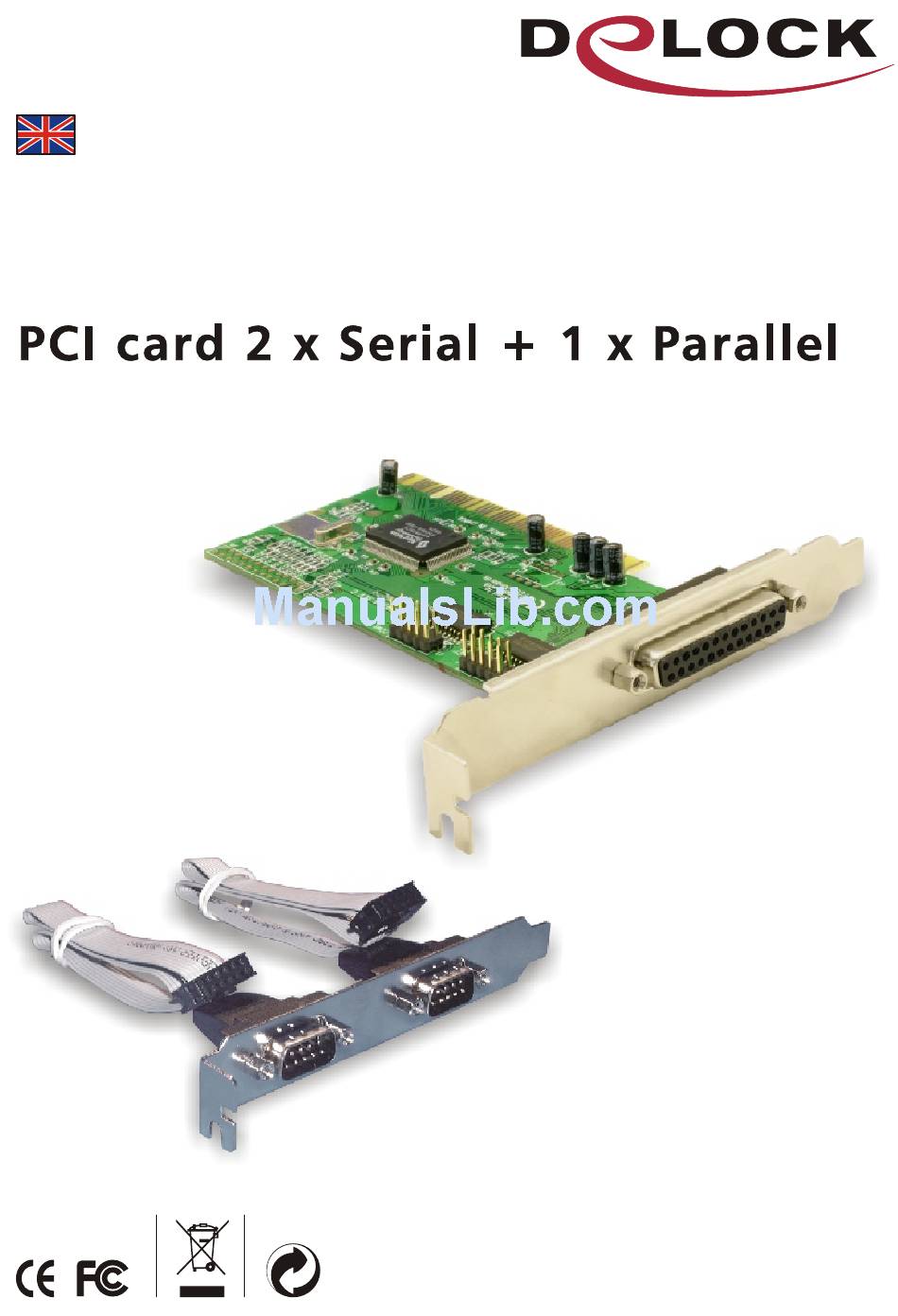

- Page 1 ® w e m o v e t h e w o r l d User manual Product-No: 89004 User manual No: 89004-a w w w. d e l o c k . d e...
- Page 2 Description The DeLock PCI Card expands your PC by two external serial ports, also one external parallel port. You can connect devices like scanner, printer, mouse etc. to the card. Specification Serial Interface • Compatible with 16C550 UART • FIFO: 16 byte •...
- Page 3 Hardware Installation Note: Follow the general instructions for installation of the card. If necessary, read the manual of your computer, or ask a specialist for help. 1. Turn off your PC, and unplug the power cord. 2. Open the housing. 3.
- Page 4 Install parallel interface 6. The hardware assistant appears with a newly found parallel interface. Choose "No, not this time" and click "Continue". 7. Choose "Install software automatically" and click "Continue". 8. Click "Continue installation". 9. Click "Finish". Install serial interface 10.
- Page 5 Install serial interface 8. The hardware assistant appears with a newly found serial interface. Choose "Install software automatically" and click "Continue". 9. Click "Continue installation". 10. Click "Finish". 11. When the second serial port is found, repeat steps 1 – 4. Your PCI card is installed and ready for use.
- Page 6 Errors and misprints excepted. Copyright No part of this user's manual may be reproduced, or transmitted for any purpose, regardless in which way or by which means, electronically or mechanically, without explicit written approval of Delock. Edition: 11/05...
