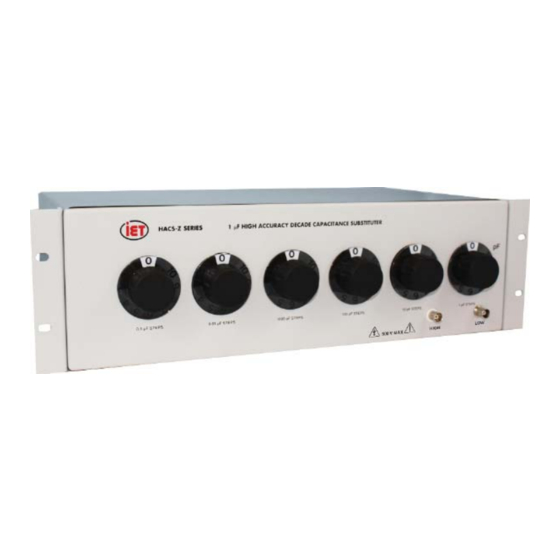

Decade capacitance system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

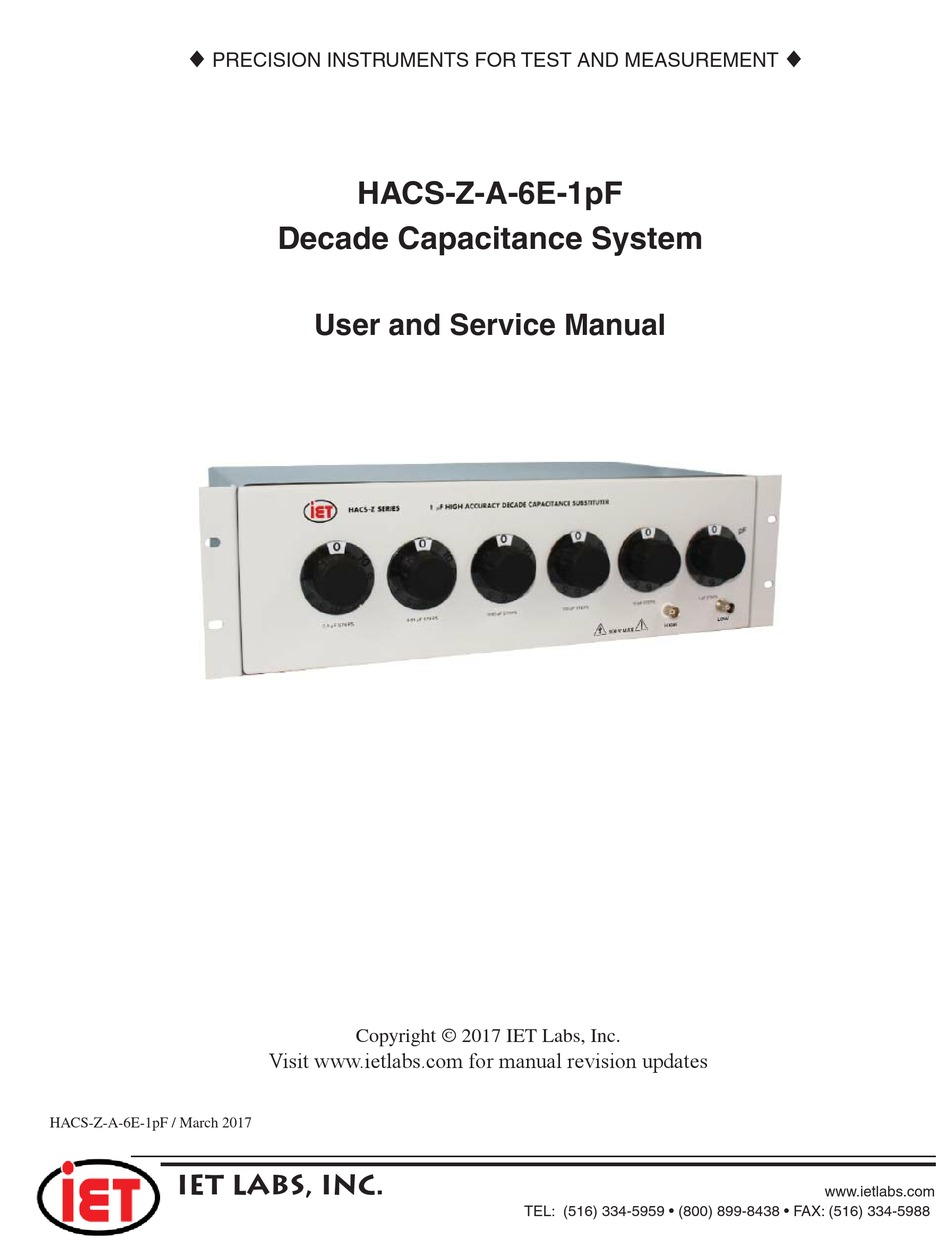

PRECISION INSTRUMENTS FOR TEST AND MEASUREMENT
HACS-Z-A-6E-1pF
Decade Capacitance System
User and Service Manual
Copyright 2017 IET Labs, Inc.
Visit www.ietlabs.com for manual revision updates
HACS-Z-A-6E-1pF / March 2017
IET LABS, INC.
www.ietlabs.com
TEL: (516) 334-5959 • (800) 899-8438 • FAX: (516) 334-5988
