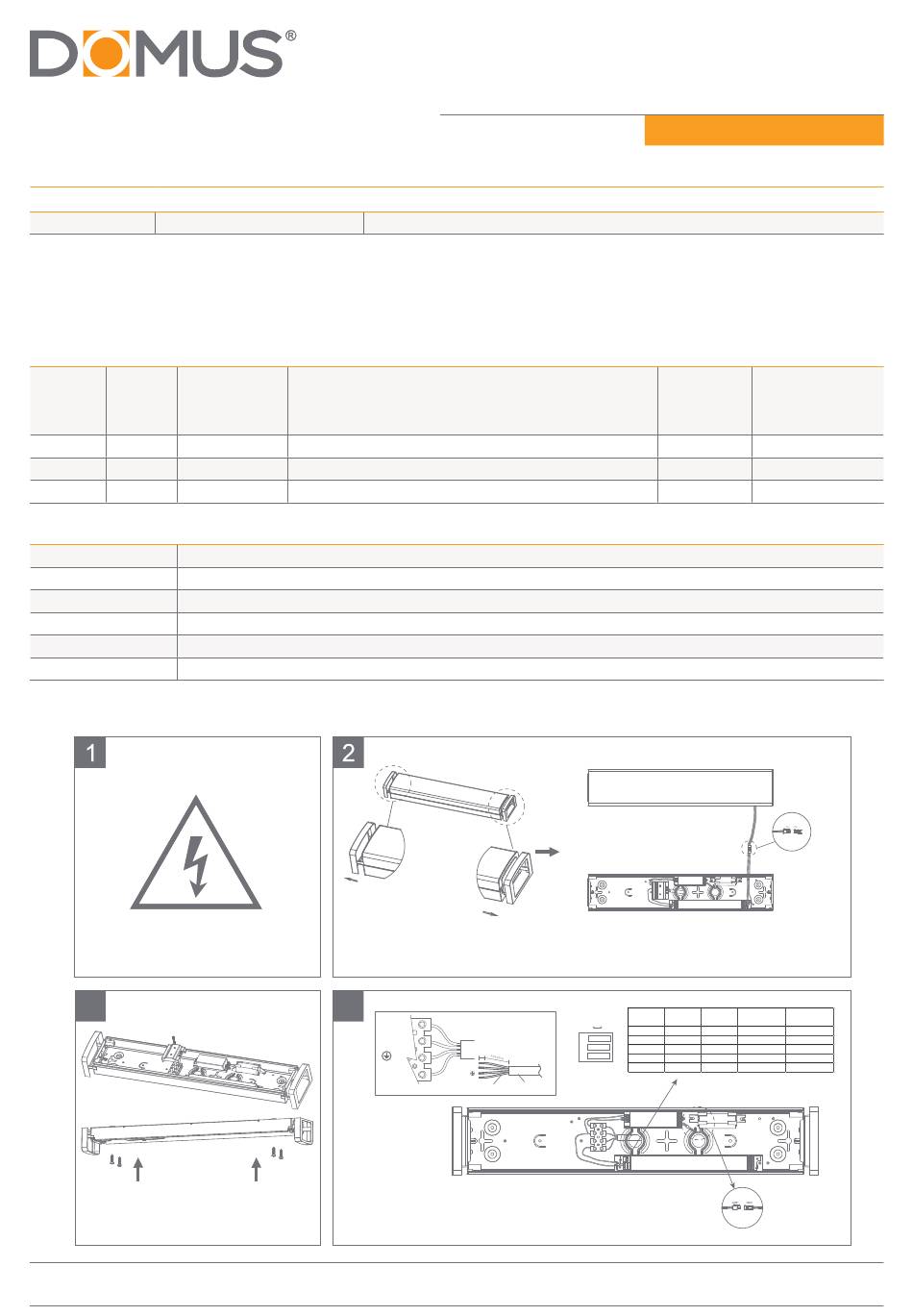

BOLT-EM-60-TRIO
Order Code
Product Code
66007
BOLT-EM-60-TRIO
Thank you for purchasing your new Bolt Emergency LED wide Batten, Please take the time to read and understand the instruction sheet
below. Failure to do so may void warranty.
Note: The light source of this luminaire is not replaceable; When the light source reaches its end of life, the whole luminaire shall be
replaced.
BOLT-EM-60
Voltage:
240V~
Lumen (±10%): (10W-20W) Warm White 3000K - 900lm/1800lm
Power:
10/20W CCT:
IP Rating: 44
Beam Angle:
Frequency: 50Hz
CRI:
Emergency Specification Features
Compliance:
Fully complaint to AS/NZS 2293 standards
Battery:
LiFePO4 battery type, 6.4V, 7 Hour Charging Time, 1.5 Hours Discharging Time
Battery Capacity:
1500 mAh at 0.2 CmA
Emergency:
Sustained
Rated Duration:
90 min
Classification:
C0: D50, C90: D32
Surface Mounted
1.Disconnect mains supply before installation
or removing cover.
3
3. Take down the terminal cover.
Fix the batten base onto the required place
with appropriate screws.
5
Note:
-The lamp must be installed by professional electrician
-Ensure the power supply is switched off before fitting this product
enquiries@domuslighting.com.au | www.domuslighting.com.au
Description
Multi Watt and TRIO technology emergency LED wide batten
(10W-20W) Neutral White 4000K - 1000lm/2000lm
(10W-20W) White 5700K - 1000lm/2000lm
3000K, 4000K, 5700K
120°
≥80
Picture A
2. Remove Packaging, carefully pull end caps as shown in picture A and gently lift off the LED
module. Disconnect terminal A and terminal B.
4
L1
（Un-switched active）
N
L
（switched active）
Terminal block
4. Connect the live, neutral and earth wires as shown.
Then connect terminal C between emergency and battery
6
29-31 Richland St. Kingsgrove. Sydney NSW 2208 Australia
Phone: 02 9554 9600 | Fax: 02 9554 9433
LED MODULE
PIN1
OFF
ON
OFF
1
ON
2
OFF
8±2mm
3
OFF
4X(0.75-2.5mm²)
L1
ON
N
INPUT CABLE
L
Outer insulation
Inner insulation
-Do not touch the lamp when in use
-Keep away from hot steam and corrosive gas
Installation Manual
May 20, 2021
Dimmable:
No
Lifespan:
40,000hrs
Weight:
1.82kg
Power Factor: 0.9
Terminal B
Power for
Power for
PIN2
PIN3
20W
40W
/
OFF
OFF
10W
OFF
OFF
14W
/
20W
ON
OFF
20W
/
OFF
ON
30W
/
ON
ON
40W
Terminal C
