BOLT-EM-120-TRIO
Order Code
Product Code
66006
BOLT-EM-120-TRIO

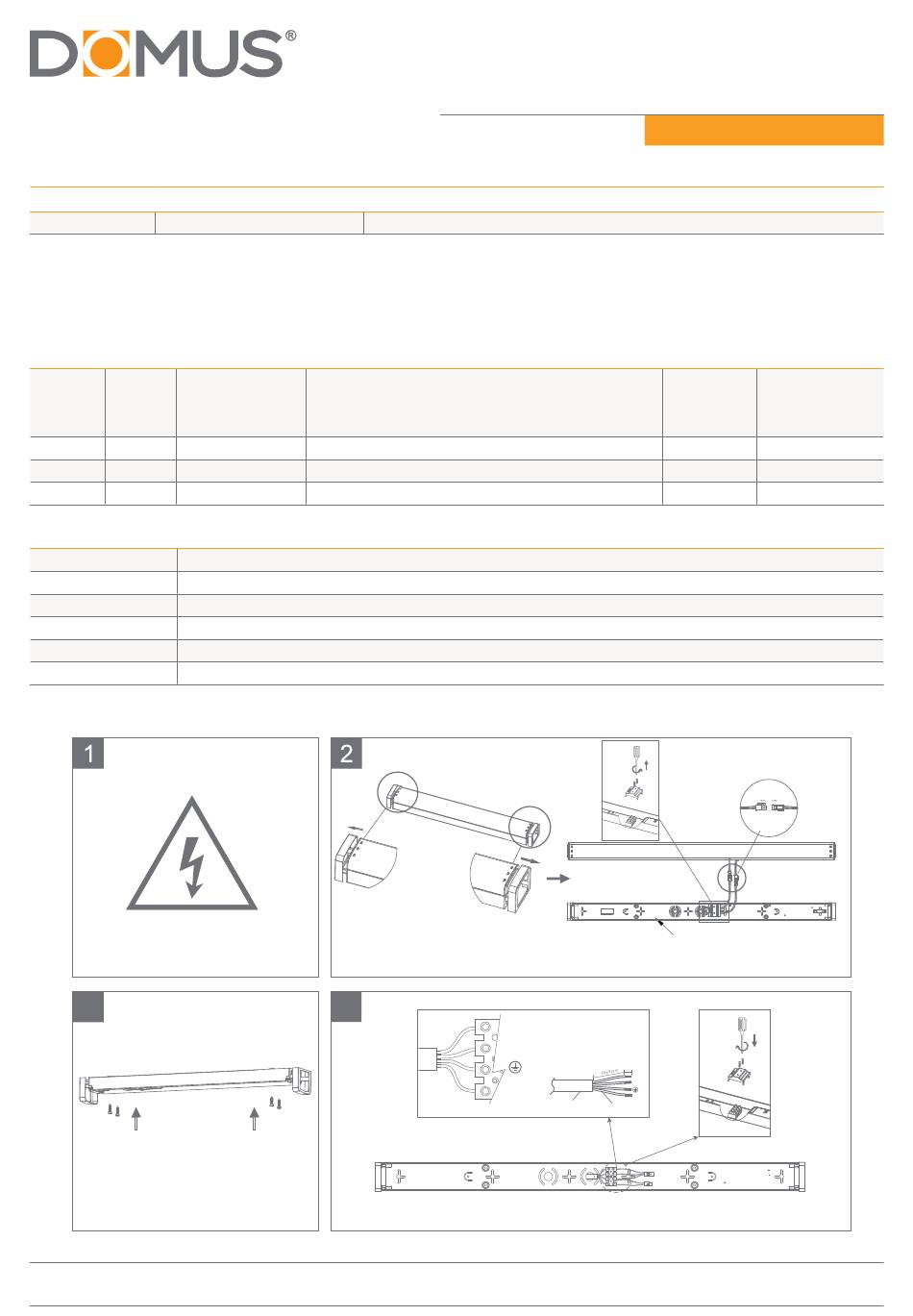

Thank you for purchasing your new Bolt Emergency LED Batten, Please take the time to read and understand the instruction sheet below.
Failure to do so may void warranty.
Note: The light source of this luminaire is not replaceable; When the light source reaches its end of life, the whole luminaire shall be
replaced.
BOLT-EM-120
Voltage:
240V~
Lumen (±10%):
Power:
10/40W CCT:
IP Rating: 44
Beam Angle:
Frequency: 50Hz
CRI:
Emergency Specification Features
Compliance:
Fully complaint to AS/NZS 2293 standards
Battery:
LiFePO4 battery type, 6.4V, 7 Hour Charging Time, 1.5 Hours Discharging Time
Battery Capacity:
1500 mAh at 0.2 CmA
Emergency:
Sustained
Rated Duration:
90 min
Classification:
C0: D50, C90: D32
Surface Mounted
1.Disconnect mains supply before installation
or removing cover.
3
3. Fix the batten base onto the required place
with appropriate screws.
5
Note:
-The lamp must be installed by professional electrician
-Ensure the power supply is switched off before fitting this product
enquiries@domuslighting.com.au | www.domuslighting.com.au
Description
Multi Watt and TRIO technology LED batten
(10W/40W) Warm White 3000K - 900lm/3600lm
(10W/40W) Neutral White 4000K - 1000lm/4000lm
(10W/40W) White 5700K - 1000lm/4000lm
3000K, 4000K, 5000K
120°
≥80
Picture A
2. Remove Packaging, carefully pull end caps as shown in picture A and gently lift off the LED
module. Disconnect terminal A.
4
Terminal block
4. Connect the live, neutral and earth wires as shown.
29-31 Richland St. Kingsgrove. Sydney NSW 2208 Australia
Phone: 02 9554 9600 | Fax: 02 9554 9433
Dimmable:
Lifespan:
Weight:
Power Factor: 0.9
LED MODULE
L1
（Un-switched active）
N
8±2mm
4X(0.75-2.5mm²)
L1
L
N
INPUT CABLE
（switched active）
L
Outer insulation
Inner insulation
-Do not touch the lamp when in use
-Keep away from hot steam and corrosive gas
OFF
ON
1
2
3
Installation Manual
May 20, 2021
No
40,000hrs
2.18kg
Terminal A
BATTEN BASE
Power for
PIN1
PIN2
PIN3
40W
20W
OFF
ON
OFF
OFF
OFF
ON
30W
ON
ON
ON
40W
