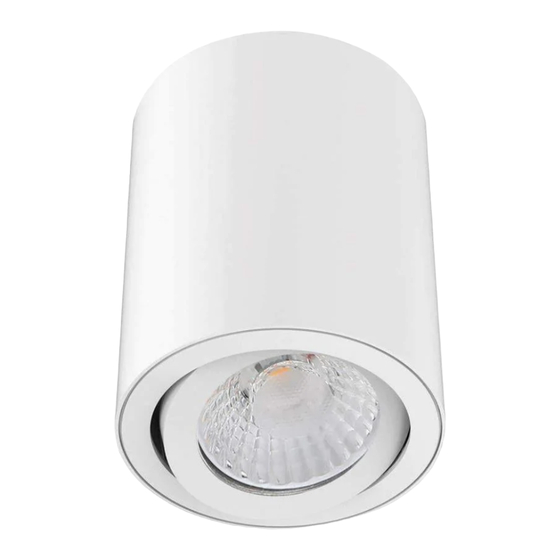

Domus NEO-SM-TILT-10-WHT Installation Manual

NEO-SM-TILT-10 Specifications

Voltage: 240V
Power: 10W
IP Rating: IP20
CRI: ≥80
Thank you for purchasing your new LED NEO-SM-TILT-10, Please take the time to read and understand the
instruction sheet below. Failure to do so may void warranty.
Step 1: Take out the fixtures and
fitting from the carton.
Step 4: Fix the frame to the ceiling
with screws provided.
Note:
-The lamp must be installed by professional electrician
-Ensure the power supply is switched off before fitting this product
enquiries@domuslighting.com
Lumen (±5%): Extra Warm White 2700K - 850lm
Warm White 3000K - 900lm
Neutral White 4000K - 955lm
White 5000K - 1010lm
Beam Angle: 24°/36°/60°
CCT: 2700K - 3000K - 4000K - 5000K
Lifespan: 50,000hrs
Step 2: Loosen the screws on
surface mounted frame.
Step 5: Fix the "L""N""G"into the
terminal block.
29-31 Richland St. Kingsgrove. Sydney NSW 2208 Australia
Phone: 02 9554 9600
Step 6: Screw back the lamp to the frame
-Do not touch the lamp when in use
-Keep away from hot steam and corrosive gas
| Fax: 02 9554 9433
| www.domuslighting.com
Installation Manual
Dimmable:
Operating Temp: -20°C~45°C
Power Factor:
Step 3: Hammer the anchors into the
ceiling according to the hole distance
10W
56mm
20W
80mm
according to step 2, adjust
the lighting direction.
Date: 05/2018
Yes
0.85
