Domus BOLT-60 Installation Manual

BOLT-60/120
Order Code Product Code
66002 BOLT-60-W-W
66005 BOLT-120-W-W
Thank you for purchasing your new LED , Please take the time to read and understand the instruction sheet
below. Failure to do so may void warranty.

Specifications

BOLT-60
Voltage: 240V AC
Power: 10/21W
IP Rating: 44
Frequency: 50Hz
BOLT-120
Voltage: 240V AC
Power: 21/42W
IP Rating: 44
Frequency: 50Hz
Surface Mounted

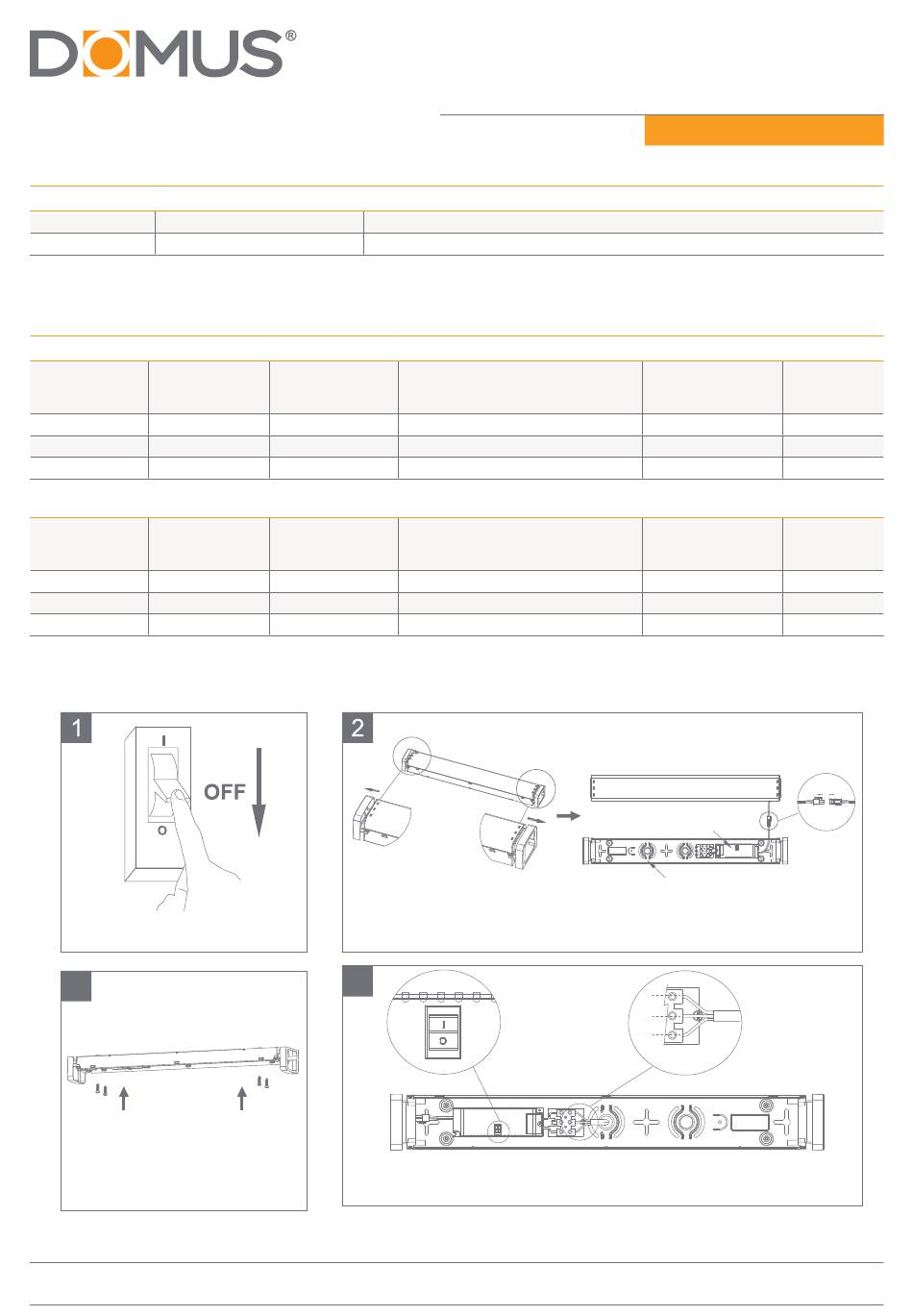

1.Turn off power at mains supply. The unit MUST be
isolated from the supply before installation.
3
3 Fix the batten base onto the required place
with screws.
5
Note:
-The lamp must be installed by professional electrician
-Ensure the power supply is switched off before fitting this product
Description
10/21W LED Batten - White 5000K
21/42W LED Batten - White 5000K
Lumen (±10%): (10W) White 5000K – 850lm
Beam Angle:
CRI:
Power Factor:
Lumen (±10%): (21W) White 5000K – 1750lm
Beam Angle:
CRI:
Power Factor:
2,After unpacking and taking out the batten, pull caps as direction showed to position as Picture A showed;
then pull off LED MODULE from BATTEN BASE and unfasten terminal A between driver and LED MODULE.
4
4.Individually connect the Live wire,Neutral wire and Earth wire into the terminal block; Set the driver switch
to desired setting,and default driver setting is "I" mode.
Spring Connector A
29-31 Richland St. Kingsgrove. Sydney NSW 2208 Australia
Phone: 02 9554 9600
enquiries@domuslighting.com
(21W) White 5000K – 1750lm
120°
≥80
0.9C
(42W) White 5000K – 3500lm
120°
≥80
0.9
Picture A
Dual Power Switch:
I-High power
O-Low Power
-Do not touch the lamp when in use
-Keep away from hot steam and corrosive gas
| Fax: 02 9554 9433
| www.domuslighting.com
Installation Manual
Dimmable:
CCT:
Lifespan:
Current:
Dimmable:
CCT:
Lifespan:
Current:
LED MODULE
DRIVER
BATTEN BASE
N
E
L
Terminal block
6
No
5000K
40,000hrs
118mA
No
5000K
40,000hrs
236mA
Terminal A
