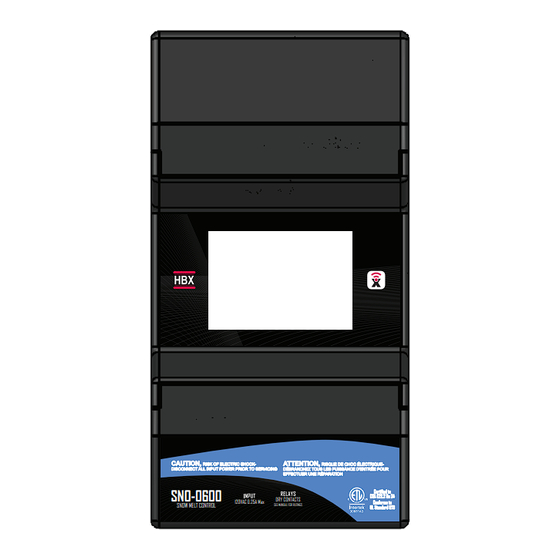

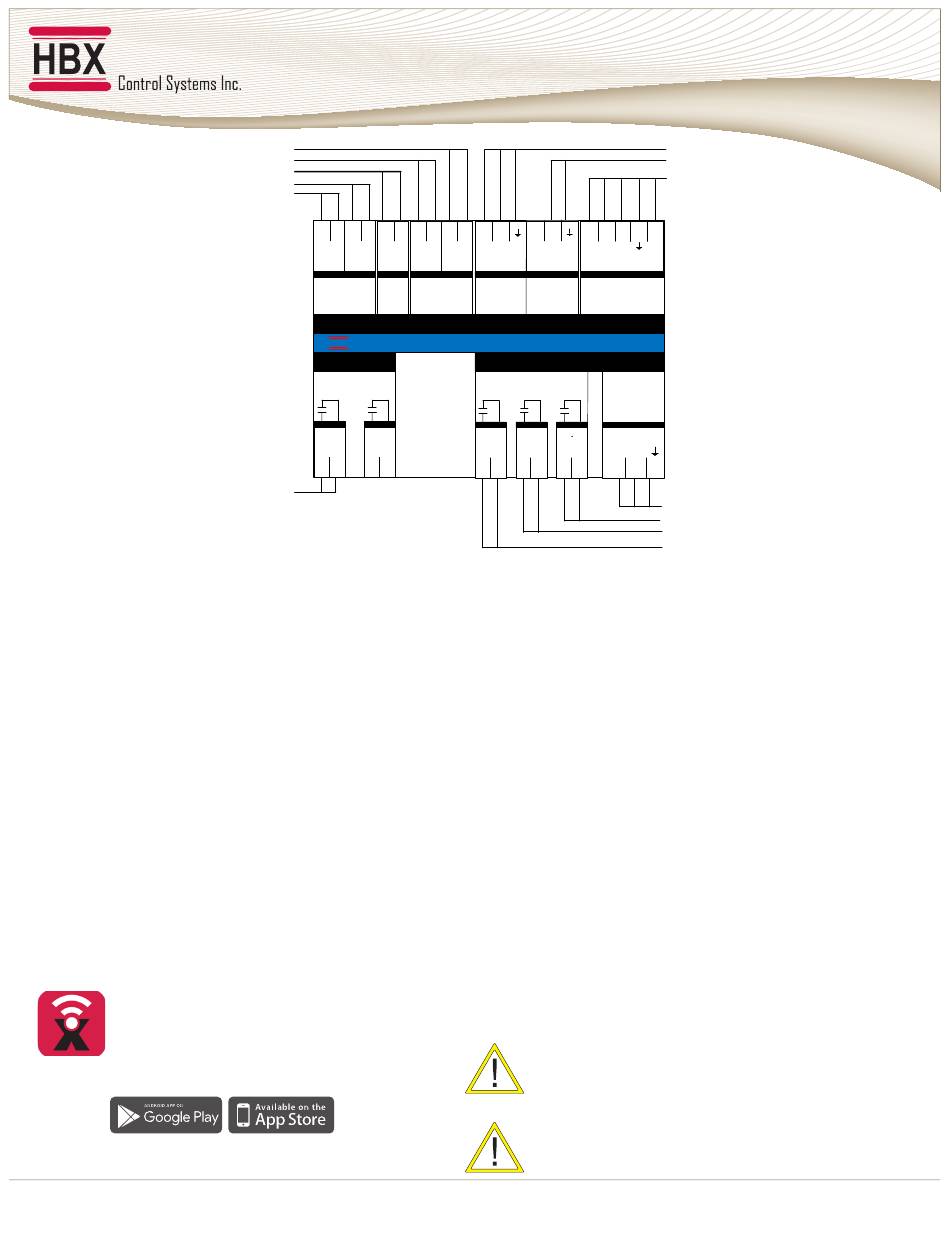

HBX SNO-0600 Quick Start Manual

1. DEMAND OUTPUTS

1,2: Dry contact 24VAC max
3,4: Dry contact 24VAC max

2. MODULATING OUTPUT

5,6: For modulating boiler or mixing device 0-10V DC
output

3. DEMAND INPUTS

7,8: IDLE SLAB DEMAND INPUT Apply a snow melt
demand from a dry contact to initiate an Idle demand.
9,10: MELT SLAB DEMAND INPUT Apply a snow melt
demand from a dry contact to initiate an melt
demand.

4. SENSOR INPUTS

11, 13: System Supply Sensor – Brass strap on sensor, to
be installed on the supply to the snow melt manifold
12, 13: Return Sensor – Brass strap on sensor, to be
installed on the return to the snow melt manifold.
15, 16: Outdoor temperature.

5. SNOWMELT OPTICAL SENSOR

17, 18, 19, 20, 21: Snow Melt Sensor: Green (17), Red
(18), White (19), Black (20), Shield (21)
SensorLinx Mobile App
TM
The Sensorlinx mobile app is available for Apple iOS (APP Store) and
TM
Android® devices (Google Play). The mobile app allows for remote
monitoring and control for HBX Controls devices.
Now available on the Apple App Store and Google Play
Page 1
Demand In 2
Demand In 1
Modulation Output
Demand Output 2
Demand Output 1
1 1 2 2 1 1
DEM 2 MOD
DEM 1
1 2 3 4
5 6
Mod
Demands
Output
SNO-0600
HBX
Class 2 Circuits
Staging Output
1 2 3 4
Boil 1 N/A
1 1 2 2
Boiler Output
1 2 3 4 1 2 3 4 1
SG PW TM
7 8 9 10 11 12 13 14 15 16 17
Demand In
Sensor 1 Sensor 2
Class 2 Circuits
SNOW MELT CONTROL
DO NOT CONNECT
POWER HERE
5A 5A 5A
5 6 7 8 9 10
Aux 1 Aux 2 Aux 3
1 1 2 2 3 3

6. BOILER CONTACT

1, 2: Boiler Contact: Boiler enable contact
3,4: Non-Applicable: This contact does not have any
functionality and may used in a future upgrade. Do
not install anything to this contact.

6. AUXILIARY OUTPUTS

5, 6: Aux 1 - Can be used as an system pump,
Floating action valve up, floating action valve down,
pump test, App
7, 8: Aux 2 – Can be used as an Injection pump,
system pump, Floating action valve up, floating
action valve down, pump test, App
9, 10: Aux 3 - Can be used as an system pump,
Floating action valve up, floating action valve down,
pump test, App

7. INPUT POWER

11, 12, 13: This input is to power the SNO-0600. 0.25
Amps at 120 VAC is required to power this device
HAVING TROUBLE CONNECTING?
WI-FI
Devices must be connected to a 2.4Ghz network
NETWORKING
Verify that outgoing port 1700 is not blocked on
the network or router
H B X S N O - 0 6 0 0 S n o w m e l t C o n t r o l
Sensor Inputs 1
Sensor Inputs 2
Snow Sensor Inputs
2 3 4
5
S
18 19 20 21
Snow Sensor
SNO-0600
Input Power
11 12 13
POWER
120
L N GR
Supply Power 120 VAC
Auxiliary Output 3
Auxiliary Output 2
Auxiliary Output 1
V e r s i o n 1 . 0 . 0
