Summary of Contents for ADX FIREFIGHT WIRELESS 23

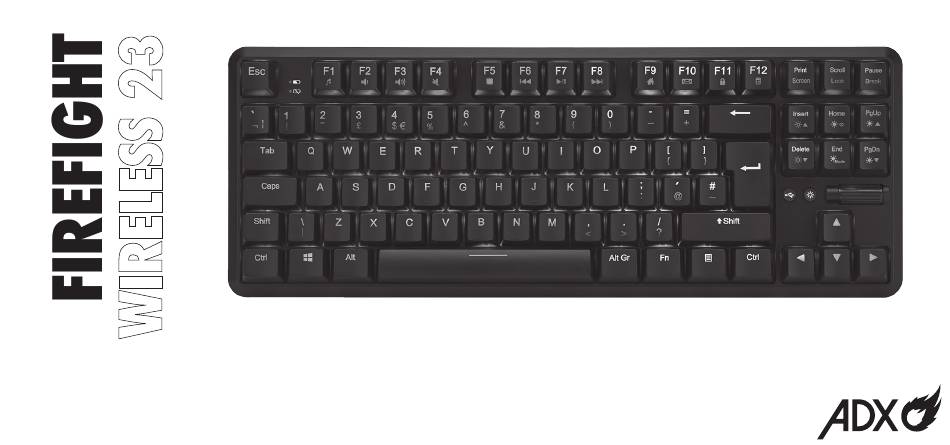

- Page 1 RGB WIRELESS TKL MECHANICAL GAMING KEYBOARD INSTRUCTION MANUAL ADXWMK0923...
-
Page 2: Table Of Contents
Contents Safety Warnings ..............3 Customising the Backlight Effect ........15 Unpacking ................8 Software Installation ............16 System Requirements ............8 User Interface ..............17 Function Keys ..............9 User Interface - Customise ..........18 Front View ..................9 User Interface - Light ............19 Bottom View ................ -
Page 3: Safety Warnings
Safety Warnings • Read all the instructions carefully before using the unit and keep them for future reference. • Retain the manual. If you pass the unit onto a third party, make sure to include this manual. • Do not disassemble the keyboard or remove any parts. •... - Page 4 the wireless device. • Wireless devices can transmit radio frequency (RF) energy, whenever batteries are installed and the wireless device is turned on (If it has an On/Off switch). Temperature • Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas / electric fires.
- Page 5 • Do not operate the product if it has been wet or otherwise damaged, to prevent against electric shock, explosion and/or injury. Contact the dealer or authorized agent. • Disposal of battery into fire or a hot oven, or mechanically crushing or cutting of a battery, can result in explosion. •...
- Page 6 high, your batteries may be damaged. • When the product is charging, keep it away from direct sunlight, moisture, dirt or abrasive chemical products (cleaning products etc.). • Battery life and charge cycles may vary by use and settings. Built-in Battery Care •...
- Page 7 fresh. • The unit should be fully recharged after using the device each time. This will keep the lifetime of the battery. Battery Warning! • The battery used in this product may present a risk of fire or chemical burn if mistreated. •...
-
Page 8: Unpacking
Unpacking Thank you for purchasing your new Remove all items from the packaging. Retain the product. packaging. If you dispose of it please do so according to We recommend that you spend some time reading local regulations. this instruction manual in order that you fully The following items are included: understand all the operational features it offers. -
Page 9: Function Keys
Function Keys Dongle Front View Battery Charging Indicator Light up red while charging Low Battery Indicator Flash blue in low battery USB Type-C Socket Print Scroll Pause Screen Lock Break Connect the cable to your computer for charging and Insert Home PgUp –... -
Page 10: Bottom View
Bottom View Keyboard Stand Feet Battery Power ON/OFF Switch Switch to ON position to use built-in battery power. -
Page 11: Charging The Keyboard
Charging the Keyboard Fully charge the unit before first use. 1. Plug the USB A to Type C cable (included) into the USB USB A to Type C Cable (included) Type-C socket of the unit. 2. Connect the other end of the cable into the USB 3.0 Laptop port of your laptop or computer (not included). -
Page 12: Wired Connection
Wired Connection Wireless Connection 1. Connect the unit with the provided USB cable with your Fully charge the unit before using in wireless mode. computer (not included). 1. Switch the Battery Power ON/OFF Switch at the 2. Press the button to switch the unit in wired mode. bottom of the unit to ON position. -
Page 13: Function Keys
Function Keys Mute sound Stop playback To access these functions, press the FN Key and the desired Back to previous track key together. Play/pause track Go to next track Print Scroll Pause Screen Lock Break Start the default Web browser and load the Insert Home PgUp... -
Page 14: Backlight Effect
Backlight Effect Print Scroll Pause Screen Lock Break Insert Home PgUp – ¬ £ € & ¦ To access these functions, press the Fn Key and the desired Delete PgDn key together. Caps ´ ˜ Shift Shift Adjust the backlight flashing <... -
Page 15: Customising The Backlight Effect
Customising the Backlight Effect You may customise the backlight for each button. 1. Press Fn + repeatedly to select customise backlight mode. Buttons WASD will light up as the first time. 2. Press and hold Fn + to enter backlight setting mode. -
Page 16: Software Installation
3. Run the software installer (ADX HUB 2 Setup.exe). 4. Follow the installation instruction to complete the installation. 5. Choose ADX HUB 2.exe from the desktop to start the software. The software is not available for MAC OS. Software operation can only be used in Wired Connection mode. -
Page 17: User Interface
User Interface 1. Choose ADX HUB.exe from the desktop to launch the software. 2. Select “Keyboard“ and then “ADXWMK0923“ in the connected device menu to enter the interface. -
Page 18: User Interface - Customise
User Interface - Customise 1. Select Customise, and then select your customised settings. 2. After settings, you may save your own preference in the Profile menu. 3. Select “Apply“ to implement your settings, or “Reset” to reset all settings. -
Page 19: User Interface - Light
User Interface - Light 1. Select Light to enter the Lighting Settings menu. 2. Choose your preference among the below: Mode • Brightness • • Speed Color Mode • 3. Select “Apply“ to implement your settings, or “Reset” to reset all settings. -
Page 20: User Interface - Macro
User Interface - Macro 1. Select Macro, and then “+“ to create a New Macro Command. 2. Press Start Recording. 3. After recording your input command, press Stop Recording. 4. You may edit your recorded commands on the right menu. 5. -
Page 21: User Interface - Light Effect
User Interface - Light Effect If one more ADX gaming device is connected, you may synchronize their light effects. 1. Select Light Effect, and the devices you want to apply the light effect. 2. Select your preferred Lighting Settings (Mode, Brightness and Speed). -
Page 22: Hints And Tips
Hints and Tips Wireless Mode Wired Mode • Recharge the unit if it no longer reacts to input. • Restart the computer. • Make sure the Dongle is plugged into a USB port and • Make sure the USB plug is fully plugged into a USB port the computer is on or try the Dongle in a different USB and the computer is on or try to use a different USB port. -
Page 23: Specifications
Specifications Keyboard Battery Model ADXWMK0923 Model ARS3034120 Rated Input DC 5V 900mA Battery Type DC 3.7V 1000mA Wireless Frequency 2.4GHz Battery Rating 3.7V 1000mAh 3.7Wh Operating Range <8m (open space) Number of Battery Frequency Band(s) 2403-2482 MHz Designation Code 1ICP4/35/51-2 Max. - Page 24 The symbol on the product or its packaging indicates that Windows is a registered trademark of Microsoft Corporation in the this product must not be disposed of with your other United States and other countries. household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a All trademarks are the property of their respective owners and all designated collection point for the recycling of waste...
- Page 25 Declaration of Conformity (RED) Hereby, Currys Group Limited declares that the radio equipment type [ADXWMK0923] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.currys. co.uk/ Currys Group Limited (co. no. 504877) Visit Partmaster.co.uk today for the 1 Portal Way, London, W3 6RS, UK easiest way to buy electrical spares...
