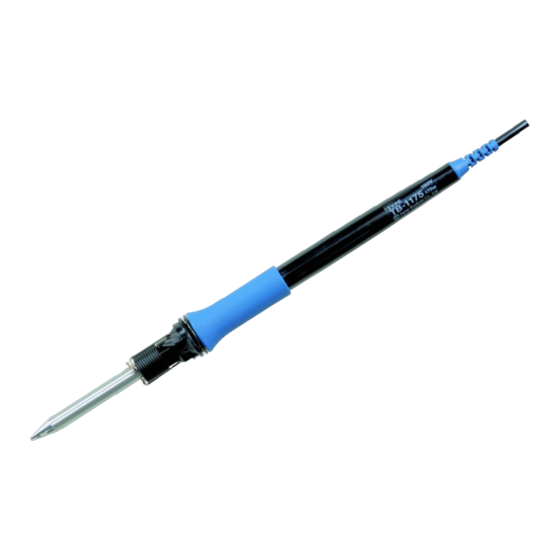

- Page 1 ＰＡＴＲＩＯＴ TB-1175 / 2175 LA method soldering iron User’s manual Issued in July 2017 The 2 edition JAPAN BONKOTE CO LTD.
- Page 2 1．Preface Thank you very much for purchasing [TB-1175/2175] LA method soldering iron unit. Please read this instruction manual before using this equipment, and handle it properly. Save this manual for future reference. 2．Notes for safety CAUTION ! ！ Read the following precaution before use. ...
- Page 3 4．How to replace a tip and a heater ① Turn off the power and wait until the iron tip cools down to the safe temperature. ② Unlock the lock-wire. ③ After confirming the iron tip becomes cool enough, hold the plastic area of iron tip and pull straight it out from the iron grip.
- Page 4 SV screen by pushing △key and ▽key . [K-type] , indicate Push key 7-times to return to the operation mode again. Operation mode ⇒ Set Up mode Set Up mode Operation mode ⇒ ⇒ Japan Bonkote Co., Ltd. ☏ +81-29-241-2725 ✉ info@bonkote.co.jp...
