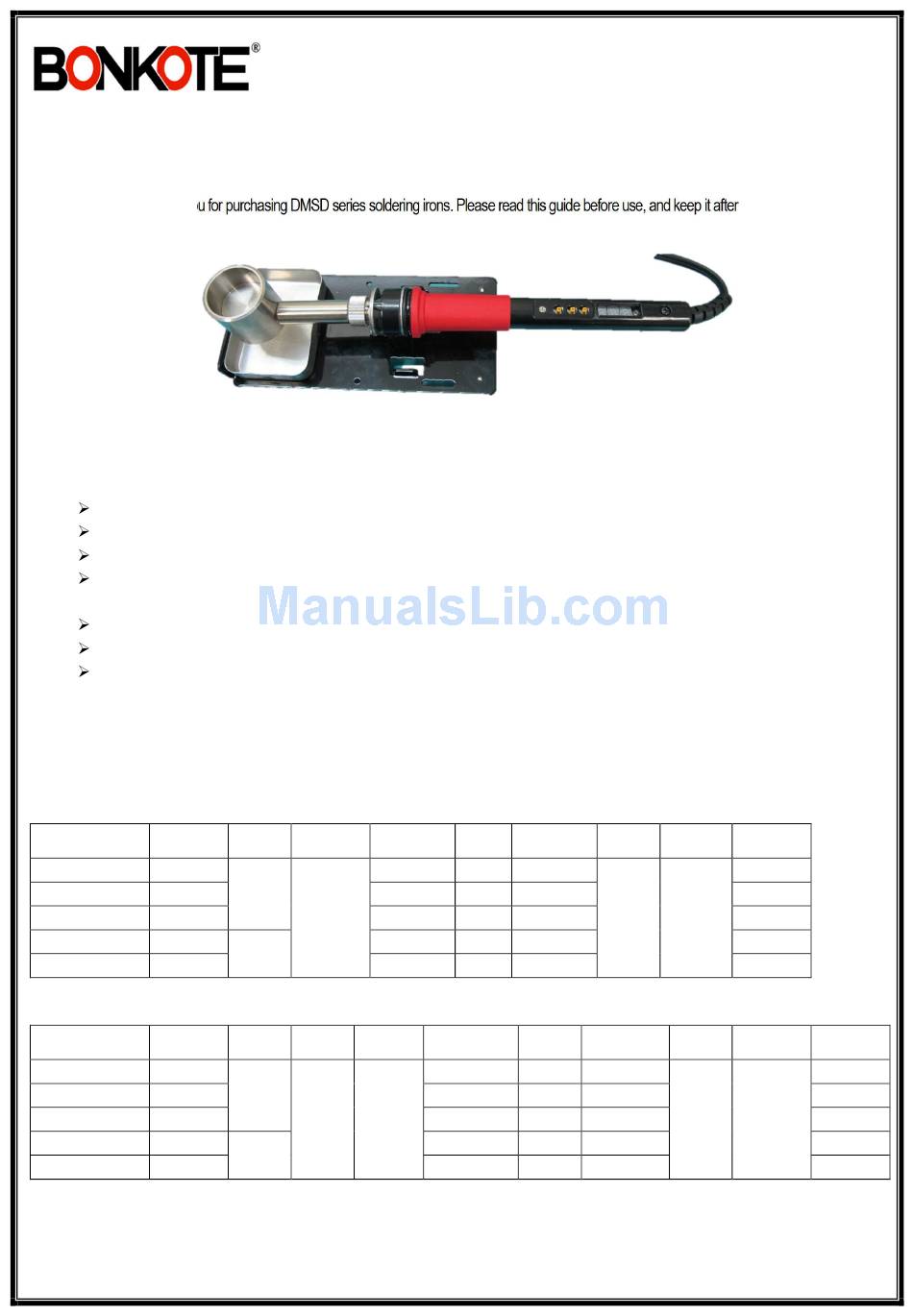

BONKOTE DMSD-140-10 User Manual

DMSD Digital Mini solder Pot User's Guide
Thank you for purchasing DMSD series soldering irons. Please read this guide before use, and keep it after read.

CAUTION

Do NOT touch the soldering irons with wet hands to prevent electrical accidents such as an electrical shock. .
Do NOT touch the iron tip and the heater anytime when the power is on. Keep them away from flammable materials.
Keep the soldering iron unplugged after the operation.
Do NOT take a part or modify the soldering iron except for replacement or maintenance.
Otherwise, it may cause a fire, a failure or an electric shock.
When the replacement of the parts is needed, unplug the soldering iron and make sure it cooled down.
For the replacement of the parts, use the genuine parts only. Otherwise, it may cause a failure or an accident.
Do NOT use the soldering iron for anything other than the regular soldering operation.

SPECIFICATIONS

◆ ◆ ◆ ◆ 2 PIN PLUG ( TYPE A or C )
Power
Model No.
consumption
DMSD-140-10 40W
DMSD-165-15 65W
DMSD-1100-30 100W
DMSD-240-10 40W
DMSD-2100-30 100W
◆ ◆ ◆ ◆ 3 PIN PLUG ( TYPE B or I )
Power
Model No.
consumption
DMSD-140-10 40W
DMSD-165-15 65W
DMSD-1100-30 100W
DMSD-240-10 40W
DMSD-2100-30 100W
Input Insulation Standard mini
voltage resistance pot
SG10-DP10
100VAC SGP10-DP15
20MΩ ≦ SG12-DP30
SG10-DP10
220VAC
SG12-DP30
Input Leak Earth line
voltage voltage resistance
100VAC
≦ 2.0mV ≦ 2.0Ω
(default) (default)
220VAC
※ ※ ※ ※ Weight and Length exclude a power cord.
Dimensions
Weight
W * L* H
465g 80 * 285 * 60
490g 80 * 285 * 60
620g 80 * 285 * 67
465g 80 * 285 * 60
620g 80 * 285 * 67
Standard mini Dimensions
Weight
pot W * L* H
SG10-DP10 465g 80 * 285 * 60
SGP10-DP15 490g 80 * 285 * 60
SG12-DP30 620g 80 * 285 * 67
SG10-DP10 465g 80 * 285 * 60
SG12-DP30 620g 80 * 285 * 67
Control Temp. I.D.
Method range Mini pot
φ 10 x 10D
φ 15 x 10D
0 volt
Switch 50~500℃ φ 30 x 18D
P- control
φ 10 x 10D
φ 30 x 18D
※ ※ ※ ※ Weight and Length exclude a power cord.
Control
Temp. range
Method
0 volt
Switch 50~500℃
P- control
I.D.
Mini pot
φ 10 x 10D
φ 15 x 10D
φ 30 x 18D
φ 10 x 10D
φ 30 x 18D
