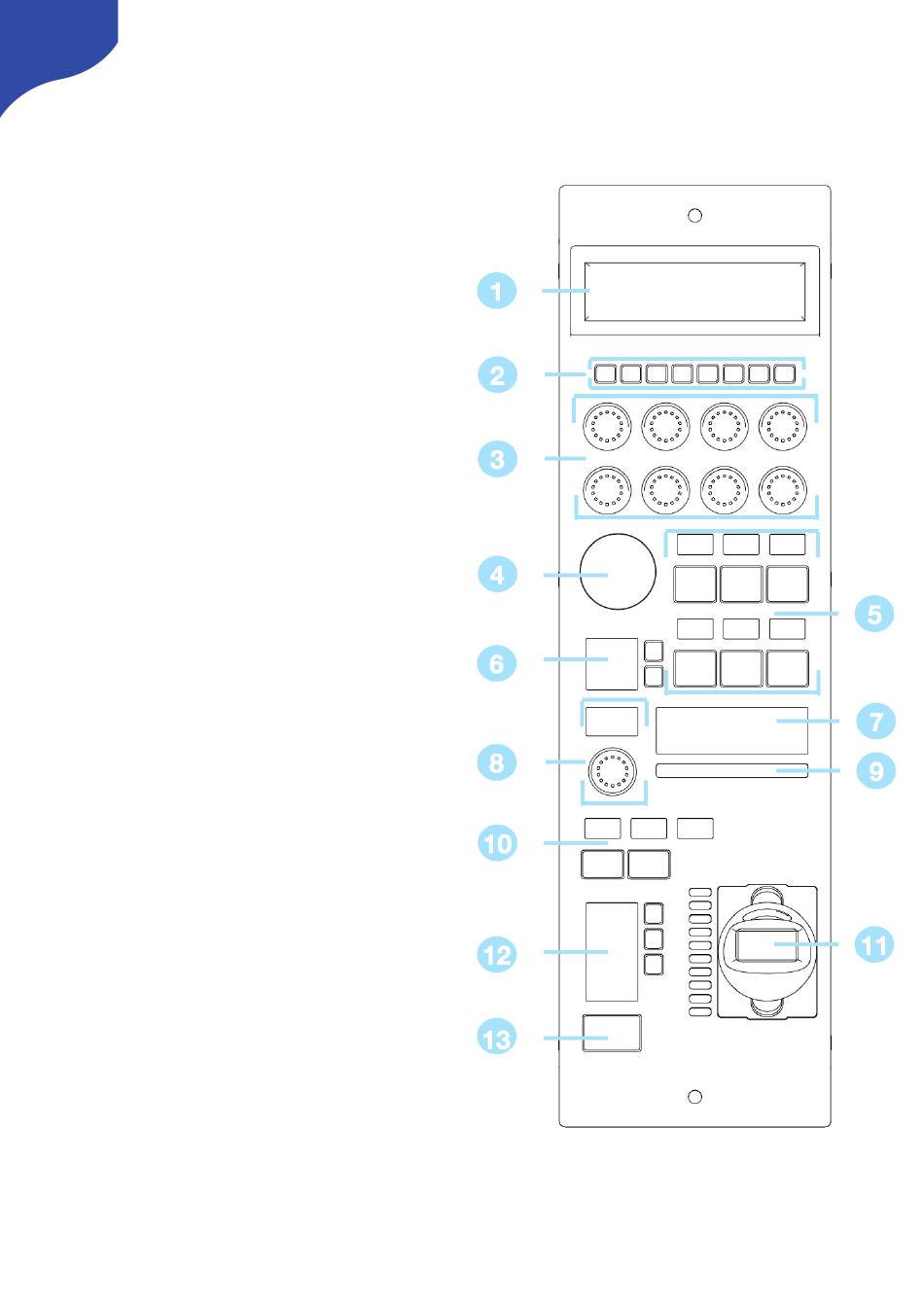

Controller Diagram
Top
1. Large tilted display with 8 tiles. Functions
associated with encoders from group 3
2. Preset/Camera Select
3. 8 rotary encoders with RGB backlight for
function identification
4. Elastomer joypad
5. Group of 6 4-way buttons with associated
displays
6. 2 small buttons with associated display
7. Camera ID display
8. Pedestal
9. Tally bar
10. 2 4-way buttons with associated displays
11. Joystick with master black ring, push button,
and large iris display
12. 3 small buttons with associated display
13. 4-way button for Preview
5
