SKAARHOJ B4 Links
SKAARHOJ B4 Links

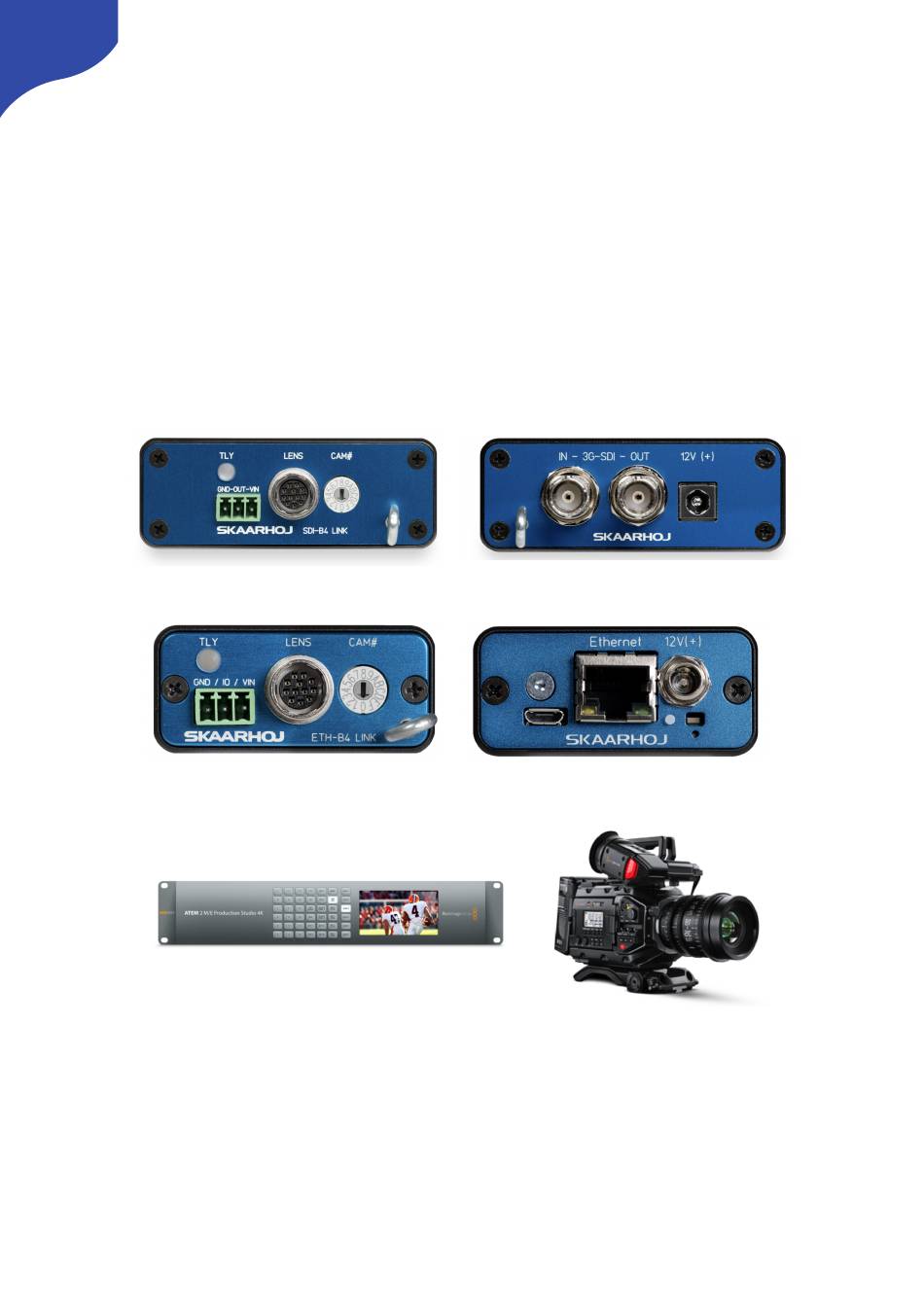

The SKAARHOJ B4 Links are used for remote control iris on B4 lenses connected to BMD cameras. There
are two models available the Eth-B4 Link which communicates via UDP connection from a networked
Skaarhoj controller (TCP when using with Blue Pill devices) and the SDI-B4 Link which receives iris
command from a 3G SDI feed from either a Blackmagic Atem or another SKAARHOJ controller.
1
Advertisement
Table of Contents
Troubleshooting
Related Manuals for SKAARHOJ SDI-B4
Summary of Contents for SKAARHOJ SDI-B4
-
Page 1: Skaarhoj B4 Links
SKAARHOJ B4 Links SKAARHOJ B4 Links The SKAARHOJ B4 Links are used for remote control iris on B4 lenses connected to BMD cameras. There are two models available the Eth-B4 Link which communicates via UDP connection from a networked Skaarhoj controller (TCP when using with Blue Pill devices) and the SDI-B4 Link which receives iris... -
Page 2: Table Of Contents
SKAARHOJ B4 Links SKAARHOJ B4 Links Introduction Eth-B4 Link Port Information SDI-B4 Link 3G SDI Shield Information Set Up SDI-B4 Link Eth-B4 Link Eth-B4 Link Configuration Updating Firmware SDI-B4 Link Eth-B4 Link Confirm Firmware Version Change Log SDI-B4 Link Firmware Change Log... -
Page 3: Introduction
1-10 by multi-position switch. SDI input passed through on SDI out. The Eth-B4 Link is similar to the SDI-B4 Link but the data input is via network instead of SDI. The protocol is also Blackmagic Camera Control, but over UDP (“UDP Camera Control”) and typically served by a SKAARHOJ controller. -
Page 4: Set Up
SKAARHOJ B4 Links Set Up SDI-B4 Link Eth-B4 Link... -
Page 5: Eth-B4 Link Configuration
SKAARHOJ B4 Links Eth-B4 Link Configuration IP Config Method 1 Set the IP address on the web interface of the Eth-B4 Link. In order to access the web interface press and hold the “config” button on the device, about 10 seconds. The status LED will turn solid green. -
Page 6: Updating Firmware
Updating Firmware SDI-B4 Link Access to USB micro plug On the SDI-B4 Link units, a micro usb plug for upgrading purposes is located inside the enclosure. In order to gain access to it, one side panel must be removed: Step 1:... - Page 7 • Download and install our Deprecated Firmware Updater Application for Mac or PC: https:// www.skaarhoj.com/support/deprecated-firmware-app (Version 2.4.1 or higher is required) • Download the .hex firmware (SDI-B4 Link V1.1) file on https://www.skaarhoj.com/support/standalone- firmwares, “SDI-B4 Link” Step 1 Select “Load firmware from file”...
-
Page 8: Eth-B4 Link
The function “Load Firmware from File” is in the Options tab in the Firmware Application. The function is used to for the Eth-B4 Link. Please note that though the SKAARHOJ Firmware Updater is needed to do firmware updates, DO NOT use “Update Firmware” in the Firmware Application as this will render the firmware on the device useless. -
Page 9: Confirm Firmware Version
SKAARHOJ B4 Links Confirm Firmware Version SDI-B4 Link The current firmware version loaded onto the SDI-B4 Link can be seen in the serial monitor when the device boots up. Eth-B4 Link The current firmware version loaded onto the Eth-B4 Link can be seen in the serial monitor when the... -
Page 10: Change Log
SKAARHOJ B4 Links Change Log SDI-B4 Link Firmware Change Log v1.1 Added Iris-F support. The mapping used is 1.50-9.0 in the equation used in camera documentation • v1.0 Initial release • Eth-B4 Link Firmware Change Log v1.0.2 Added BMD TCP mode for working with Blue Pill •... -
Page 11: B4 Link Hardware Interface
Please be aware you might expect vignetting depending on your lens, the sensor size and the type of mount adaptor used. SKAARHOJ takes no responsibility in this regard. Check with your camera/lens supplier. -
Page 12: Tally
Camera Select Dial Dial Position Function Serial Monitor Feedback SDI-B4: Deactivate SDI-B4: Camera Selector: 0 - Turned OFF Eth-B4: Web Server Eth-B4: Camera Selector: 0 - Web server Enabled Find your SKAARHOJ device at: X.X.X.X Camera Select 1-12 Camera Selector: 1-12 Normal Mode... -
Page 13: Unisketch Configuration
If the IP address is 0.0.0.0, control packages will get sent over the SDI output, if the IP address is filled in, the packages will be sent to that IP address (and we assume there sits a SKAARHOJ ETH-SDI Link or ETH- B4 Link box ready to receive the information). -
Page 14: Troubleshooting
SKAARHOJ B4 Links Troubleshooting Error on Check: Your controller is not yet registered After pressing Update Firmware a message from the Firmware Updater stating that the connected controller is not fully registered yet may pop up. The B4 Links use Stand Alone firmware and are not updated through the “Update Firmware”... -
Page 15: Controller Not Confirming Connection
Try power cycling the B4 Link. It can connect better when powered after the other Skaarhoj controller. Check the IP Settings Make sure the IP for the Device Core in the connected SKAARHOJ controller is set to the same IP address as the Eth-B4 Link. -
Page 16: Network Recommendations
Remember a SKAARHOJ controller and client must be on the same subnet (192.168.10.* or one you set up in the controller). If you have multiple SKAARHOJ units connected to the same network they need to have different IP addresses! Power over Ethernet (PoE) Specifications... -
Page 17: Weee Information
SKAARHOJ B4 Links WEEE Information For private households: Information on Disposal for Users of WEEE Figure 1 This symbol (figure 1) on the product(s) and / or accompanying documents means that used electrical and electronic equipment (WEEE) should not be mixed with general household waste. For proper treatment, recovery and recycling, please take this product(s) to designated collection points where it will be accepted free of charge.
