Controller Use

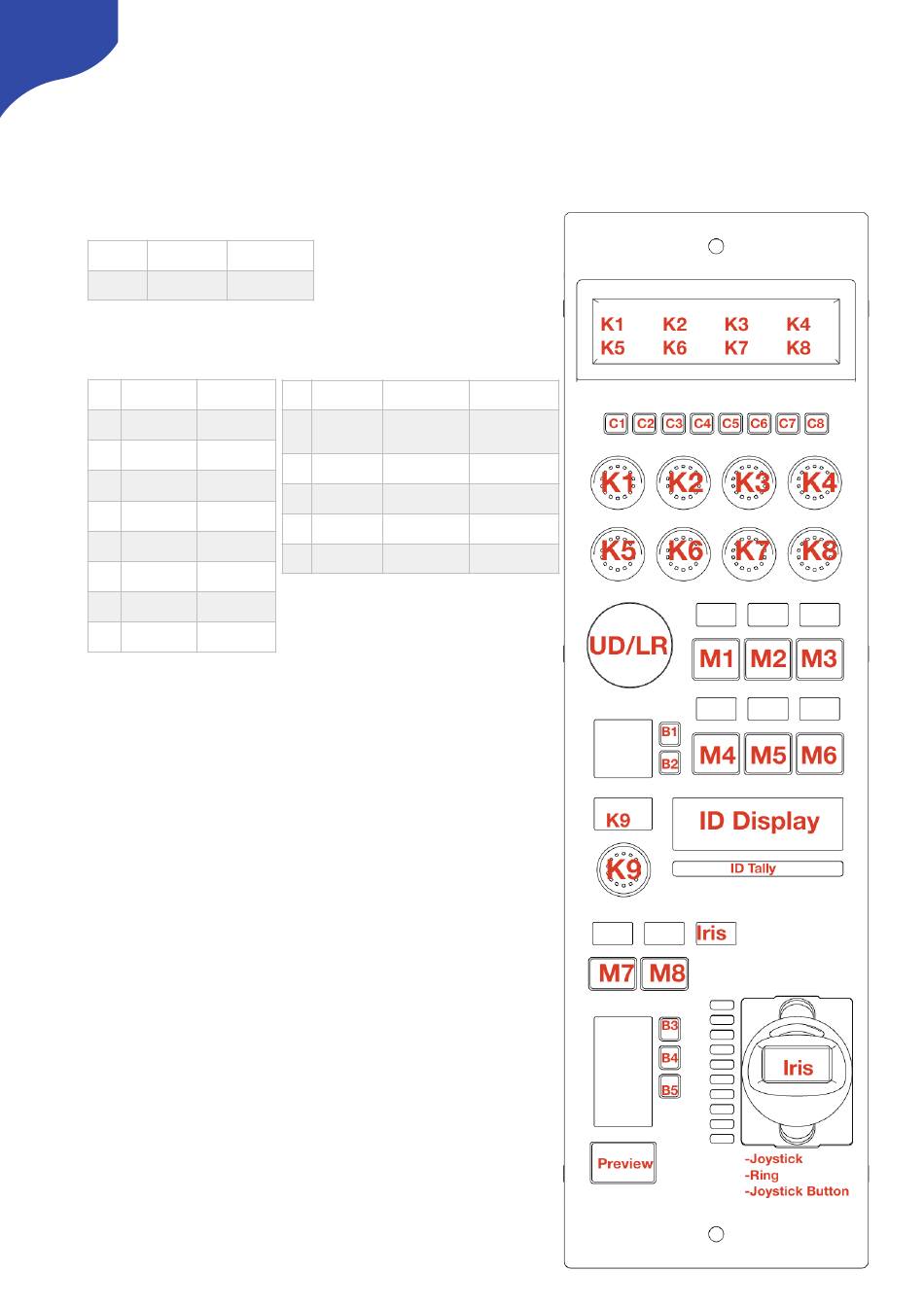

Overall the controller has seven Menus. To change between the menus press M1- M6 and a shift
accessible ENG menu. It is necessary to press SHIFT then select a camera for use, by default no camera is
selected.
C1-C8
Default Shifted
C1-C8
Paint Preset Camera Select
UD/LR
Pan/Tilt
M1-M6
Menu 1 Menu 2
M1
Home Focus
M2
Exposure Zoom
M3
Color Preset
M4
Details System
M5
Matrix -
M6
Menu Pages Menu Pages
M7
Exec WB A Exec WB A
M8
Exec WB B Exec WB B
ID Display
Displays camera name set in the Reactor UI Camera Selector
ID Tally
Lights white by default, red when pins on DB9 connector
is set
Iris
Displays Iris value
Preview
Hold down: Activates "Preview" relay on DB9 connector
LED Bar
Indicates Iris value
Joystick
Controls iris value
Ring
Master Pedestal
Joystick Button
Activates "Preview" relay on DB9 connector
B1-5
Default Shifted
B1 Connection Connection
Status Status
B2 OS Focus OS Focus
B3 Panel Lock Eng. Menu On
B4
Tally Tally
B5
Shift Shift
14
Eng. Menu
Reset Sleep
Sleep Now
Eng. Menu Off
-
Shift
