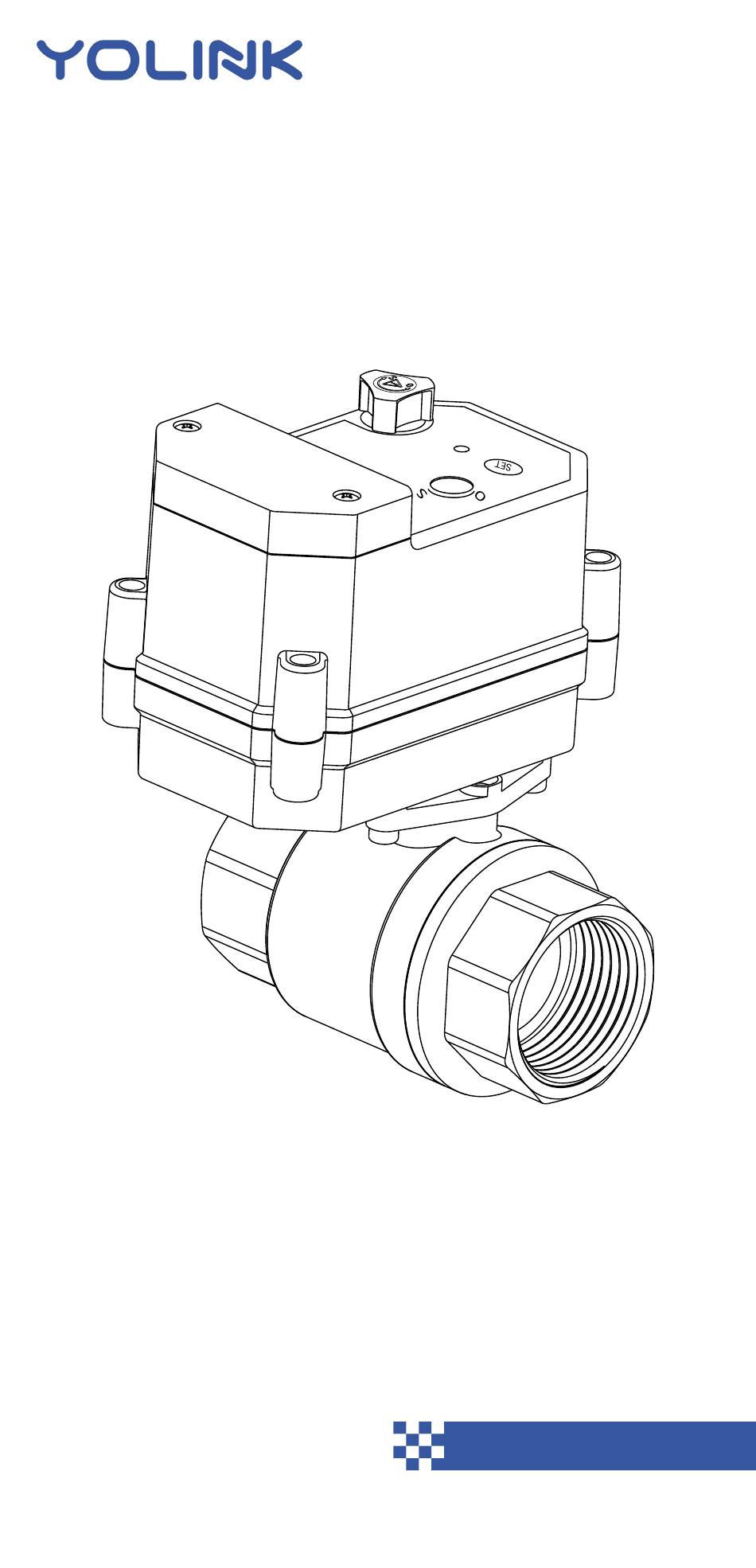

- Page 1 Smart Motorized Valve YS5002-UC Installation & User Guide Revision Dec. 16, 2022...
-
Page 2: Table Of Contents
Contents . Welcome! . Before You Begin . In the Box . Required Items . Get to Know Your Smart Motorized Valve . Install the App . Add Your Valve to the App . Installation . About Control-D2D . Using the App & 3rd-Party Services . -
Page 3: Welcome
Welcome! Thank you for purchasing YoLink products! We appreciate you trusting YoLink for your smart home & automation needs. Your 100% satisfac- tion is our goal. If you experience any problems with your installation, with our products or if you have any questions that this manual does not answer, please contact us right away. - Page 4 The Smart Motorized Valve can be installed on CPVC or PEX pipe using the appropriate male NPT thread to compression or push-fit copper, CPVC or PEX adapters. YoLink recommends SharkBite brand fittings. Visit sharkbite.com or find additional information on our Smart Motor- ized Valve Support page.
-
Page 5: In The Box
In the Box Motorized Valve Model:YS5002-UC Battery: AA x 2 FCC ID: 2ATM75002 Made in China PULL UP BEFORE MANUALLY OPEN/SHUT Smart Motorized Valve Batteries (Installed) Required Items These tools or items may be required: Pipe Wrench Locking Pliers Copper Pipe... -
Page 6: Get To Know Your Smart Motorized Valve
Get to Know Your Smart Motorized Valve The YoLink Smart Motorized Valve is a motor- ized valve with an integrated YoLink valve con- troller. To get to know your new Smart Motorized Valve, refer to the illustrations below. Manual Control Knob... -
Page 7: Install The App
Install the App If you are new to YoLink, please install the app on your phone or tablet, if you have not already. Otherwise, please proceed to the next section. Scan the appropriate QR code below or find the “YoLink app” on the appropriate app store. -
Page 8: Add Your Valve To The App
Scanner icon 2. Approve access to your phone’s camera, if requested. A viewfinder will be shown on the app. Motorized Valve Model:YS5002-UC Battery: AA x 2 FCC ID: 2ATM75002 Made in China PULL UP BEFORE MANUALLY OPEN/SHUT 3. Hold the phone over the QR code so that the code appears in the viewfinder. - Page 9 You can change the device name and assign it to a room later. Tap Bind device. If successful, the screen will appear as shown. Tap Done. 4. If the Smart Motorized Valve is not already on, press the SET button for a moment, until the LED illuminates briefly.
-
Page 10: Installation
Installation 1. Shut-off the water serving the pipe where the valve is to be installed. Drain the water from the pipe, by turning on a faucet, or by other method as required. 2. Depending on the adapter fitting used, mea- sure the length of pipe that must be cut, and mark the cut lines on the pipe, as shown below. - Page 11 5. Install your adapter fittings in the pipe ends, per the manufacturer instructions. 6. Wrap each adapter’s threaded end with thread seal tape, per the tape manufacturer’s instruc- tions, as shown below. 7. Install the Smart Motorized Valve on the adapter fittings, ensuring a secure connection at each fitting, as shown below.
-
Page 12: About Control-D2D
Control-D2D, YoLink devices can be controlled without the Hub or an internet connection. (Use of YoLink Control-D2D is optional; you can use the Automation feature in the app OR use YoLink Control, but YoLink Control-D2D offers the benefit of operation without the Hub or internet connection.) One device controls another,... - Page 13 Pairing instructions: 1. To configure your Water Leak Sensor* as a controller, press and hold the SET button for 5-10 seconds, until the LED quickly blinks green, then release the button. 2. To configure your Smart Motorized Valve as the responder, ensure the valve is closed (manu- ally, or by pressing the SET button), then press and hold the SET button for 5-10 seconds until the LED quickly blinks green, then release the...
-
Page 14: Using The App & 3Rd-Party Services
Instructions for Control-D2D pairing can be found in each Control-D2D-enabled product’s user guide. Using the App & 3rd-Party Services Please visit our website’s Product Support page for the YoLink app guide and for product specific app settings and instructions: www.yosmart.com/support-and-service... -
Page 15: Battery Replacement
Battery Replacement 1. Loosen the two battery cover screws and remove the battery compartment cover Motorized Valve Model:YS5002-UC Battery: AA x 2 FCC ID: 2ATM75002 Made in China PULL UP BEFORE MANUALLY OPEN/SHUT 2. Replace both batteries, observing the polarity and orientation of each battery. -
Page 16: Factory Reset
Factory Reset Factory reset will erase device settings and restore it to factory default settings. Doing a factory reset will not remove the device from your account and it will not harm the device, or lose any data or require you to redo your auto- mations, etc. -
Page 17: Firmware Update
Firmware Update Your YoLink products are constantly being im- proved, with new features added. It is periodical- ly necessary to make changes to your device's firmware. For optimal performance of your system, and to give you access to all available features for your devices, these firmware up-... -
Page 18: Troubleshooting
Troubleshooting Symptom: 1. Device is offline - If valve is not connected to the cloud, press the SET button on Smart Motorized Valve - If Hub is offline, reconnect the Hub to the Internet and press the SET button on Smart Motorized Valve - If Hub is not on, power on the Hub again and press the SET button on Smart Motorized... -
Page 19: Warnings
Warnings Please install, operate and maintain the Smart Motorized Valve only as outlined in this manual. Improper use may damage the unit and/or void the warranty Do not install or use the Smart Motorized Valve outside of the temperature and hu- midity range listed in the Environmental section in Specifications, on the Smart Mo- torized Valve Support page... -
Page 20: Warranty
Power the Smart Motorized Valve only with two AA batteries (see below, regarding bat- teries) Use only new, alkaline or lithium non- rechargeable AA batteries. Do not use zinc blend batteries Do not mix new and old batteries Do not puncture or damage batteries. Leak- age can cause harm on skin contact, and is toxic if ingested Do not dispose of batteries in fire as they... -
Page 21: Fcc Statement
FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 22 PRODUCT NAME: SMART MOTORIZED VALVE PARTY: YOSMART, INC. TELEPHONE: 831-292-4831 MODEL NUMBER: YS-5002-UC ADDRESS: 15375 BARRANCA PKWY SUITE J-107, IRVINE, CA 92618 USA EMAIL: SERVICE@YOSMART.COM...
-
Page 23: Contact Us
Contact Us We are here for you, if you ever need any assis- tance installing, setting up or using a YoLink app or product! Need help? For fastest service, please email us 24/7 at service@yosmart.com Or call us at 831-292-4831 (US phone support hours: Monday - Friday, 9AM to 5PM Pacific)
