FlowSmart All-in-One
YS5008-UC
Installation & User Guide
Revision Apr. 26, 2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FlowSmart All-in-One and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Yolink FlowSmart All-in-One

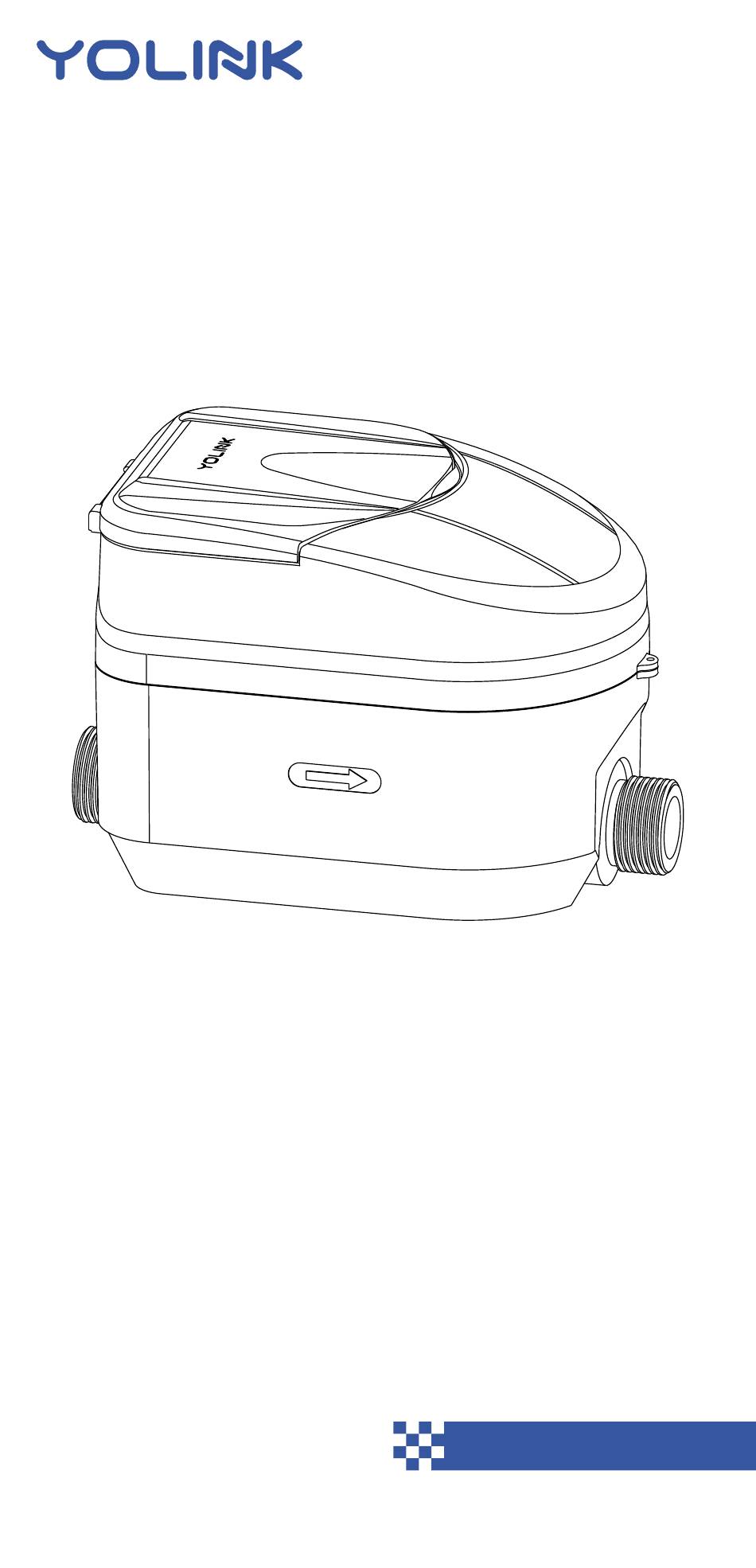

  • Page 1 FlowSmart All-in-One YS5008-UC Installation & User Guide Revision Apr. 26, 2024...
  • Page 2: Table Of Contents

    Contents . Welcome! . Before You Begin . In the Box . Required Items . Get to Know Your FlowSmart All-in-One . Install the App . Add Your Valve to the App . Installation Requirements . Installation . Testing . App Functions: Device Screen .
  • Page 3: Welcome

    Welcome! Thank you for purchasing YoLink products! We appreciate you trusting YoLink for your smart home & automation needs. Your 100% satisfaction is our goal. If you experience any problems with your installation, with our products or if you have any questions that this manual does not answer, please contact us right away.
  • Page 4: Before You Begin

    Before You Begin Visit our FlowSmart All-in-One support page on our website, for the latest installation guides, additional resources, information and videos by visiting: https://www.yosmart.com/support/YS5008-UC Or by scanning the QR code: Download the most current version of the user guide by scanning the QR code:...
  • Page 5 Before You Begin, Continued Your FlowSmart All-in-One connects to the internet via a YoLink hub, and it does not connect directly to your WiFi or local network. In order for remote access to the device from the app, and for full functionality, a hub is required.
  • Page 6: In The Box

    In the Box FlowSmart All-in-One Quick Start Guide Rubber Gasket (2) Nut (2) Spud Coupling (2)
  • Page 7: Required Items

    Required Items These items may be required to install the water meter: Pipe Wrench Locking Pliers Copper Pipe Cutting Tool Female NPT Pipe Fitting (2) Thread Seal Tape Sandpaper...
  • Page 8: Get To Know Your Flowsmart All-In-One

    Get to Know Your FlowSmart All-in-One FlowSmart All-in-One: Gauge Cover Device Screen LED Status Indicator SET button Rubber Gasket Spud Coupling Power Port (Back Side) 5V DC 1A How to read the meter gauge: Current Temperature Empty Pipe Alert Water Meter Calibrating...
  • Page 9 Get to Know Your FlowSmart All-in-One, Continued LED Behaviors Blinking Red Once, Then Quick Blinking Green Green Once Control-D2D Pairing in Device Start-Up Progress Blinking Red And Green Quick Blinking Red Alternately Control-D2D Unpairing in Restoring to Factory Progress Defaults Slow Blinking Green Blinking Red Once Updating...
  • Page 10: Install The App

    Install the App If you are new to YoLink, please install the app on your phone or tablet, if you have not already. Otherwise, please proceed to the next section. Scan the appropriate QR code below or find the “YoLink app” on the appropriate app store.
  • Page 11: Add Your Valve To The App

    Add Your Valve to the App 1. Tap Add Device (if shown) or tap the scanner icon: Scanner icon 2. Approve access to your phone’s camera, if requested. A viewfinder will be shown on the app. 3. Hold the phone over the QR code so that the code appears in the viewfinder.
  • Page 12 4. You can change the device name and assign it to a room later. Tap Bind device. 5. If successful, the screen will appear as shown. Tap Done. 6. If the FlowSmart All-in-One is not already on, press the SET button for a moment, until the LED illuminates briefly.
  • Page 13: Installation Requirements

    Installation Requirements Note: For ultrasonic water meters that have been installed, under freezing conditions in winter, to prevent the pipes from being cracked by the ice and potentially damaging the ultrasonic sensors, it is crucial to at least open one valve (either the valve before the water meter or the water inlet valve/ faucet inside the user's room).
  • Page 14 Installation Requirements, Continued Horizontal Installation: For horizontal installation, it is suggested to arrange the pipes in a 'U' shape, as shown as shown in figure A. In this case, the ultrasonic water meter section at the lower position will maintain a full pipe. Figure A...
  • Page 15 Installation Requirements, Continued Vertical Installation: For vertical installation, as shown in figure B, the water flow should enter from the bottom and exit from the top at the meter. This arrangement prevents air bubbles from accumulating in the meter’s measuring pipe when water is flowing. Figure B...
  • Page 16 Installation Requirements, Continued Compromise installation (horizontal): When the recommended horizontal installation is challenging to implement due to on-site conditions, the installation should at least be carried out as shown in the figure C. Figure C In the figure, the pipe section before the water meter can be parallel to the body of the meter (unlike the recommended method, which eliminates the right-angle bends), but the pipe...
  • Page 17 Installation Requirements, Continued 1. Precautions Before Installation: (1) Thoroughly clean the pipes before installing the ultrasonic water meter to avoid debris damaging the meter. (2) Handle the relatively expensive and precise ultrasonic water meter carefully when lifting and placing it; do not directly pull the meter head or sensor wires;...
  • Page 18 Installation Requirements, Continued (6) It is recommended to have filters of corresponding sizes installed before the meter; valves of appropriate sizes should be fitted both before and after the meter, allowing separation from the meter body for future maintenance and repairs.
  • Page 19 Installation Requirements, Continued (2) When installing on a 'U'-shaped pipe, place the meter at the lowest point to prevent air from accumulating at higher sections of the pipe, causing inaccurate or no measurement (as shown in figure E). Figure E (3) When installing at a bent pipe, ensure a distance of ≥5 times the diameter for the straight pipe before and ≥3 times the diameter for the...
  • Page 20 Installation Requirements, Continued (4) If installing a valve or other objects before the meter, ensure a distance of ≥5 times the diameter between the meter and the object to prevent inaccurate measurement (as shown in figure G)." ≥5D ≥3D <5D <3D Figure G...
  • Page 21: Installation

    Installation Install the FlowSmart All-in-One 1. Identify a suitable location in the piping that satisfies all installation requirements. 2. Assemble the supplied spuds/couplings on the meter: a. Insert a coupling through the nut. b. Place a gasket inside the nut (on top of the coupling flange).
  • Page 22 Installation, Continued 3. Loose-fit the female pipe fittings (not provided) onto the meter couplings. 4. Holding the meter against the pipe at the installation location, mark the overall length. 5. Cut the piping, using an appropriate pipe-cutting tool, per the tool manufacturer’s instructions.
  • Page 23 Installation, Continued 10. Insert the couplings onto the fittings. Hand-tighten. 11. Use pipe wrenches to tighten an additional half to one full turn. **Do not overtighten!** 12. With the dial facing up and with the arrow pointing in the flow direction, hand-tighten the coupling nuts to the meter.
  • Page 24: Testing

    Testing 1. To test the FlowSmart All-in-One, first press the SET button on the unit. Listen for a smooth, consistent sound, indicating the motorized valve is functioning properly. Ensure the valve is fully closed; you can verify this by checking that no water is flowing through it, as any water movement might produce a noticeable sound.
  • Page 25: App Functions: Device Screen

    App Functions: Device Screen In the app, tap on your FlowSmart All-in-One icon. Your FlowSmart All-in-One main screen should be similar to the one shown below. Tap to exit this screen Device name Tap for contact & support resources Tap for device Details...
  • Page 26 App Functions: Device Screen, Continued Latest Water Meter Reading Tap to Switch App Display Unit Water Temperature Last Water Usage Tap to Refresh Readings Last Update Time This Month’s Water Usage Today’s Water Usage Tap to View and Export Historical Water Flow Data Charts Tap to open/close the valve Timer...
  • Page 27: App Functions: Device Details Screen

    App Functions: Device Details Screen Tap the three dots (in the upper right corner) to open the FlowSmart All-in-One Details screen. Your FlowSmart All-in-One screen should be similar to the one shown below. Device Type Device Name (Tap to Edit) Room...
  • Page 28 (see Water Meter Advanced Settings) Model Number Device EUI Unique Identifier Number (Unique) Device Serial Number Signal Intensity (From YoLink Hub) Battery Firmware Revision (Refer to page 41) Remove Device from Current Account Tap to delete the device from your YoLink account...
  • Page 29: App Functions: Alert Settings Screen

    App Functions: Alert Settings Screen Alarm Strategy Tap to edit the device’s Alarm Strategy Open Reminder Alert you when the valve is open for a period of time Freeze Temperature Disable or set the freezing temperature alert point Continuous Alarm Tap to disable or set the alert repeat time, for Leak Detection and Overflow...
  • Page 30: App Functions: Advanced Settings

    App Functions: Advanced Settings Water Meter Readings Tap to switch meter unit Leak Detection The time period for leak detection, set to Always or OFF or as per Leak Schedule, auto shut-off valve is optional Leak Schedule Create leak detection schedule detect leak and trigger an alert when the Leak Detection is set to Leak...
  • Page 31: App Functions: Schedule

    App Functions: Schedule Tap to add a schedule FlowSmart All-in-One Tap to edit the schedule Tap to enable or disable a schedule Swipe left to show Edit and Delete options You can have a maximum 6 schedules at one time.
  • Page 32: App Functions: Timer

    App Functions: Timer Turn On After Valve FlowSmart All-in-One Slide to enable/disable Turn Off After Valve Slide to enable/disable Set the duration When enabled, the Valve will close after this timer duration has elapsed Set the duration When enabled, the Valve will...
  • Page 33: App Functions: Leak Schedule

    App Functions: Leak Schedule Tap to edit the leak detection schedule Leak Detection Schedule Tap to add a leak detection schedule Tap to enable or disable a leak detection schedule Swipe left to show Edit and Delete options The leakLimit of this leak detection schedule You can have a maximum 6 schedules at one time.
  • Page 34: App Functions: Smart - Scene

    App Functions: Smart - Scene Tap to save the settings Name Tap to edit the scene name Icon Tap to select a scene icon Favorite Tap to make it a favorite scene Assign the scene to a scene group Delete the behavior Add behavior Tap to add a behavior Tap to sort behaviors...
  • Page 35: App Functions: Smart - Automation

    App Functions: Smart - Automation The FlowSmart All-in-One can be set up as a condition or an action in automation. Tap to save the settings Edit the name of the automation Tap to set a schedule for the automation Add behavior...
  • Page 36: App Functions: Alarm Strategy Screen

    App Functions: Alarm Strategy Screen You can set up notifications in Alarm Strategy settings, make sure you have enabled App, Email, SMS notification from the app->Menu->Settings->Account Settings->Advanced Settings, and verified your email address and added your phone number in the app. Strategy Name Tap to edit the name Related Devices...
  • Page 37 Send SMS Tap to select Admin to enable limited text messages, select All (subscribe required-starter or standard plan), if desired to send to all members Trigger Action Tap to choose trigger actions (YoLink sirens, YoLink SpeakerHubs, scene)
  • Page 38: Control-D2D

    YoLink Control-D2D is our unique device-to-device control technology. Using Control-D2D, compatible YoLink devices can control or be controlled by other YoLink devices, without a hub or internet connection. One device can control another device, directly. A device that controls or sends out commands is called the controller.
  • Page 39 SET Button (5-10 seconds) 2. To configure the Flowsmart All-in-One as a responder, first ensure that the valve is in the closed position. Press and hold the SET button for 5-10 seconds until the LED quickly blinks green, then release the button.
  • Page 40 SET button for 10-15 seconds, until the LED quickly blinks green then red, then release the button. 2. At the Flowsmart All-in-One, press and hold the SET button for 10-15 seconds, until the LED quickly blinks green then red, then release the button.
  • Page 41: Using The App & 3Rd-Party Services

    Using the App & 3rd-Party Services The YoLink FlowSmart All-in-One works with several voice assistants, such as Alexa, and it works with other automation platforms such as IFTTT and Home Assistant. To set up 3rd-party integrations (Alexa and IFTTT), in the app, go to Settings, Third-Party Services, and follow the instructions.
  • Page 42: Factory Reset

    Factory Reset Factory reset will erase device settings and restore it to factory default settings. Doing a factory reset will not remove the device from your account and it will not harm the device, or lose any data or require you to redo your automations, etc.
  • Page 43: Firmware Update

    Firmware Update Your YoLink products are constantly being improved, with new features added. It is periodically necessary to make changes to your device's firmware. For optimal performance of your system, and to give you access to all available features for your devices, these firmware updates should be installed when they...
  • Page 44: Specifications

    Specifications Voltage: DC5V 1A ES-341550/W Lithium 3.6V 19000mAh non-rechargeable Dimensions, Imperial 5.98 x 3.85 inches (L x W): Dimensions, Metric 152 × 98 mm (L x W): Environment: Working Temperature: 41°F - 131°F (5°C-55°C) Working Humidity: 0%-100% non-condensing...
  • Page 45 Specifications, Continued 5.98” (152.0mm) 3.85” (98.0mm) FRONT SIDE 5.98” (152.0mm) 3.85” (98.0mm) DN15 6.49 (165mm) 4.52 (115mm) DN20 7.67 (195mm) 4.60 (117mm) DN25 8.89 (226mm) 4.84 (123mm)
  • Page 46: Troubleshooting

    Troubleshooting Error Type Indicator Cause Solution Battery Check the under-volt- connection Battery age or poor cable or Issue Constantly connection replace the battery. No water in Ensure the the pipe pipe section section or is com- Empty Pipe the section pletely filled Error is not fully...
  • Page 47 Troubleshooting, Continued Error Type Indicator Cause Solution Lower the water tem- perature or Water Water tem- switch to a Tempera- perature is meter that Constantly ture Error too high matches the specifi- cation Replace the circuit EE Error EE memory board, Constantly failure...
  • Page 48: Aa Warnings

    Warnings Please install, operate and maintain the FlowSmart All-in-One only as outlined in this manual. Improper installation or use may damage the unit and/or void the warranty. Do not install or use the device outside of the temperature and humidity range listed in the environmental specifications.
  • Page 49 Warnings, Continued Power the FlowSmart All-in-One only with new battery. Do not use rechargeable batteries, do not use other type batteries (e.g. zinc blend). If storing the FlowSmart All-in-One for extended periods, remove the battery. Please contact Customer Support before...
  • Page 50: Ab Warranty

    1 year from the date of purchase for the FlowSmart All-in-One. The warranty does not cover abuse or misused products, nor does this warranty apply to products that have been improperly installed, were modified, or put to a use other than...
  • Page 51: Ac Fcc Statement

    FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 52 - Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. PRODUCT NAME: FLOWSMART ALL-IN-ONE PARTY: YOSMART, INC. TELEPHONE: 831-292-4831 MODEL NUMBER: YS5008-UC...
  • Page 53: Ad Contact Us

    Support Home Page Finally, if you have any feedback or suggestions for us, please email us at feedback@yosmart.com Thank you for trusting YoLink! YoLink Customer Support 25172 Arctic Ocean Drive, Suite 106 Lake Forest, CA 92630 © 2024 YOSMART INC. CALIFORNIA, USA...
