WUBEN C3 - Flashlight Manual

Table of Contents

Contents

1 WARNINGS
2 Package List
3 Product Operation
4 Parameters
5 Maintenance
6 FAQs
- 6.1 Abnormal flash or failure to turn on
- 6.2 Abnormal noise
7 Documents / Resources
- 7.1 Download manual

WARNINGS

Please read user manual carefully before using the light.
Product will generate heat while working, please be cautious with that to avoid any possible harm.
Please don't shine into eyes directly to avoid harm to eyes.
Please keep the light away from children.
Please use WUBEN or WUBEN recommended batteries.
Please don't disassemble the light or it will not be covered by WUBEN warranty policy.
Please don't throw the product into fire.
This is not a diving product, please don't use it underwater for a long time.

Package List

Before using this product, please check whether the contents of the package are complete.

C3 × 1
ABE 2600 rechargeable Li-ion battery × 1
Spare O- ring × 2
Type-C charging cable × 1
Lanyard × 1
Manual, Warranty card, Quality certificate × 1

Product Operation

About product

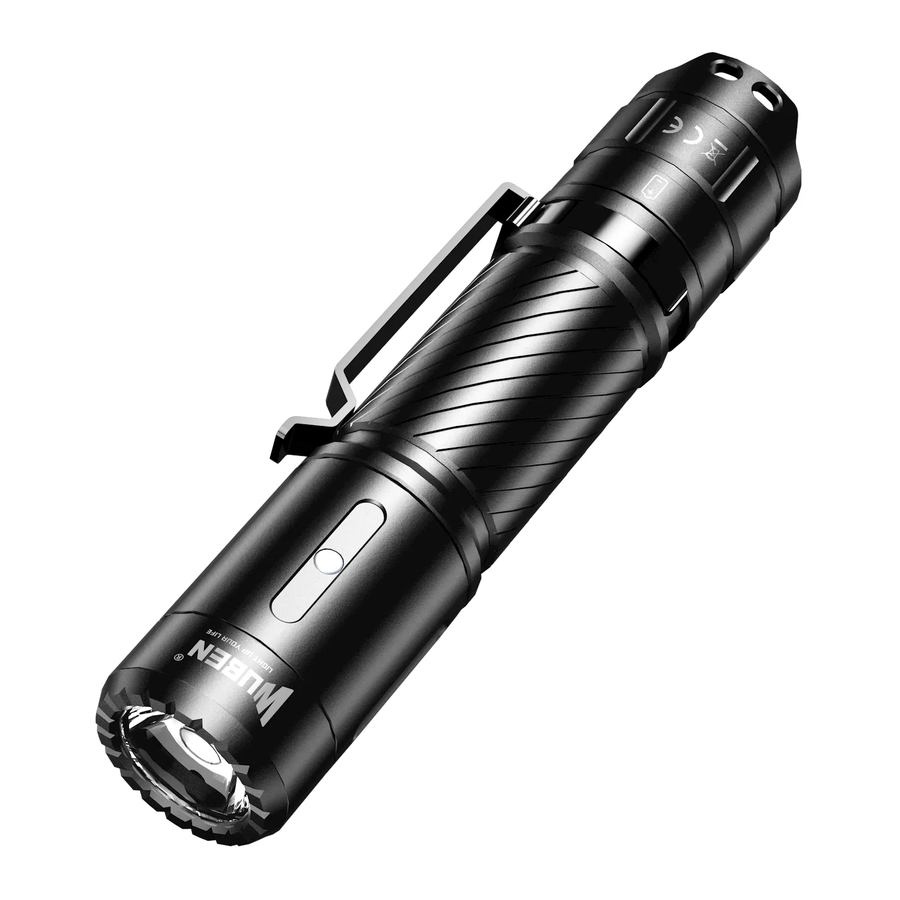

C3 is a cost-effective rechargeable outdoor and household flashlight. Utilized 1 pcs OSRAM P9 LED, powered by 1 pcs 18650 rechargeable Li-ion battery, it emits 1200 lumens max output and throws 179 meters max beam distance. Utilized reverse battery installation protection circuit and convenient Type-C recharging technology.
About product - Charging the battery

Installation

Please remove the insulation plate before using.
Installation

Operation

ON/OFF: When the light is off, click on the Tail switch to turn on the flashlight, click again to turn it off. This flashlight has memory function. It will always remember and be turned on the output on which it was turned off last time, except flashes.
Default output selections: When the light is on, tap the tail switch to cycle through Eco-Low-Med-High, this flashlight has memory function, it will always remember and be turned on the output on which it was turned off last time.
Flash mode

Strobe: When the light is on, double-tap the tail switch to activate Strobe, click to exit.
SOS: When the light is on, triple tap the tail switch to activate SOS, click to exit.

Power source

1 × 18650 battery, compatible with 2 × CR123A batteries

Battery name	Description	Recommended	Cautious	Banned
18650	3.7 V battery with protection circuit
18650	3.7 V battery without protection circuit
CR123A	3V disposable battery
RCR123A	3.7 V rechargeable battery
16340	3.7 V rechargeable battery
18350	3.7 V rechargeable battery

Charging status indication

When the light is off, open the rubber cover, connect the flashlight to any 5V/2A charging device with Type-C charging cable to charge it. It takes about 3 hours to fully charge the flashlight, please remove the charging cable in time after charging finished.

Charging	Red light constant on
Charging finished	Greenlight constant on

warning Please only use the battery with protection circuit.

Battery capacity(C) status indication

C ≥ 90%	Green light constant on (off after 5 seconds)
90% > C ≥ 40%	Green light flashes (off after 5 seconds)
40% > C ≥ 15%	Red light constant on (off after 5 seconds)
15% > C > 0	Red light flashes

Parameters

FL1 Standard	High	Med	Low	Eco	Strobe	SOS
	1200 500 Lumens	400 Lumens	80 Lumens	5 Lumens	1200 Lumens	200 Lumens
	1min + 2.5 hours	3.5 Hours	20 Hours	143 Hours	/	/
	179m			1.5m
	7985cd			IP68(2 meters underwater for 1 hour)
	73g/2.57oz(without battery) \| 123g/4.34oz(with battery)
	121.5mm × 25.4mm \| 4.78in × 1in (L × D)

warning All data from experiments of WUBEN lab according to ANSI/NEMA FL1 standard may vary because of different experiment equipment, experiment environment, or other factors. Experiments are based on ABE2600 rechargeable Li-ion battery.

Maintenance

The O-Ring may be damaged for a long time use, please replace the O-Ring in time to ensure the waterproofness of the product.
Please use WUBEN battery or WUBEN recommended batteries.
When the flashlight indicates low power, please charge or replace the battery in time to avoid affecting the durability of the battery.
Please use alcohol and rag to clean the conductive parts of the flashlight in time.
When not in use for a long time, please remove the battery to prevent the battery from leaking or exploding, store the flashlight in a dry and ventilated place.

FAQs

Problems	Causes	Solutions
Abnormal flash or failure to turn on	Check if the switch is turned on correctly	Turn on the switch
	Check if it is assembled in place	Tighten the assembly parts
	Check if the battery is no power	Try the battery on other products
	Check if the battery is reversed	Remove the battery and reassemble it correctly
	Check if the conductive position is dirty	Clean the surface with alcohol
Abnormal noise	Check if foreign matter falls in the tube	Pour out possible foreign matter
Abnormal noise	Part damage	Contact your seller
