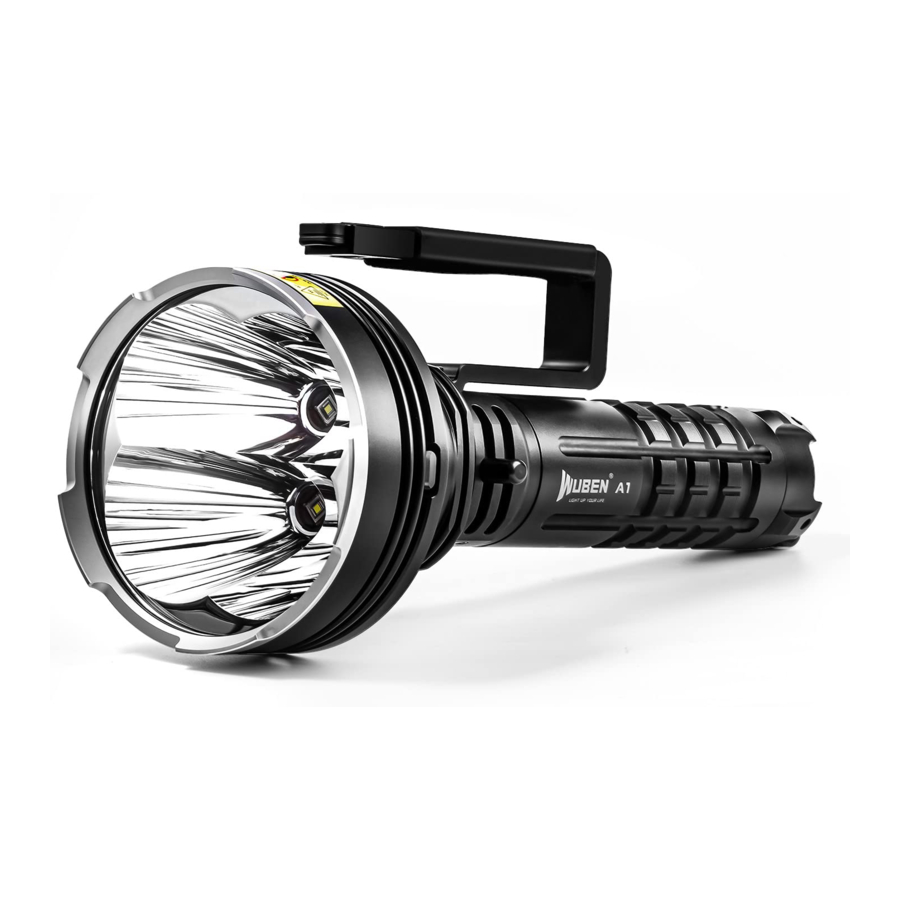

WUBEN A1 - 20,000 Lumens Flashlight Manual

Package List

Before using this product, please check whether the contents of the package are complete.

1. A1 × 1

2. Shoulder strap × 1

3. Spare O-ring × 2

4. Screw × 2

5. Power adapter set × 1 (US plug, EU plug, UK plug, AU plug)

6. User manual, Warranty card × 1


About Product

Installation

Please tighten the flashlight body before using it.

Take out and install the Remote Controller.

Charging / Discharging

Lights on
Lights off
Lights flashing

Charging

Discharging

When one light flashes, the discharging function will not work, after charging the battery, the discharging function will work again.

Battery Capacity (C) Status Indication

Parameters

FL1 Standard	Turbo	Level 5	Level 4	Level 3	Level 2	Level 1
	20000 6000 Lumens	12000 5000 Lumens	4000 Lumens	1500 Lumens	400 Lumens	100 Lumens
	2 mins + 2 Hours	5 mins + 2.5 Hours	5 Hours	13.5 Hours	43 Hours	105 Hours
FL1 Standard	Strobe			SOS
	4000 Lumens			1000 Lumens
	/			/
	LUMINUS SPT90 LED × 4
	2000 Meters
	100000 Candelas
	IP68
	2875g/101.38oz(with battery)
	318mm × 151mm/12.52in × 5.94in(L × D)

All data from experiments of WUBEN lab according to ANSI/NEMA FL1 standard, with 14.4V 8400mAh 4 series 2 parallel original standard battery pack, may vary because of different experiment equipment, experiment environment, or other factors. Experiments are based on a built-in Li-ion battery pack (capacity: 8400 mAh, voltage: 14.4 V).

Warnings

• Please read user manual carefully before using the product.
• Product will generate heat while working, the light head may be 90℃ when it's in High mode. Please do not touch it and be cautious with that to avoid any possible harm.
• Please don't flash into eyes directly to avoid harm to eyes. Please keep the product away from children.
• Please use WUBEN or WUBEN recommended batteries.
• Please don't disassemble the product or it will not be covered by WUBEN warranty policy.
• Please don't throw the product into fire.
• This is not a diving product, please don't use it underwater for a long time.

Operation

1. ON/OFF: Single click on the switch to turn on the flashlight, single click again to turn off. The flashlight has memory function, will memorize default output selections, but not flash modes or Turbo.
2. Default Output Selections: When the flashlight is on, single click on the switch to cycle through Level 1- Level 2 – Level3 – Level 4 – Level 5 – Level 1.
3. Instant Turbo: When the flashlight is on, long press the switch to activate Turbo mode, single click to back to the previous output level. When the flashlight is off, press and hold the switch to activate the Turbo mode, release to turn it off.
4. Flash Modes: When the flashlight is on or off, click the switch and hold for 1 second to activate Strobe. Single click the switch to swap between SOS and Strobe. Single click the switch to the previous output level.
5. Lock/Unlock: When the flashlight is off, 4 times click any switch, the main light will blink 3 times to indicate the locking of the flashlight. 4 times click on any switch again will activate Eco mode to indicate the unlocking of the flashlight.
6. Breathing Light: At any mode, triple click the switch to turn on/off the blue breathing light. The breathing light has power-off memory function.

Remote Control

1. The switch and switch are exactly the same as the switches on the flashlight. Remote control range is 10 meters.
2. Charge the built-in battery of controller with 5V/1A device. Red light is charging, green light is charging finished.

3. When it needs to be charged, the battery indicator will be red. Otherwise, it will be green.
4. After shutting down without any operation for half an hour, the remote controller enters dormancy, double-click any switch on the controller, the flashlight lights up to indicate that the remote controller is activated and works normally again.
5. The factory default remote control is paired. If you find that the remote control is not available, please press and hold the switch and switch on the flashlight at the same time for 5 seconds. When the red and blue lights on the switch flash alternately, press the switch of the remote control switch within 30 seconds. It can be paired, otherwise the pairing is unsuccessful.


Maintenance

• The O-Ring may be damaged after a long time use, please replace the O-Ring in time to ensure the waterproof level of the product.
• Please use WUBEN battery or WUBEN recommended batteries. When the product indicates low power, please charge or replace the battery in time to avoid affecting the durability of the battery.
• Please use alcohol and rag to clean the conductive parts of the product in time.
• When not in use for a long time, please remove the battery to prevent the battery from leaking or exploding.
• Please store the product in a dry and ventilated place.

FAQs

If your problems are still not solved yet, please contact WUBEN Headquarters for after-sales service.

Warranty Policy

Warranty Coverage

• 15 days replacement: Within 15 days from the date of purchase, if the product has quality problems, customers can request free replacement.
• 1 year warranty: Within 1 year from the date of purchase, if the product has quality problems, WUBEN will offer free repair.
• 5 years warranty: Within 5 years from the date of purchase, if the product (accessories excluded) has quality problems, WUBEN will offer free repair for WUBEN registered customers.
• Battery warranty: WUBEN offers a 1-year warranty for the rechargeable batteries
• Lifetime maintenance: From the date of purchase, if the product has problem after 5 years, WUBEN will offer paid repair for WUBEN registered customers.

The final interpretation right is reserved by WUBEN.
