Page 4
Please keep the light away from children. Please use WUBEN or WUBEN recommended batteries. Please don’t disassemble the light or it will not be covered by WUBEN warranty policy. Please don't throw the product into fire. This is not a diving product, please don't use it underwater for a long time.

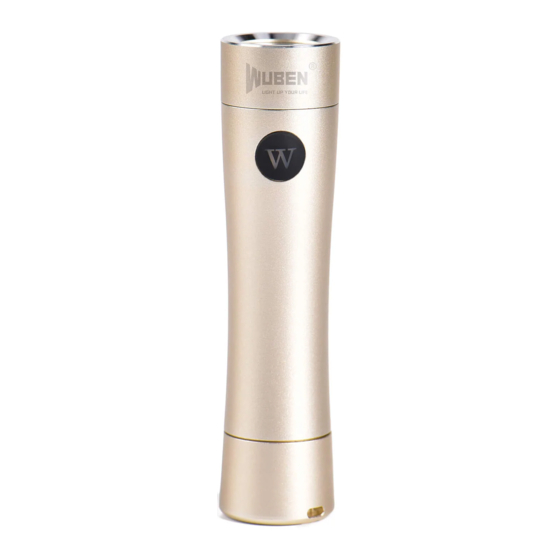

Product operation 1. About product Tail magnetic C5 is a stylish EDC flashlight. Utilized 1 function piece OSRAM P9 LED, it emits 700 lumens Switch(Battery power max output. Powered by 1 piece 14500 indicator, breathing light) rechargeable Li-ion battery of 750mAh with Micro-USB charging port.
2. Installation Please remove the insulation plate before using. 3. Operation ON/OFF: Click on switch to turn on the flashlight, click again to turn it off. The flashlight has memory function, will memorize default output selections, but not flash modes. Output Selections: When the flashlight is on, long press switch to cycle through Moon -Low-Med-High-Moon. It will lockout the brightness once releasing the switch at any modes.
Page 8
Quick Turbo: When the light is on and not High mode, double click on switch to High mode, single click to exit. Flash Modes: When the flashlight is off or at High mode, double click on switch to activate Strobe, double click again to swap between Strobe and SOS, single click to exit flash modes.
Page 9
6.Charging Status Indication Charging Red light constant on Charging finished Green light constant on 7.Battery Capacity (C) Status Indication C ≥ 90% Blue light constant on(off after 5 seconds) 90% > C ≥ 40% Blue light flashes(off after 5 seconds) 40% >...
Page 10
87.5mm × 21.5mm | 3.45in × 0.85in (L × D) All data from experiments of WUBEN lab according to the ANSI/NEMA FL1 standard, may vary because of different experiment equipment, experiment environment or other factors. Experiments are based on WUBEN 14500 Li-ion battery(750mAh) and AA alkaline battery(2700mAh) .
The O-Ring may be damaged for a long time use, please replace the O-Ring in time to ensure the waterproofness of the product. Please use WUBEN battery or WUBEN recommended batteries. When the flashlight indicates low power, please charge or replace the battery in time to avoid affecting the durability of the battery.
Page 12
Clean the surface with alcohol Check if foreign matter falls in the tube Pour out possible foreign matterl Abnormal noise Part damage Contact your seller If your problems still not solved yet, please contact WUBEN Headquarter for after-sales service. - 12 -...
WUBEN will offer free repair. 5 years warranty: Within 5 years from the date of purchase, if the product (accessories excluded) has quality problems, WUBEN will offer free repair for WUBEN registered customers. Battery warranty: WUBEN offers a 1-year warranty for the rechargeable batteries but other included accessories are not covered by the warranty.
Page 14
Damage caused by improper use of the battery. Abnormal wear and tear. Damage caused by irresistible factors. Gifts. The final interpretation right is reserved by WUBEN. SHENZHEN SHENGQI LIGHTING TECHNOLOGY CO., LTD. E-mail: support@wubenlight.com Web: www.wubenlight.com Add: 202#, Building A, Jihe E-Business Park, No. 33 Yangmei Road,...
Page 15
Scheinen Sie bitte nicht direkt in die Augen, um Augenschäden zu vermeiden. Bitte halten Sie das Licht von Kindern fern. Bitte verwenden Sie WUBEN oder WUBEN empfohlene Batterien. Bitte zerlegen Sie das Licht nicht, da dies nicht durch die WUBEN Garantiebestimmungen abgedeckt ist. Bitte werfen Sie das Produkt nicht ins Feuer.
Page 16
Paketliste Bevor Sie dieses Produkt verwenden, überprüfen Sie bitte, ob der Inhalt der Verpackung vollständig ist. C5 × 1 ABF750R Li-ion Band × 1 Diffuser × 1 Batterie × 1 Micro-USB-Ladekabel Ersatz O-Ring × 2 Bedienungsanleitung, × 1 Garantiekarte, Qualitätszertifikat × 1...
Page 17
Produktbedienung 1. Über produkt Hinten magnetische Kraft Funktion C5 ist eine elegante EDC-Taschenlampe. Sie Taste ist mit einer OSRAM P9-LED. Die maximale (Batterieanzeige, Helligkeit erreichet 700 Lumen. Die Atemlicht) Taschenlampe wird von einen wiederaufladbaren 750mAh 14500 Li-ion Batterie (Mit Micro-USB-Ladeanschluss)...
2. Installation Bitte entfernen Sie die Isolationsplatte vor der Verwendung. 3. Bedienung Ein/Aus: Klicken Sie auf die Taste einmal, um die Taschenampe einzuschalten. klicken Sie sie wieder, um die Taschenampe auszuschalten. Die Taschenampe hat die Memory Funktion (Für Beleuchtung Helligkeit aber nicht für Flackernmodi.) Helligkeit einstellen: Wenn die Taschenlampe an ist, drücken Sie lange die Taste , um die Helligkeit zu wechseln ( Mond-Niedrig-Mittel-Hoch-Mond ).
Page 19
Helligkeit. Wenn die Helligkeit am dunkelsten ist, flackert das Licht einmal auf. Zirkuliert sie wie so. Die Helligkeit wird gesperrt, sobald Sie die Taste loslassen. Klicken Sie die Taste einmal, um die Taschenlampe zu ausschalten. Schnell Turbo: Wenn die Taschenlampe an ist aber nicht Turbo-Modus. Doppelklicken Sie auf die Taste , um das Turbo-Modus zu aktivieren.
Page 20
5.Aufladen Sie nehmen die Batterie aus. Schließen Sie die Taschenlampe an das 5V / 1A-Ladegerät zum Laden an. Es dauert etwa drei Stunden, um die Taschenlampe voll aufzuladen. 6.Aufladen Zustand Aufladen Rotes Licht an Voll aufgeladen Grünes Licht an 7.Erinnerung an niedrigen Batteriestand C ≥...
Page 21
(Mit Batterie) 87.5mm × 21.5mm | 3.45in × 0.85in (L × D) Alle Daten sind nach ANSI / NEMA FL1-Standard aus Experimenten des WUBEN-Labors. Die experimentellen Daten können aufgrund unterschiedlicher Versuchsausrüstung, Versuchsumgebung oder anderer Faktoren unterschiedlich sein. Die Experimente basieren auf WUBEN 14500 Li-ion Batterie(750mAh) und AA alkaline Batterie(2700mAh).
Page 22
Der O-Ring kann für längere Zeit beschädigt werden.Ersetzen Sie den O-Ring rechtzeitig, um dieWasserdichtigkeit zu gewährleisten des Produkts. Bitte verwenden Sie WUBEN-Batterien oder von WUBEN empfohlene Batterien. Wenn die Taschenlampe einen niedrigen Strom anzeigt, laden Sie den Akku bitte rechtzeitig auf, oder tauschen Sie ihn aus, um uswirkungen auf den Akku zu vermeidendie Haltbarkeit der Batterie.
Page 23
Prüfen Sie, ob Fremdkörper in die Eventuelle Fremdstoffe Ungewöhnlic- Röhre fallen ausschütten hes Geräusch Teileschaden Kontaktieren Sie Ihren Verkäufer Wenn Ihre Probleme immer noch nicht gelöst sind, wenden Siesich bitte an die WUBEN-Zentrale, um den Kundendienst in Anspruch zu nehmen. - 23 -...
Page 24
15-tägiger Ersatz: Wenn das Produkt innerhalb von 15 Tagen ab Kaufdatum Qualitätsprobleme aufweist, können Kunden einen kostenlosen Ersatz anfordern. 1 Jahr Garantie: Innerhalb von 1 Jahr ab Kaufdatum bietet WUBEN bei Qualitätsproblemen eine kostenlose Reparatur an. 5 Jahre Garantie: Innerhalb von 5 Jahren ab Kaufdatum, wenn das Produkt (ausgenommen Zubehör) Qualitätsprobleme aufweist, bietet WUBEN seinen registrierten...
Page 25
Schäden durch unsachgemäßen Gebrauch des Akkus. Anormale Abnutzung. Schäden verursacht durch unwiderstehliche Faktoren. Geschenke. Das endgültige Auswertungsrecht bleibt WUBEN vorbehalten. SHENZHEN SHENGQI LIGHTING TECHNOLOGY CO., LTD. E-mail: support@wubenlight.com Web: www.wubenlight.com Add: 202#, Building A, Jihe E-Business Park, No. 33 Yangmei Road,...
Page 46
WUBENからの贈り物 (対象外)。 ※最終的な解釈する権利はWUBENにあります。 修理期間中の代替機のご用意はございません。 保証期間中に何らかの理由により修理及び交換ができない場合は、同等品との交換により対 応させていただく場合がございます。 本保証の適用範囲は本製品のみに限り、本製品の使用または使用不能から生じた直接的また は間接的損害に対し、弊社は一切の責任を負わないものとします。 本保証は日本国内においてのみ有効です。 製造元 : DONGGUAN CITY SHENGQI LIGHTINGTECHNOLOGY CO.,LTD 販売元:W U BE N 株式会社 住所:広島県福山市春日町 1 丁目 7-39タイムズスクエア D 号 TEL:084-999-4700 FAX:084-999-4701 Mai l : i n fo @ w uben. c o. j p U R L:http://www.w u ben.co.j p...
Page 47
주의사항 제품을 사용하기 전, 매뉴얼을 꼼꼼히 참고하여주세요. 본 제품은 강한 출력으로 인하여 사용하는 동안 미세한 발열을 일으킵니다. 이 점 주의하 여 사용하시길 바랍니다. 어린아이의 손에 닿거나 사람 눈에 직접 쏘면 위험합니다. 제품을 임의로 조립, 분해 등의 조작을 한 뒤에는 그로 인한 결함에 대하여 제품 보증이 되질 않습니다.
Page 48
제품 리스트 제품을 사용하기 전에, 모든 구성품이 완전하게 포함되어있는지 확인하여 주시길 바랍니다. C5 × 1 ABF750R Li-ion 손목스트랩 × 1 디퓨저 × 1 battery × 1 마이크로 USB충전케 스페어 O링 × 2 제품사용설명서, 품질보 이블 × 1 증서 × 1...
Page 49
제품 작동 1. 제품에 대하여 테일캡 자석 기능 C5는 세련된 디자인의 EDC 손전등입니다. 스위치 (배터리 전 OSRAM P9 LED 1개가 탑재되어 최대밝기 력 계기판, 호흡라이트) 700루멘을 출력합니다. 14500배터리 1개로 작동되며 마이크로 USB충전케이블로 빠르 고 간편하게 충전이 가능합니다. C5는 14500배터리 외 AA건전지로도 호환이 가능...
Page 50
2. 제품작동 ON/OFF: 스위치를 한 번씩 클릭하여 제품의 전원을 조작할 수 있습니다. 메인라이트는 메모 리 기능을 가지고 있으며 재사용시 마지막으로 사용한 밝기모드로 재출력됩니다. 밝기모드 조절: 제품의 전원이 켜져있는 상태에서 스위치를 길게 눌러 Moon-Low-Med -High순으로 밝기모드를 순환시킬 수 있습니다. 사용하고 싶은 밝기에서 스위치를 떼면 해 당...
Page 51
게 클릭하면 SOS모드가 활성화됩니다. 플래시모드를 종료하려면 스위치를 한 번 클릭하면 됩니다. 3.Lockout /Unlock 제품의 전원이 꺼진 상태에서 스위치를 4번 빠르게 클릭하면 불빛이 3번 깜빡이며, 인디케이터 가 잠금기능이 활성화됨을 표시합니다. 잠금 기능이 활성화되면 다른 버튼을 눌러도 아무런 작 동이 하지않으며, 스위치를 다시 4번 빠르게 클릭하면 잠금기능이 해제됩니다. 4.충전...
Page 52
5.충전상태 알림 충전중 적색불 고정 충전완료 녹색불 고정 6.배터리 잔량 알림 C ≥ 90% 파란불 고정(5초 뒤 꺼짐) 90% > C ≥ 40% 파란불 점멸(5초 뒤 꺼짐) 적색불 고정(5초 뒤 꺼짐) 40% > C ≥ 15% 15% > C > 0 적색불...
Page 54
기타 O링이 스페어로 동봉되어 있습니다. 방수 기능의 탁월성을 위하여 기존에 O링이 탑재되어있으 며 제품을 장기간 사용 후 교체하여 사용하시면 됩니다. 부식 방지와 내구성을 위하여 물 속에서 사용한 뒤에는 제품과 부속품 등을 잘 건조시켜주십시오. 주식회사 우벤라이트 코리아 이메일 : wuben_kr@naver.com 홈페이지 : www.wubenkorea.com 주소...
Page 55
Product Warranty 製 品 保 証 カ ー ド 产 品 保 修 凭 证 / お名前 / 客户姓名 Name 電話番号 / Telephone 联系电话 ご住所 / Address 联系地址 产品型号 Model number 製品型番 Product series number 产品编码 製品コード Name of store 购买商店...
