WUBEN T103 Pro, T103W Pro - 1280 LM Tactical Flashlight Manual

WARNINGS

  • Please read user manual carefully before using the light.
  • Product will generate heat while working, please be cautious with that to avoid any possible harm.
  • Please don't shine into eyes directly to avoid harm to eyes.
  • Please keep the light away from children.
  • Please use WUBEN or WUBEN recommended batteries.
  • Please don't disassemble the light or it will not be covered by WUBEN warranty policy. Please don't throw the product into fire.
  • This is not a diving product, please don't use it underwater for a long time.

Package List

Before using this product, please check whether the contents of the package are complete.

Product Operation

About product

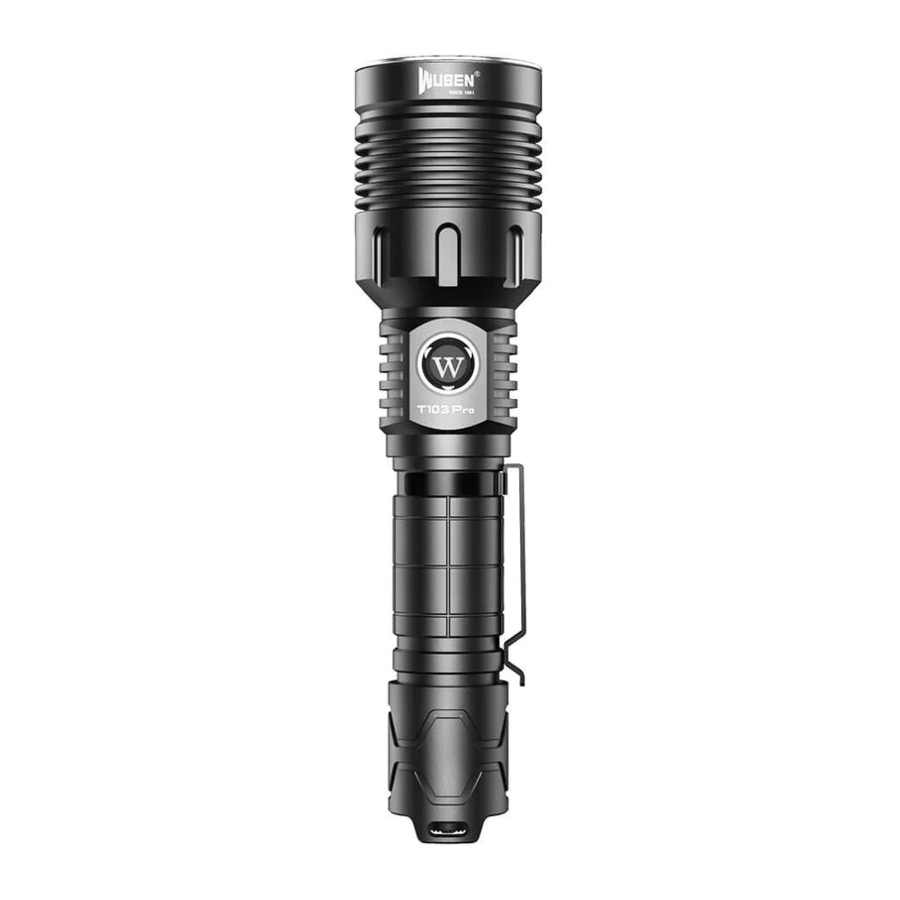

T103 Pro/T103W Pro is a multifunctional flashlight for e×ploring and rescuing. Utilized 1 × CREE XHP35 LED, powered by 1 pcs high drain 18650 Li-ion battery, it emits 1280 lumen ma× output and throws as far as 508 meters. Built-in Type-C charging design makes it more convenient to use.
About product

Installation

Please remove the insulation plate before using.
Installation

Operation

  1. ON/OFF: Tap on the tail switch to activate momentary on, and click to activate constant on, and click again to turn the light off.
  2. Output selections: When the light is on, single click on switch to cycle through Eco-Low-Med-High-Turbo.
  3. Instant Turbo: When the light is on, press and hold the switch to activate Turbo. Release to return to the previous status.
    Note: Please use the included WUBEN high drain 18650 Li-ion battery, or the light may fail to activate Turbo.
  4. Flash mode: Double click on switch to swap between Strobe and SOS, and single click to return to the previous status.

Charging

  • Click the tail switch, plug the Type-C charging cable to charge the light. Battery indicator beneath the switch turns blue to indicate charging finished, please click on the tail switch, and unplug the charging cable.
  • Charging indication: Battery indicator beneath the switch turns red while charging, and turns blue while charging finished. If an improper battery is used or abnormal charging, it will blink blue.
  • Please use the 5V/2A adapter to charge, it takes 4 hours to fully charge the flashlight.

warningMake sure the batteries with protection circuit board.
warningMake sure rubber cap covered well after charging finished to promise the IP68 waterproof level.

Battery status indication

Power 100%~31% Blue light constant on (off after 5s)
Power 30%~15% Red light constant on (off after 5s)
Power below 15% Red light flashes

Parameters

FL1 Standard Turbo High Med Low Eco Strobe SOS
1280LM 500LM 200LM 40LM 5LM 1280LM 200LM
1.2h 2.1h 7h 34h 340h / /
508m 1m
64600cd IP68 (2m underwater for 1h)
177g /6.24oz (without battery)
224g /7.9oz (with battery)
172mm × 42mm
6.77in × 1.65in (L × D)

warningAll data from e×periments of WUBEN lab according to the ANSI/NEMA FL1 standard, may vary because of different e×periment equipment, e×periment environment or other factors. E×periments are based on WUBEN ABE2600C 18650 Li-ion battery.

Maintenance

  • The O-Ring may be damaged for a long time use, please replace the O-Ring in time to ensure the waterproofness of the product.
  • Please use WUBEN battery or WUBEN recommended batteries.
  • When the flashlight indicates low power, please charge or replace the battery in time to avoid affecting the durability of the battery.
  • Please use alcohol and rag to clean the conductive parts of the flashlight in time.
  • When not in use for a long time, please remove the battery to prevent the battery from leaking or exploding, store the flashlight in a dry and ventilated place.

FAQs

Problems Causes Solutions
Abnormal flash or
failure to turn on
Check if the switch is turned on correctly Turn on the switch
Check if it is assembled in place Tighten the assembly parts
Check if the battery is no power Try the battery on other products
Check if the battery is reversed Remove the battery and reassemble it correctly
Check if the conductive position is dirty Clean the surface with alcohol
Abnormal noise Check if foreign matter falls in the tube Pour out possible foreign matterl
Part damage Contact your seller

If your problems still not solved yet, please contact WUBEN Headquarter for after-sales service.
