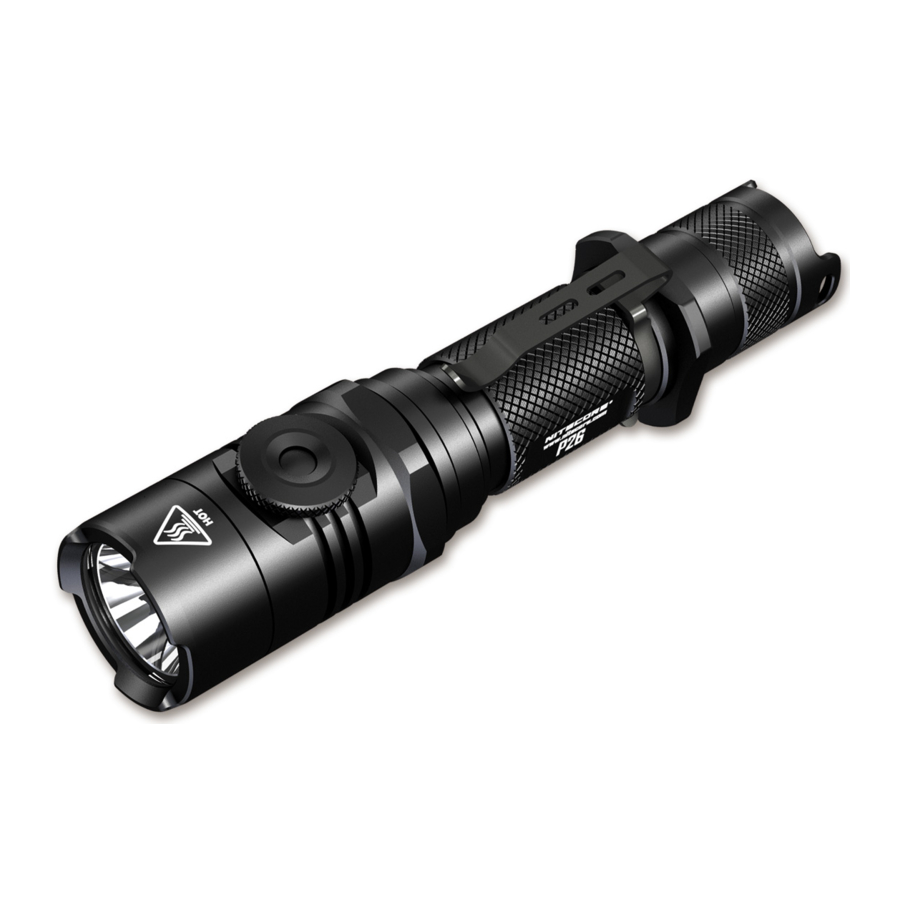

Nitecore P26 - 1000 Lumens LED Flashlight Manual

Features

• Infinitely variable brightness tactical flashlight
• Utilizes a CREE XP-L HI V3 LED
• Max output up to 1000 lumens
• Integrated "Precision Digital Optics Technology" provides extremely good reflector performance
• Boasts a peak beam intensity of 24000cd and a max throw of 310 meters
• Tail switch for tactical application
• Infinite brightness adjustment from 0.5 to 1000 lumens and a strobe mode
• High efficiency constant circuit provides unwavering output with runtime up to 500 hours
• Integrated impact resistance mechanism with reverse polarity protection
  (Patent No.: 201220677948.7)
• Advanced Temperature Regulation module
• Integrated full metal tactical ring
• Two-way stainless steel titanium plated clip included
• Constructed from aero grade aluminum alloy with HAIII military grade hard-anodized finish
• Waterproof in accordance with IPX8 (two meters submersible)
• Impact resistant to 1.5 meters
• Tail stand capability

Dimensions

Accessories

• Clip
• Lanyard
• Spare O ring×2
• Holster
• Spare tail cap
• Tactical ring

Battery Options

Technical Parameters

FL1 STANDARD	TURBO	ULTRALOW	STROBE
	1000 LUMENS	0.5 LUMENS	1000 LUMENS
	*1h	*500h	─
	310m	7m	─
	24000cd	15cd	─
	1.5m (Impact Resistant)
	IPX8, 2m (Waterproof AND Submersible)

NOTICE:
The above data has been measured in accordance with the international flashlight testing standards ANSI/NEMA FL1 using 1×18650 Li-ion battery (3.7V 3500mAh). The data may vary slightly during real-world use due to battery type, individual usage habits and environmental factors.

* Infinite brightness adjustment varies from 0.5 to 1000 lumens and is manually adjustable by rotation of the rotary switch. Subsequently, runtime will vary anywhere from 1 hour to 500 hours depending on chosen level of output (The runtime for Turbo mode is the testing result before starting temperature regulation.)

Operation Instruction

Battery Installation

Install batteries as shown in the diagram:

NOTE:

1. Ensure the batteries are inserted correctly. The P26 will not operate if batteries are incorrectly inserted.
2. Avoid direct eye exposure
3. When the flashlight is kept in a backpack, loosen the tail cap to prevent accidental activation of the flashlight; When it is left unused for extended periods of time, please remove all batteries to prevent battery leakage.

Momentary Illumination

When the light is turned off, half press and hold the tail switch to turn on the light momentarily. Release the switch to turn off the light.

On/Off

To switch ON: Press the tail switch until a "click" sound is heard.
To switch OFF: Press the tail switch again until a "click" sound is heard.

Changing Brightness Level and Special Mode

When the light is on, rotate the rotary switch in a counter-clockwise direction, the P26 will cycle through Ultralow-Turbo-Strobe; These modes may be cycled through in reverse by rotating the rotary switch in a clockwise direction. Brightness level from Ultralow to Turbo is infinitely variable.

ATR (Advanced Temperature Regulation)

With Advanced Temperature Regulation module, the P26 regulates its output and adapts to the ambient environment, maintaining optimal performance.

Changing Batteries

Batteries should be recharged or replaced if any of the followings occurs: output appears to be dim or the flashlight becomes unresponsive.

Maintenance

Every 6 months, threads should be wiped with a clean cloth followed by a thin coating of siliconbased lubricant.

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Nitecore P26 - 1000 Lumens LED Flashlight Manual
