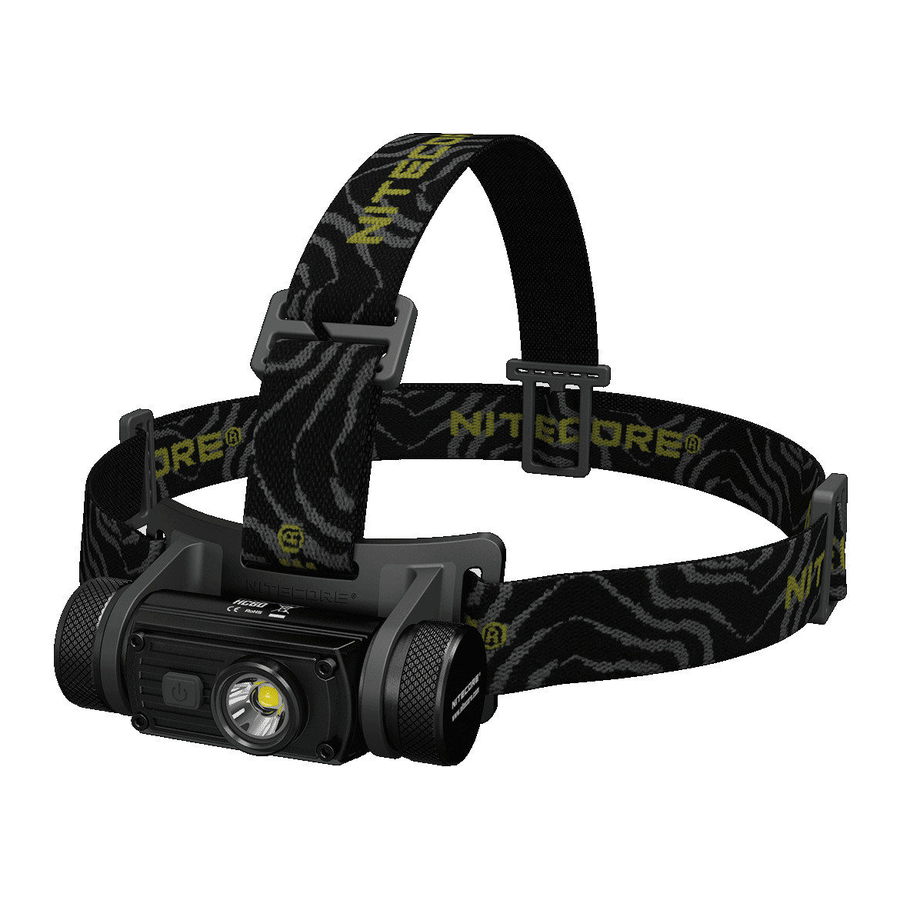

NITECORE HC60, HC60M - Headlamp Manual

Features

• A lightweight, high performance headlamp
• Purpose-designed for hiking, climbing, camping and general outdoor recreation
• Utilizes a CREE XM-L2 U2 LED
• Integrated "Precision Digital Optics Technology" provides extreme reflector performance
• High-efficiency regulation circuit provides up to 1000 lumens of output
• Powered by a single 18650 Li-ion or two CR123 batteries for up to 680 hours of runtime
• Innovative single button switch is remarkably user-friendly
• Five brightness levels and three special modes to select from
• Memory function for brightness levels
• Intelligent Li-ion battery charging circuit (via Micro-USB charging port)
• A custom catoptrics-based system produces an extremely wide 100° beam angle
• Features advanced temperature regulation (ATR) technology
• Light housing provides 180° vertical movement to eliminate illumination deadzones
• Power indicator displays battery voltage (accurate to 0.1V)
• Reverse polarity protection
• Constructed from rugged PC material and aero-grade aluminum alloy
• Rugged HAIII military grade hard-anodized aluminum alloy
• Comfortable chafe-free and breathable nylon headband
• Impact resistant to 1 meter

Dimensions

HC60

Length: 3.29" (83.5mm)
Head diameter: 0.73" (18.5mm)
Body diameter: 1.06" (27mm)
Weight: 3.47 oz (98.5g, Bracket and Headband Included, Battery Not Included)
1.94 oz (55g, Bracket, Headband and Battery Not Included)

HC60M

Size: 3.29"×1.97"×1.81" (83.5mm×50mm×46mm) (NVG Mount Included)
Head diameter: 0.73" (18.5mm)
Weight: 2.91 oz (82.5g) (NVG Mount Included, Battery Not Included)

Accessories

HC60

NITECORE 18650 battery (3400mAh), Spare O-ring, button cover, USB charging cord, headband, bracket

HC60M

NITECORE 18650 battery (3400mAh), Spare O-ring, button cover, USB charging cord

Battery Options

*

Charge 18650 rechargeable Li-ion batteries only. Do not charge CR123 or RCR123 batteries.

Technical Data

FL1 STANDAD	TURBO	HIGH	MID	LOW	ULTRALOW STROBE	STROBE	SOS	BEACON
	1000 LUMENS	420 LUMENS	210 LUMENS	38 LUMENS	1 LUMEN	1000 LUMENS	1000 LUMENS	1000 LUMENS
	1h	2h 30min	7h 15min	25h	680h	─	─	─
	117m	78m	56m	28m	3m	─	─	─
	3400cd	1500cd	780cd	200cd	2.8cd	─	─	─
	1m (Impact Resistant)
	IPX7, 1m (Waterproof AND Submersible)

NOTICE: The stated data has been measured in accordance with the international flashlight testing standards ANSI/NEMA FL1, using 1 x 18650 battery (3.7V, 3400mAh) under laboratory conditions. The data may vary in real-world use due to different battery use or environmental conditions.

Battery Installation

Charging

Operating Instructions

Battery Installation

Install one 18650 Li-ion or two CR123 batteries as illustrated.

1. Install the battery (ies) with the positive end pointing inward. Otherwise the HC60/ HC60M cannot work properly.
2. Do not direct beams towards human or animal eyes as doing so may damage sight.

On/Off Operation

To turn the HC60/HC60M on: Press the switch once;
To turn the HC60/HC60M off: Press and hold the switch. The HC60/HC60M will turn off and enter standby mode.

Brightness Levels

With the HC60/HC60M turned on, press the switch repeatedly to cycle through the following brightness levels Ultralow-Low-Mid-High-Turbo. The HC60/HC60M has a memory feature. By pressing and holding the switch for one second, it will resume the brightness level or special mode last used.
Direct access to turbo:
With the HC60/HC60M turned off, press and hold the switch for two seconds to enter turbo level (1000 lumens). Press and hold the switch again to turn it off.
Note: In standby mode, the HC60/HC60M can stand by for over two years on one 18650 battery.

Special Modes

Strobe/Location Beacon/SOS
With the HC60/HC60M turned off, press the switch twice in quick succession to access strobe. To cycle through the special modes SOS-Location Beacon-Strobe, press the switch repeatedly. To exit a special mode, press and hold the switch to turn the HC60/HC60M off.

ATR Technology

Advanced temperature regulation (ATR) technology allows the HC60/HC60M to dynamically adjust output performance according to its body temperature. This prevents damage from overheating and prolongs its working life.

Power Tips

Upon battery installation, the blue power indicator blinks to indicate the voltage of the battery (accurate to 0.1V). For example, when battery voltage is 4.2V, the power indicator will blink 4 times in quick succession, followed by a 1.5 second pause and then another two blinks. Different voltages represent the corresponding remaining battery power levels:

Charging

The HC60/HC60M is capable of charging a protected 18650 Li-ion battery using the included USB cable. Open the cap, install a protected 18650 Li-ion battery, plug one end of the USB cord into the HC60/HC60M's micro-USB port and the other end into a universal USB port (a computer, car charger, etc). Fully charging a depleted 18650 Liion battery takes approximately 6 hours.

1. If a problem (battery damage, reverse polarity, etc) is detected during the charging process, the HC60/HC60M will stop charging and the blue indicator built in the switch will blink rapidly.
2. Under normal charging conditions, the blue indicator will blink every 1.5 seconds. When charging is complete, the HC60/HC60M will automatically terminates charging, and the blue indicator will illuminate steadily.
3. Do not charge CR123 or RCR123 batteries in the HC60/HC60M.

Changing / Charging Battery

Batteries should be replaced or recharged when output appears to be dim or the flashlight becomes unresponsive.

Maintenance

Every 6 months, threads should be wiped with a clean cloth followed by a thin coating of silicon-based lubricant.

Warranty Service

Any DOA / defective product can be exchanged for a replacement through a local distributor/dealer within 15 days of purchase. After that, all defective / malfunctioning NITECORE® products can be repaired free of charge within 60 months from the date of purchase. Beyond 60 months, a limited warranty applies, covering the cost of labor and maintenance, but not the cost of accessories or replacement parts.

For the latest information on NITECORE® products and services, please contact a local NITECORE® distributor or send an email to service@nitecore.com
* All images, text and statements specified herein this user manual are for reference purpose only. Should any discrepancy occur between this manual and information specified on www.nitecore.com, Sysmax Innovations Co., Ltd. reserves the rights to interpret and amend the content of this document at any time without prior notice.

SYSMAX Innovations Co., Ltd.
TEL: +86-20-83862000
FAX: +86-20-83882723
E-mail: info@nitecore.com
Web: www.nitecore.com
Address: Rm 2601-06, Central Tower, No.5 Xiancun Road, Tianhe District, Guangzhou, 510623, Guangdong, China

Made in China

Please find us on facebook: NITECORE Flashlight
