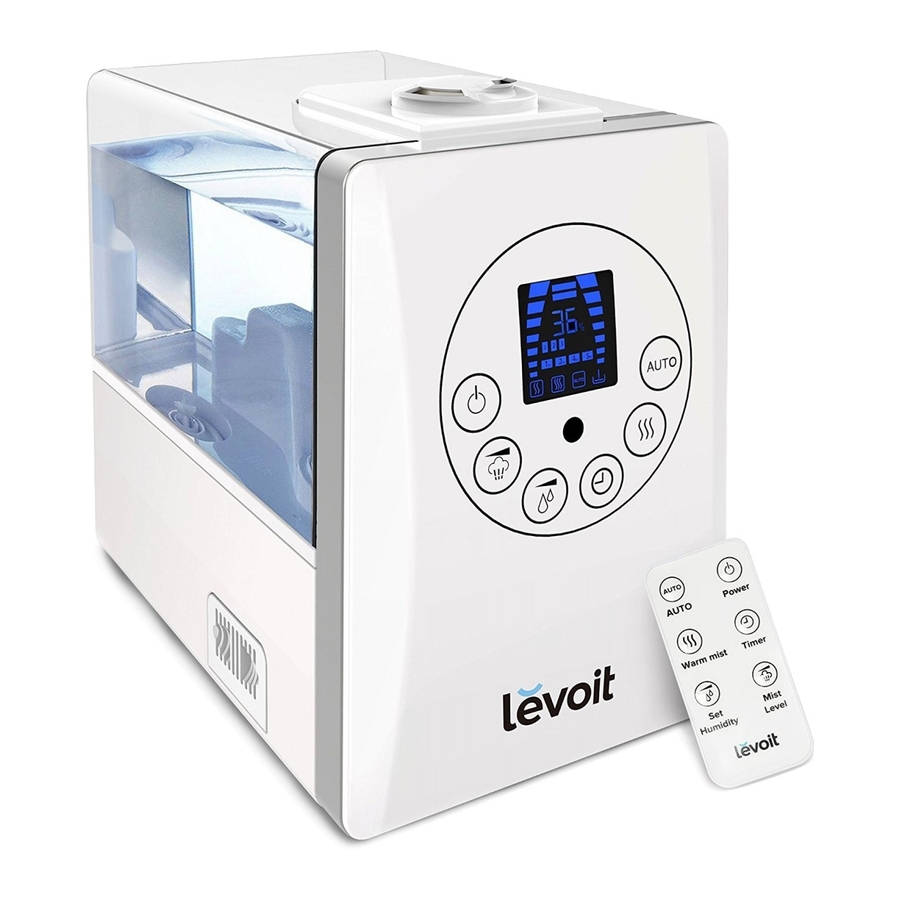

LEVOIT LV600S Hybrid Ultrasonic Humidifier Manual

Main Functions

1. Nozzle
2. Handle cover
3. Handle
4. Water tank
5. Water tank cap
6. Water level sensor
7. Base
8. Air flume
9. Mist tube
10. Atomization chip
11. Absorption pad
12. Heating element
13. Inner chamber
14. Power cord
15. Aroma box

16. LED display
17. On/Off button
18. Mist Level button
19. Humidity Level button
20. Timer button
21. Warm Mist button
22. AUTO button
23. Remote control

1. Relative humidity (RH) level indicator
2. Cool mist humidity level
3. Timer setting
4. Warm mist humidity level
5. AUTO mode indicator
6. Low water level
7. High temperature warning
8. Set humidity function

Set-Up

1. Remove the handle cover and set aside. Carefully lift the handle to remove water tank from the base

2. Flip the tank over and unscrew the water tank cap.

3. Fill the tank with at least 2 cups (480 mL) of cold or room temperature water. Replace the cap once you have filled the tank to your desired level.


NOTE:

• The maximum capacity for the water tank is 1.5 gallons (6 liters).
• DO NOT add water through the mist tube; doing so will damage the device.
• Only fill the water tank with cold or room temperature water.

4. Carefully place water tank back onto the base, making sure that the tank is properly aligned. Replace the handle cover.
5. Plug the humidifier into an electrical outlet. The unit will chime, indicating it is in standby mode.

NOTE:

• If the relative humidity exceeds 68%, turn off the humidifier or set it to the low mist setting. Excess humidity may have a negative effect on your health.
• It is recommended to adjust the settings on the humidifier based on your room's current relative humidity, room size, and indoor temperature.

Operation

Button Controls

NOTE: For added convenience, the same button controls can be found on the included remote control.

Turns on or turns off the humidifier.

Press the mist level button to cycle through the humidifier's 3 cool mist settings.

• Press once for the low mist setting.
• Press twice for the medium setting.
• Press three times for the high mist setting.

NOTE: The default setting when you first turn on the humidifier is the medium cool mist setting.

Use the Humidity level button to program the humidifier to work toward a set humidity level.

1. Press the Humidity Level button once to activate this function. Keep pressing the Humidity Level button to select a custom humidity level between 40%- 80% RH.
2. Once you have selected your desired humidity, the display will flash 5 times confirming your selection.
3. The device will start producing mist and will automatically stop operating once the programmed humidity level has been reached.
4. The device will resume operation when the relative humidity drops 5% below the set humidity value.
5. To cancel this function, press the Humidity level button until the screen flashes "- -".

NOTE:

• The programmed humidity level can be changed at anytime by pressing the Humidity level button.
• The "Set Humidity" icon will turn on while you are setting your humidity level and will turn off once your humidity level has been confirmed.
• Once you have programmed your humidity level, the display will alternate between the programmed humidity and the current humidity level during operation.

Press the Timer button to set the timer anywhere from 1 to 12 hours. When you have selected your desired time, the display will flash three times before the time is set. The device will automatically turn off when the timer is finished counting down. To cancel or turn off the timer, keep pressing the Timer button until the display flashes "--."

Press the Warm Mist button to have the humidifier generate a gentle stream of warm mist for your living space. While using this function, the humidifier heats the water before diffusing it into the air, killing any waterborne bacteria or germs. There are three settings for the Warm mist function, which are noted below. Press the Warm Mist button four times to turn off this function.

• Low setting, press once.
• Medium setting, press twice.
• High setting, press three times.

NOTE:

• Use caution when setting the Warm mist function; the mist being diffused is hot.
• The humidifier will default to diffusing cool mist when the warm mist function is not activated.

Press the AUTO button to activate the automatic humidifying mode. The unit will automatically diffuse cool mist based on the surrounding environment and will maintain environmental humidity from 55-68% RH (the unit will run continuously if the humidity is below 54% RH and will stop when it reaches 68% RH). The table below shows the mist level in correlation to the relative humidity level for Auto Mode.

NOTE:

• Changing either the warm or cool mist levels while on AUTO mode will cancel the AUTO mode function.
• The timer can be set while the device is on AUTO mode.

The "Low Water Level" icon will appear on the display when more water needs to be added to the water tank. When this happens, the humidifier will automatically shut off and will turn back on once a sufficient amount of water has been added. The minimum of amount of water needed for the humidifier to function is 2 cups (480 mL).

Turning Off the Display

While the humidifier is operating, the display will automatically dim itself after 30 seconds. If you want to turn off the display, press and hold the AUTO button for 3 seconds. To turn the display back on, press any button (except the power button) on the control panel.

Care & Maintenance

Make sure the humidifier is disconnected from any power source before cleaning.

1. Unplug the humidifier. Allow the device and any remaining water to completely cool before cleaning.
2. Remove the water tank from the base and pour out any excess water.
3. Remove the air flume and mist tube. Detach the mist tube from the air flume by twisting the tube counterclockwise. Rinse both parts in clean water and dry thoroughly.

4. Remove the green absorption pad inside of the heating element and rinse under clean water. Dry the pad with a clean, dry cloth.

5. Add 1 cup of distilled white vinegar to the inner chamber. Make sure there is vinegar on each section of the chamber including the atomization chip and heating element. Allow the vinegar to soak for 20-30 minutes.

6. While the vinegar is soaking in the chamber, scrub all parts of the inner chamber with a soft brush or sponge to remove any scale or buildup.
7. Pour out the excess vinegar and rinse the inner chamber thoroughly with warm water. Dry the chamber with a soft, clean cloth.
8. To remove any scale or buildup in the water tank, pour 3 cups of distilled white vinegar along with 3 cups of water. Evenly coat all sides of the water tank with the solution and allow it to soak for 20-30 minutes. Scrub off any remaining buildup with a soft-bristled brush and discard the excess vinegar.
9. Rinse out the water tank with warm water and dry thoroughly with a soft, clean cloth.
10. Allow all parts to dry completely dry. Reassemble the humidifier and store it in a covered space.

Cleaning the Aroma Pad

1. To clean the aroma pad, remove it from the aroma box and rinse under warm water.

2. Dry the pad with a clean cloth and place it back into the aroma box.

Replacing the Remote Control Battery

1. Press the locking tab toward the pulling slot to remove the battery compartment.

2. Properly dispose of the old battery.
3. Place a new CR2025 3V battery into the battery compartment with the positive side facing up.

4. Replace the battery compartment into the remote.

NOTE: You can control the humidifier from up to The remote-controlled distance is 16 ft. (5 m).

Troubleshooting

Specifications

Power Supply: AC 120V / 60Hz
Rated Power: 280W
Effective Range: 285.3 ft ² (24 m²)
Water Tank Capacity: 1.5 gal. (6 L)
Max Cool Mist Capacity: 300 mL/h
Max Warm Mist Capacity: 500 mL/h

Package Contents

1 x Hybrid Ultrasonic Humidifier
1 x Remote control
3 x Aroma pads
1 x User manual

Customer Support

Should you encounter any issues or have any questions regarding your new product, feel free to contact our helpful Customer Support Team. We're here for you.

Levoit Corporation
1202 N. Miller Street, Suite A
Anaheim, CA 92806

Toll-Free: 888.726.8520
Email: support@levoit.com

Support Hours
Monday - Friday: 9:00am - 5:00pm PST

*Please have your order number ready before contacting customer support.
