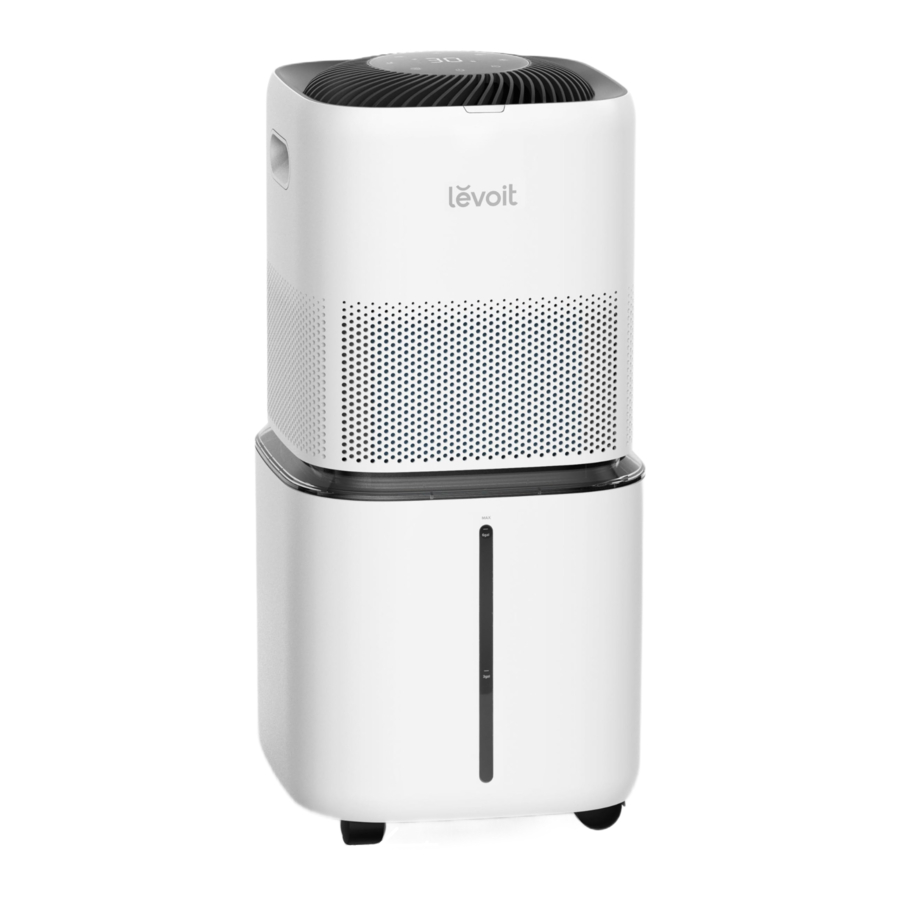

LEVOIT Superior 6000S (LEH-S601S-WUS) Manual

1. Display
2. Air Outlet
3. Humidifier Top
4. Water Pump Tube
5. Wick Filter Frame
6. Wick Filters
7. Support Frame
8. Water Tank
9. Water Level Window
10. Wheels
11. Handles
12. Humidity Sensor
13. Power Adapter Input
14. Air Inlet
15. Support Frame Inlet
16. Water Filter Sponge
17. Water Filter Housing
18. Water Filling Hose
19. Cleaning Brush
20. Power Adapter
21. Alignment Sensor

CONTROL PANEL

DISPLAY

FILLING & REFILLING

Note: Make sure the water tank is clean before filling.

1. Roll or careful y lift the humidifier to a kitchen or bathroom sink. Be careful if you are rolling the whee s on carpet.
2. Remove the humidifier top. [Figure 2.1]

3. Place one end of the water filling hose into the support frame inlet and place the funnel underneath the faucet. [Figure 2.2]

4. Optionally, you can remove the support frame and add water directly into the water tank. [Figure 2.2]
   Note: Do not fill with hot water
5. Use the water level window to see how much water is in the tank. Do not fill past the max line or water may overflow [Figure 2.3]

6. Replace the support frame (if it was removed) and humidifier top.

   • Do not add water through the top of the humidifier. [Figure 2.4]

   • Do not add essential oils into the humidifier.
   • Do not use water treatment liquids or third-party water filters in this humidifier.

VeSync App Setup
Note: Due to ongoing updates and improvements, the VeSync app may be slightly different than shown in the manual. In case of any differences, follow the in-app instructions.

1. To download the VeSync app, scan the QR code or search "VeSync" in the Apple App Store or Google Play Store.
   Note: For Androicr users, choose "Allow" to use VeSync




Auto Home Mode
Auto Home Mode automatically adjusts humidity levels based on the current room temperature so you can always live in comfort.

Note:

• If the humidifier is on and connected to the VeSync app, tapping on the display will default to Auto Home Mode settings.
• Auto Home Mode settings cannot be changed.

Auto Home Mode Settings

Indoor Temperature	Default Target Humidity
64ºF	60%
65º—74ºF	50%
> 74º F	40%

Auto Away Mode
Auto Away Mode automatically adjusts humidity levels based on the current room temperature so you can return to comfort.

Note:

• Auto Away Mode can only be accessed through the VeSync app.
• Auto Away Mode settings cannot be changed

Auto Away Mode Settings

Indoor Temperature	Default Target Humidity
< 74ºF	55%
74ºF	45%

Monitor Humidity Levels
Check current humidity levels in the humidifier's environment.

Set Timers
Set a timer for 1—24 hours.

Third-Party Voice Control
Compatible with Amazon Alexa and Google Assistant for voice commands.
Note: The VeSync app is continually updated and app features wi// expand.

Important Tips
Your humidifier must have the correct level of water in the water tank to work properly If there is too much water in the tank, the humidifier cannot evaporate water.

• Do not place the humidifier on an inclined surface.
• Never pour water directly into the humidifier top. [Figure 3.1]

  Only add water directly to the water tank or through the support frame's inlet.
• Avoid moving or shaking the humidifier.
• Before moving the humidifier, turn it off, unplug it, and remove the water tank and empty any excess water.

CARE & MAINTENANCE

Note:

• All maintenance should be done on a water-resistant surface, such as a kitchen or bathroom floor.
• Change the water every 3 days to avoid bacteria growth.
• If not using the humidifier for 1week or longer, do not leave water inside. Clean and dry the humidifier instead.

Cleaning
You should clean your humidifier water tank every 3 days, and when you're ready to store it.

Note:

• Never immerse the tank or humidifier top in water or liquid. Do not place any part of the humidifier in a dishwasher.
• Do not use detergents to clean the humidifier:

1. Unplug the humidifier.
2. Remove the humidifier top and wick filter frame.
3. Remove the support frame by pushing in both sides of the support frame's c amp and lift. [Figure 3.2]

4. Pour out any water from the tank.
5. Wipe all parts with a soft, damp cloth. Use the cleaning brush to scrub any residue off if needed. [Figure 3.3]

6. Dry all parts with a clean cloth. Make sure all parts are complete y dry before reassembling or storing.

Replacing the Wick Filters
The wick filters are washable and can last as long as 3 6 months depending on weather conditions and water quality. will light up as a reminder to check the filter. You may not need to change your filter yet, but you should check it when lights up. Using Dry Mode helps extend the life of the wick filters by preventing moisture buildup and mold. To purchase additional Wick filters, contact Customer Support.

To clean:

1. Turn off the humidifier and remove the humidifier top.
2. Remove the wick filter frame and pull out the 4 wick filters from the frame. [Figure 4.1]

3. Rinse the wick filters with water and use the cleaning brush to remove any residue. [Figure 4.2]

4. Replace the wick filters into the wick filter frame.
5. Place the wick filter frame back onto the support frame, making sure the water pump tube is inside the support frame inlet. [Figure 4.3]

6. Place the humidifier top on the water tank, aligning the Levoit logo with the water level window on the water tank.
   Turn on the humidifier. [Figure 4.3]
7. Tap on the display to select low or high setting (see Dry Mode).
8. When Dry Mode is finished, press and hold for 3 seconds to reset .

To replace:

1. Turn off the humidifier and remove the humidifier top.
2. Remove the wick filter frame and pull out the 4 wick filters from the frame. [Figure 4.1]
3. Remove the plastic packaging from the new wick filters and insert them into the wick filter frame. [Figure 4.4]

4. Place the wick filter frame back onto the support frame, making sure the water pump tube is inside the support frame inlet. [Figure 4.3]
5. Place the humidifier top on the water tank, aligning the Levoit logo with the water level window on the water tank. Turn on the humidifier [Figure 4.3]
6. Press and hold for 3 seconds to reset .

Replacing the Water Filter Sponge
The water filter sponge should be replaced once a month. To purchase additional water filter sponges, contact Customer Support.

1. Remove the humidifier top and wick filter frame.
2. Twist the water filter housing open and remove the old water filter sponge. [Figure 4.5]

3. Insert the new water filter sponge and twist the water filter housing to close.
4. Place the wick filter frame back onto the support frame, making sure the water pump tube is inside the support frame inlet. [Figure 4.6]

5. Place the humidifier top on the water tank.

Descaling Your Humidifier
To descale the humidifier (remove mineral buildup):

1. Remove the humidifier top, wick filter frame, and support frame from the water tank.
2. Fill the water tank with 3 US cups / 7 0 mL of distilled white vinegar and swish the vinegar around the tank. [Figure 4.7]

3. Let the water tank soak for 15 - 20 minutes so the vinegar can loosen scale (mineral buildup).
4. Pour out the vinegar.
5. Use a soft cloth and the included cleaning brush to remove an scale buildup. [Figure 4.8]

6. Rinse the water tank until any vinegar smell is completely gone.

Storing
Follow the cleaning instructions and allow all parts to dry completely before storing. Store in a cool, dry location.

1. Use Dry Mode to dry the wick filters, then separate all parts. Remove left over water from the tank and dry thoroughly.
2. Place the base of the water tank on top of the support frame. [Figure 4.9]

3. Place the wick filter frame inside the water tank, followed by the humidifier top. [Figure 4.9]
4. Place the humidifier in the storage bag.

TROUBLESHOOTING

Problem	Possible Solution
Humidifier doesn't turn on, or turns off unexpectedly	Plug the humidifier into a working outlet and turn it on.
	Add tap water to the water tank.
Air doesn't seem to be humid	Turn the fan speed to a higher setting.
	Fill the water tank.
	There may be too much water in the tank. Pour out some of the water from the tank.
	Clean the humidifier (see Care & Maintenance).
	Make sure the humidifier is on a level surface.
	Clean the wick filters or replace the water filter sponge with a new one. One replacement water filter sponge is included with this humidifier For information on additional replacements, contact Customer Support.
Humidifier uses water too quickly	The humidifier uses up water based on the environmental temperature and humidity. If your environment is cold and/or dry, the humidifier will run out of water faster.
Humidifier produces an unusual smell	If the humidifier is new, unplug and rinse all parts, then place in a cool, dry place for 12 hours.
	Clean the humidifier (see Care & Maintenance).
Humidifier makes a loud or unusual noise	Make sure the water pump tube is properly in the water tank (see Getting Started).
	Set fan speed to a lower setting.
	Empty the water tank then refill the water tank (see Filling & Refilling).
	The humidifier may be malfunctioning. Stop using the humidifier and contact Customer Support.
Water visibly leaks from the humidifier	Avoid running the humidifier in a room with over 60% relative humidifier
	Wipe any excess water off the top and bottom of the tank.
	Do not shake the humidifier.
	Make sure to place the humidifier on a flat, level surface.
	Check the water tank for leaks. If there are leaks, contact Customer Support.
The area around the humidifier is damp or wet from condensation.	Humidity may be too high. Turn down the fan speed, turn off the humidifier, or open a door or window to the room.
	Open a window to ensure proper airflow for the humidifier, or move the humidifier to a more well -ventilated room.
	Make sure the water tank is properly in place (see Getting Started).
	When replacing the water tank, wipe off excess water from he water tank.
Mold grows inside the humidifier	Clean the water tank regularly (see Care & Maintenance).
lights up red.	Fill the water tank.
	Make sure all parts are installed correctly (see Getting Started).
Display shows an incorrect humidity percentage	Moisture may have built up inside the humidity sensor. Turn off the humidifier and allow the sensor to air dry.
	If the humidifier is placed within 12 inches / 30 cm of a wa or in a corner, the humidity sensor cannot provide a proper reading for the re ative humidity in the room.
	The humidity sensor will give an improper reading if it 's exposed to dust. Avoid using the humidifier in dusty rooms.
The humidity level isn't changing in my room	Use a higher fan speed setting.
	Depending on your environment, the humidifier may take longer to humidify your air.
Display shows Error Code "E1", "E2"	The humidifier is malfunctioning. Contact Customer Support.

If your problem is not listed, please contact Customer Support.

VESYNC APP TROUBLESHOOTING

Why isn't my humidifier connecting to the VeSync app?

• Make sure your phone has Bluetooth turned on and is not currently connected to another Bluetooth device.
• During the setup process, you must be on a secure 2.4GHz Wi-Fi network. Confirm that the network is working correctly.
• Make sure the Wi-Fi password you entered is correct.
• Make sure your humidifier and phone are within 30 ft/ 10 m of each other.
• Reset the humidifier by pressing and holding for 15 seconds. Then try connecting again.

My humidifier is offline

• Make sure the humidifier is plugged in. The humidifier may appear to be offline if it is unplugged, or if the outlet does not have power.
• Refresh the VeSync menu by swiping down on the screen.
• Make sure your router is connected to the internet and your phone's network connection is working.
• Reset the humidifier using one of these options:

1. Delete the humidifier from the VeSync app. Swipe left (iOS) or press and hold (Android), then tap Delete. Then reconfigure your humidifier with the VeSync app.
2. Press and hold for 15seconds. Then reconfigure your humidifier with the VeSync app.

Note: Power outages, internet outages, or changing Wi Fi routers may cause your humidifier to go offline.

The VeSync app is displaying an incorrect humidity percentage while the humidifier is turned on.

• Moisture may have built up inside the humidity sensor. Turn off the humidifier and allow the sensor to air dry.
• If the humidifier is placed within 12 inches / 30 cm of a wall or in a corner, the humidity sensor cannot provide a proper reading for the relative humidity in the room.
• The humidity sensor will give an improper reading if it is exposed to dust. Avoid using the humidifier in dusty rooms.

If your problem is not listed, please contact Customer Support).

CUSTOMER SUPPORT
If you have any questions or concerns about your new product, please contact our helpful Customer Support Team.

Arovast Corporation
1202 N. Miller St., Suite A
Anaheim, CA 92806, USA
Email: support@levoit.com
Toll-Free: 1-888-726-8520

Support Hours
Mon Fri, 9:00 am 5:00 pm PST/PDT
*Please have your order invoice and order ID ready before contacting Customer Support.

SAFETY INFORMATION

To reduce the risk of fire, electric shock, or other injury, follow all instructions and safety guidelines.

General Safety

• Only use your humidifier as described in this manual.
• Do not use without removing the plastic wrap from the wick filters. The humidifier will not filter water and may overheat, causing a fire hazard.
• Do not use your humidifier outdoors.
• Keep your humidifier away from water, and wet or damp areas. Never place in water or liquid. Do not use in excessively humid areas. Keep your humidifier away from heat sources.
• Do not use where combustible gases, vapors, metallic dust, aerosol (spray) products, or fumes from industrial oil are present.
• Keep 5 ft/ 1.5 m away from where oxygen is being administered.
• Children should be supervised to ensure that they do not play with the humidifier.
• Do not allow children to play with the plastic packaging. Immediately discard the plastic after unwrapping the wick filters. Do not place anything into any opening on the humidifier.
• Children should be supervised to ensure they do not insert fingers or objects into the vent openings. Do not sit or place heavy objects on the humidifier.

• Do not add essential oils, supplemental water treatment liquids, or water filters into the water tank. This will damage the humidifier and cause leaks.
• Always unplug your humidifier before servicing (such as changing the filter).
• Do not use your humidifier if it is damaged or not working correctly, or if the cord or plug is damaged. Do not try to repair it yourself. Contact Customer Support.
•
  To reduce the risk of fire or electric shock, do not use this humidifier with any solid-state speed controls (such as a dimmer switch).
• Children should not clean or perform maintenance on the humidifier without supervision.
• This humidifier is not to be used by persons (including children) with reduced physical, sensory, or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety
• Not for commercial use. Household use only

Power Adapter & Cord

• Keep the humidifier near the Outlet it is plugged into.
• Your humidifier's adapter has a polarized plug (one prong is wider than the other), which fits into a polarized outlet on y one way. This is a safety feature to reduce the risk of electric shock. If the plug does not fit, reverse the plug. fit still does not fit, do not use the plug in that outlet. Do not bypass this safety feature.
• Never place the adapter near any heat source.
• Do not handle the power adapter or plug with wet hands. Keep the plug and power adapter away from liquids.
• Do not cover the cord with a rug, carpet, or other covering. Do not place the cord under furniture or appliances.
• Keep the cord Out Of areas where people walk often. Place the cord where it will not be tripped over.
• This humidifier is only to be used with the power supp y adapter provided with the humidifier.
• If the power adapter is damaged, it must be rep aced by Arovast Corporation or similarly qualified persons in order to avoid an electric or fire hazard. Please contact Customer Support.
• This humidifier's power adapter uses standard North American 120V, 60Hz outlets. If using outside the US or Canada, check for compatibility.
• Unplugging the power adapter will temporarily disconnect the humidifier from VeSync and other third party apps.

Electromagnetic Fields (EMF)
Your Levoit humidifier complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.
