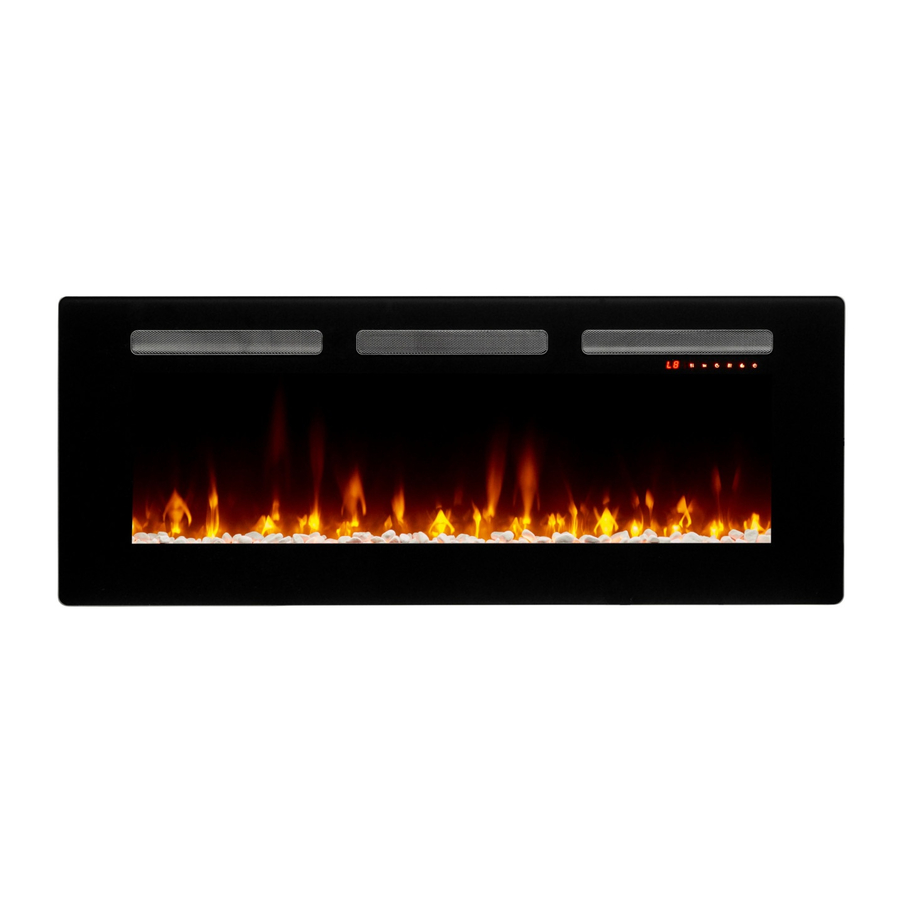

C3 Sierra 48, Sierra 60, Sierra 72, Sierra 96 - Fireplace Manual

Overview


Confused? Scan code to watch our firebox and assembly videos

Sierra 48"

Sierra 60"

Sierra 72"

Sierra 96"

www.c3furnishings.com

In-wall installation

Cabinet Dimensions - in | po | plg / cm

Model A B C
Sierra 48 41.6 / 105.7 6.5 / 16.5 18.5 / 47.0
Sierra 60 52.4 / 133.1 6.5 / 16.5 18.5 / 47.0
Sierra 72 64.4 / 163.6 6.5 / 16.5 18.5 / 47.0
Sierra 96 88.4 / 224.5 6.5 / 16.5 18.5 / 47.0

Cabinet Dimensions

Firebox Dimensions - in | po | plg / cm

Model D E F
Sierra 48 41.2 /1 04.6 4.7 / 11.9 18.1 / 46.0
Sierra 60 51.9 / 131.8 4.7 / 11.9 18.1 / 46.0
Sierra 72 64 / 162.6 4.7 / 11.9 18.1 / 46.0
Sierra 96 88 / 223.5 4.7 / 11.9 18.1 / 46.0

Firebox Dimensions

In-wall installation - Step 1
In-wall installation - Step 2
In-wall installation - Step 3

Wall installation

Wall installation - Step 1
Dimensions - in | po | plg / cm

Model A B
Sierra 48 16 / 40.6 7.9 / 20
Sierra 60 32 / 81.3 7.9 / 20
Sierra 72 32 / 81.3 7.9 / 20
Sierra 96 48 / 121.9 7.9 / 20

Wall installation - Step 2
Wall installation - Step 3
Wall installation - Step 4

Table Top Installation

Table Top Installation - Step 1
Table Top Installation - Step 2
Table Top Installation - Step 3
Table Top Installation - Step 4

Welcome

Welcome to the element of comfort. Before you make these pieces a fireplace, we suggest calling a friend, changing into something comfy and grabbing a drink so you're ready to relax when you're done. We're keeping this simple, providing the essentials for assembly, installation and operation. An expanded manual and videos are both available online if you need more detail - just scan the code below or enter the product URL in your browser. Thanks for joining our C3 community, we know you'll be cozy for years to come!

IMPORTANT INSTRUCTIONS

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:
Read this manual before attempting to install or use the electric fireplace. Always comply with the warnings and safety instructions contained in this manual to prevent personal injury or property damage.

  • This appliance is hot when in use. To avoid burns, do not let skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 ft. from the front of this appliance and keep away from sides and rear.
  • Extreme caution is necessary when any heater is used by, or near, children or invalids, and whenever the heater is left operating and unattended.
  • Do not operate any heater with a damaged cord or plug, after the appliance malfunctions, or if it has been dropped or damaged in any manner. Disconnect from power and call Technical Service or have it inspected by qualified electrician.
  • To disconnect the fireplace, turn the controls off, then remove the plug from the outlet.
  • Do not use outdoors.
  • Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the fireplace.
  • All electrical heaters have hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint or flammable liquids are used or stored.
  • Use this appliance only as described in the manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons.

SAVE THESE INSTRUCTIONS

FCC COMPLIANCE

This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. The equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on. The user is encouraged to try and correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna
  • Increase the separation between the equipment and the receiver
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
  • Consult the dealer or an experienced radio/TV technician for help

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

  1. T his device may not cause harmful interference, and
  2. T his device must accept any interference received, including interference that may cause undesired operation.

Modifications not approved by the party responsible for compliance could void user's authority to operate the equipment. This Class B digital apparatus complies with Canadian ICES-003.

SAFETY INFORMATION

  • If possible, always unplug this appliance when not in use.
  • Any repairs to this fireplace should be carried out by a qualified service person.
  • Under no circumstances should this fireplace be modified. Parts having to be removed for servicing must be replaced prior to operating this fireplace again.
  • This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never place heater where it may fall into a bathtub or other water container.
  • Always connect to properly grounded outlets.
  • Do not run cord under carpeting. Do not cover cord with throw rugs, runners or the like. Arrange cord away from traffic areas and where it will not be tripped over.
  • Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip).
  • To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like bed, where opening may become blocked.
  • There is a resettable cutout switch inside the heater. Should the heater overheat, the cutout will turn the fireplace heater off. To reset the cutout switch unplug the unit and wait 5 minutes before plugging it back in.


If you need to continuously reset the cutout, unplug the unit and call Technical Support.

  • Remote control contains small batteries. Keep away from children. If swallowed, seek medical attention immediately.

Grounding Instructions

  • This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
  • This heater is for use on 120 volts. The cord has a plug as shown.
  • A 15 Amp, 120 Volt circuit is required. A dedicated circuit is preferred, but not essential in all cases. A dedicated circuit will be required if, after installation, the circuit breaker trips or the fuse blows on a regular basis when the heater is operating. Additional appliances on the same circuit may exceed the current rating of the circuit breaker.


Electrical outlet wiring must comply with local building codes and other applicable regulations to reduce the risk of fire, electric shock, or injury to persons.

CARE AND MAINTENANCE

  • Clean the metal trim using a water-dampened soft, clean cloth. DO NOT use brass polish or household cleaners as these products will damage the metal trim.
  • The motors used on the fan and the flame generator assembly are pre-lubricated for extended bearing life and require no further lubrication. However, periodic cleaning/vacuuming of the fan/ heater and air intake/output vents is recommended. The heater should be cleaned and inspected regularly, depending on conditions, and at least at yearly intervals.


Any electrical repairs of this unit should be carried out by a licensed electrician in accordance with national and local codes.

Disconnect power by unplugging the power and allowing heater to cool before attempting any maintenance or cleaning to reduce the risk of fire, electric shock, or injury.
Note: When the heater is not in use, the heater should be stored in a dry location, away from possible damage. The power cord should be stored properly to avoid contact with hot or sharp objects.

Remote Control
The battery compartment is located on the back end of the remote control.

  1. Press and slide the battery cover open.
  2. I nsert two 1.5V (AAA) batteries (included) ensuring they are installed correctly with regard to the polarities (+ and -) marked on the inside of the battery compartment.
  3. Replace the battery cover.

Note: The batteries should be removed if the product is to be left unused for a long time.

Replacing the Remote Control Batteries
When replacing the batteries, replace both batteries at the same time with new batteries of the correct type.

  • Do not mix old and new batteries.
  • Do not mix alkaline, standard (carbonzinc), or rechargeable (nicad, nimh, etc) batteries.

Disposal of Used Batteries

Batteries may contain hazardous substances that could be endangering to environment and human health.

  • This symbol marked on the battery and/or packaging indicates that used batteries shall not be treated as municipal waste. Instead they shall be left at the appropriate collection point for recycling.
  • By ensuring the used batteries are properly disposed of, you will help prevent potential negative consequences for the environment and human health. The recycling of materials will help to conserve natural resources.

For more information about collection and recycling of used batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased this item.
