SWM4220 & SWM4820
Operation
! NOTE:
The heater
on your fireplace may
emit a slight, harmless
odor when first used.
This odor is a normal
condition caused by
initial heating of internal
heater parts and will not
occur again.
CUTOFF SWITCH
! NOTE:
There is a
safety temperature
cutoff switch (cutout)
inside the heater. If the
heater overheats, the
cutout will shut off the
supply power.
It can be reset by
unplugging the unit
and waiting 5 minutes
before plugging the unit
back on.
CAUTION:
If you
need to continuously
reset the heater,
unplug the unit and
call technical service
at 1-888-346-7539.
www.c3furnishings.com

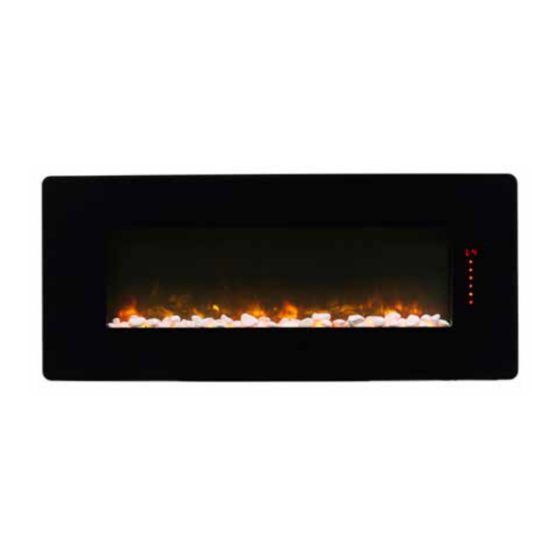

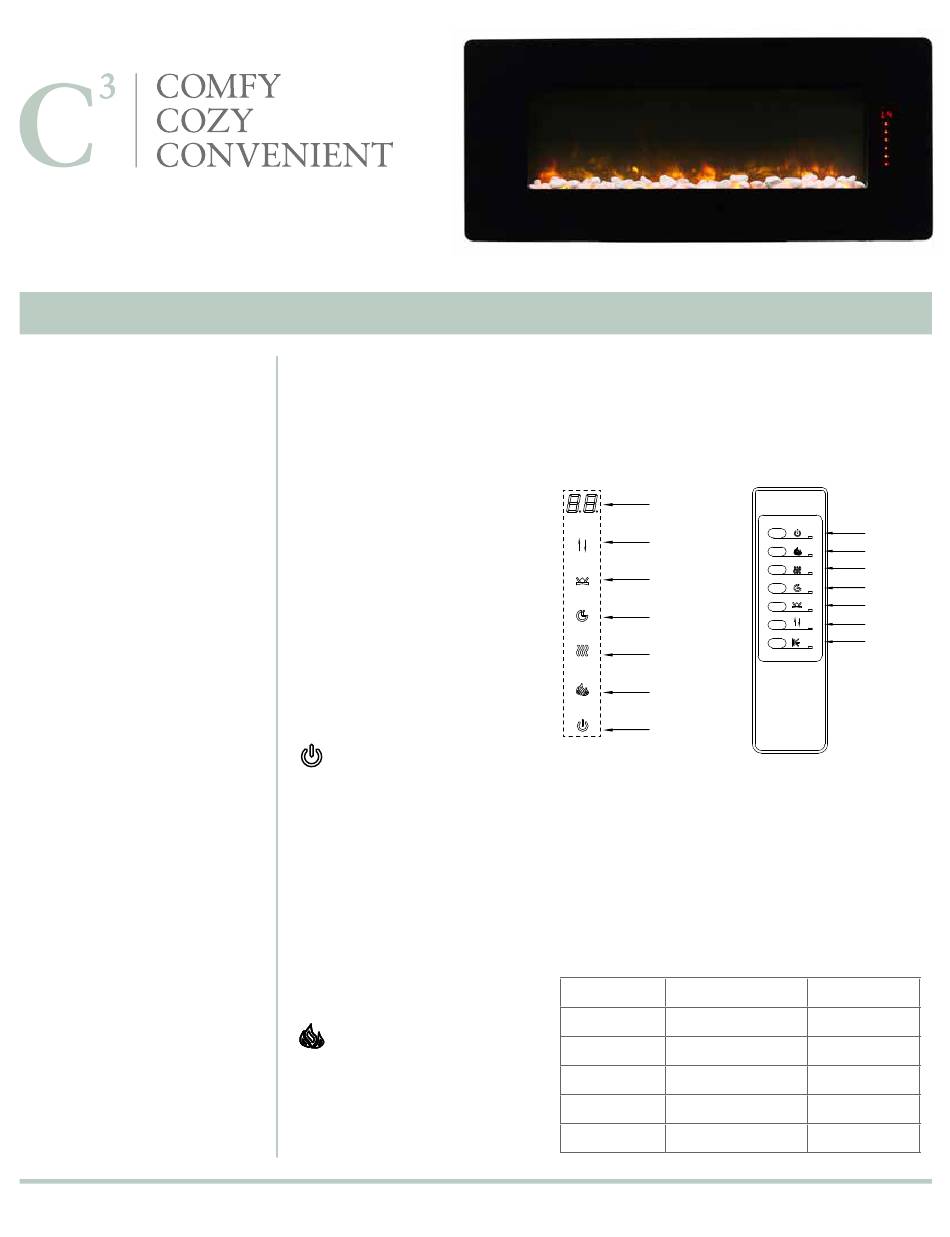

The wall-mount fireplace can be operated with the multi–function IR remote
control or from the touchscreen controls on the front glass of the fireplace.
Once the fireplace is turned on the digital display and the control icons on the
front glass will illuminate. If no button or icon is pressed within 10 seconds, the
fireplace controls will deactivate by turning off the digital display first and then
the icons. To reactivate the controls press any button on the remote or touch
any icon on the front glass.
1. Power ON / OFF
2. Flame Control
3. Heat Control
4. Timer Control
5. Ember Bed
6. Level Selection
7. Backlight Control
8. Digital Display
Power ON/OFF
The Power ON/OFF button turns the fireplace ON and OFF. When the
fireplace is OFF, pressing the Power ON/OFF button on the remote control
or touching the icon on the front glass will turn ON the fireplace. If the Power
ON/OFF button is pressed again within 10 seconds it will turn OFF the
fireplace. With inactive controls, press twice to turn OFF the fireplace. The
first press on the Power ON/OFF button lights up the touchscreen icons and
activates the controls.
The fireplace has a built-in memory function. When the fireplace is turned
back on, the display will show the last selected function and it will start at
the last used settings (except timer). If the fireplace is disconnected from
the main power source, it will
restart at the default settings.
Flame Control
This button is used to turn
flames ON, alter flame color
and to turn flames OFF.
Press the Flame Control
button multiple times to cycle
through the following options:
8
8
6
6
5
5
4
4
3
3
2
2
1
1
1
2
3
4
1
5
2
Button Press
Flame Color
6
1st Press
Red & Yellow
2nd Press
Blue & Red
3
7
3rd Press
Red, Yellow & Blue
4th Press
Color Rotation
4
5th Press
5
1
1
2
2
3
3
4
4
5
5
6
6
7
7
Display Value
L4
L3
L2
L1
OFF
NONE
7215860100R00
