SAFETY INSTRUCTIONS

RISK OF DEATH AND ACCIDENTS FOR INFANTS AND CHILDREN!
Never leave children unattended with the packaging material. There is the danger of suffocation through ingestion or inhalation of small parts or films. Children often tend to underestimate the dangers.
Keep the device away from children. It is not a toy.

This device can be used by children from 8 years as well as persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, provided that they have been given supervision or instruction concerning the safe use of the device and that they understand the resulting risks. Children must not play with the device. Cleaning and user maintenance must not be carried out by children without supervision.
Operate the device in a dry and dust-free environment only.
Operate the device in an indoor environment only.
Do not expose the device to unfavourable influences such as
Humidity,
Constant sunlight,
Heat radiation,
Cold,
Vibrations.

RISK OF INJURY!

We will not assume any liability for material damage or personal injury caused by improper handling or non-observance of the safety instructions!
In such cases, the warranty / guarantee will become null and void!
Any other use than those described in these instructions will lead to damage of the device. Do not undertake structural modifications to the device.
Otherwise, safe operation cannot be assured.

shock hazard ATTENTION! RISK OF ELECTRIC SHOCK!

Do not open the housing. The device does not contain any serviceable parts. In case of a malfunction, please contact the service. Have works at the power network carried out by a specialised electrician, in the de-energized condition only.
The device is not suitable for isolation. The load is not separated from the mains galvanically.
Do not commission the device if there is visible damage.
Do not connect several WiFi sockets in series.
In case of failures, unplug the device from the socket immediately.
De-energized only when disconnected.

burn hazard ATTENTION! RISK OF FIRE!

Do not connect any end devices at the device the unsupervised switch-on of which could cause fire or other damage (e.g. iron).
Do not switch the device in an uncontrolled manner or without supervision.
Do not use an extension cable.
Make sure that the socket is installed close to the connected device, that it is easily accessible and that it is not operated while it is covered.
Avoid any overloading of the device.
Any overload may result in a risk of fire or damage to the device.
The maximum capacity is 3680 W.
Do not connect in series.

INTENDED USE

The WiFi extension socket is only intended to switch on and off loads connected to the socket in dry indoor areas.

INSTALLATION INFORMATION / DISTANCE TO SOURCES OF INTERFERENCE

This device works with the 2.4 GHz b/g/n WiFi protocol. The reach within buildings may strongly differ from the one in open areas.

Apart from the transmission power and the reception properties of the receivers, environmental influences such as air humidity and the structural situation on site play an important role.

The reach may be considerably reduced by:

Walls made of wood, plasterboard, concrete, reinforced concrete
Proximity to metal and conductive objects
Broadband interference, e.g. in residential areas (DECT phones, mobile phones, radio headphones, radio speakers, radio weather stations, baby monitoring systems)
Proximity to electric motors, transformers, power supply units, computers

SCOPE OF DELIVERY

1x WiFi Extension Socket WS ECO2 03 DE
1x operating instructions

TECHNICAL SPECIFICATIONS

Designation of the product:	WS ECO2 03 DE
Art. no.	1153240626
Radio frequency:	2.4 GHz WiFi
Frequency band:	2.400-2.483 GHz
Max. transmitting power:	< 100 mW
Wireless IEE standards:	IEEE 802.11 b/g/n
Operating voltage:	220-250 V AC / 50/60 Hz
Switching power:	Max. 3680 W
Nominal current:	16 A
Ambient temperature:	0°C to 35°C
IP class:	IP20

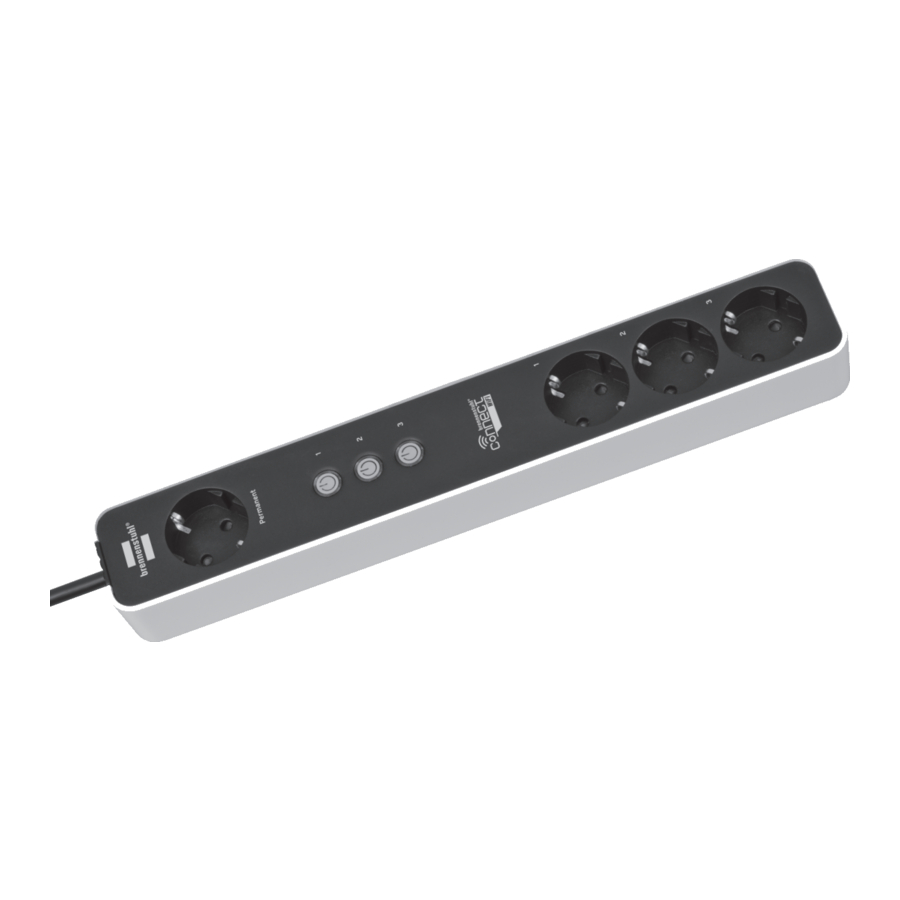

DEVICE OVERVIEW

Device Overview

Teach-in button and ON/OFF socket 1
ON/OFF socket 2
ON/OFF socket 3
Permanent socket

LED Status

Constantly lit in green: Device is connected to the Internet.
If the LED flashes green, the unit is in teach-in mode.
If a socket nest is switched on (ON), the LED lights up red.

FUNCTION

The WiFi extension socket is part of the brennenstuhl®Connect system which is controlled via the brennenstuhl®Connect app. The WiFi socket can be directly connected to the WiFi router.

PREPARATIONS

Connect the WiFi extension socket to an easily accessible socket. The local mains voltage must comply with the technical data of the WiFi socket (see "Technical data"). Before the commissioning, check the power consumption of the load that you want to connect to the WiFi extension socket. The maximum capacity is 3680 W.

DOWNLOADING THE APP / BRENNENSTUHL®CONNECT

The WiFi extension socket is controlled using the brennenstuhl®Connect app.
The app is available free of charge at the App Store and on the Google Play Store.
Follow the instructions on your mobile device to download and install.

Google, Google Play and Google Home are trademarks of Google LLC.
Apple and the Apple logo are trademarks of Apple Inc. App Store is a service mark of Apple Inc. Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affliates.

COMMISSIONING THE WIFI EXTENSION SOCKET

Start the brennenstuhl®Connect app.
Click on the „+" symbol at the top right to add new devices.
Select the corresponding device in the device list using the article number.
Switch off the 5 GHz WiFi network during the installation in your router under Settings. The 5 GHz network can be switched on again after successful installation.
Select your Wi-Fi network in the app and enter your Wi-Fi password.
Follow the further steps as described in the app to successfully connect the unit.

COMPATIBLE WITH AMAZON ALEXA AND THE GOOGLE ASSISTANT

The device is compatible with Amazon Alexa and the Google Assistant. For Amazon Alexa, download the brennenstuhl®Connect Skill and search for the WiFi extension socket. For the Google Assistant, select the Google Home App and click "Add" » "Set-up device". Then follow the screen menu.

CLEANING THE DEVICE

shock hazard ATTENTION! RISK CAUSED BY ELECTRIC SHOCK!
Before cleaning, separate the device from the power network. Make sure that no liquid penetrates the device. Penetrating liquid may cause a short circuit.

Clean the device with a dry, non-linting cloth. In case of more serious contamination, you can slightly moisten the cloth.
Do not use solvent-containing detergents for the cleaning.
Otherwise, the surface and labelling of the device may be damaged.
Never immerse the device in water or any other liquids.
Otherwise, the device may be damaged.
Ensure that the device is completely dry before the next use.

BEHAVIOUR AFTER POWER RECOVERY (POWER FAILURE)

Under „Settings" in the unit, you can select whether the unit has the status „On", „Off" or „Keep last status" after the operating voltage is switched on (return of mains voltage after mains voltage failure). Timers / countdown timers that should trigger an event during the mains voltage failure are not observed after the voltage returns.

DISPOSAL

Dispose of electric appliances in an environmentally friendly manner!
Electric appliances must not be disposed of in household waste!
The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment rules that used electric appliances should be collected separately and recycled in an environmentally friendly manner.

SERVICE

If you have questions concerning the product, please do not hesitate to contact us at www.brennenstuhl.com. Phone: 00 800 48 72 0 74 1 (free of charge)

MANUFACTURER

www.brennenstuhl.com

SIMPLIFIED EU DECLARATION OF CONFORMITY

We, the Hugo Brennenstuhl GmbH & Co. KG, herewith declare that the remote system type WS ECO2 03 DE complies with the directives 2014/53/EU and 2011/65/EU (RoHS II) incl. 2015/863/EU. The complete text of the EU declaration of conformity is available at the following web address: www.brennenstuhl.com/konformitaetserklaerung/ke_1153240626.pdf

The current operating instructions and FAQs for the product can be found at www.brennenstuhl.com.

This device complies with all legal, national and European requirements. All company names and product designations contained herein are trademarks of the respective owners.
