Brennenstuhl Premium-Web-Line V3 Manual

Table of Contents

Contents

1 Intended use
2 Scope of delivery
3 Structural overview
4 Connection
5 Manual operation at the device
6 Determination/configuration of the IP address
7 Configuration/operation with web interface
8 Loading factory settings
9 Surge protection (optional)
10 Interference filter (optional)
11 Insurance protection for connected devices (optional)
12 Technical data
13 Safety instructions
14 Maintenance and cleaning
15 Disposal
16 Declaration of conformity
17 Documents / Resources
- 17.1 References
- 17.2 Download manual

Intended use

The multiple socket strip is used to control, measure and monitor the 230V power supply of electric devices with a web browser via a network (Ethernet).
The multiple socket strip is intended to be used only in dry rooms. Any other use is not permitted. If you have any questions regarding spare parts or repairs, please contact the manufacturer.

Scope of delivery

1 x Premium-Web-Line multiple socket strip
1 x Ethernet cable, 1 metre
1 x Brief instructions

Structural overview

Depending on the product version, the technical features differ:

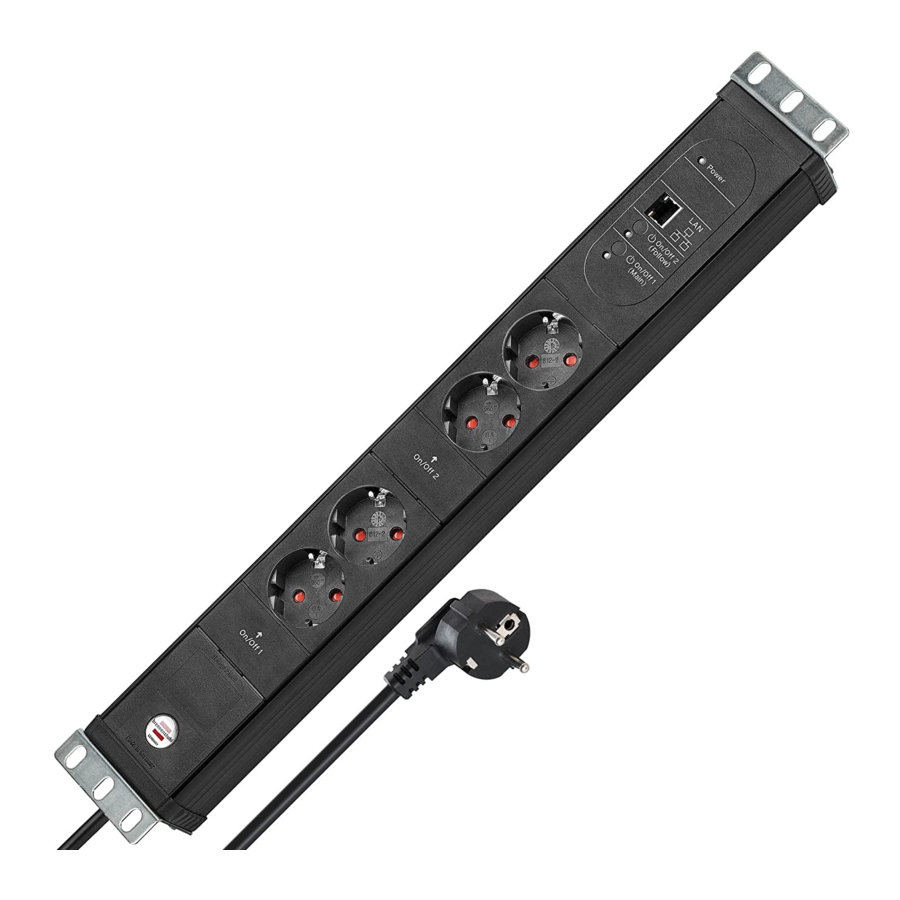

Structural overview

Cable with power plug
Surge protection
ON/OFF 1 sockets (Master)
ON/OFF 2 sockets (Slave)
Network connection (Ethernet )
ON/OFF 1 button/display (Master)
ON/OFF 2 button/display (Slave)
Power display
Router (not included in the scope of delivery)

Connection

Connect the power plug to a socket.
- The Power display is illuminated.
Connect the network connection of the multiple socket strip to a free port of your router .
Connect the desired devices to the respective socket ( , ) of the multiple socket strip.

Manual operation at the device

Briefly press the ON/OFF buttons ( , ) to manually turn the corresponding sockets ( , ) on or off.
The respective switching condition is indicated by the two displays ( , ).

Determination/configuration of the IP address

In order to call the web interface of the multiple socket strip you need its IP address.

With DHCP server: (integrated in most routers)
The multiple socket strip is automatically assigned an IP address when it is turned on. Determine it from the settings of the DHCP server (router) and set it to assign the same IP address at every start-up.
No DHCP server/static IP address:
In order to read out and/or configure the IP address of the multiple socket strip, please use our computer software „BS-Finder". Go to www.brennenstuhl.com to download it for free. You will also find detailed instructions there.

Configuration/operation with web interface

LAN / WLAN application:

Make sure that your computer/tablet/smartphone is connected to the same network as the multiple socket strip.
Enter the determined IP address of the multiple socket strip into the address bar of the web browser as follows: http://"IP address"/ (e.g. http://192.168.0.100/)
A login window is displayed. Log in as follows (factory settings).
User name: admin - Password: admin
You are now in the status window of the web interface of the multiple socket strip.
Download a detailed manual with all possible settings for free at www.brennenstuhl.com.
Please change the user name and password to protect the multiple socket strip from unauthorised access.

INTERNET / WEB application:
The following is required to access the multiple socket strip from the Internet:

Internet access with static IP address or dynamic DNS server (e.g. www.noip.com)
Active port forwarding in the router to allow connections between the Internet and the multiple socket strip in the network.

Download a detailed manual with configuration examples for free at www.brennenstuhl.com.

Loading factory settings

Press both buttons ( + ) at the same time for approx. 5 seconds to reset the multiple socket strip to the factory settings. This may be helpful, e.g. if you lost the access data.

All settings are lost in the process!

Surge protection (optional)

The surge protection system prevents the devices connected to the power strip from being damaged by voltage spikes in the mains network which can result, e.g. from direct lightning strikes or switching on inductive loads like motors, ovens, lamps, etc. In order to function correctly, the device must be connected to an outlet with a pro perly installed protective ground.

In case of a direct lightning strike, due to the extremely high energy generated, complete protection of the connected devices cannot be guaranteed. You can get the highest level of surge protection with a multilevel concept consisting of coarse and medium protection (installation technology) together with our fine protection per EN 61643-11 type 3.

When the socket outlet is switched on, the green indicator lamp lights up, showing that the surge voltage protection circuit is active. If the green lamp doe not light up, the sockets are dead. The protective effect is not existing anymore and the multiple socket has to be sent to the manufacturer for repair as the protection device has been destroyed by very high overload.

Interference filter (optional)

The Interference filter protects sensitive alectronics, e. g. in computers, television sets and stereo systems, from highfrequency interference voltages. In this way, interference with pictures and sound is effectively suppressed.

Insurance protection for connected devices (optional)

Brennenstuhl guarantees the surge characteristics up to the technical specifications indicated on the type label of the relevant product. If the product is used correctly, Brennenstuhl assumes any repair or exchange of all devices directly connected to the surge protection product and that are proven to have been damaged by surge, if the following applies: damage must arise from the non- observance of the described protection function according to the technical specifications. For this purpose, there is an insurance protection for damage to persons and property within our product liability amounting up to 5 million euros.

Technical data

Designation:	PWL... V3
Supply voltage:	230 V~
Total power:	max. 16 A / 3500 W µ
Power consumption:	< 0.9 W (sleep mode, relay off)
Network connection:	Ethernet 10/100 Mbit/s

Safety instructions

warning
Observe the following safety instructions.
Failure to comply may result in damage to persons and property. The guarantee becomes void if damage is caused by failure to comply with this manual, in particular with the safety instructions. Furthermore, the manufacturer shall not be liable for consequential damage.

Danger to life due to electric shock
Do not touch damaged, open or live parts! There is a danger of electrical shock. Before using the multiple socket strip, check it for damage. If the cable insulation or the housing is damaged, the multiple socket strip may no longer be used.

Devices that start without supervision
Electric devices and consumers that are started without supervision may represent a source of danger. For this reason, only use the switching function for devices that were expressly released by their manufacturers for this purpose and do not cause any danger on start-up. In the case of doubt, please contact the respective manufacturer before use.

To avoid danger, a damaged connection cable of the multiple socket strip may only be replaced by the manufacturer, its service representative or a similar expert.
Do not manipulate or modify the multiple socket strip.
Only have it repaired by experts.
Keep the multiple socket strip out of the reach of children.
Only operate one device per socket.
Do not cover the multiple socket strip while it is in operation.
Place the device close to a mains socket and make sure it is accessible in order to be able to disconnect the device from the mains at any time.

Maintenance and cleaning

The multiple socket strip is maintenance-free.

Danger to life due to electric shock
Do not touch damaged, open and live parts of the multiple socket strip and the cable! Otherwise, there is danger to life due to electric shock!

Never clean the multiple socket strip while it is energized.
Prior to cleaning, always disconnect the power plug from the socket.
Never submerge the multiple socket strip in water.

Clean the multiple socket strip with a dry cloth.

Disposal

Do not dispose of electronic devices together with household waste!
According to the European directive 2012/19/EU on waste electrical and electronic equipment, used electric devices have to be collected separately and recycled in an environmentally-friendly manner. In order to find out ways to dispose of the disused device, contact your local or municipal authorities.
