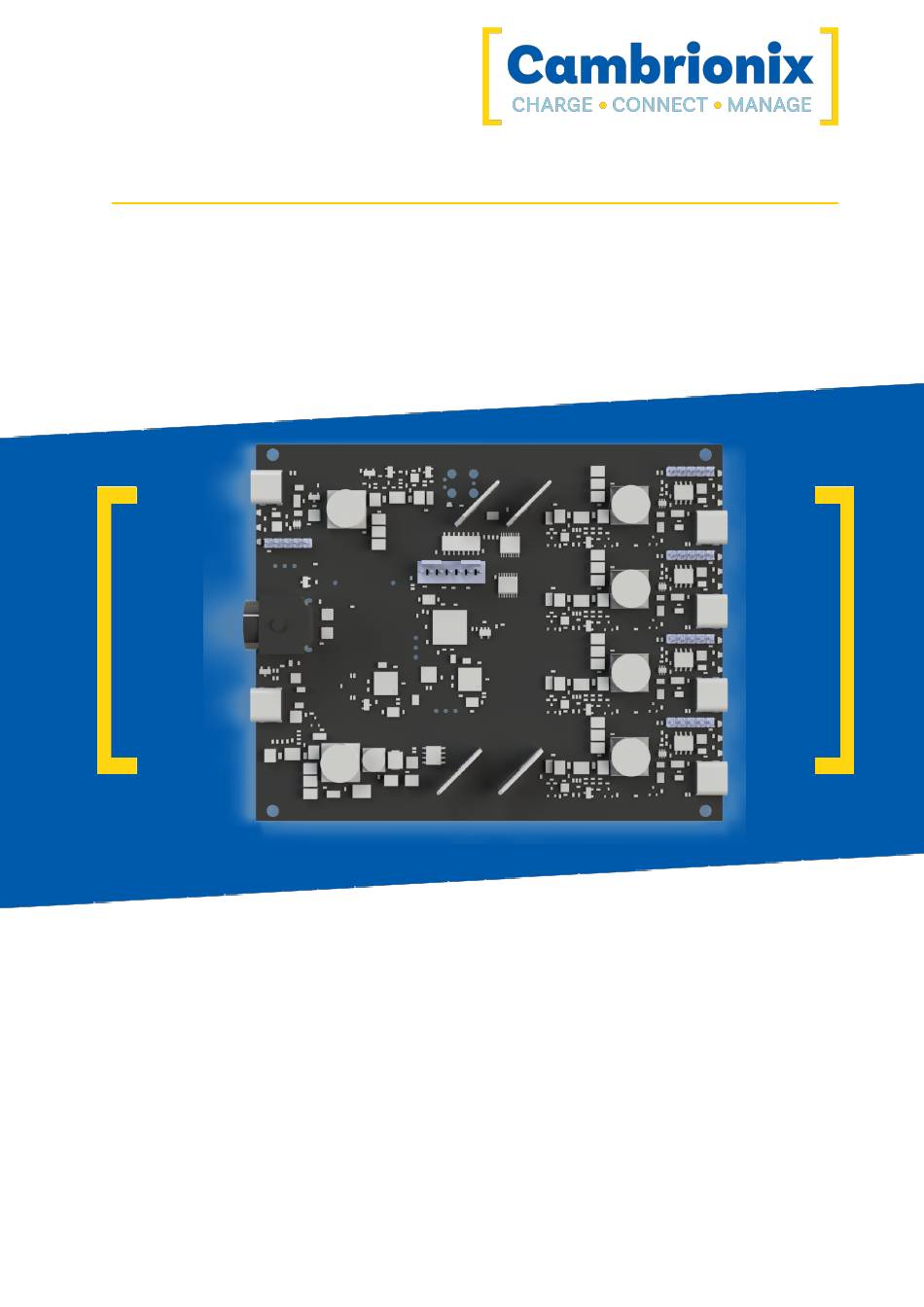

- Page 1 OEM-PDS-C4 User Manual © 2023-02 Cambrionix Ltd. All rights reserved.
-
Page 2: Table Of Contents
4.1. Unpacking your product 4.2. What's Included 4.3. Connecting to a Host 4.4. Charging 4.5. Cables 4.6. Connecting the OEM-PDS-C4 to the Power Supply Unit using Spade Connectors 4.7. Registration 4.8. Help and Support 5. Using your OEM-PDS-C4 5.1. Using without connecting to a host 5.2. - Page 3 5.5. Scalability 5.6. Cooling the OEM-PDS-C4 5.7. Cleaning your OEM-PDS-C4 6. Product Specifications 6.1. Input Power Requirements 6.2. Output Power 6.3. Rail value limits 6.4. Physical specifications 6.5. Consumables and Placing Orders 6.6. Hub Architecture 7. Troubleshooting 7.1. Common troubleshooting tips 7.2.
-
Page 4: Your Oem-Pds-C4 At A Glance
The OEM-PDS-C4provides 60W of charging power to each of its USB 2.0 Type-C ports, allowing mobile devices to be charged quickly, safely and reliably. All ports can be controlled using Cambrionix software to enable charging and data transfer while monitoring important port and device information. -
Page 5: Safety
To avoid injuries and damage, observe the safety instructions in the user manual. This manual has been arranged to follow the IEC/ICEE 82079-1 standard. This is to facilitate the easier understanding and location of information relating to the OEM-PDS-C4. Any errors or omissions can be reported using our support ticket system (seeHelp and Support). -
Page 6: Safety Alert Symbol
Mandatory regulation 3.4. Product modification Cambrionix products are designed and manufactured to meet the requirements of UK and international safety regulations. Modifications to the product could affect safety and render the product non-compliant with relevant safety standards, resulting in injury or damage to the product. -
Page 7: Power Supply
Do not bend or pull the power cord with excessive force. Do not use a power supply that exceeds the power supply specifications within this manual 3.6. Storage and Installation This section describes safety precautions you must follow when installing and storing your OEM-PDS- OEM-PDS-C4 Page 7 of 40... - Page 8 Do not place the power cord near heat sources. Connect the plug only to an earthed socket. CAUTION Damage to your Cambrionix product may occur Operate the product only in an environment where the ambient temperature is inside the operating temperature range.
-
Page 9: Oem
CAUTION Damage to your Cambrionix OEM module may occur When mounting a Cambrionix OEM module, all mounting holes should be used with appropriate spacers, screws and a torque level of 1.1Nm. Cambrionix OEM modules are susceptible to Electrostatic Discharge (ESD). -
Page 10: Getting Started
3A whilst transferring data. 4.4. Charging Your OEM-PDS-C4 will allow your device to charge at the maximum rate possible up to 3A. The way that charging takes place is the OEM-PDS-C4 will provide the device with a capability to charge and... -
Page 11: Cables
Having ensured the output voltage of the DC power supply is 21V, and certainly does not exceed 5.6 Vdc, connect the PSU to the OEM-PDS-C4 using insulated copper cables of no less than six mm2 cross-section and no longer than 150 mm. Longer cables or smaller cross-sections are likely to cause a voltage drop across the cable and improper board operation. -
Page 12: Using Your Oem-Pds-C4
5. Using your OEM-PDS-C4 In this section, you can find information using your hub in charge or sync application. You can also find information on managing your hub, changing port modes, connecting multiple hubs to one host and using Cambrionix Software. -
Page 13: Using Without Connecting To A Host
5.2.1 Connecting the Hub to a host computer Connect the OEM-PDS-C4 to your host system using a USB 2.0 Type-C cable. Using an incorrect host cable may result in the hub and all subsequent ports not being recognised by your host. -
Page 14: Communication Interface And Protocol
USB port. 5.2.4 Communication Interface and Protocol The OEM-PDS-C4 appears as a virtual COM port (VCP). On Microsoft Windows™, the system will appear as a COM port, the COM port number can be found in device manager. On macOS®, a device file is created in the / directory. -
Page 15: Managing Ports & Your Oem-Pds-C4
5.3. Managing Ports & Your OEM-PDS-C4 Each port on your OEM-PDS-C4 can be managed either individually, or all together. You can turn the ports off and on, change the port mode, or change various other settings applicable to the OEM-PDS-... - Page 16 Once selected press the update button at the top and the update will commence. CAUTION Your OEM-PDS-C4 may not function correctly Do not downgrade firmware onto a new product CAUTION Your Cambrionix Firmware may get corrupted Do not interrupt the Firmware update process.
- Page 17 CAUTION A new version may be available Ensure you have the latest version of Firmware installed on your hub. These updates will often contain new features, fixes for bugs and performance improvements OEM-PDS-C4 Page 17 of 40...
-
Page 18: Software
Cambrionix API Command Line Instructions LiveViewer or Cambrionix Connect can use the API to interact with the devices through a user-friendly application, or the API can be used to provide other protocols that send translated string commands. The OEM-PDS-C4 uses string commands to communicate with the host system. These can be sent via the virtual serial port of the OEM-PDS-C4 directly, There are different channels for both our LiveViewer application and the API. - Page 19 The attach threshold may need to be increased if the device (iPhone etc.) Attach is connected to a Cambrionix port with a cable which includes an LED or Threshold other electronics. It may also need to be increased if you are using a (mA) device (iPhone etc.) with a 3rd party sled/holder/case (such as a barcode...
-
Page 20: Cambrionix Api
5.4.2 Cambrionix API The Cambrionix API allows you to monitor and control each port in detail and to integrate these functions into your own workflow processes. The API comprises a daemon (which is a program running in the background) that can be downloaded from www.cambrionix.com/products/api... -
Page 21: Removing Software
5.4.4 Removing Software If you wish to uninstall the software (Cambrionix LiveViewer, Cambrionix API and the Cambrionix Recorder Service) from your host system, the following steps can do this. -
Page 22: Command Line Instructions (Cli)
/library/cambrionix/apiservice/bin/cambrionixapiservice --remove sudo /library/cambrionix/apiservice/bin/cambrionixrecorderservice --remove Linux® To remove software on Linux® there are two options. The first is to use the Software centre, then either the list of installed applications or the search bar to find the software you wish to remove. Once you have selected the application, click on the remove button and you will be prompted for a password, enter the password and the software will be removed. -
Page 23: Scalability
5.5. Scalability If you wish to synchronise more devices, multiple OEM-PDS-C4 can be connected together (either in a star topology or daisy chained) to allow up to 20 devices to be managed from a single host computer simultaneously In order to daisy-chain multiple OEM-PDS-C4, each OEM-PDS-C4 needs to be connected to mains power individually and the first OEM-PDS-C4 ... -
Page 24: Cleaning Your Oem-Pds-C4
5.7. Cleaning your OEM-PDS-C4 Cleaning the product is generally not required, although in some instances it may be necessary if excess dirt/ dust/ hair has accumulated, or if minor liquid spillages have occurred on the module during operation or storage. -
Page 25: Product Specifications
6. Product Specifications The OEM-PDS-C4 is manufactured in the UK 6.1. Input Power Requirements Input Voltage (V) Input Current (A) Input Connector 4-Pin Mini DIN / Spade Connectors 6.2. Output Power Output Voltage (V) Output Voltage Tolerance (%) +/-5 Output Current, Max per Port (A) -
Page 26: Consumables And Placing Orders
USB-C receptacles have a minimum rated lifetime of 10,000 cycles of insertion and removal. This is an industry-standard. One thing you can do to prolong the lifetime of the ports on your OEM-PDS-C4 is to use "sacrificial cables" in between the hub and your charging cables so when you repeatedly connect/ disconnect you are only going to wear the cables rather than the hub. -
Page 27: Hub Architecture
6.6. Hub Architecture Below is a diagram of the internal architecture for the OEM-PDS-C4. Description This is the external physical port number This is present if this component is connected to an internal hub, if it is present the number represents the port number on... - Page 28 The Host port that you will connect the host computer to An Internal hub which can then connect to external ports or other internal components Any other components which includes expansion ports and internal chips OEM-PDS-C4 Page 28 of 40...
-
Page 29: Troubleshooting
7. Troubleshooting If you experience any issues with your OEM-PDS-C4; please try the following troubleshooting steps, if the issue is not addressed in this section, please get in touch with your local vendor or Cambrionix. To contact Cambrionix Support please see Help and Support. -
Page 30: Device Connection
0000000000000000 Unstable device connection Some devices can have unstable connections with your host system through the OEM-PDS-C4. We have only observed this behaviour in a very few amount of devices, disabling CDP this has resolved all issues and the connections are stable. -
Page 31: Hub Connection Issues
Hub not connecting to host If you see that the OEM-PDS-C4 is not connecting to the host system, one of the issues may be caused by the USB drivers on your host system not being up to date. It is good practice to ensure you... -
Page 32: Using With A Headless System
Firmware Update If you have older hardware with Firmware version number lower than 1.83 then the hub may not be compatible with the Cambrionix API and will need to be updated to the latest version of Firmware OEM-PDS-C4 Page 32 of 40... - Page 33 Command Line Updater which can be downloaded and installed from the following link. https://www.cambrionix.com/firmware OEM-PDS-C4 Page 33 of 40...
-
Page 34: Returns And Damaged Products
8.2. What happens after I have requested a Return? If you have not purchased the Product(s) direct from Cambrionix please contact the vendor the item was originally purchased from for their returns process. -
Page 35: Compliance And Standards
9. Compliance and Standards CB Certificate CE Tested and marked FCC Part 15 Tested and marked RoHS Compliant Independently safety tested by the Underwriters Laboratory (UL) under file #E346549 OEM-PDS-C4 Page 35 of 40... -
Page 36: Terms And Conditions
10. Terms and Conditions The use of Cambrionix hubs is subject to the Cambrionix Terms and Conditions, the document can be downloaded and viewed using the following link. https://downloads.cambrionix.com/documentation/en/Cambrionix-Terms-and-Conditions.pdf OEM-PDS-C4 Page 36 of 40... - Page 37 This manual may make reference to trademarks, registered trademarks, and other protected names and /or symbols of third-party companies not related in any way to Cambrionix. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by Cambrionix, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
- Page 38 Cambrionix Patents Application Title Link Grant Number Number Syncing and Charging Port GB2489429 1105081.2 2489429 CAMBRIONIX UK00002646615 2646615 00002646615 CAMBRIONIX VERY UK00002646617 2646617 00002646617 INTELLIGENT... MOD IT DS GB2591233 6089600 6089600 MOD IT eSearch 007918669 007918669 MOD IT 90079186690001 007918669-0001...
- Page 39 MOD IT STACK 29/735,475 D936,000 MOD IT DS LUGS 6089601 6089601 6089601 MOD IT MM 6089602 6089602 6089602 MOD IT DS LUGS 6089603 6089603 6089603 MOD IT STACK 6089604 6089604 6089604 MOD IT 6089605 6089605 6089605 OEM-PDS-C4 Page 39 of 40...
- Page 40 The Maurice Wilkes Building Cowley Road Cambridge CB4 0DS United Kingdom +44 (0) 1223 755 520 enquiries@cambrionix.com www.cambrionix.com Cambrionix Ltd is a company registered in England and Wales with the company number 06210854 © 2023-02 Cambrionix Ltd. All rights reserved.
