Kidde KN-COP-DP-10YL-AQ-WF User Manual

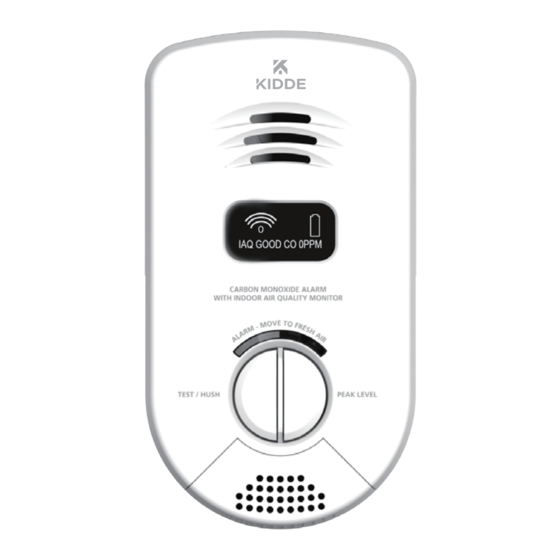

Carbon monoxide alarm with indoor air quality monitor
Hide thumbs Also See for KN-COP-DP-10YL-AQ-WF:
Table of Contents

Advertisement

Quick Links

Download this manual
Carbon Monoxide Alarm
with Indoor Air Quality Monitor
User Guide
Carbon Monoxide Alarm
with Indoor Air Quality
and Wi-Fi Compatibility
Model KN-COP-DP-10YL-AQ-WF
Wi-Fi COMPATIBILITY:
This model requires a home Wi-Fi router
and internet to connect to a mobile device.
( Requires 802.11b/g/n (2.4GHz) Wi-Fi )
NOTE: Wi-Fi features do not function without AC power.
P/N: 2565-7201-02 Rev.A
KIDDE Wi-Fi CO ALARM
120V AC DIRECT PLUG-IN
10-YEAR sEALED BATTERY
BACKUP (AC POWER REQUIRED)
INDOOR AIR QUALITY
MONITORING
Wi-Fi COMPATIBLE
™
1

Advertisement

Table of Contents
loading

Related Manuals for Kidde KN-COP-DP-10YL-AQ-WF

Summary of Contents for Kidde KN-COP-DP-10YL-AQ-WF

  • Page 1 This model requires a home Wi-Fi router and internet to connect to a mobile device. ( Requires 802.11b/g/n (2.4GHz) Wi-Fi ) NOTE: Wi-Fi features do not function without AC power. KIDDE Wi-Fi CO ALARM 120V AC DIRECT PLUG-IN 10-YEAR sEALED BATTERY BACKUP (AC POWER REQUIRED)
  • Page 2 For best Wi-Fi enrollment results, follow these steps: 1. Scan QR code shown in STEP 1 on the front of the Quick Start Guide. Install the Kidde app. 2. Open the Kidde app. Create and login to your account. Tap “Add a device.” Select “Carbon Monoxide Alarm with Indoor Air Quality Monitor.”...

  • Page 3: Table Of Contents

    4. Introduction, Product Features & Specifications 5. Limitations Of Carbon Monoxide Alarms. 6. Recommended Locations for Carbon Monoxide Alarms . 7. Locations To Avoid. . 8. Kidde App Instructions . . 10 9. Installation, Activation, and Wi-Fi Enrollment . . 11 9.1 Setting Up Wi-Fi Enrollment .

  • Page 4: Carbon Monoxide Alarm: What To Do When The Alarm Sounds

    1. Carbon Monoxide Alarm: What To Do When the Alarm Sounds The carbon monoxide (CO) alarm pattern is four quick beeps repeating every 5 seconds. The red LED blinks in time with the alarm pattern and the digital display will show the concentration of CO detected.

  • Page 5: Other Alarm Visual And Audible Indicators

    2. Other Alarm Visual and Audible Indicators CO 50 PPM 70 F 80% H IAQ xxx CO 0PPM (See Section 10 for Indoor Air Quality Indications) Audible Operational Mode Visual Indications Action/Note: IAQ GOOD IAQ MODERATE IAQ BAD IAQ VERY BAD Indications PRIOR CO 234 PPM AC power = Display...

  • Page 6: Troubleshooting Guide

    If you are experiencing a problem with your alarm, or a fault, and are unsure of the next action, please contact product support at 1-877-542-5471 before discharging the battery. You may also write us at: Kidde, 1016 Corporate Park Drive, Mebane, NC 27302, or visit our internet address at www.kidde.com. 70 F 80% H...

  • Page 7: Introduction, Product Features & Specifications

    4. Introduction, Product Features and Specifications Introduction This alarm detects carbon monoxide using an electrochemical cell. The device also monitors the indoor air quality of the residence. Many times throughout this User Guide, we will refer to Carbon Monoxide as “CO.” Ten (10) years after the unit was activated, this unit will automatically alert you that it is time to replace the unit.

  • Page 8: Limitations Of Carbon Monoxide Alarms

    5. Limitations of Carbon Monoxide Alarms IMPORTANT: This carbon monoxide alarm is designed to detect carbon monoxide from ANY source of combustion. It is NOT designed to detect smoke, fire, or any other gas. WARNING: Carbon monoxide alarms are not smoke alarms. This carbon monoxide alarm is not a substitute for installing and maintaining an appropriate number of smoke alarms in your home.

  • Page 9: Recommended Locations For Carbon Monoxide Alarms

    6. Recommended Locations For Carbon Monoxide Alarms CO alarms should be mounted in or near bedrooms and living areas. In addition, industry experts recommend a CO alarm be KITCHEN BEDROOM BEDROOM DINING installed on each level of the home-ideally on any level with fuel burning appliances and outside of sleeping areas.
  • Page 10 For best Wi-Fi enrollment results, follow these steps: 1. Scan QR code shown in STEP 1 on the front of the Quick Start Guide. Install the Kidde app. 2. Open the Kidde app. Create and login to your account. Tap “Add a device.” Select “Carbon Monoxide Alarm with Indoor Air Quality Monitor.”...

  • Page 11: Installation, Activation, And Wi-Fi Enrollment

    For best Wi-Fi enrollment results, follow these steps: 1. Scan QR code shown in STEP 1 on the front of the Quick Start Guide. Install the Kidde app. 2. Open the Kidde app. Create and login to your account. Tap “Add a device.” Select “Carbon Monoxide Alarm with Indoor Air Quality Monitor.”...

  • Page 12: Setting Up Wi-Fi Enrollment

    If you are installing for Wi-Fi functionality, and have not yet downloaded the Kidde App, do not plug your Wi-Fi unit into the wall outlet yet. See Section 8 for instructions on downloading the Kidde App. NOTE: This model supports bilingual American English AND Canadian French languages for display messages. The default is American English.

  • Page 13: Adding Another Device To An Existing Wi-Fi Alarm Network

    CAUTION: Do not rotate the alarm while it is plugged into an outlet, as damage to plug may result. B. Open the Kidde App and follow instructions on the App to finish Wi-Fi enrollment. NOTE: If no further steps are taken within 15 minutes of initial power up, the Wi-Fi function will turn off.

  • Page 14: Amazon Alexa And Google Assistant

    You can also check the status of your indoor air quality using the Kidde app, after your alarm is registered with the app.
  • Page 15 Indoor Air Quality Parameters Visual Relative Humidity (%) Approx. VOC conc. Air Quality Temperature (F) indications (ug/m^3) CO 50 PPM Good 30-50 <1,000 <=77 & >=64 CO 50 PPM IAQ GOOD IAQ MODERATE IAQ BAD IAQ VERY BAD Moderate 25-30 or 50-60 <3,000 >77 &...

  • Page 16: Recognizing Nuisance Alarms

    Peak Level Memory The Peak Level feature display shows the highest CO reading taken by the CO alarm since its last reset or power up. The Peak Level display feature will display levels between 11-999 PPM. Although the Peak Level feature will display levels below 30 PPM, these levels will not result in an alarm no matter how long the device is exposed to these levels.

  • Page 17: Permanently Disable Alarm / Discharge Battery

    CAUTION: ThE BATTERY UsED IN ThIs DEVICE MAY PREsENT A FIRE OR ChEMICAL BURN hAZARD IF MIsTREATED. DO NOT REChARGE, DIsAssEMBLE, hEAT ABOVE 100°C (212°F) OR DIsPOsE OF IN FIRE. 13. Permanently Disable Alarm / Discharge Battery WARNING: FAILURE TO DIsChARGE ALARM BATTERY As INsTRUCTED PRIOR TO DIsPOsAL MAY CREATE POTENTIAL FOR LIThIUM BATTERY RELATED FIRE OR hAZARD.

  • Page 18: General Carbon Monoxide (Co) Information

    14. General Carbon Monoxide (CO) Information Carbon monoxide (CO) is a colorless, odorless, and tasteless poison gas that can be fatal when inhaled. CO inhibits the blood’s capacity to carry oxygen. Possible sources of CO Inside your home, appliances used for heating and cooking are the most likely sources of CO. Vehicles running in attached garages can also produce dangerous levels of CO.
  • Page 19 It’s advisable to inquire about any applicable fees prior to having the service performed. Kidde will not pay for, or reimburse the owner or user of this product, for any repair or dispatch calls related to the alarm sounding.

  • Page 20: Cleaning Your Alarm

    15. Cleaning Your Alarm Your Alarm should be Cleaned at Least Once a Year You can clean the interior of your alarm (sensing chamber) by using compressed air or a vacuum cleaner hose and blowing or vacuuming through the openings around the perimeter of the alarm. The outside of the alarm can be wiped with a damp cloth.

  • Page 21: Fcc

    16. FCC FCC (Contains FCC ID: 2AC7Z-EsPWROOM32UE) This equipment has been tested and found to comply with the limits for a Class B digital device, pur- suant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 22: Service And Warranty

    The obligation of Kidde under this warranty is limited to repairing or replacing the alarm or any part which we find to be defective in material, workmanship or design (part replacement only, no installation), free of charge, upon receiving the alarm with proof of date of purchase, postage and return postage prepaid, to Warranty Service Department, Kidde, 1016 Corporate Park Drive, Mebane, NC 27302.
  • Page 23 QUEsTIONs OR FOR MORE INFORMATION Call Kidde Product Support line at 1-877-542-5471 or contact us at www.kidde.com Kidde 16 Corporate Park Drive, Mebane, NC 27302 Kidde’s General Privacy Notice can be found at: https://www.corporate.carrier.com/legal/privacy-notice/ A Carrier Company ©2022 Carrier. All Rights Reserved.
