2522-7206-00(820-1727 A)-R1:Layout 1
Carbon Monoxide Alarm
User's Guide
Models: KN-COPP-B-LS-UK (900-0230) and
• Peak Level Memory
• 3-AA Battery Operation
ATTENTION: Please take a few minutes to thoroughly read this
user's guide which should be saved for future reference and passed
on to any subsequent owner.
Manual P/N 820-1727 Rev A 03-10
Kidde Appendix 4 /2
KN-COB-B-LS-UK (900-0233)
2009.8.19
KM 98848
EN50291:2001
KN-COB-B-LS-UK
(900-0233)
KN-COPP-B-LS-UK
(900-0230)
with Digital Display
2522-7206-00
6:51 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KN-COPP-B-LS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kidde KN-COPP-B-LS

Summary of Contents for Kidde KN-COPP-B-LS

  • Page 1 2522-7206-00(820-1727 A)-R1:Layout 1 2009.8.19 6:51 PM Kidde Appendix 4 /2 KM 98848 EN50291:2001 Carbon Monoxide Alarm User’s Guide Models: KN-COPP-B-LS-UK (900-0230) and KN-COB-B-LS-UK (900-0233) KN-COB-B-LS-UK (900-0233) KN-COPP-B-LS-UK (900-0230) with Digital Display • Peak Level Memory • 3-AA Battery Operation ATTENTION: Please take a few minutes to thoroughly read this user’s guide which should be saved for future reference and passed...

  • Page 2: What To Do When The Alarm Sounds

    2522-7206-00(820-1727 A)-R1:Layout 1 2009.8.19 6:51 PM What to do When the Alarm Sounds! Carbon Monoxide Alarm Procedure WARNING: Actuation of your CO Alarm indicates the presence of Carbon Monoxide (CO) which can kill you. When the CO alarm senses a dangerous level of CO, the unit will emit a loud alarm pattern.

  • Page 3: Important Warning Statements

    Safe (gas) or Hetas (solid fuel) engineer should inspect and clean your heating system, vents, chimney, and flues. Your new Kidde CO alarm has a seven year warranty. Please take a few minutes to thoroughly read the user’s guide and familiarize yourself and your family with its operation.
  • Page 4 Contents of This User’s Guide 1. Information About Carbon Monoxide 2. Product Features and Specifications 3. Installation Locations 4. Installation Instructions 5. KN-COB-B-LS-UK (900-0233) Operating Characteristics 6. KN-COPP-B-LS-UK (900-0230) (with digital display) Operating Characteristics 7. Alarm Characteristics 8. Maintenance 9. Limited Warranty...
  • Page 5 2522-7206-00(820-1727 A)-R1:Layout 1 2009.8.19 6:51 PM 1. Information About Carbon Monoxide General Carbon Monoxide Information Carbon monoxide is a colourless, odorless and tasteless poison gas that can be fatal when inhaled. CO inhibits the blood’s capacity to carry oxygen. Periodically review this alarm manual and discuss your CO alarm emergency procedure with all the members of your family.
  • Page 6 See “What to do When the Alarm Sounds” (inside front cover). Low Levels: Generally below 50 PPM. Kidde recommends you take action to eliminate the source of CO. See “What to do When the Alarm Sounds” (inside front cover).
  • Page 7 2522-7206-00(820-1727 A)-R1:Layout 1 2009.8.19 6:51 PM 1. Information About Carbon Monoxide • Blocked chimneys or flues, back drafts and changes in air pressure, corroded or disconnected vent pipes, loose or cracked furnace exchangers. • Vehicles and other combustion engines running in an open or closed garage, attached or near a home.
  • Page 8 Because carbon monoxide is a cumulative poison, long-term exposures to low levels may cause symptoms, as well as short-term exposures to high levels. This Kidde unit has a time-weighted alarm – the higher the level of CO present, the sooner the alarm will be triggered.

  • Page 9: Product Features And Specifications

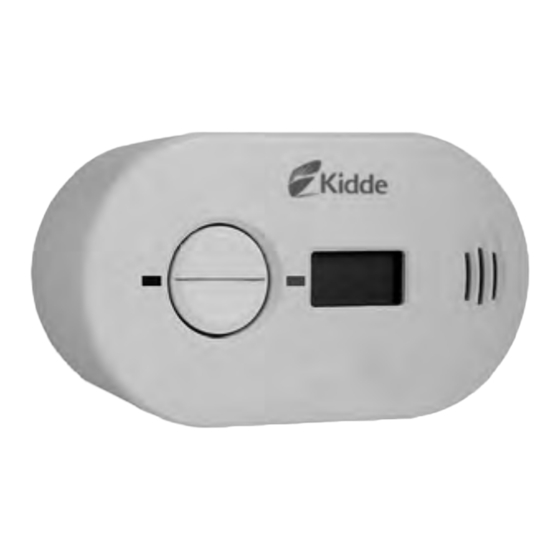

    Red, Alarm LED Peak Level Button Digital Display Model KN-COPP-B-LS-UK (900-0230) with digital display WARNING: After seven (7) years from initial power up, this alarm will “beep” every 30 seconds to indicate that it is time to replace the alarm. Replace the alarm immediately! It will not detect CO in this condition.

  • Page 10: Installation Locations

    Electrochemical Power: 3-AA Batteries Accuracy of Digital Display: (Model KN-COPP-B-LS-UK (900-0230) Only) 30-999 PPM +/-30% when measured in conditions of 80° F (+/- 10° F), atmospheric pressure +/- 10% and 40% +/- 3% relative humidity. Display readings may vary slightly depending on changes in the ambient condition (temperature, humidity) and the condition of the sensor.
  • Page 11 100°F (37.8°C) such as crawl spaces, attics, porches and garages. • Do not install within 2 metres of heating or cooking appliances. (Kidde recommends 5 metres to prevent nuisance alarms). • Do not install near vents, flues, chimneys or any forced/unforced air ventilation openings.

  • Page 12: Installation Instructions

    Battery Installation and Replacement This CO alarm must be installed by a competent person. To install or replace the batteries in this Kidde CO alarm, please perform the following steps. 1. Slide open the bottom cover to expose the battery compartment.
  • Page 13 2522-7206-00(820-1727 A)-R1:Layout 1 2009.8.19 6:51 PM 4. Installation Instructions Mounting This CO alarm can be either wall mounted or placed on a tabletop. For wall mounting, follow these steps: 1. Mark the location of the two holes needed on the wall using the battery door as a template.

  • Page 14: Operating Characteristics

    30 seconds not respond to to CO 6. Model KN-COPP-B-LS-UK (900-0230) (with digital display) Operating Characteristics When the unit is first powered up, the green Operate LED flashes once every 30 seconds and the digital display will show three “eights” –...
  • Page 15 2522-7206-00(820-1727 A)-R1:Layout 1 2009.8.19 6:52 PM 6. Model KN-COPP-B-LS-UK (900-0230) (with digital display) Operating Characteristics The following table illustrates the possible digital displays, describes the audible alarm patterns, and the recommended actions to take. Operating and Alarm Characteristics LCD Display Shows...
  • Page 16 6:52 PM 6. Model KN-COPP-B-LS-UK (900-0230) (with digital display) Operating Characteristics Peak Level Memory (model KN-COPP-B-LS-UK (900-0230) only) When the Peak Level button is pressed and held, the display shows the highest CO reading taken by the CO alarm since its last reset or power up.

  • Page 17: Alarm Characteristics

    Testing To test the alarm, press the Test/Reset button. If the unit is operating properly, you will hear a series of ON/OFF beeps. (For model KN-COPP-B-LS-UK (900-0230) with digital display: The display will show three “eights” and then show a number – usually around 200). The red LED will flash along with the beeps.
  • Page 18 2522-7206-00(820-1727 A)-R1:Layout 1 2009.8.19 6:52 PM 8. Maintenance Move the CO Alarm to a remote location, to prevent possible damage or contamination of the sensor, prior to performing any of the following: • Staining or stripping floors or furniture, painting or wall-papering, •...
  • Page 19 For Warranty Service: In many cases the quickest way to exchange your CO alarm is to return it to the original place of purchase. If you have questions, call the KIDDE customer service department on 01753 685148...
