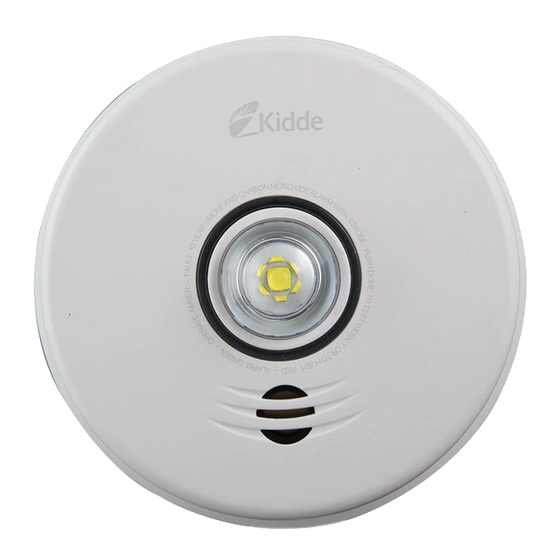

- Page 1 Model P4010ACLEDSCOCA-2 Hardwire Photoelectric Smoke & Carbon Monoxide Alarm with LED Strobe and Voice User Guide COMBinATiOn ALARM LED STROBE 120 V HARDwiRE inTERCOnnECT 10-yEAR BATTERy BACkUP VOiCE ALARM...
- Page 2 Thank You for Purchasing this Kidde Alarm Hardwired for 120 V AC, this model features a non-replaceable, sealed-in battery backup. It also contains an LED Strobe, a voice message system and Hush Control to temporarily silence nuisance alarms. ® nOTE: Battery backup supplies power to the smoke and carbon monoxide alarm portions only. Strobe will not work without AC power.
-
Page 3: Table Of Contents
Contents 1. Smoke Alarm: What To Do When The Alarm Sounds ..4 2. Carbon Monoxide Alarm: What To Do When The Alarm Sounds ..5 3. -
Page 4: Smoke Alarm: What To Do When The Alarm Sounds
1. Smoke Alarm: What To Do When the Alarm Sounds Smoke alarm pattern is three long beeps with voice “Fire!,” a 1.5 second pause, and three long beeps repeating. The red LED blinks in time with alarm pattern, and the Strobe flashes every second. The smoke alarm takes precedence when both smoke and carbon monoxide are present. -
Page 5: Carbon Monoxide Alarm: What To Do When The Alarm Sounds
2. Carbon Monoxide Alarm: What To Do When the Alarm Sounds Carbon monoxide (CO) alarm pattern is four quick beeps with voice “Warning! Carbon Monoxide” repeating every 5 seconds. The red LED blinks in time with alarm pattern. The Strobe will flash 4 times every 5 seconds. warning: Carbon monoxide alarm aCtivation indiCates the presenCe of Carbon monoxide (Co) at high ConCentrations whiCh Can kill you. -
Page 6: Other Alarm Visual And Audible Indicators
3. Other Alarm Visual and Audible Indicators Operational Mode Visual Indications Audible Indications Action/Note: normal (standby) AC power: Green LED on continuously during light conditions, or blink every 60 sec during dark conditions. DC power: Green LED blink approx every 60 sec. Test (button press when • 4 patterns of Red/Amber/Green. -
Page 7: Troubleshooting Guide
End chirps begin, the chirps cannot be of Life) silenced.) If you require further information please contact Product Support at 1-800-880-6788 or write us at: Kidde Canada Inc., P.O. Box 40, Apsley, ON K0L 1A0. Our internet address is www.kiddecanada.com. -
Page 8: Introduction, Product Features & Specifications
5. Introduction, Product Features and Specifications inTRODUCTiOn This alarm detects products of combustion using photoelectric technology and carbon monoxide using an electrochemical cell. Many times throughout this User Guide, we will refer to Carbon Monoxide as “CO.” Ten (10) years after the unit is installed, this unit will automatically alert you that it is time to replace the unit. This is called “End of Unit Life”... - Page 9 The following diagrams show that the light intensity gradually decreases as the viewing angle is increased. Use this information to determine the best location for the strobe light. LIGHT LIGHT SOURCE SOURCE CEILING CEILING 90° 90° 90° 90° ZERO AXIS 45°...
-
Page 10: Limitations Of Smoke And Carbon Monoxide Alarms
6. Limitations of Smoke and Carbon Monoxide Alarms wARninG: PLEASE READ CAREFULLy AnD THOROUGHLy • Life safety from fire in residential occupancies is based primarily on early notification to occupants of the need to escape, followed by the appropriate egress actions by those occupants. •... - Page 11 wARninG: PLEASE READ CAREFULLy AnD THOROUGHLy • iMPORTAnT: This alarm is designed to detect carbon monoxide gas from ANY source of combustion. It is NOT designed to detect any other gas. This alarm will only indicate the presence of carbon monoxide gas at the sensor. Carbon CAUTiOn: monoxide gas may be present in other areas.
-
Page 12: Recommended Locations
7. Recommended Locations • For rooms larger than 250 sq. ft. the notification device should be located within 4.88 m (16’) of the pillow when located in a sleeping area. • Locate the first strobe/smoke alarm in the bedroom in which the hearing impaired individual sleeps. Try to monitor the exit path, as the bedrooms are usually farthest from the exit. - Page 13 NFPA 72 states: “Smoke alarms in rooms with ceiling slopes greater than 0.3 m in 2.4 m (1 ft in 8 ft) horizontally shall be located on the high side of the room.” NFPA 72 states: “A row of detectors shall be spaced and located within 0.9 m (3 ft) of the peak of the ceiling measured horizontally.”...
- Page 14 • Locate an alarm in every room where someone sleeps with the door closed. The closed door may prevent an alarm not located in that room from waking the sleeper. • Smoke, heat, and combustion products rise to the ceiling and spread horizontally. Mounting the smoke alarm on the ceiling in the center of the room places it closest to all points in the room.
-
Page 15: Locations To Avoid
8. Locations to Avoid • Do not place in direct sunlight or install near high ambient light areas; the bright light may reduce one’s ability to notice the strobe light. • In the garage. Products of combustion are present when you start your automobile. •... -
Page 16: Wiring Instructions
9. Wiring Instructions wiRinG REqUiREMEnTS • This alarm should be installed on a CSA-Listed or recognized junction box. All connections should be made by a qualified electrician and all wiring used shall be in accordance with codes having jurisdiction in your area. The multiple station interconnect wiring to the alarms must be run in the same raceway or cable as the AC power wiring. - Page 17 • A maximum of 24 Kidde Safety devices may be interconnected in a multiple station arrangement. The interconnect system should not exceed the NFPA interconnect limit of 12 smoke alarms and/or 18 alarms total (smoke, CO, Smoke/ CO Combination, heat, etc.). With 18 alarms interconnected, it is still possible to interconnect up to a total of 6 remote signaling devices and / or relay modules.
- Page 18 • After selecting the proper location for your Alarm, and wiring the AC QUICK CONNECT harness as described in the WIRING INSTRUCTIONS, attach the mounting bracket to the electrical box. To ensure aesthetic alignment of the alarm with the hallway, or wall, the “A” line on the mounting bracket must be parallel with the hallway when ceiling mounted, or horizontal when wall mounted.
-
Page 19: Operation And Testing
• The following models can be interconnected using the standard AC wiring interconnect: i12020CA, i12020ACA, i12040CA, i12040ACA, i12060CA, i12060ACA, i12010SCA, i12010SCOCA, KN-SMFM-I-CA, KN-COB-ICB-CA, KN-COSM-IBCA, KN-COB-IC-CA, KN-COSM-ICA, KN-COP-IC-CA, KN-COPE-ICA, P12040CA, Pi2000CA, Pi2010CA, SM120X, CO120X, SLED177iCA, P4010ACLEDSCA, P4010ACLEDSCOCA, P4010ACLEDSCA-2, P4010ACLEDSCOCA-2, P4010ACSCO-WCA, P4010ACSCOCA, P4010LACS-WCA, P4010ACSCA, P4010ACS-WCA. 10. Operation and Testing OPERATiOn The alarm is operating once it is activated and testing is complete. - Page 20 TESTinG Test your alarm weekly by pressing and releasing the test button (dome) quickly. A quick beep will confirm the button has been pushed followed by voice prompts that will inform you of the upcoming test sequence. See Other Alarm Visual and Audible Indicators table. The alarm, strobe, and voice (and any interconnected units) will activate if the electronic circuitry, horn, speaker, and battery are working.
-
Page 21: Recognizing Nuisance Alarms
AMBiEnT LiGHT SEnSinG In low light ambient conditions, the green LED ring fades to off, and then blinks approx every 60 seconds. This unit samples the ambient light conditions of the alarm’s location and, if possible, determines a Night / Day cycle. -
Page 22: Battery Backup
Large quantities of combustible particles are generated from spills or when broiling. Using the fan on a range hood which vents to the outside (non-recirculating type) will also help prevent nuisance alarms from occurring by removing these combustible products from the kitchen. CARBOn MOnOxiDE (CO) nUiSAnCE RESET: Pushing the button during CO alarm allows the unit to reset calculations and double check for... -
Page 23: Permanently Disable Alarm / Discharge Battery
13. Permanently Disable Alarm / Discharge Battery wARninG: FAiLURE TO DiSCHARGE ALARM BATTERy AS inSTRUCTED PRiOR TO DiSPOSAL MAy CREATE POTEnTiAL FOR LiTHiUM BATTERy RELATED FiRE OR HAzARD. wARninG: DiSCHARGinG THE ALARM BATTERy iS PERMAnEnT • Once the alarm battery has been discharged, it cannot be reactivated! •... -
Page 24: General Carbon Monoxide (Co) Information
14. General Carbon Monoxide (CO) Information Carbon monoxide (CO) is a colorless, odorless, and tasteless poison gas that can be fatal when inhaled. CO inhibits the blood’s capacity to carry oxygen. POSSiBLE SOURCES OF CO CO ALARM SEnSOR RESPOnSE TiMES At 70 PPM, the unit must alarm within 60-240 minutes. - Page 25 It’s advisable to inquire about any applicable fees prior to having the service performed. Kidde will not pay for, or reimburse the owner or user of this product, for any repair or dispatch calls related to the alarm sounding.
- Page 26 SyMPTOMS OF CO POiSOninG Initial carbon monoxide poisoning symptoms are similar to the flu with no fever and can include dizziness, severe headaches, nausea, vomiting and disorientation. Everyone is susceptible but experts agree that unborn babies, pregnant women, senior citizens and people with heart or respiratory problems are especially vulnerable.
-
Page 27: Cleaning Your Alarm
15. Cleaning Your Alarm yOUR ALARM SHOULD BE CLEAnED AT LEAST OnCE A yEAR You can clean the interior of your alarm (sensing chamber) by using compressed air or a vacuum cleaner hose and blowing or vacuuming through the openings around the perimeter of the alarm. -
Page 28: Good Safety Habits
16. Good Safety Habits DEVELOP AnD PRACTiCE A PLAn OF ESCAPE Prepare and practice a home escape plan twice a year, including drills at night. Know two ways out of every room (door & window) and identify a meeting place outside the home where everyone will gather once they have exited the residence. - Page 29 FiRE PREVEnTiOn Never smoke in bed, or leave cooking food unattended. Teach children never to play with matches or lighters! Train everyone in the home to recognize the smoke alarm pattern and to leave the home using their escape plan when it’s heard. Know how to do “Stop, Drop and Roll” if clothes catch on fire, and how to crawl low under smoke.
- Page 30 nFPA (nATiOnAL FiRE PROTECTiOn ASSOCiATiOn) FiRE SAFETy in THE HOME: nFPA 72 iS inTEnDED TO PROViDE REASOnABLE SAFETy FOR PERSOnS in FAMiLy LiVinG UniTS. REASOnABLE FiRE SAFETy CAn BE PRODUCED THROUGH THE FOLLOwinG THREE-POinT PROGRAM: (1) Minimizing fire hazards (2) Providing fire-warning equipment (3) Having and practicing an escape plan.
- Page 31 iSED COMPLiAnCE nOTiCE This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: 1. This device may not cause interference; and 2. This device must accept any interference, including interference that may cause undesired operation of the device.
-
Page 32: Service And Warranty
Kidde warrants that the enclosed alarm will be free from defects in material and workmanship or design under normal use and service for a period of ten years from the date of purchase. The obligation of Kidde under this warranty is limited to repairing or replacing the alarm or any part which we find to be defective in material, workmanship or design (part replacement only, no installation), free of charge, upon receiving the alarm with proof of date of purchase, postage and return postage prepaid, to: Kidde Canada Inc., P.O.
