Wiring Diagram

31-5000736 Rev. 0
'R' REQUIRED ON SOME OUTDOOR UNITS
PARK TERMINALS ARE UNPOWERED TERMINALS. ALL
UNUSED MOTOR LEADS MUST BE WIRED TO A
PARK TERMINAL
DO NOT USE RED (LOW SPEED) MOTOR LEAD FOR HEATING
IF THE RESULTING TEMPERATURE RISE IS OUTSIDE OF THE
RANGE SPECIFIED ON THE RATING PLATE.
L13 POWER CHOKE NOT USED ON ALL MOTORS.
USE COPPER CONDUCTORS ONLY.

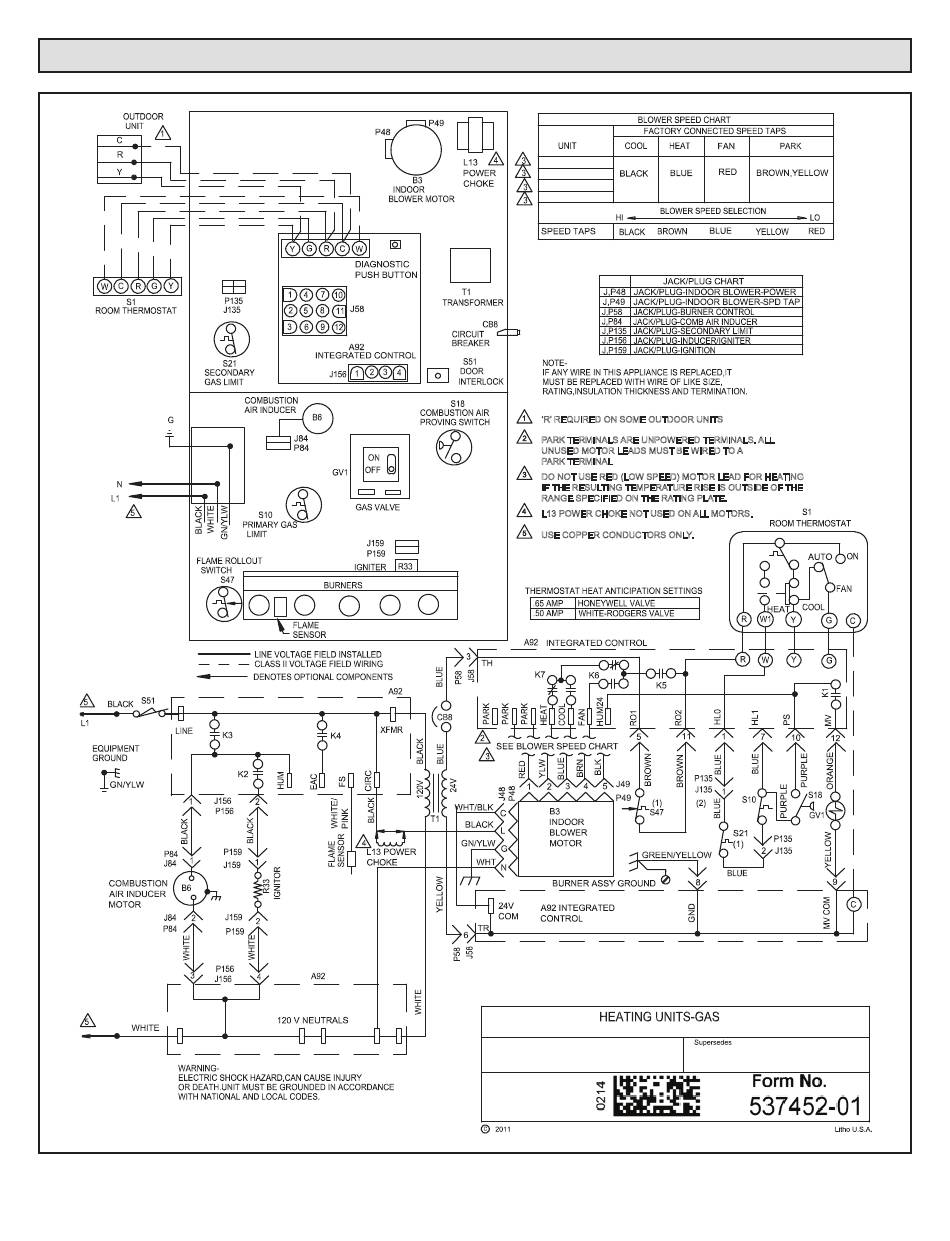

Figure 21. Wiring Diagram
Page 25
045*3A
070*3A
090*4B
110*5C
