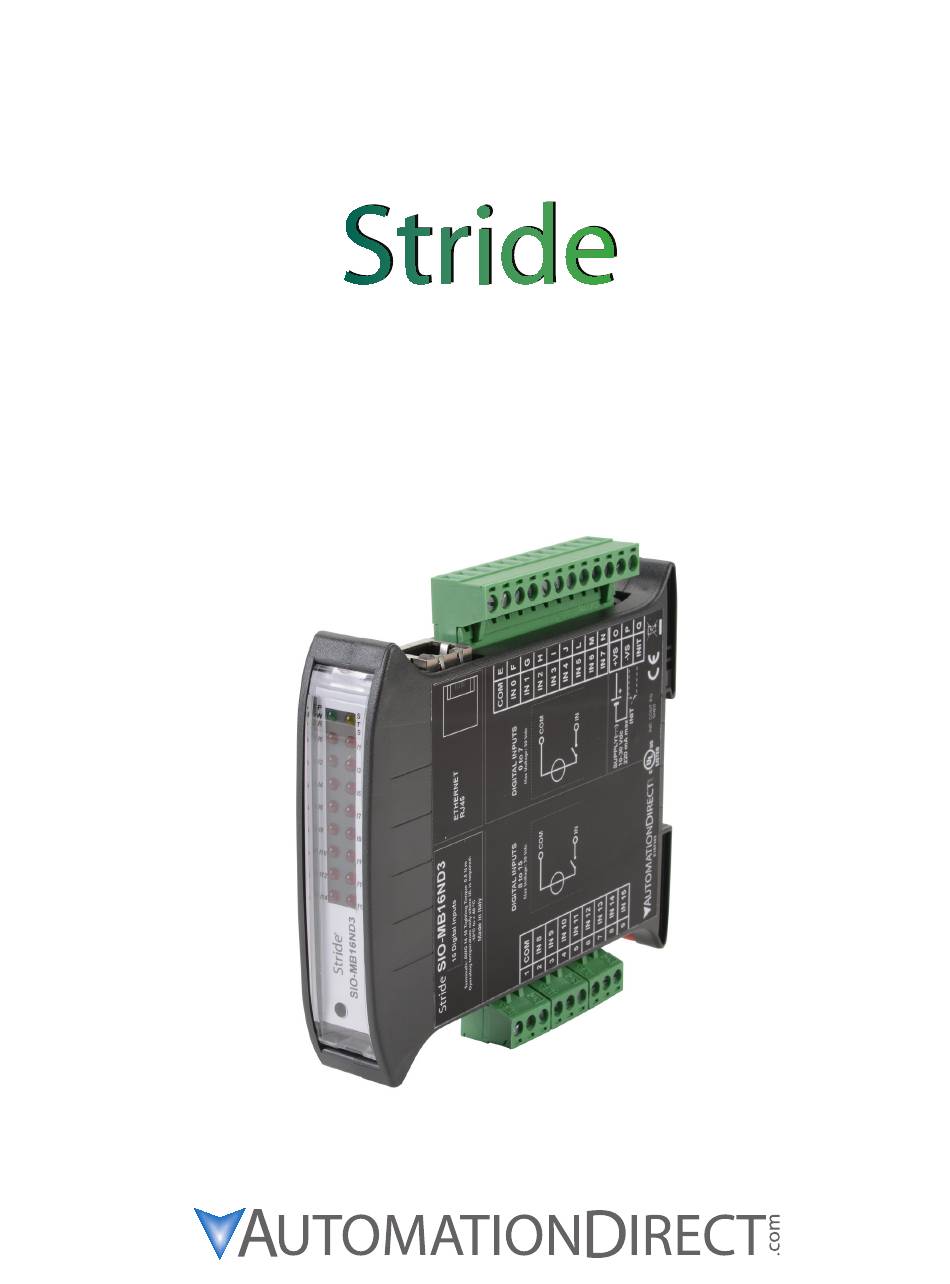

- Page 1 ® Field I/O SIO-MB16ND3 USER GUIDE Discrete Input Module: 16-point, 12-24VDC Manual Number: SIO-MB16ND3-UG...
-
Page 2: Register Addresses
“Supported modbus functions codes”). 0x0217 00535 Falling Edge Latch #14 • A maximum of 64 coils can be written by Modbus function code 15 (see 0x0218 00536 Falling Edge Latch #15 “Supported modbus functions codes”). SIO-MB16ND3 User Guide, 1st Edition... - Page 3 Stride Field I/O PRODUCT LABEL AND WIRING DIAGRAM Terminal block pinouts and wiring diagrams are printed on the side of the module, as shown below. SIO-MB16ND3 User Guide, 1st Edition...
- Page 4 0 to the latch bit before it will register another rising edge transition. In addition to using this register, it is also possible to read and write each bit using Modbus coil functions and the appropriate addresses from the “Coil Addresses” table. Latch #15 #14 #13 #12 #11 #10 #9 SIO-MB16ND3 User Guide, 1st Edition...
- Page 5 The counter values are stored as unsigned 32-bit integers, using two registers each. At power-on of the device, the value of each counter is set to 0. The value can be reset to 0 by writing to the registers. SIO-MB16ND3 User Guide, 1st Edition...
- Page 6 The device interface includes five configuration categories, as shown by the navigation menu on the left of the screen on the next page. Hovering over a navigation button will display a tooltip to describe the selection. SIO-MB16ND3 User Guide, 1st Edition...
- Page 7 Click Save to apply and store the modified parameters. Wait for the device to reset. After modifying the network settings you will need to use the updated IP address to connect to the device, and may need to change the subnet mask on your PC. SIO-MB16ND3 User Guide, 1st Edition...
-
Page 8: System Configuration
(0 = power cycle has not occurred ; 1 = power cycle has occurred ). Click Save to apply and store the modified parameters. To read the parameters from the device click Refresh. SIO-MB16ND3 User Guide, 1st Edition... - Page 9 • Firmware Version: shows the firmware version loaded on the device. • WebPage Version: shows the version of the web-based user interface loaded on the device. Do not disconnect power from the device during the upgrade process. SIO-MB16ND3 User Guide, 1st Edition...
- Page 10 Set the user name and password. • Username: set the user name to access the device. Default “admin”. • Password: set the password to access the device. Default “password”. Click Save to apply and store the modified parameters. SIO-MB16ND3 User Guide, 1st Edition...
-
Page 11: Digital Input
• Frequency (ref. “Frequency Digital Input” registers): indicates the current value of the frequency register associated with each input. • Clear Latch: resets all latches. • Reset Count: resets the counter register associated with the digital input. SIO-MB16ND3 User Guide, 1st Edition... - Page 12 To exit from the alarm condition, send any command to the device and reset the “Watchdog Event” coil. NOTE: When the device is switched off the state of the “Watchdog Enable” bit remains stored in EEPROM. SIO-MB16ND3 User Guide, 1st Edition...
