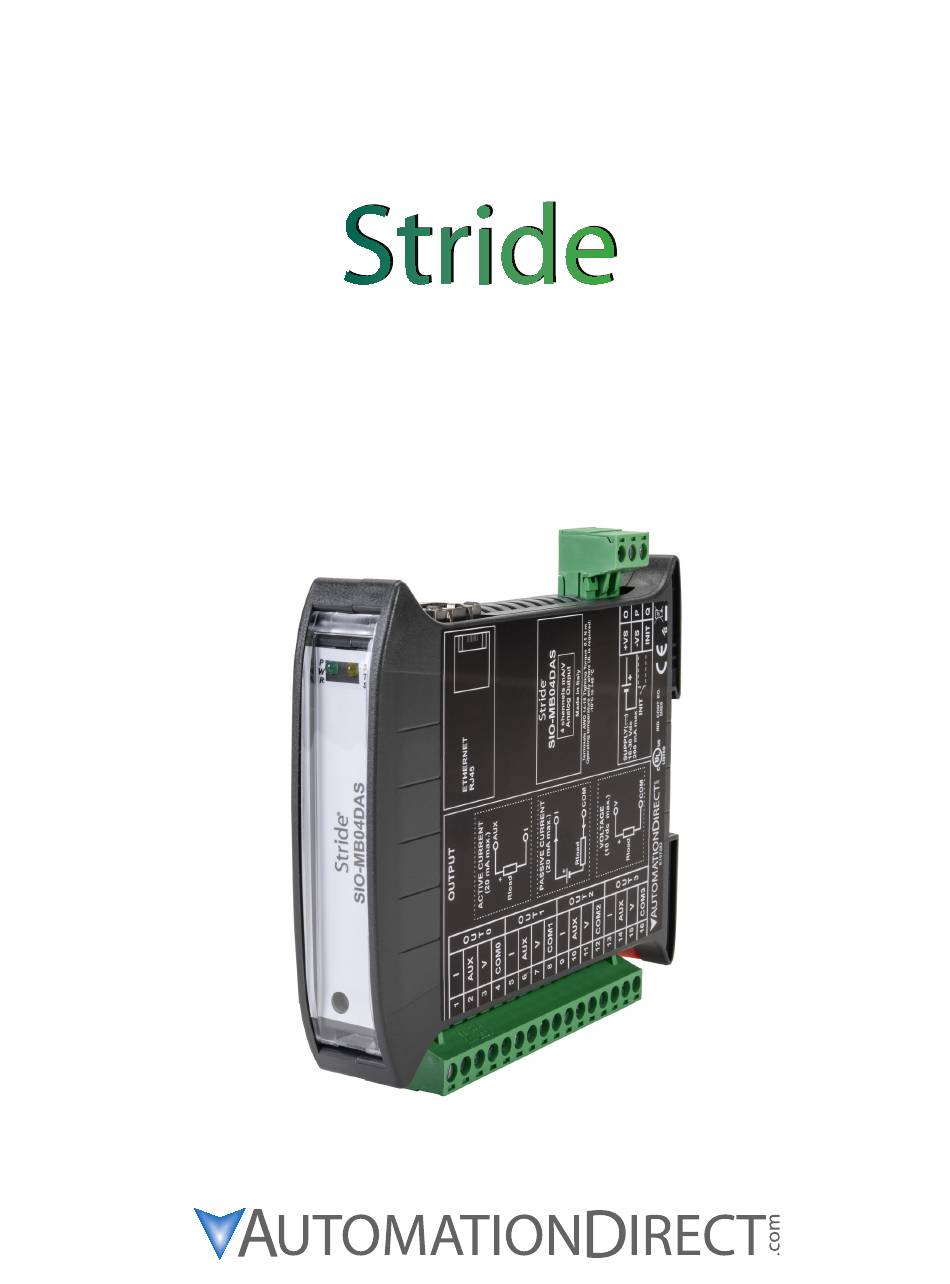

- Page 1 ® Field I/O SIO-MB04DAS USER GUIDE Analog Output Module: 4-channel, current/voltage Manual Number: SIO-MB04DAS-UG...
-
Page 2: Register Addresses
• A maximum of 64 registers can be written by Modbus function code 16 (see “Supported modbus functions codes”). • A maximum of 64 coils can be written by Modbus function code 15 (see “Supported modbus functions codes”). SIO-MB04DAS User Guide, 1st Edition... - Page 3 Stride Field I/O PRODUCT LABEL AND WIRING DIAGRAM Terminal block pinouts and wiring diagrams are printed on the side of the module, as shown below. SIO-MB04DAS User Guide, 1st Edition...
- Page 4 Table”). Each output channel can be configured by writing to its respective byte in the register. Output Value (Hex) Value (Dec) 15 14 13 12 11 10 09 08 07 06 05 04 03 02 01 00 Volt Description Output Type #3 Output Type #2 SIO-MB04DAS User Guide, 1st Edition...
- Page 5 Default: 0 (0V or 0mA) The values are expressed in mV for voltage outputs and μA for current outputs. 0 → 20000 → 20mA 0 → 10000 → 10V SIO-MB04DAS User Guide, 1st Edition...
- Page 6 The device interface includes five configuration categories, as shown by the navigation menu on the left of the screen on the next page. Hovering over a navigation button will display a tooltip to describe the selection. SIO-MB04DAS User Guide, 1st Edition...
- Page 7 Click Save to apply and store the modified parameters. Wait for the device to reset. After modifying the network settings you will need to use the updated IP address to connect to the device, and may need to change the subnet mask on your PC. SIO-MB04DAS User Guide, 1st Edition...
-
Page 8: System Configuration
(0 = power cycle has not occurred ; 1 = power cycle has occurred ). Click Save to apply and store the modified parameters. To read the parameters from the device click Refresh. SIO-MB04DAS User Guide, 1st Edition... - Page 9 • Firmware Version: shows the firmware version loaded on the device. • WebPage Version: shows the version of the web-based user interface loaded on the device. Do not disconnect power from the device during the upgrade process. SIO-MB04DAS User Guide, 1st Edition...
- Page 10 Set the user name and password. • Username: set the user name to access the device. Default “admin”. • Password: set the password to access the device. Default “password”. Click Save to apply and store the modified parameters. SIO-MB04DAS User Guide, 1st Edition...
-
Page 11: Analog Output
• Write Ch0 – Write Ch3: allows modifying the parameters of each single channel without modifying the others. To update all fields on the page, click Read All. Click Save All to save all changes on the page. SIO-MB04DAS User Guide, 1st Edition... - Page 12 PWR LED on the front of the device blinks and the “Watchdog Event” coil is forced to 1. To exit from the alarm condition, send any command to the device and reset the “Watchdog Event” coil. NOTE: When the device is switched off the state of the “Watchdog Enable” bit remains stored in EEPROM. SIO-MB04DAS User Guide, 1st Edition...
