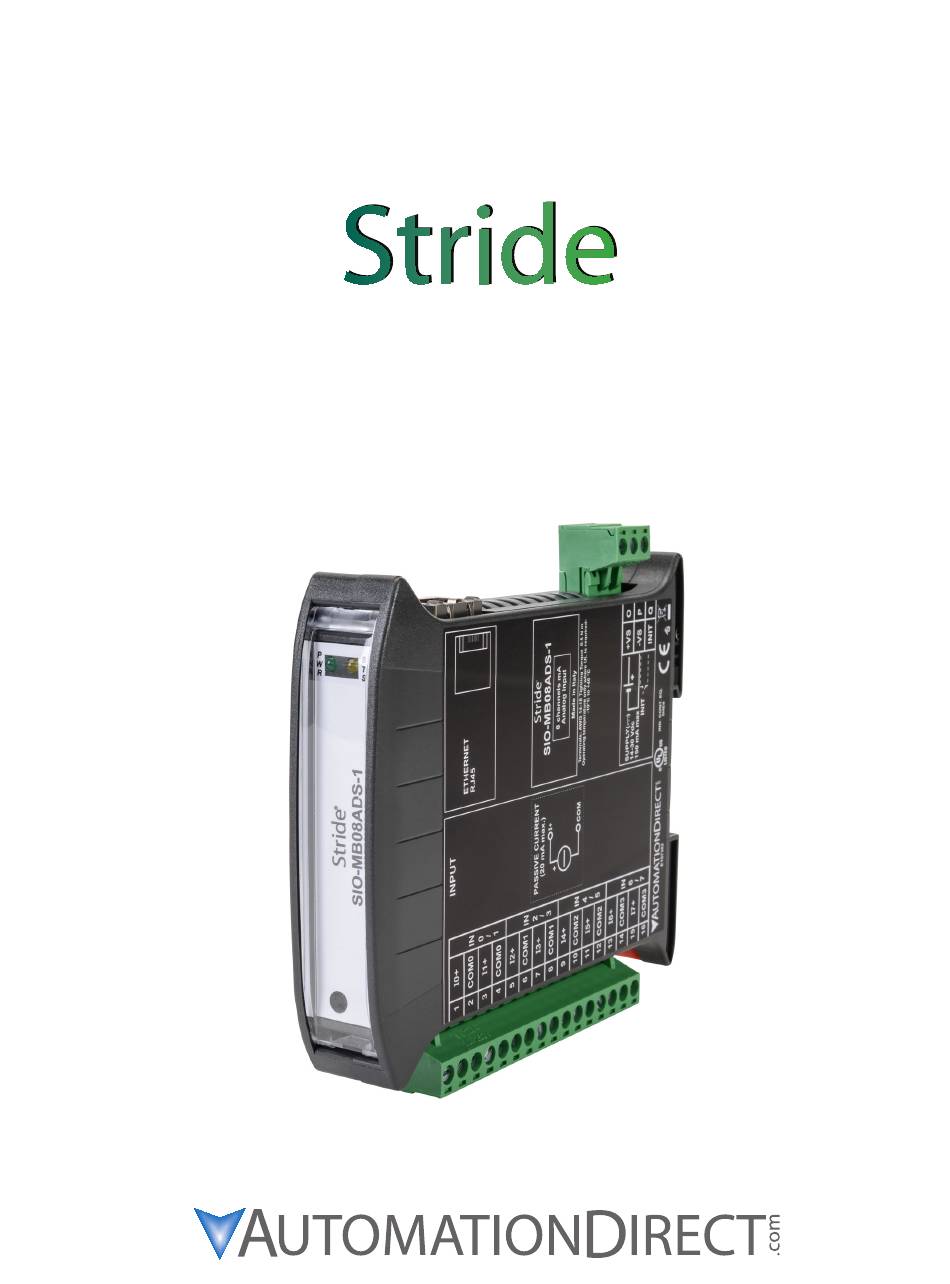

- Page 1 ® Field I/O SIO-MB08ADS-1 USER GUIDE Analog Input Module: 8-channel, current Manual Number: SIO-MB08ADS-1-UG...
-
Page 2: Register Addresses
• A maximum of 64 registers can be written by Modbus function code 16 (see “Supported modbus functions codes”). • A maximum of 64 coils can be written by Modbus function code 15 (see “Supported modbus functions codes”). SIO-MB08ADS-1 User Guide, 1st Edition... - Page 3 Stride Field I/O PRODUCT LABEL AND WIRING DIAGRAM Terminal block pinouts and wiring diagrams are printed on the side of the module, as shown below. SIO-MB08ADS-1 User Guide, 1st Edition...
- Page 4 To disable an input write 0 to the bit that corresponds to the input that you want to disable. Disabled Default: mA (0303 Hex) 15 14 13 12 11 10 09 08 07 06 05 04 03 02 01 00 Description Input Type #3 Input Type #2 SIO-MB08ADS-1 User Guide, 1st Edition...
- Page 5 These registers return the value read at each channel, converted to engineering units. The values are expressed in μA. For example, a value of 19921 in the register represents 19.921 mA. The format is signed 16-bit integer. NOTE: When INIT mode is active, the analog input measurements are not updated. SIO-MB08ADS-1 User Guide, 1st Edition...
- Page 6 The device interface includes five configuration categories, as shown by the navigation menu on the left of the screen on the next page. Hovering over a navigation button will display a tooltip to describe the selection. SIO-MB08ADS-1 User Guide, 1st Edition...
- Page 7 Click Save to apply and store the modified parameters. Wait for the device to reset. After modifying the network settings you will need to use the updated IP address to connect to the device, and may need to change the subnet mask on your PC. SIO-MB08ADS-1 User Guide, 1st Edition...
-
Page 8: System Configuration
(0 = power cycle has not occurred ; 1 = power cycle has occurred ). Click Save to apply and store the modified parameters. To read the parameters from the device click Refresh. SIO-MB08ADS-1 User Guide, 1st Edition... - Page 9 • Firmware Version: shows the firmware version loaded on the device. • WebPage Version: shows the version of the web-based user interface loaded on the device. Do not disconnect power from the device during the upgrade process. SIO-MB08ADS-1 User Guide, 1st Edition...
- Page 10 Set the user name and password. • Username: set the user name to access the device. Default “admin”. • Password: set the password to access the device. Default “password”. Click Save to apply and store the modified parameters. SIO-MB08ADS-1 User Guide, 1st Edition...
-
Page 11: Analog Input
• Input Type (ref. “Input Type” registers): set each channel to either Current input or Disabled. • Value (ref. “Analog Input” registers): shows the value stored in the register associated with each analog input. Click Save to save modifications to the Input Type. SIO-MB08ADS-1 User Guide, 1st Edition... - Page 12 To exit from the alarm condition, send any command to the device and reset the “Watchdog Event” coil. NOTE: When the device is switched off the state of the “Watchdog Enable” bit remains stored in EEPROM. SIO-MB08ADS-1 User Guide, 1st Edition...
