6 Appendix

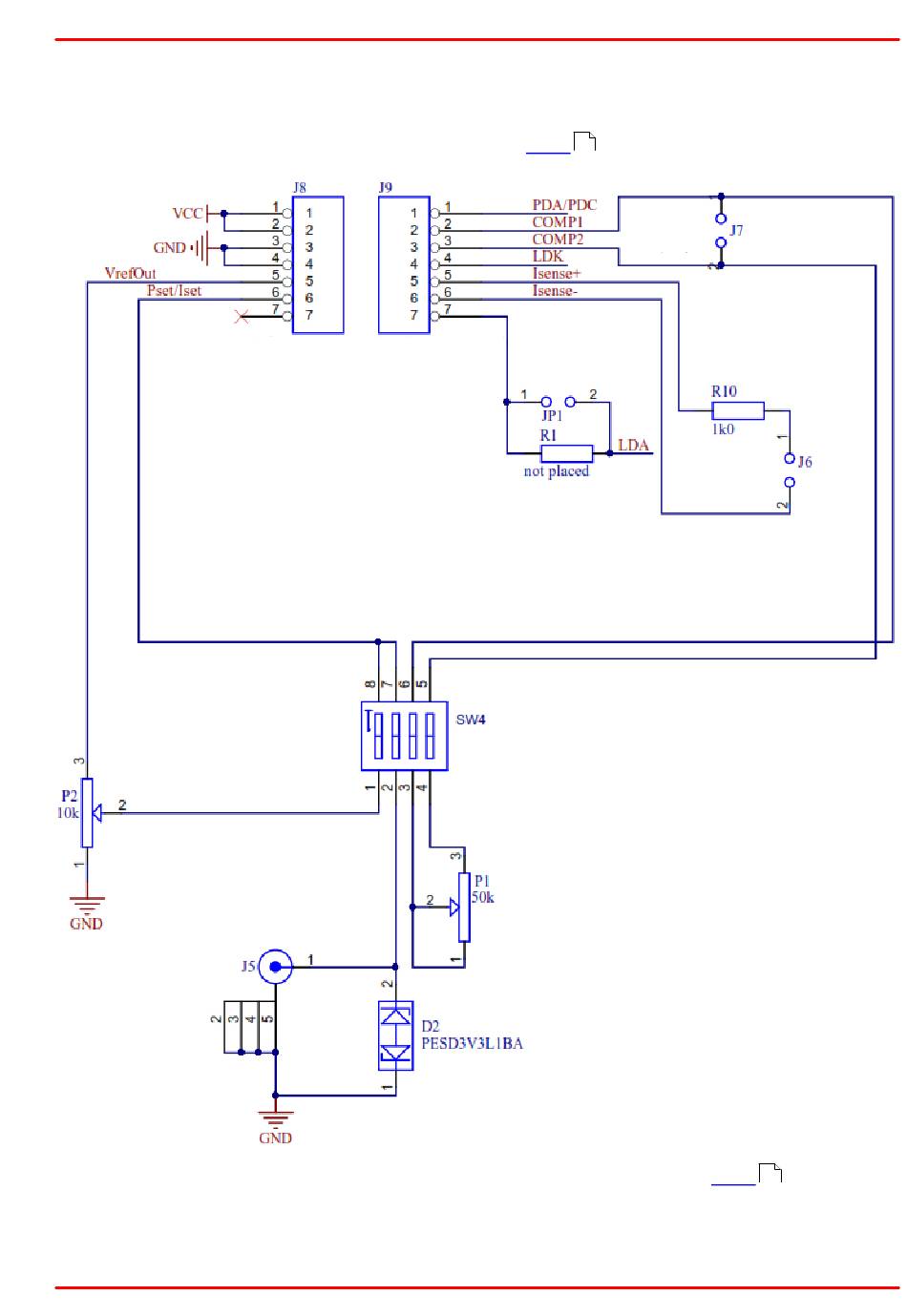

6.2 Schematic Diagrams

For better readability in this manual, the schematic diagram is split in functional blocks.
MLD203xxxE interface (see Operating Elements on page , items 3, 4, 5, 10, 11, 12 and 13)
3
Screw terminal for laser diode connection (see Operating Elements on page , item 8)
3
