Summary of Contents for Ryobi R36XCLV10

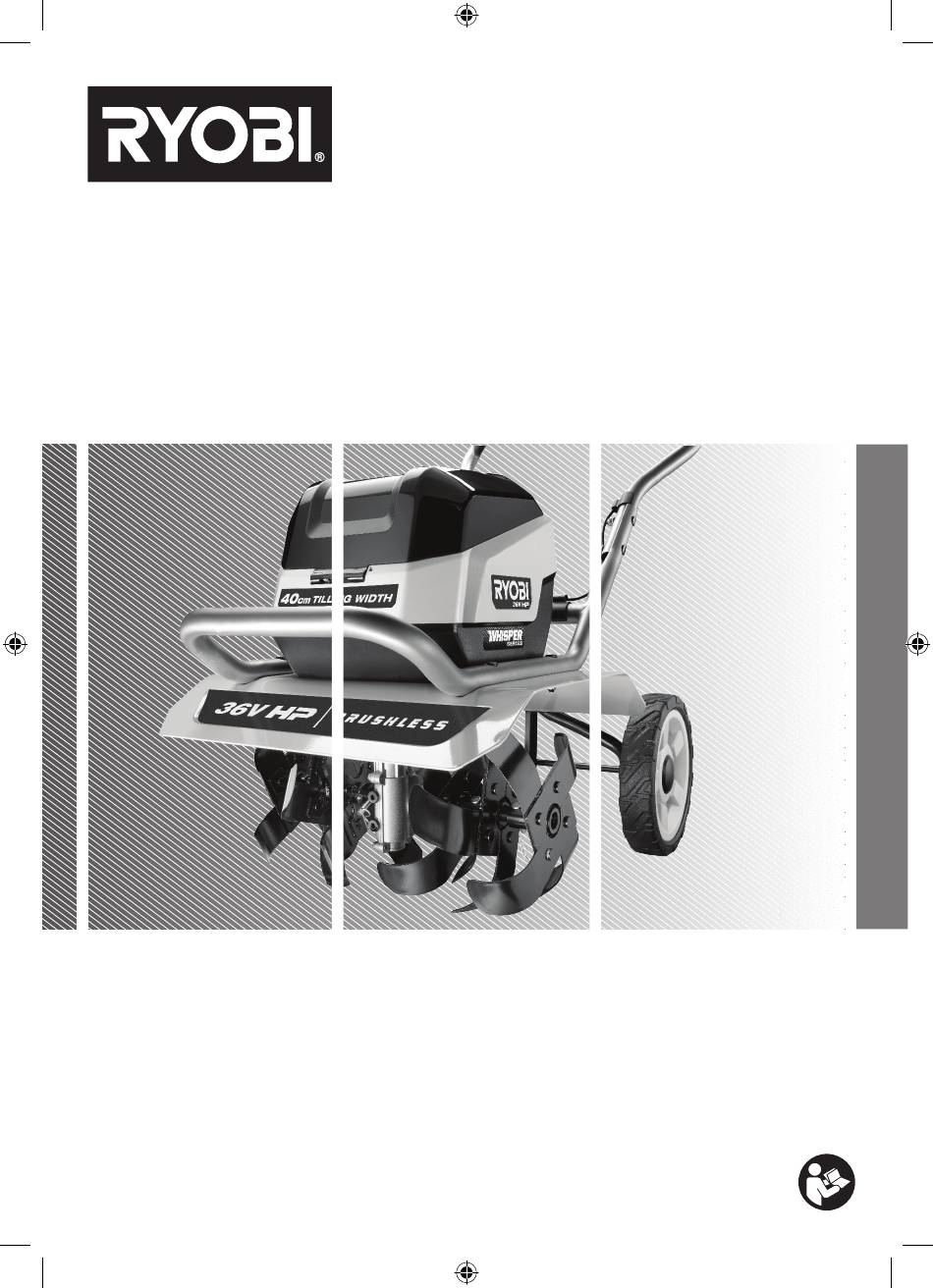

  • Page 1 FRONT PAGE R36XCLV10 R36XCLV16...

  • Page 2: Intended Use

    a rotating part of the power tool may result in personal IMPORTANT! injury. It is essential that you read the instructions in this manual ■ Do not overreach. Keep proper footing and balance before assembling, operating, and maintaining the at all times. This enables better control of the power tool product.

  • Page 3: Transportation And Storage

    ■ Use power tools only with specifically designated ● if the machine starts to vibrate abnormally (check battery packs. Use of any other battery packs may immediately) create a risk of injury and fire. ● before performing maintenance ■ When battery pack is not in use, keep it away from ■...

  • Page 4: Maintenance

    insulating, non-conductive caps or tape. Do not transport battery packs that are cracked or leaking. Check with the Do not expose the product to rain or forwarding company for further advice. damp conditions. MAINTENANCE ■ Use only original manufacturer’s replacement parts, accessories, and attachments.
  • Page 5 R36XCLV10 Bail Speed selector switch On/Off button Battery cover Tine shield Wrench Drag stake bracket Drag stake Left middle tube Right middle tube Operator's manual Outer left tine C Inner left tine A Inner right tine B Outer right tine D...
  • Page 6 Wear full eye and ear protection, On the left side of the metal frame, install the wheel into the axle. Insert and turn gloves, substantial footwear, and long the nut clockwise using the wrench to secure the wheel. On the right side of the trousers at all times while operating the metal frame, install the wheel into the axle.
  • Page 7 Install a hub cap on both sides of the Attach the right middle tube to the upper handle shaft using bolts and nuts. Turn metal frame. the nuts clockwise using the wrench to secure the right middle tube. Attach the left middle tube to the upper handle shaft using bolts and nuts.
  • Page 8 Four-tine operation Cleaning the Storing the product Two-tine operation p.11 p.12 p.13 product...
  • Page 9 FOUR - TINE OPERATION WARNING: Keep hands and feet away from the rotating tines at all times. WARNING: The product must be adequately controlled by using a two-handed operation at all times. WARNING: Never operate the product on rocky surfaces. 1.
  • Page 10 NOTE: For medium tilling, set the drag stake to the third hole from the bottom. For deep tilling, set the drag stake to the sixth hole from the bottom. 2. Open the battery door. Slide in the battery pack into the battery slot. 3.
  • Page 11 TWO - TINE OPERATION 1. Open the battery door. Press the latch on the side, and remove the battery pack. Close the battery door. 2. On the right tine shaft, unlock the hitch pin and lock pin from the inner hole. Remove tine D.

  • Page 12: Cleaning The Product

    CLEANING THE PRODUCT 1. Open the battery door. 2. Slide out the battery pack from the battery slot. Close the battery door. 3. Clean the product with a soft, dry cloth. Remove the debris from the tines with a stiff brush. WARNING: Do not use water to clean the tines.

  • Page 13: Storing The Product

    STORING THE PRODUCT WARNING: Clean and remove all foreign materials from the product before storing. 1. Open the battery door. 2. Slide out the battery pack from the battery slot. Close the battery door. 3. Store the product in a cool, dry, and well- ventilated place that is inaccessible to children and well away from sources of ignition.

  • Page 14: Product Specifications

    Cordless cultivator manual have been measured in accordance with a standardised test and may be used to compare one tool with Model R36XCLV10 another. They may be used for a preliminary assessment of Weight 28.11 kg exposure.
  • Page 16 Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. 961479079-01...
