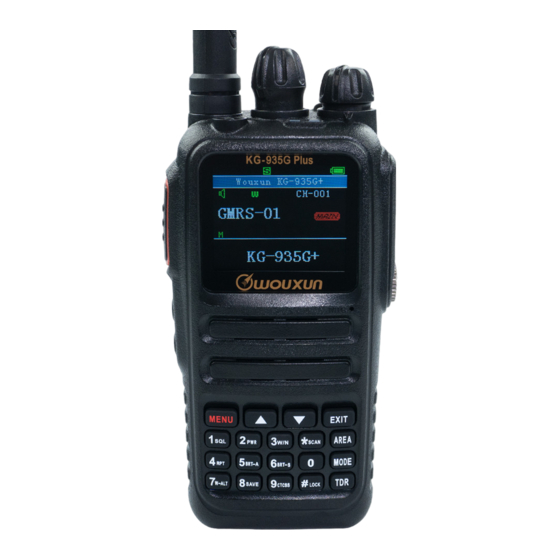

Wouxun KG-935G Plus Manual

Portable gmrs radio.

Hide thumbs

Table of Contents

Quick Links

Thank you for purchasing the Wouxun KG-935G Plus portable GMRS radio.

Your feedback makes our products better. Please share your thoughts.

feedback@buytwowayradios.com

www.buytwowayradios.com

Table of Contents

Need help?

Do you have a question about the KG-935G Plus and is the answer not in the manual?

Questions and answers

Summary of Contents for Wouxun KG-935G Plus

Page 1 Thank you for purchasing the Wouxun KG-935G Plus portable GMRS radio. Your feedback makes our products better. Please share your thoughts. feedback@buytwowayradios.com www.buytwowayradios.com...
Page 2: Table Of Contents
Right / Left Side Guide ................17 Display Guide ....................18 Dust and Water Protection ................19 Installing and Removing the Battery ............20 Charging the Battery ..................21 Antenna Information ..................23 Installing the Belt Clip .................23 Operation �� 25 Introducing GMRS and the KG-935G Plus ..........25...
Page 3 Power On/Off and Adjusting Volume ............26 Your First Transmit ..................26 Dual Display: Using Areas “A” and “B” ............28 Channel and Frequency Modes ..............30 Channels and Privacy Codes.................32 Using the Repeater Channels ...............32 Channel Scan ....................36 Key Lock ......................38 Stopwatch Timer ..................39 NOAA Weather Mode .................39 Keypad Hotkeys ..................42 Keypad Function Keys ................44...
Page 4 [01: SQL] Squelch ..................53 [02: TX-POWER] Output Power ..............53 [03: W/N] Bandwidth ..................54 [04: REPEATER] Repeater .................54 [05: BRT-ACTV] Active Backlight .............54 [06: BRT-STBY] Standby Backlight ............55 [07: WX-ALERT] Weather Alert ..............55 [08: BAT-SAVER] Battery Saver ..............56 [09: RX-CTCSS] Receive CTCSS Tone .............56 [10: TX-CTCSS] Transmit CTCSS Tone ...........56 [11: RX-DCS] Receive DCS Code ..............57 [12: TX-DCS] Transmit DCS Code ............57...
Page 5 [15: SCAN-MODE] Scan Mode ..............58 [16: SCANGRP-A] Scan Group A .............59 [17: SCANGRP-B] Scan Group B ..............59 [18: PRI-SCAN] Priority Scan ..............60 [19: PRI-CH] Priority Channel ..............60 [20: SCAN-ADD] Scan Add / Delete ............60 [21: TONE-SCAN] CTCSS/DCS Scanning ..........61 [22: TONE-SAVE] CTCSS/DCS Tone Save Options .......61 [23: WX-NOTIFY] Weather Alert Notification Setting ......62 [24: STEP] Frequency Step ................62 [25: ROGER] Roger Beep ................63...
Page 6 [29: VOICE] Voice Guide ................64 [30: BEEP] Button Beeps ................65 [31: BUSY-LOCK] Busy Channel Lockout ..........65 [32: VOLTAGE] Battery Voltage ..............65 [33: BAT-TYPE] Battery Level Display Type ..........66 [34: PF1-SHORT] Side Key PF1 Short Press Assignment ......66 [35: PF1-LONG] Side Key PF1 Long Press Assignment ......66 [36: PF2-SHORT] Side Key PF2 Short Press Assignment ......67 [37: PF2-LONG] Side Key PF2 Long Press Assignment ......67 [38: SMUTESET] Secondary Area Mute Setting ........68...
Page 7 [43: CH-DELETE] Delete Memory Channel ..........70 [44: DESCRAMBL] Descrambler...............70 [45: COMPANDER] Compander ...............71 [46: SP-MUTE] Speaker Mute ..............71 [47: ANI-SW] Radio ID On/Off ..............72 [48: ANI-EDIT] Edit Radio ID ..............72 [49: SIDETONE] Sidetone Setting ............73 [50: ALERT] Tone Alert................73 [51: PTT-DLY] PTT-Delay ...............74 [52: PTT-ID] Radio ID Setting ..............74 [53: RING] Ring Time ................75 [54: CALLCODE] Call Code ..............75...
Page 8 [57: SIM-RX] Simultaneous Receive ............76 [58: AUTOLOCK] Auto Lock ..............76 [59: PONMSG] Power On Message............77 [60: FM-MEM] FM Radio Memory............77 [61: CH-WIZARD] Channel Wizard ............78 [62: RESET] Factory Reset................78 Advanced Operation �� 80 DTMF Encoding ..................80 Setting Non-Standard CTCSS or DCS ............84 Adding and Removing Channels ..............86 Channel Wizard ...................90 Troubleshooting ��...
Page 9 Standard CTCSS and DCS Tones .............103 Default GMRS Channels and Frequencies ..........105 NOAA Weather Channels .................107 Optional Accessories �� 108 Limited Warranty �� 109...
Page 10: Safety Information
Safety Information Safety Information The KG-935G Plus is an electrical apparatus, as well as a generator of RF (Radio Fre- quency) energy, and you should exercise all safety precautions as are appropriate for this type of device. Please read the suggestions and warnings below before using the transceiver.
Page 11 Contact your dealer for further assistance. Notice ▪ These tips are important for safe operation of your KG-935G Plus radio and its accessories. If the transceiver does not function normally, please get in touch with your dealer immediately. ▪...
Page 12 Safety Information Caution Please read this manual before using the radio, as it includes important instructions for the safe handling, use and operation of your radio. FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the follow- ing two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may...
Page 13: Fcc Licensing Information
DO NOT attempt to use the radio with a damaged antenna. FCC Licensing Information The Wouxun KG-935G Plus is FCC Part 95E type accepted for use on the GMRS. The KG-935G Plus operates on General Mobile Radio Service (GMRS) frequencies according to the Federal Communications Commission (FCC) Rules in the United States.
Page 14: Getting Started
Getting Started Getting Started Feature Summary ▪ ▪ 30 GMRS Channels Wide/Narrow Bandwidth Selectable ▪ ▪ 8 Built-In GMRS Repeater Channels USB-C Charging Port ▪ ▪ Up to 5.5 Watts Output Power PF Key Quick Guide ▪ ▪ IP66 Waterproof Up to 999 Custom Channels ▪...
Page 15 Getting Started Getting Started ▪ ▪ Incoming Caller ID Display FM Radio Mode ▪ ▪ Voltage Display Stopwatch Timer ▪ ▪ Selectable Battery Meter English Voice Guide ▪ ▪ Compander Built-in Flashlight ▪ ▪ Descrambler 2 Configurable Side Keys ▪ ▪...
Page 16: Front Panel Guide
Getting Started Front Panel Guide Channel Knob Antenna Volume Knob TX LED (Red) Flashlight RX LED (Green) Display Microphone Scan (Long Press) Speaker Exit/Cancel Up/Down Keys PF Key List (Long Press) Menu/Enter Area AREA SCAN Mode MODE BRT-A BRT-S W-ALT SAVE LOCK CTCSS...
Page 17: Right / Left Side Guide
Getting Started Getting Started Right / Left Side Guide Transmit/PTT Key Earphone Jack Short Press: Radio Long Press: FRQ2-PTT Short Press: FLASHLIGHT Long Press: MONI Note: Defaults are shown for PF1 / PF2. These buttons can be assigned different functions in the radio menu.
Page 18: Display Guide
Getting Started Display Guide Battery Save Keypad Lock Weather Alert Battery Power 107.9 MHZ FM Radio CH-001 Channel Number Narrowband Weather Radio Primary Area Current Channel Status TX Power CTCSS Last Active Area CH-030 Reverse Frequency QT Mute Mode Repeater Channel Wideband...
Page 19: Dust And Water Protection
Use of a headset or other accessory will negate the dust and waterproofing features of this radio. The KG-935G Plus is NOT submersible. Do not attempt to operate this radio if it has been submerged.
Page 20: Installing And Removing The Battery
Getting Started Installing and Removing the Battery The lithium-ion battery pack included with the radio is not fully charged out of the box. It is recommended to charge it before using the radio for the first time. Installing the Battery Slide the battery pack up along the back of the radio until it stops.
Page 21: Charging The Battery
Getting Started Charging the Battery The KG-935G Plus offers two charging options out of the box, either using the includ- ed drop-in desktop charger or through the USB-C charging port on the back of the 2600mAh battery pack included with the radio.
Page 22 The LED will turn green when charging is complete. Using the USB-C Charging Port on the Battery The KG-935G Plus includes a 2600mAh lithium-ion battery pack with a built-in USB-C charging port. The battery has an LED charging light next to the port. to indi- cate the charging status.
Page 23: Antenna Information
2. When the LED light on the battery turns green, charging is complete. Antenna Information The KG-935G Plus includes an antenna with an SMA female connector that is tuned for the GMRS frequency range of your radio. Aftermarket antennas may be used, pro- vided they are tuned for the GMRS.
Page 24 Getting Started firmly attached to the radio. Do not overtighten the screws.
Page 25: Operation
10 years. The KG-935G Plus was designed to allow you to take advantage of all that GMRS has to offer and more. Right out of the box this radio is configured to allow you to transmit on the 15 high powered GMRS simplex channels and 8 low powered simplex channels, as well as the 8 repeater channels.
Page 26: Power On/Off And Adjusting Volume
Your First Transmit Selecting a Channel When you power on your KG-935G Plus for the first time, the display will likely show “GMRS-01” in the center with “CH-001” in the upper right corner. GMRS-01 is the name of the currently selected channel. CH-001 is the channel number. Turn the Channel Knob or the [UP] / [DOWN] arrow keys to navigate through the list of channels.
Page 27 ▪ Transmitting on GMRS channels 1-7 is limited to 5 watts of output power. These channels can only transmit at up to Mid power (5 watts) on the KG-935G Plus. ▪ Transmitting on channels 8-14 is limited to a half watt of output power and is for use on Low power only.
Page 28: Dual Display: Using Areas "A" And "B
Dual Display: Using Areas “A” and “B” The KG-935G Plus is two radios in one! The dual display function allows you to moni- tor two channels at the same time. While this may sound complex, the KG-935G Plus...
Page 29 Turning the Dual Display On and Off The dual display is off by default on the KG-935G Plus. Instead of a frequency or channel name, the text “KG-935G+” will be displayed in the inactive area when the dual display is off.
Page 30: Channel And Frequency Modes
Primary side. Channel and Frequency Modes The KG-935G Plus supports tuning frequencies via two methods: channel and frequen- cy modes. In channel mode, frequencies that have been saved can be selected from the channel list.
Page 31 The KG-935G Plus supports the following frequency bands: KG-935G Plus Frequency Bands 136.000 - 174.995 MHz 400.000 - 479.995 MHz The KG-935G Plus can only transmit on GMRS frequencies. All other available fre- quencies entered in Frequency mode or through the programming software are receive only.
Page 32: Channels And Privacy Codes
Operation Channels and Privacy Codes The KG-935G Plus supports 30 built-in GMRS channels and 155 privacy tones and codes.To successfully communicate between your stations or members of your group, all the connecting radios must be using the same channel and privacy (CTCSS or DCS) code.
Page 33 Operation Operation are named RPT-15 through RPT-22. What is a Repeater? In basic terms, a repeater is a device that is used to increase the range of two way radios. Repeaters will receive a transmission on one frequency and simultaneously rebroadcast that transmission on a different frequency.
Page 34 The description on the myGMRS website usually indi- cates if permission is required and provides a way to get in touch with the owner. KG-935G Plus Repeater Channels RPT-15 through RPT-22 have the same receive frequency as channels GMRS-15 through GMRS-22.
Page 35 Operation Operation Number Channel Receive Frequency Transmit Frequency CH-026 RPT-18 462.6250 467.6250 CH-027 RPT-19 462.6500 467.6500 CH-028 RPT-20 462.6750 467.6750 CH-029 RPT-21 462.7000 467.7000 CH-030 RPT-22 462.7250 467.7250 Accessing a Repeater in Frequency Mode The REPEATER menu option (page 54) allows you to transmit to a repeater while in Frequency Mode.
Page 36: Channel Scan
66). Priority Channel Scan The KG-935G Plus supports Priority Channel Scanning. With this feature a priority channel can be specified that is scanned much more frequently than other channels. This helps prevent missing all or part of a transmission when you are primarily con-...
Page 37 (page 60). Scanning CTCSS / DCS Codes The KG-935G Plus is equipped with the ability to scan an incoming signal for a CTCSS or DCS tone and update the current channel’s tone settings once the tone is identified.
Page 38: Key Lock
Key Lock The buttons on the KG-935G Plus can be locked to prevent them from being acciden- tally pressed. When the Key Lock is enabled, all buttons except the [*LOCK] and PTT keys will be disabled. The Channel knob will also be disabled.
Page 39: Stopwatch Timer
The buttons should now be enabled. Stopwatch Timer The KG-935G Plus has a built-in stopwatch timer. It can be enabled using the TIMER menu option (page 76). Once enabled, Press [#LOCK] on the radio to activate the stopwatch.
Page 40 To locate the NOAA station closest to your location, visit the following site: https://www.weather.gov/nwr/station_listing Weather Alert The KG-935G Plus features a Weather Alert option (page 55). When Weather Alert mode is active and the radio is in standby mode, the KG-935G Plus will monitor the...
Page 41 (1050Hz) that indicates a weather warning or alert has been issued. When a weather alert has been detected, the KG-935G Plus will produce an alert according the option chosen in the WX-NOTIFY menu function (page 62). For all WX-NOTIFY alert options other than WEATHER, pressing any key will acknowl- edge and end the alert.
Page 42: Keypad Hotkeys
Operation Alert Option Alert Description FLASH Displays weather icon and flashlight LED pulses 5 times every 60 seconds. TONE+FLSH Displays icon, emits alert and the flashlight LED pulses every 60 seconds. WEATHER Displays weather icon and radio instantly tunes to Weather Mode.
Page 43 Operation Operation Hotkey Function/Menu Item Squelch menu function (page 53) Output Power menu function (page 53) Bandwidth menu function (page 54) Repeater menu function (page 54) BRT-A Active Backlight menu function (page 54) BRT-S Standby Backlight menu function (page 55) W-ALT Weather Alert menu function (page 55) SAVE...
Page 44: Keypad Function Keys
Operation Note For instant access to any menu option while in the menu, simply enter the number of the menu option into the keypad. This is a faster method of locating a specific menu option than by using the [UP] and [DOWN] keys or the Channel Knob. Keypad Function Keys The keypad includes 9 function keys to perform specific operations on the radio, from accessing and navigating the menu to the control of various modes.
Page 45: Side Key Functions
Goes to the previous channel, frequency or menu item Side Key Functions The KG-935G Plus has two programmable keys [PF1] and [PF2]. These keys are locat- ed on the left side of the radio below the PTT key. Each key can perform two different...
Page 46 Operation functions, one activated with a short press and one with a long press. These functions can be assigned to the [PF1] or [PF2] buttons from the menu (page 66). They can also be assigned via the programming software. Hold down the EXIT key to display a PF Key Quick Guide to view the current assign- ment of each key.
Page 47 Operation Operation Short Press Long Press Function Description STROBE Activate flashing strobe light (p 49) MONI Monitor channel (page 52) FM-RADIO Activate FM Radio (page 51) Transmit SOS (page 48) ALARM Transmit alarm (page 49) FLASHLIGHT Activate flashlight (page 49) FAVORITE Favorite Channels (page 49) SCAN...
Page 48 Operation when the repeater is nearly out of range, is not operational, or if you are in range of other stations and would prefer to contact them via simplex. The Talk Around function can be assigned to the PF1 or PF2 buttons from the menu (pp. 66-67). Reverse Frequency When Reverse Frequency is activated, the transmit and receive frequencies of the active channel are exchanged or reversed, allowing the radio to transmit on the receive fre-...
Page 49 [PF1] or [PF2] key (pp. 66-67). Flashlight/Strobe The KG-935G Plus has a built-in LED flashlight at the top of the radio. It can operate in two modes. [FLASHLIGHT] provides steady illumination. [STROBE] functions as a flashing strobe light. To access one or both of these features, they must first be as- signed to the [PF1] or [PF2] key (pp.
Page 50 Operation The KG-935G Plus allows you to access specific channels marked as favorite channels. When assigned to a programmable key, pressing that key will change channels to the next highest channel marked as Favorite. Pressing the key again will go to the next favorite channel on the list.
Page 51 PF2 buttons from the menu (pp. 66-67) or through the programming software. FM Radio The KG-935G Plus features a 76.02-108MHz commercial broadcast FM Radio. To ac- cess the FM Radio, it must first be assigned to the [PF1] or [PF2] key (pp. 66-67).
Page 52 Operation above Area A. To find an active broadcast station, press [*SCAN] to begin the FM Radio scanning function. Press any key to stop the scan. To enter a specific radio frequency directly, press and hold down the [TDR] key while the FM radio is on.
Page 53: Menu Functions
GMRS channels 8-14 are restricted by the FCC to 0.5 watts and can be used on low power only. The transmit power of channels 1-7 are limited to 5 watts and can be used on Low or Medium power only. The KG-935G Plus will automatically adjust the power to the FCC limits.
Page 54: [03: W/N] Bandwidth
Menu Functions Options: HIGH/MID/LOW Default: (Varies by channel) [03: W/N] Bandwidth Function: Sets the bandwidth for the current channel. Options: WIDE/NARROW Default: (Varies by channel) [04: REPEATER] Repeater Function: Sets the offset frequency for a repeater channel. When this option is activated the KG-935G will transmit to the repeater input frequency when the radio is tuned to a frequency that has a valid GMRS repeater offset.
Page 55: [06: Brt-Stby] Standby Backlight
Menu Functions Menu Functions Function: Sets the brightness of the LCD display backlight while the radio is transmit- ting, receiving, or otherwise active. There are 10 brightness levels from lowest (1) to highest (10). Options: 1-10 Default: 8 [06: BRT-STBY] Standby Backlight Function: Sets the brightness of the LCD display backlight while the radio is in stand- by.
Page 56: [08: Bat-Saver] Battery Saver
Menu Functions [08: BAT-SAVER] Battery Saver Function: Activate the battery saver feature. When active, the radio will scan less fre- quently for signals, improving battery life. Options: ON/OFF Default: ON [09: RX-CTCSS] Receive CTCSS Tone Function: Sets the receiving CTCSS tone for the selected channel. Use the arrow keys to select your preferred code and then MENU to confirm.
Page 57: [11: Rx-Dcs] Receive Dcs Code
Menu Functions Menu Functions Options: OFF/50 CTCSS Tones Default: OFF [11: RX-DCS] Receive DCS Code Function: Sets the receiving DCS code for the selected channel. Use the arrow keys to select your preferred code and then MENU to confirm. Pressing the [*] key will clear the tone.
Page 58: [14: Backlight] Backlight Timeout
Menu Functions Function: Sets the theme of the LCD display to one of 10 display themes. Options: WHITE-1/WHITE-2/BLACK-1/BLACK-2/COOL/RAIN/NotARubi/ SKY/BTWR/CANDY Default: BLACK-2 [14: BACKLIGHT] Backlight Timeout Function: Sets the amount of time (in seconds) that the LCD display remains in active mode before returning to standby mode.
Page 59: [16: Scangrp-A] Scan Group A
Menu Functions Menu Functions activity and will then resume if no operation is carried out within 5 seconds. Pressing PTT will transmit on the currently selected channel. CO: When a signal is detected, scanning stops and resumes immediately after the sig- nal is lost.
Page 60: [18: Pri-Scan] Priority Scan
Menu Functions Options: ALL/1-10 Default: ALL [18: PRI-SCAN] Priority Scan Function: Activates scanning of the Priority Channel. During scan, the priority channel will be scanned more frequently. Read the “Channel Scan” section on page 35 to learn more. Options: ON/OFF Default: OFF [19: PRI-CH] Priority Channel Function: Selects the priority channel.
Page 61: [21: Tone-Scan] Ctcss/Dcs Scanning
Menu Functions Menu Functions Function: Add or remove a channel to/from the list of channels to scan. Options: ON/OFF Default: ON [21: TONE-SCAN] CTCSS/DCS Scanning Function: Scans the incoming signal for CTCSS or DCS tones to identify or confirm the correct tone. This function must be activated while receiving a signal. Options: 1.
Page 62: [23: Wx-Notify] Weather Alert Notification Setting
Menu Functions RX: Saves the scanned tone to the RX-CTCSS/DCS setting TX: Saves the scanned tone to the TX-CTCSS/DCS setting. ALL: Saves the scanned tone to both. [23: WX-NOTIFY] Weather Alert Notification Setting Function: Sets type of notification for the alert when a NOAA weather alert signal is received.
Page 63: [25: Roger] Roger Beep
Menu Functions Menu Functions Options: 2.5K/5K/6.25K/10K/12.5K/25K/50K/100K Default: 5K [25: ROGER] Roger Beep Function: Enables an audible roger beep prompt during transmission. Options: OFF/BOT/EOT/BOTH Default: OFF BOT: Sets the roger beep prompt at the beginning of transmission EOT: Sets the roger beep at the end of transmission BOTH: Sets the roger beep at the beginning and end of transmission [26: TOT] Transmit Overtime Timer Function: When the transmission time exceeds the time set by the Transmit Overtime...
Page 64: [28: Vox] Voice Activated Transmit
Menu Functions Function: The Transmit Overtime Alarm warns when the Transmit Overtime Timer (TOT) is about to be exceeded. The red TX indicator LED (top of the radio) flashes to indicate an alarm. The alarm can be set to a maximum time limit of 10 seconds and indicates the amount of time prior to the Transmit Overtime Timer expiring that the warning will begin.
Page 65: [30: Beep] Button Beeps
Menu Functions Menu Functions Options: OFF/ON Default: ON [30: BEEP] Button Beeps Function: Enables an audio prompt to alert the operator of a key press, input or fault. Selectable: ON/OFF Default: ON [31: BUSY-LOCK] Busy Channel Lockout Function: Enabling Busy Channel Lockout prevents the transceiver from transmitting on a selected channel while another station or group is transmitting on it.
Page 66: [33: Bat-Type] Battery Level Display Type
Menu Functions [33: BAT-TYPE] Battery Level Display Type Function: Select the type of indicator that is shown in the battery level area of the display. Icon displays a battery icon, filled to a level that is roughly indicative of the remaining battery charge. Voltage displays the current battery voltage. Percent displays the percentage of battery life that remains.
Page 67: [36: Pf2-Short] Side Key Pf2 Short Press Assignment
Menu Functions Menu Functions Options: UNDEF/BACKLIGHT/FAVORITE/BRIGHT+/DCS-SCAN/CTC- SCAN/REVERSE/TALK-A/WEATHER/STROBE/MONI/FM-RA- DIO/SOS/ALARM/FLASHLIGHT/SCAN/SELEC CALL/FRQ2-PTT Default: FRQ2-PTT [36: PF2-SHORT] Side Key PF2 Short Press Assignment Function: Assigns a function to a short button press of the [PF2] side key. Options: UNDEF/BACKLIGHT/FAVORITE/BRIGHT+/DCS-SCAN/CTC- SCAN/REVERSE/TALK-A/WEATHER/STROBE/MONI/FM-RA- DIO/SOS/ALARM/FLASHLIGHT/SCAN Default: FLASHLIGHT [37: PF2-LONG] Side Key PF2 Long Press Assignment Function: Assigns a function to a long button press of the [PF2] side key.
Page 68: [38: Smuteset] Secondary Area Mute Setting
Menu Functions [38: SMUTESET] Secondary Area Mute Setting Function: The Secondary Mute function mutes the speaker on the secondary area when the primary area is used. This prevents conflicting audio sounds and noise from both sides simultaneously when the radio is in dual receive mode. Options: OFF/TX/RX/TX+RX Default: OFF TX: Mutes the speaker on the Secondary area when transmitting on the Master area.
Page 69: [40: Ch-Name] Channel Name
Menu Functions Menu Functions FREQUENCY: Frequency Mode. Allows directly tuning any frequency in the wide receive range of the KG-935G Plus. The radio transmits on GMRS frequen- cies only. CH-NUMBER: Channel Mode. Displays the channel number (Example: CH-001) CH-FREQ: Channel Mode. Displays the channel frequency (Example: 462.56250) [40: CH-NAME] Channel Name Function: Allows you to edit the name for the currently active channel.
Page 70: [41: Ch-Fav] Favorite Channel
Menu Functions [41: CH-FAV] Favorite Channel Function: Select if the current channel should be marked as a favorite. Favorite chan- nels can be activated quickly by using the FAVORITE function. Channel 19 (travel channel) is the favorite channel by default. Options: OFF/ON Default: OFF [42: CH-ADD] Add Memory Channel...
Page 71: [45: Compander] Compander
Menu Functions Menu Functions Function: Activating this function will descramble incoming signals that are scrambled using one of 8 supported protocols. Options: OFF/SCRAM 1-8 Default: OFF [45: COMPANDER] Compander Function: The compander minimizes noise. Useful when transmitting over long distanc- Options: ON/OFF Default: OFF [46: SP-MUTE] Speaker Mute...
Page 72: [47: Ani-Sw] Radio Id On/Off
Menu Functions DTMF tone of the current radio ID (followed by a # sign). QT*DTMF: Transmissions will be filtered by either CTCSS/DCS tones OR a DTMF tone of the current radio ID (followed by a # sign). [47: ANI-SW] Radio ID On/Off Function: When activated, the radio will transmit the 3-6 digit Caller ID specified in menu option 48.
Page 73: [49: Sidetone] Sidetone Setting
Menu Functions Menu Functions [49: SIDETONE] Sidetone Setting Function: Determines when DTMF tones transmitted by the radio are heard from the speaker. It can be configured if you want to hear all tones, only tones trans- mitted for a radio ID, or only tones other than those transmitted for a radio ID.
Page 74: [51: Ptt-Dly] Ptt-Delay
Menu Functions Default: 1750Hz Special Reminder: When in transmit mode, you can send the single-tone pulse fre- quency you’ve selected by pressing the [PF2] key on the side of the radio. [51: PTT-DLY] PTT-Delay Function: Delays transmission of the Caller ID code for a specified time. This delay time can be set to one of 30 levels in 100ms increments.
Page 75: [53: Ring] Ring Time
Menu Functions Menu Functions [53: RING] Ring Time Function: Sets the amount of time a ring alert is emitted after receiving a DTMF tone that matches the radio ID. This is used when the SP-MUTE setting is QT+DTMF or QT*DTMF. Selectable: OFF/1S-10S Default: 3S [54: CALLCODE] Call Code...
Page 76: [56: Timer] Stopwatch Timer
Menu Functions Default: ON [56: TIMER] Stopwatch Timer Function: Activates the radio’s stopwatch feature. If ON, activate the stopwatch by short pressing [#LOCK] in standby mode. Options: ON/OFF Default: OFF [57: SIM-RX] Simultaneous Receive Function: Specify if receiving on both areas at the same time should be enabled. Dis- abling Simultaneous Receive can improve sensitivity and performance.
Page 77: [59: Ponmsg] Power On Message
[59: PONMSG] Power On Message Function: Select the item displayed when the radio is powered on. Options: BITMAP/BATT-V Default: BITMAP BITMAP: Wouxun logo BATT-V: Battery voltage [60: FM-MEM] FM Radio Memory Function: Save up to 20 FM radio stations into memory.
Page 78: [61: Ch-Wizard] Channel Wizard
Menu Functions to confirm. To Recall a station, press [MENU] to activate the radio storage function. Press the [UP] and [DOWN] keys to choose RECALL. Use the channel knob or the [UP] and [DOWN] keys to select a memory channel to recall, then press [MENU] to confirm.
Page 79 Menu Functions Menu Functions ALL: Resets all of the function settings and channel parameters to factory defaults.
Page 80: Advanced Operation
Using the DTMF Keypad The KG-935G Plus has a full function DTMF keypad. While pressing the [PTT] key to transmit, press the key on the keypad that corresponds to the DTMF tone that you wish to send.
Page 81 ID number on the display while receiving the transmission. A radio ID could be referred to as an ANI or a PTT ID. The KG-935G Plus has four menu options related to configuring the radio ID: ANI- SW (page 72), PTT-ID (page 74), ANI-EDIT (page 72), and PTT-DLY (page 74).
Page 82 Calling a specific radio using an ID The KG-935G Plus also supports the ability to call another radio directly, using its Ra- dio ID. To enable this function, you must activate and configure all radios in your fleet to transmit the Radio ID (see Sending a Radio ID on page 81) and select either the QT, QT+DTMF or QT*DTMF filter option in SP-MUTE (page 71).
Page 83 ID when the ID is shorter than six digits. Once a KG-935G Plus receives a DTMF signal matching its radio ID, it will play a ring sound and then open the speaker to allow the incoming transmission to be heard.
Page 84: Setting Non-Standard Ctcss Or Dcs
This is not often used in the United States and is more common in Europe. The KG-935G Plus supports this functionality. Use the ALERT menu option (page 73) to select the specific hertz of the tone that is needed (1750Hz is most common and is the default).
Page 85 [1] + [0] + [0] + [5], then press [MENU] to confirm, and [EXIT] to return to standby. How to Set Non-Standard DCS The KG-935G Plus supports non-standard DCS codes ranging from 000-766, except any code with the digit 8 or 9. For example, 680.719 is not a legitimate non-standard DCS code.
Page 86: Adding And Removing Channels
D105I. Press [MENU] to confirm, and then press [EXIT] to return to standby. Adding and Removing Channels The KG-935G Plus allows you to add and delete channels directly from the keypad of the radio using the CH-ADD and CH-DEL options in the menu. New channels can...
Page 87 Advanced Operation Advanced Operation be created from scratch in Frequency mode or cloned from existing channels in Chan- nel mode. How to Clone an Existing Channel When creating a new channel, it is often easier to start by cloning an existing channel. This is particularly true with GMRS repeater channels.
Page 88 Advanced Operation cloned channel, select the channel and then use the menu settings to select the options you wish to change. How to Add a Channel in Frequency Mode New channels can also be created from scratch, including a “Receive-Only” channel. To create a new channel: 1.
Page 89 Advanced Operation Advanced Operation channel number, then press [MENU] to save it and return to standby mode. Channels that are unassigned or available to program will be white in color. For example, to save a GMRS receive-only channel in Frequency mode with a 462.550 receive frequency and a 67.0 receive CTCSS tone: 1.
Page 90: Channel Wizard
Press the [PF2] key go to the last unnasigned channel on the list. Channel Wizard The KG-935G Plus features the Channel Wizard, a new function that allows you to quickly and easily program a new channel or modify an existing channel direct from the keypad of the radio itself.
Page 91 Advanced Operation Advanced Operation Using the Channel Wizard When you enter the Channel Wizard, the data for the currently selected channel or frequency will be loaded. Whether the current channel is updated or a new channel is created will depend on the channel number selected in the wizard. There are two ways to access the Channel Wizard.
Page 92 Advanced Operation Channel Wizard Menu The ten menu functions and their sub-menu options are listed as follows. [01: TYPE] Channel Type Function: Sets the type of channel you want to add, clone or modify. Press [MENU] to enter the Channel Type sub-menu, use the [UP] and [DOWN] arrow keys to choose your option, and [MENU] to enter your choice.
Page 93 Advanced Operation Advanced Operation selecting a frequency varies based on your choice for the TYPE option in step Options: Refer to the following parameters for each TYPE option. SIMPLEX: Use the [UP] and [DOWN] arrow keys to scroll through the list of available GMRS simplex frequencies or enter the channel number 1-22 that corresponds with your desired frequency.
Page 94 Advanced Operation [MENU] to enter the TX-CTCSS sub-menu, use the [UP] and [DOWN] keys to select your preferred tone and then press [MENU] to choose it. Pressing the [*] key will clear the tone. Options: OFF/50 CTCSS Tones Default: OFF [04: TX-DCS] Transmit DCS Code Function: Sets the transmitting DCS code for the new or selected channel.
Page 95 Advanced Operation Advanced Operation Pressing the [*] key will clear the tone. Options: OFF/50 CTCSS Tones Default: OFF [06: RX-DCS] Receive DCS Code Function: Sets the receiving DCS code for the new or selected channel. Press [MENU] to enter the RX-DCS sub-menu, use the [UP] and [DOWN] keys to select your preferred code and then press [MENU] to choose it.
Page 96 The transmit power for GMRS frequencies 462.5625- 462.7125 (channels 1-7) are limited to 5 watts and can be used on Low or Medium power only. The KG-935G Plus will automatically adjust the power to the FCC limits.
Page 97 Advanced Operation Advanced Operation Default: None [09: CH-NUM] Set Channel Number Function: Sets the number of the channel you want to add, clone or modify. There are 999 memory channels from which to choose. Use the [UP] and [DOWN] keys to scroll through the list of channels or press [PF1] or [PF2] keys skip the channels that are already in use or assigned.
Page 98 Advanced Operation SAVE END: Saves the settings to the current or new channel and exits the Add Chan- nel Wizard. SAVE NEW: Saves the settings to the current or new channel and goes back to the first step in the Add Channel Wizard to change or create a new channel. Note TX-CTCSS, TX-DCS and TX-POWER options are unavailable in the Channel Wizard if the Channel Type chosen is RX-ONLY.
Page 99: Troubleshooting
Troubleshooting Troubleshooting Before assuming your KG-935G Plus is defective, please check the following list of possible problems and solutions. The RESET option provided in the menu can be used to restore factory standard settings and programming, and will often solve issues.
Page 100 Troubleshooting Problem Solution ▪ Cannot power on Check that the battery pack is attached correctly. ▪ Check that the battery pack is fully charged. ▪ Battery life lower than Be sure the charger indicates the battery is fully expected charged. ▪...
Page 101: Technical Information
Technical Information Technical Information Technical Information Technical Information Specifications Entire Radio Frequency Range RX: 400-470 MHz (UHF) RX: 136-174 MHz (VHF) TX: GMRS Frequencies Memory Channels Work Mode F2D / F3E Work Temperature -20°C~40°C / -4°F~104°F Antenna Impedance 50Ω Power Supply 7.4VDC Weight 17.28oz / 490g...
Page 102 Technical Information Narrow Band Receiver Wide Band Narrow Band Transmitter Wide Band Adjacent Channel Modulation 16K F3E 11K F3E ≤70dB ≤60dB Selectivity Adjacent Channel ≥70dB ≥60dB ≤65dB ≤60dB Inter-modulation Power ≤70dB ≤70dB Spurious ≥60dB ≥60dB Spurious Response +1~3dB +1~3dB +1~3dB +1~3dB Audio Response Audio Response...
Page 103: Standard Ctcss And Dcs Tones
The following is a list of the standard CTCSS and DCS tones supported by the KG-935G Plus. Many FRS or GMRS radios display a number instead of a specific tone. The number to the left of the tone matches what is used by most manufacturers.
Page 104 Technical Information DCS codes ending in N are positive. Negative DCS codes end in I. The KG-935G Plus includes 105 positive and 105 negative codes. D462N D627N D023N D074N D165N D261N D356N D464N D631N D025N D114N D172N D263N D364N D465N...
Page 105: Default Gmrs Channels And Frequencies
Technical Information Technical Information Default GMRS Channels and Frequencies Simplex Channels Name Frequency Power Name Frequency Power GMRS-01 462.5625 GMRS-12 467.6625 GMRS-02 462.5875 GMRS-13 467.6875 GMRS-03 462.6125 GMRS-14 467.7125 GMRS-04 462.6375 GMRS-15 462.5500 GMRS-05 462.6625 GMRS-16 462.5750 GMRS-06 462.6875 GMRS-17 462.6000 GMRS-07 462.7125...
Page 106 Technical Information Repeater Channels Name Receive Frequency Transmit Frequency Max Power RPT-15 462.5500 467.5500 HIGH RPT-16 462.5750 467.5750 HIGH RPT-17 462.6000 467.6000 HIGH RPT-18 462.6250 467.6250 HIGH RPT-19 462.6500 467.6500 HIGH RPT-20 462.6750 467.6750 HIGH RPT-21 462.7000 467.7000 HIGH RPT-22 462.7250 467.7250 HIGH...
Page 107: Noaa Weather Channels
Technical Information Technical Information NOAA Weather Channels Ch. Frequency Ch. Frequency 162.4000 162.5000 162.4250 162.5250 162.4500 162.5500 162.4750...
Page 108: Optional Accessories
Optional Accessories Optional Accessories Shop Wouxun Accessories: www.buytwowayradios.com/accessories/by-radio-brand/wouxun-radio-accessories.html...
Page 109: Limited Warranty
Limited Warranty Limited Warranty Limited Warranty Limited Warranty We warrant this product against defects in material and workmanship as follows: Radio and its original primary components for a period of one (1) year from date of purchase. Accessories (including battery, charger, belt clip, antenna and adapter) for a period of six (6) months from date of purchase.
Page 110 Limited Warranty transferable. THIS LIMITED WARRANTY IS THE ENTIRE WARRANTY FOR THIS PRODUCT AND IS IN LIEU OF ALL OTHER WARRANTIES, EITHER EX- PRESSED OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANT- ABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THIS WARRAN- TY DOES NOT COVER OR PROVIDE FOR THE REIMBURSEMENT OR PAYMENT OF ANY DAMAGES, INCLUDING INCIDENTAL OR CONSE- QUENTIAL DAMAGES RELATED TO THE USE OF THIS PRODUCT.
