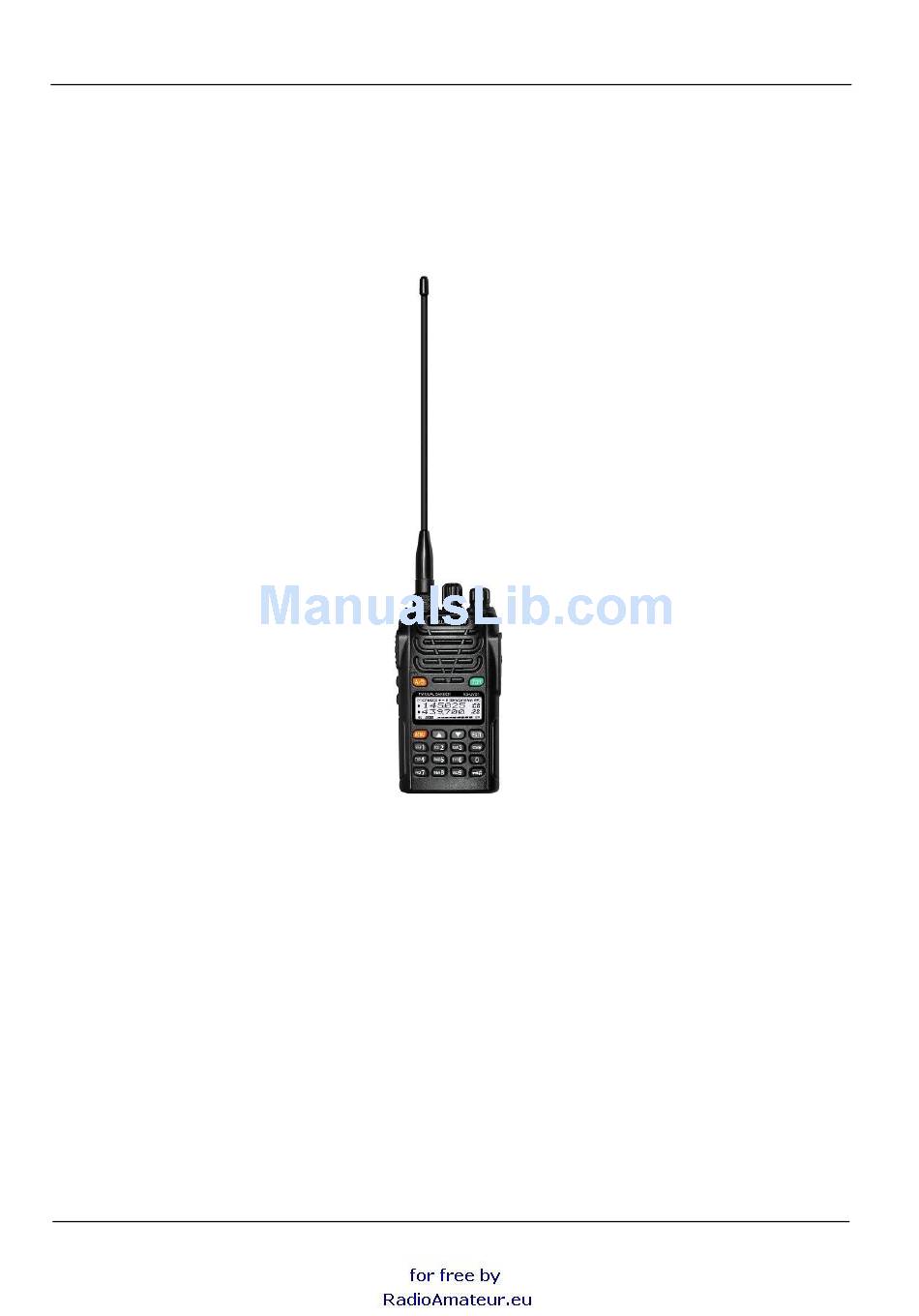

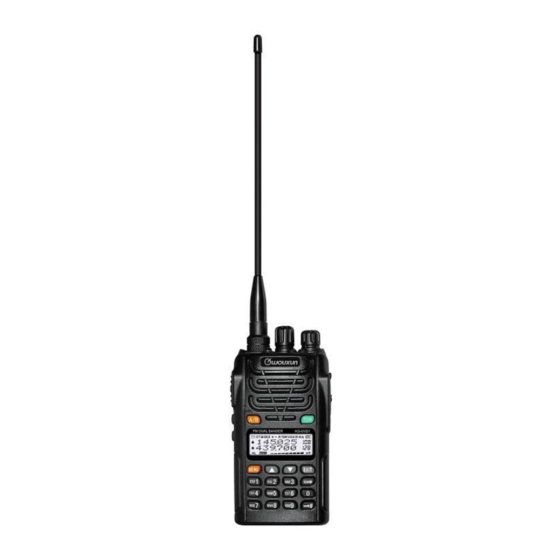

  • Page 1 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 Service Manual Model: KG-UVD1 Version: KG-UVD1-0905-V1 QUANZHOU WOUXUN ELECTRONICS CO., LTD Version: KG-UVD1-0905-V1 Page 1 of 43...

  • Page 2: Personal Safety

    QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 KG-UVD1 Dual-Band Maintenance Manual Introduction The Scope for the Manual This manual is for the technicians who know well about the communication and have some experiences of maintenance. All necessary information of maintenance and actual published date are included in this manual.

  • Page 3: Computer Mode

    3.Computer Mode KG-UVD1 handheld transceiver programs by computer, the programming connection and the programming software (KG-UVD1). The programming software can be used in the IBM computer or compatible machine. Duplication Mode 1. “Duplication Mode” can copy the data of a handheld transceiver to another one.
  • Page 4 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 ○ 2 Pressing [MONI] key on duplicated source radio, the duplication starts. When duplicating, the flickering red light means sending data. After duplicating successfully, the red light extinguishes, and the source radio enters the standby mode. If the red light keeps flickering, it means the duplication failed.
  • Page 5 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 Pic 1 Frequency Structure 136~ 165.250~ 400~ 429.25~ 174.995MHz 204.245MHz 470.995MHz 500.245MHz 136~ 165.250~ 450~ 479.25~ 174.995MHz 204.245MHz 520.995MHz 550.245MHz 136~ 165.250~ 245~ 274.25~ 174.995MHz 204.245MHz 245.995MHz 275.245MHz Chart 1 Please refer the frequency of A.B.C.D points of PIC 1 on Chart 1.
  • Page 6 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 图2 PIC2 (3) The 1 Mixer The signals from the front end of U Band and the Rx LO prouduced by PLL electrocircuit creat the 1 immediate frequency signal of 29.250MHz on T144 Mixing. The created signal is sent to the changeover on-off on U/V Band.
  • Page 7 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 We can set the bandwidth of all channels by turning on the Wide/Narrow switch. The data from Wide (low level) and Narrow (high level) is outputted by the 14 pin on microprocessors. T528 is connected when receiving the data from WIDE (low level).
  • Page 8 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 8 Receiving Signaling (QT/DQT) The signal from FM IC (U516) enters and is processed by microprocessor (IC811).(See PIC4) Microprocessor IC811 determin whether QT or DQT matches the setting value, and control the output of P-SPK and loudhail by this result.
  • Page 9 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 receiving frequency points. Through the phase comparator will receive transportation to the VCO control voltage variable diode (D324, D325, D327, D328) to control the oscillation frequency.Oscillation frequency of the signal by the T135, T135 amplification levels, with the D136 and D135 were sent to the RF amplifiers and receivers for the first points of the vibration frequency.

  • Page 10: Electrical Power

    QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 PIC 7 3 Automatic Power Control Circuit (APC) APC circuit always monitor the circuit that is through the radio frequency RF amplifier (T142 or T322),and maintain the stable electric current. The diversification of electronic current that is enlarged by radio frequency power amplifier can cause the lower voltage of R615, R616, R659 and R660.
  • Page 11 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 5T-U is the transmitting 5V on U Band,which keeps output during transmitting. 5R-V is the receiving 5V on V Band,which keeps output during receiving. 5T-V is the transmitting 5V on V Band,which keeps output during transmitting.

  • Page 12: Display Circuit

    QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 (2) Display Circuit LCD demonstrated the information (IC811) controls the screen by the microprocessor (liquid crystal) to demonstrate that the actuation integrated circuit causes the screen (liquid crystal) the monitor demonstration corresponding information. See PIC 10...
  • Page 13 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 PIC 12 Memorizer Circuit The memorizer circuit is made up of CCPU (IC811) and EEPROM (U811) The capacitance is 64k bits, including the handset controlling program by CPU and the operation function data.
  • Page 14 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 PIC 15 JP811 Terminal Function INPUT & Terminal Function Description NAME OUTPUT Pin No. Output SPK Output MIC+ Input MIC Input BATT Input Input Electronic Source of Keypad backlight Input LCD Drive IC & Input Electronic Source of LCD Backlight...
  • Page 15 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 Input Keypad Matrix Input Output Keypad Matrix Output Output Keypad Matrix Output Output Keypad Matrix Output Output Keypad Matrix Output Terminal Function of Microprocessor (IC811) Pin NO. Tube Feet Name Function Description PLL-LE/ROM-WP...
  • Page 16 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 5SC-VHF (VHF) VCO Electronic Source Control P-TX/RX-VHF (VHF)Transmitting/Receiving electronic source control P-SPK Audio Power Amplifier Electronic Power Control LAMP2 Illumination Control P-TX/RX-UHF UHF Transmit/Receive Electronic Source Control LCD_CS LCD Drive CMOS chip RXD/PTT...

  • Page 17: Components List

    QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 DCS Modulation Lineless Integration VHF/UHF 0.3KHz X 0.7KHz Spoke Test Apparatus Debugging Lineless Integration VHF/UHF +3dB~-3dB Characteristic Test Apparatus Lineless Integration VHF POWER 136~174.995MHz 4.3W Test Apparatus Lineless Integration UHF POWER 400~470.995MHz 4.0W...
  • Page 18 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 Version: KG-UVD1-0905-V1 Page 18 of 43...
  • Page 19 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 C840 C364 C846 C845 C389 C843 C842 C599 C652 C641 C640 C636 C634 C624 C396 Capacitance 104P C0402 C164 C162 C158 C617 C614 C841 C513 C827 C817 C814 C812 C655 C514 C589 C518...
  • Page 20 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 Capacitance 104P C0805 Version: KG-UVD1-0905-V1 Page 20 of 43...
  • Page 21 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 Resistance R0402 R838 R816 R641 R632 Resistance R0402 Resistance R0402 Resistance 100R R0402 R664 R662 R617 R572 Resistance 150R R0402 Resistance 330R R0402 R665 Resistance 560R R0402 Resistance R0402 R669 R668 R663 R359...
  • Page 22 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 R648 R817 R596 R135 R118 R116 R113 Resistance R0402 R379 R667 R861 Resistance R0402 Resistance R0402 R216 Resistance R0402 R145 Resistance R0402 Resistance R0402 R139 R137 R650 R647 R646 Resistance 100K R0402 R642...
  • Page 23 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 Adjustable RV1008 Resistance Adjustable RV1206 Resistance Laminated 2.2uF/16V C0805 E614 Capacitance Laminated E117 4.7uF/16V C0805 E611 Capacitance Laminated E518 C196 C195 C193 C456 C457 10uF/16V C0805 C661 Capacitance Laminated 22uF/16V C0805 Capacitance High Frequency...
  • Page 24 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 Dynatron 2SC4226 T-USM Dynatron 1SS4181 T-USM Power Tube 2SK3476 T-2-5N1A T142 U-QFN24-04 Integration CL6010 04-P050 U-SOP8-157- Integration 24C64 P127 U-SOP8-157- Integration LM4558 P127-L1006 U-SOP8-157- Integration LM358 P127 Touch On-Off MONI KEY S-TD-26EA Touch On-Off...
  • Page 25 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 Name Item Spec. Dosage Digit No. Capacitance 0.5P C0402 C330 C250 Capacitance 0.75P C0402 C242 Capacitance C0402 C191 Capacitance 1.5P C0402 C419 C418 C322 Capacitance C0402 C445 C533 Capacitance C0402 C188 C187 C111...
  • Page 26 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 C261 C257 C185 C184 C174 C172 C321 C147 C648 C619 C366 C343 C285 C117 C231 C181 C176 C384 C383 Capacitance 473P C0402 C554 Capacitance 474P C0402 C549 C818 C311 C423 C559 C442 C425...
  • Page 27 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 Resistance 680R R0402 R316 R177 R194 R190 R188 Resistance 820R R0402 R516 R395 R120 R835 R834 R320 R526 R538 R338 R330 R146 Resistance R0402 R158 R143 R142 R141 C537 Resistance 1.5K R0402 R537...
  • Page 28 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 Capacitance Ta Capacitance 0.1uF/16V EIA3216 E313 E122 E121 Ta Capacitance 0.22uF/16V EIA3216 E314 Ta Capacitance 2.2uF/16V EIA3216 E119 Ta Capacitance 4.7uF/16V EIA3216 E311 E120 Ta Capacitance 10uF/16V EIA3216 E616 E613 E312 Ta Capacitance...
  • Page 29 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 High Frequency Laminated CH47nH L0402 L314 Inductance High Frequency Laminated CH68nH L0402 C412 L325 Inductance Low Frequency Laminated CI2.2uH L0402 R157 Inductance High Frequency Laminated CH2.2nH L0603 L177 Inductance High Frequency Laminated CH12nH...
  • Page 30 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 Inductance Version: KG-UVD1-0905-V1 Page 30 of 43...
  • Page 31 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 Low Frequency Laminated CI6.8uH L0603 L315 Inductance Low requency Laminated CI100nH L0603 L152 Inductance Low Frequency Laminated CI560nH L0603 L157 Inductance Low Frequency Laminated CI100nH L0805 L333 L174 L328 L179 Inductance Line Inductance HW4.7nH...
  • Page 32 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 Dynatron 2SC4617 T-ESM T132 T313 Dynatron DTA114EE T-ESM T526 Dynatron DTC114EE T-ESM T681 T541 T523 T524 T383 Dynatron 2SC3357 T-SOT89 T320 T140 Dynatron 2SK1588 T-SOT89 T525 Dynatron T-TSM T684 T574 T522 T316 Dynatron...
  • Page 33 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 Capacitance 220P C0402 C624 Resistance 100R R0402 R623 Resistance 150R R0402 R615 R616 Resistance 1.2K R0402 R612 Resistance 2.2K R0402 R613 R614 R617 R618 Resistance 1.8K R0402 R621 Resistance 4.7K R0402 R619 R814...
  • Page 34 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 Mainboard Chart Mainboard Top Layer Components Chart C927 D926 R821 R927 T814 T862 C552 C657 C360 C364 R658 R614 SW613 R656 C616 R655 R648 C651 U612 C646 C653 T613 R654 C655 C136 C431...
  • Page 35 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 Mainboard Top Layer Digit No. Version: KG-UVD1-0905-V1 Page 35 of 43...
  • Page 36 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 C927 D926 R821 R927 T814 T862 C552 C657 C360 C364 R658 R614 SW613 R656 C616 R655 R648 C651 U612 C646 C653 T613 R654 C655 C136 C431 R667 C645 R650 R651 R644 C644 R647...
  • Page 37 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 Mainboard Bottom Layer Components Chart ED08741O R08710NS ANT-2 0.4*1.3*5T 4.7K 0.35*1.6*8T 04*1.5*5T 470P 270R 0.35*1.6*8T 104P CI100nH 270R 100uF BA592 0.31*1.3*10T 103P 103P BA592 102P 470P 470P 102P 0.4*1.2*4T 2SK1588 0.31*1.3*10T 103P 102P 0.5P...
  • Page 38 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 Mainboard Bottom Layer Digit No.Chart S W 811 S W 612 R 8 31 R 8 23 R 8 32 R 8 34 C 155 R 8 33 R 8 35 C 8 18...
  • Page 39 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 Liquid Crystal Board Top Layer Components and Digit No.Chart MIC611 D812 LCD611 LCD-HD44780 D616 D612 White White D611 D615 White White Liquid Crystal Bottom Layer Chart & Digit No.Chart Version: KG-UVD1-0905-V1 Page 39 of 43...
  • Page 40 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 220P C624 SP624 Pin64 T812 U611 Pin1 HD44780 4.7K R814 102P C812 1.2K R612 2.2K R613 R617 2.2K R614 R611 2.2K R618 10uF E611 R621 1.8K L611 CH100nH C619 103P C612 100P C615...
  • Page 41 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 BATT D812 SP624 C624 D611 D612 220P JP612 JP20 D615 D616 MIC+ BATT R813 R812 150R R615 R616 MIC611 150R 150R R814 T812 LAMP T611 LCD-CS DTC114EE DTC114EE 4.7K LCD-RS C812 R619 LAMP...
  • Page 42 QUANZHOU WOUXUN ELECTRONICS CO., LTD Model: KG-UVD1 R136 5C-U 5C-U 5C-U 5T-U 5T-U 5T-U 5T-U 5T-U L152 CI100nH T132 5T-U(APC) 5T-U(APC) 100R C212 L166 5C-U 100P C218 L167 XOUT L153 5C-U 2SC4617 5CL-U 5CL-U CI3.3uH 104P C209 CH100nH RV112 C203...
