Wouxun KG-UV9GX GMRS Quick Start Manual

Thank you and congratulations for purchasing the most
advanced GMRS Two-Way Radio & Scanner ever made.
The WOUXUN KG-UV9GX, an upgrade to the famous KG-UV9G PRO,
is built upon the trusted performance, proven design, and quality
manufacturing of the KG-UV9D(Plus) & KG-UV9P amateur radios.
It has been modified to comply with FCC GMRS specs & regulations to
deliver professional grade personal business, recreational, EmComm,
and SHTF comms & scanning.
ATTENTION
Please read this entire Quick-Start Guide as it contains important safety and
compliance information for the proper handling and operation of your new radio.
COMPLIANCE
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with PART 15B of the FCC Rules.
Operation is subject to the following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including
interference that may cause undesired operation.
WARNING: MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR
RADIOTELEPHONE SERVICE SIGNALS IS PROHIBITED UNDER FCC RULES AND
FEDERAL LAW.
This device meets the requirements of FCC PART 15.121(b) for scanning
receivers in the following frequency ranges (in MHz): 76–108 / 108–136
136–180 / 219–250 / 350–400 / 400–512 / 700–824 / 849–869 / 894–960
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
a minimum distance of 2.5 cm between the radiator and your body. The antenna
used for this device must not be co-located or operating in conjunction with any
other antenna or transmitter.
CAUTION: Do not transmit without an antenna attached, with a damaged
antenna, while touching the antenna, around explosives, or while refueling a
vehicle. Operate only with batteries & chargers designed for this radio.
–– Main Features
NEW: 3 Dark Color Display Modes • Priority Channel Quick-Jump
1.25m "220 HAM Band" RX • Roger Beep • Bright Flashlight • Stiff Knobs
999 Memory Channels • Analog TDR Superheterodyne UHF FM GMRS • FPP
Pre-Programmed for GMRS + SHTF • 3 Power Levels • Dual-PTT • DTMF Keypad
Simplex & Repeater Capable • Wide 7-Band Receive with AM AIR Band • VOX
Broadcast FM Radio w/20 Memories • 3 Scan Modes • 10 Scan Groups • BCL
Dual Simultaneous Channel & VFO/Frequency Scanning • Scan-Advance
Priority Scan • Single & Dual-Watch Modes • Wide & Narrow Bandwidth
Repeater Reverse & Talk-Around • CTCSS/DCS Search/Scanning • Stopwatch
155 Split CTCSS/DCS PL Tones/Codes • Sub-Receiver Muting • Dual Indicator LEDs
3 Programmable Function Side-Keys • Manual & Auto Key/PTT Lock • Key Beeps
2.5 kHz Tuning Steps • Backlight Timer • ANI PTT-ID • Time-Out-Timer w/Alert
Voice Announce • 8-Character Alpha Names • 10 Squelch Levels • Battery Saver
Squelch Monitor • Squelch Tail Eliminator • 3 Speaker Muting Modes
Battery Voltage Meter • 8" GMRS-Tuned Antenna • Part 95E & 15B Certified
Emergency RESET (Standard 30-Channel GMRS Configuration)
–– Feature Modifications
The following features available in the original KG-UV9D(Plus) & KG-
UV9P amateur radios, which the KG-UV9GX is based on, have been
removed, modified or improved to comply with FCC GMRS regulations
and best practices.
Cross-Band Repeater: Removed; Not allowed on GMRS.
•
− Shift Direction: GMRS repeaters are positive offset only.
•
+ Shift Direction: Allowed only on GMRS repeater pairs (via software).
•
Roger Beep: Active on all channels except for Repeater inputs.
•
Power Levels: Restricted on some frequencies per FCC.
•
Ch. 1–7 (L/M/H) | Ch. 8–14 (L only) | Ch. 15–30 (L/M/H)
L = 0.5 Watts (ERP) | M = 2 Watts (ERP) | H = 5+ Watts (ERP)
Modulation Bandwidth: Restricted on some frequencies per FCC.
•
Ch. 1–7 (W or N) | Ch. 8–14 (N only) | Ch. 15–30 (W or N)
W (20 kHz Mod., 25 kHz Ch.) | N (12.5 kHz Mod. & Ch.)
Scanning Advance: When scanning in TO/CO Scan Modes, you can
•
rotate the Channel Knob in either direction to immediately advance/
resume scanning when encountering any unwanted signals.
See Scanning section for more details.

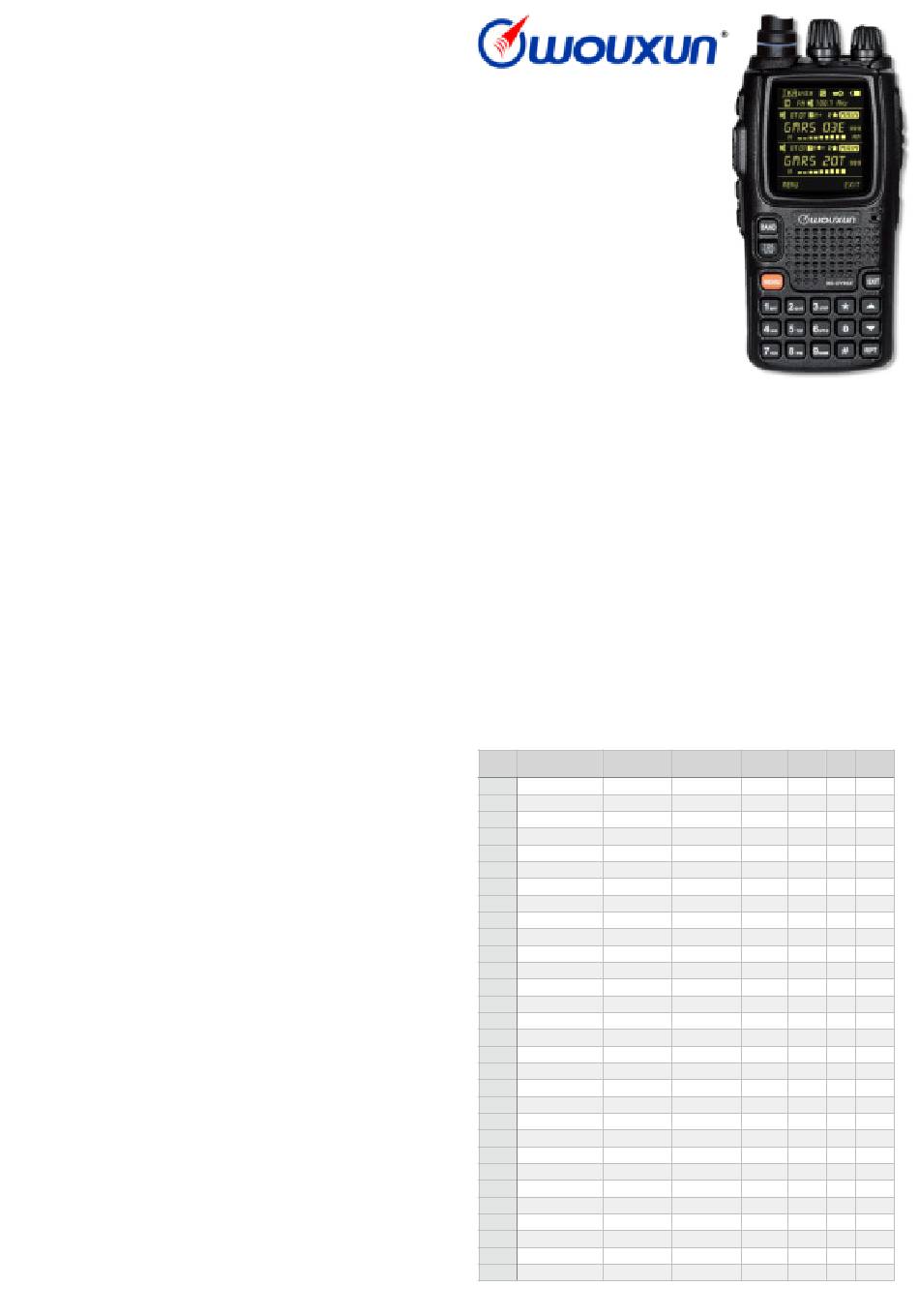

KG-UV9GX GMRS
Two-Way Radio
Transceiver & Scanner
FCC PART 95E Certified
FCC ID: WVTWOUXUN19
FCC PART 95 Warning
This device operates on GMRS (General
Mobile Radio Service) frequencies, which
require an FCC (Federal Communications
Commission) license. You must be
licensed prior to transmitting on these
frequencies. Serious penalties could
result for unlicensed use of GMRS
frequencies in violation of FCC rules, as
stipulated in the Communications Act's
Sections 501 and 502 (amended). You
will be issued a call sign by the FCC,
which should be used for station
identification when operating the radio
on GMRS frequencies. You should also
cooperate by engaging in permissible
transmissions only, avoiding channel
interference with other GMRS users,
and being prudent with the length of
your transmission time. To obtain a
license or ask questions about the
license application, contact the FCC at
1-888-CALL-FCC or go to the FCC's
website: https://www.fcc.gov and
request form 605.
1
–– Default Channel Programming Chart
The following factory/default channels are restored after performing a
RESET ALL function [MENU 61_RESET | ALL]. (custom SHTF prog. avail.)
#
CH CH Name RX Freq.
001 GMRS 01C 462.56250 462.56250 141.3
002
GMRS 02S 462.58750 462.58750 210.7
003 GMRS 03E 462.61250 462.61250 141.3
004 GMRS 04 462.63750 462.63750 141.3
005
GMRS 05 462.66250 462.66250 141.3
006 GMRS 06 462.68750 462.68750 141.3
007 GMRS 07 462.71250 462.71250 141.3
008
GMRS 08 467.56250 467.56250 141.3
009 GMRS 09 467.58750 467.58750 141.3
010 GMRS 10 467.61250 467.61250 141.3
011
GMRS 11 467.63750 467.63750 141.3
012 GMRS 12 467.66250 467.66250 141.3
013 GMRS 13 467.68750 467.68750 141.3
014
GMRS 14 467.71250 467.71250 141.3
015 GMRS 15C 462.55000 462.55000 141.3
016 GMRS 16S 462.57500 462.57500 210.7
017
GMRS 17E 462.60000 462.60000 141.3
018 GMRS 18 462.62500 462.62500 141.3
019 GMRS 19 462.65000 462.65000 141.3
020
GMRS 20T 462.67500 462.67500 141.3
021
GMRS 21 462.70000 462.70000 141.3
022 GMRS 22 462.72500 462.72500 141.3
023
GMRSr15 462.55000 467.55000 141.3
024
GMRSr16S 462.57500 467.57500 210.7
025 GMRSr17 462.60000 467.60000 141.3
026 GMRSr18 462.62500 467.62500 141.3
027
GMRSr19 462.65000 467.65000 141.3
028 GMRSr20T 462.67500 467.67500 141.3
029 GMRSr21 462.70000 467.70000 141.3
030
GMRSr22 462.72500 467.72500 141.3
C = CALL S = EARS/Safety E = EMER/Prepper T = Travel r = Repeater
Station ID
Your GMRS station call sign
must be transmitted using
voice in the English language,
or with International Morse
Code telegraphy using an
audible tone: (a) Following a
single transmission or a
series of transmissions; and
(b) After 15 minutes and at
least once every 15 minutes
thereafter during a series of
transmissions lasting more
than 15 minutes.
TX TX BW
TX Freq. W/N Scan
CTCSS PWR
M W
M W
M W
M W
M W
M W
M W
L N
L N
L N
L N
L N
L N
L N
H W
H W
H W
H W
H W
H W
H W
H W
H W
H W
H W
H W
H W
H W
H W
H W
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
