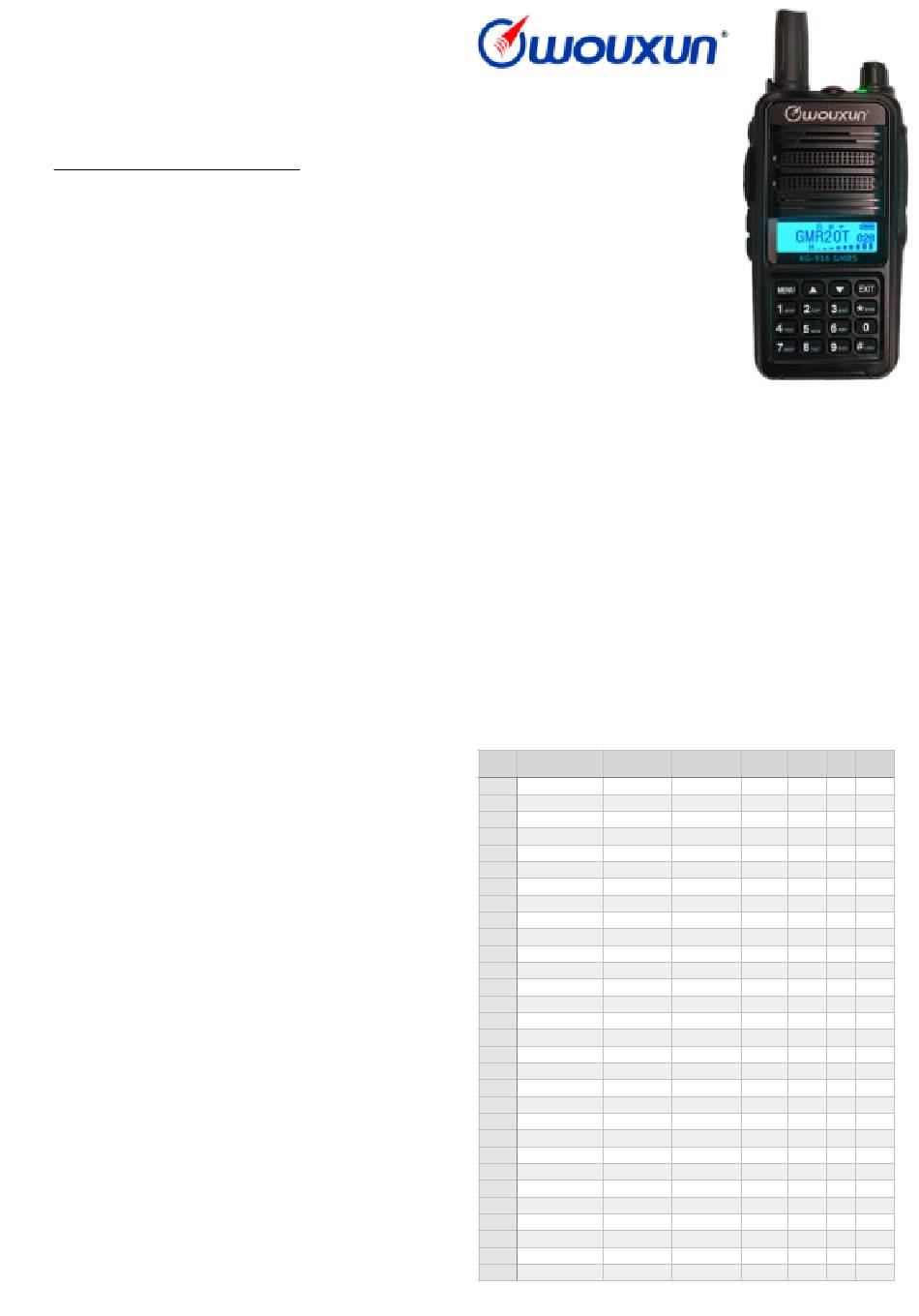

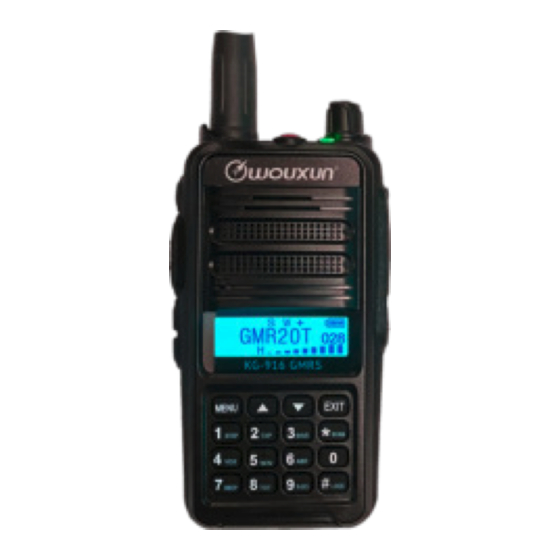

Wouxun KG-916 GMRS Quick Start Manual

Thank you and congratulations on purchasing this high-
performance superheterodyne GMRS Two-Way Radio & Scanner.
The WOUXUN KG-916 GMRS is built upon the same proven design
and quality manufacturing as other WOUXUN GMRS radios. It has
been designed to comply with FCC GMRS specifications & regulations
to provide professional-grade personal business, safety, security,
recreational, EmComm, and SHTF communications & scanning.
Visit BetterSafeRadio.com/916GMRS for more information.
ATTENTION
Please read this entire Quick-Start Guide as it contains important safety and
compliance information for the proper handling and operation of your new GMRS
radio.
COMPLIANCE
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with PART 15B of the FCC Rules.
Operation is subject to the following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including
interference that may cause undesired operation.
WARNING: MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR
RADIOTELEPHONE SERVICE SIGNALS IS PROHIBITED UNDER FCC RULES AND
FEDERAL LAW.
This device meets the requirements of FCC PART 15.121(b) for scanning
receivers in the following frequency ranges (in MHz): 400–480
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
a minimum distance of 2.5 cm between the radiator and your body. The antenna
used for this device must not be co-located or operating in conjunction with any
other antenna or transmitter.
CAUTION: Do NOT transmit without an antenna attached, with a damaged
antenna, while touching the antenna, around explosives, or while refueling a
vehicle. Operate only with batteries & chargers designed for this radio.
–– Main Features
400 Memory Channels • Analog Superheterodyne UHF FM GMRS
Pre-Programmed for GMRS + SHTF • 2 Power Levels • Roger Beep
Simplex & Repeater Capable • Channel & VFO/Frequency Scanning
FPP • Priority Scanning • 3 Scan Modes • Wide & Narrow Bandwidth
Full DTMF Keypad • Repeater Reverse & Talk-Around • CTCSS Search
155 Split CTCSS/DCS PL Tones/Codes • 1-Click Display Modes
Backlight Timer • Manual & Auto Keypad/PTT Lock • Stiff Volume Knob
4 Programmable Function Keys • 2.5 kHz Tuning Steps • Flashlight
Stopwatch • Battery Saver • Time-Out Timer w/Alert • Voice Announce
6-Character Alpha Channel Names • Key Beeps • 10 Squelch Levels
Squelch Monitor • Squelch Tail Eliminator • 3 Speaker Muting Modes
Battery Voltage Meter • 4.75" GMRS-Tuned Antenna • Part 95E Certified
Emergency RESET (Standard 30-Channel GMRS Configuration)
Note the following features in the KG-916 GMRS which have been
designed to comply with FCC GMRS regulations and best practices:
•
Shift Direction: GMRS repeaters always use a "+" positive offset.
•
Offset: GMRS repeaters always use a +5 MHz offset.
(programmable via software or by [MENU_27 MEM-CH] copy)
•
Alarm: Disabled (TOP red key is for Flashlight & Backlight instead).
•
Roger Beep: Not available on the repeater input frequencies.
• Power Levels: Restricted on some frequencies per FCC.
Ch. 1–7 (L/H) | Ch. 8–14 (L only) | Ch. 15–30 (L/H)
L = 0.5 Watts (ERP) | H = 4+ Watts (ERP)
• Modulation Bandwidth: Restricted on some frequencies per FCC.
Ch. 1–7 (W or N) | Ch. 8–14 (N only) | Ch. 15–30 (W or N)
W (20 kHz Mod., 25 kHz Ch.) | N (12.5 kHz Mod. & Ch.)
Note: Menu can be changed to W on Ch. 8-14, but will only TX in N.
–– Hidden Functions
Power-On with ▲: Shows the radio's firmware version.
•
KG-916 GMRS
Two-Way Radio
Transceiver & Scanner
FCC PART 95E Certified
FCC ID: WVTWOUXUN21
FCC PART 95 Warning
This device operates on GMRS (General
Mobile Radio Service) frequencies, which
require an FCC (Federal Communications
Commission) license. You must be
licensed prior to transmitting on these
frequencies. Serious penalties could
result for unlicensed use of GMRS
frequencies in violation of FCC rules, as
stipulated in the Communications Act's
Sections 501 and 502 (amended). You
will be issued a call sign by the FCC,
which should be used for station
identification when operating the radio
on GMRS frequencies. You should also
cooperate by engaging in permissible
transmissions only, avoiding channel
interference with other GMRS users,
and being prudent with the length of
your transmission time. To obtain a
license or ask questions about the
license application, contact the FCC at
1-888-CALL-FCC or go to the FCC's
website: https://www.fcc.gov and
request form 605.
–– Default Channel Programming Chart
Performing the RESET ALL function [MENU 50_RESET | ALL] will erase
all memories and restore the factory channels below.
#
CH CH Name RX Freq.
001 GM 1C 462.56250 462.56250 141.3
002 GM 2S 462.58750 462.58750 210.7
003 GM 3E 462.61250 462.61250 141.3
004 GM 4 462.63750 462.63750 141.3
005 GM 5 462.66250 462.66250 141.3
006 GM 6 462.68750 462.68750 141.3
007 GM 7 462.71250 462.71250 141.3
008 GM 8 467.56250 467.56250 141.3
009 GM 9S 467.58750 467.58750 210.7
010 GM 10 467.61250 467.61250 141.3
011 GM 11 467.63750 467.63750 141.3
012 GM 12 467.66250 467.66250 141.3
013 GM 13 467.68750 467.68750 141.3
014 GM 14 467.71250 467.71250 141.3
015 GM 15C 462.55000 462.55000 141.3
016 GM 16S 462.57500 462.57500 210.7
017 GM 17E 462.60000 462.60000 141.3
018 GM 18 462.62500 462.62500 141.3
019 GM 19 462.65000 462.65000 141.3
020
GM 20T 462.67500 462.67500 141.3
021 GM 21 462.70000 462.70000 141.3
022 GM 22 462.72500 462.72500 141.3
023
GMR15 462.55000 467.55000 141.3
024 GMR16S 462.57500 467.57500 141.3
025 GMR17 462.60000 467.60000 141.3
026 GMR18 462.62500 467.62500 141.3
027 GMR19 462.65000 467.65000 141.3
028 GMR20T 462.67500 467.67500 141.3
029 GMR21 462.70000 467.70000 141.3
030 GMR22 462.72500 467.72500 141.3
C = CALL S = Safety/EARS E = EMER/Prepper T = Travel R = Repeater
Station ID
Your GMRS station call sign
must be transmitted using
voice in the English language,
or with International Morse
Code telegraphy using an
audible tone: (a) Following a
single transmission or a
series of transmissions; and
(b) After 15 minutes and at
least once every 15 minutes
thereafter during a series of
transmissions lasting more
than 15 minutes.
(can be custom prog.)
TX TX BW
TX Freq. W/N Scan
CTCSS PWR
H W
H W
H W
H W
H W
H W
H W
L N
L N
L N
L N
L N
L N
L N
H W
H W
H W
H W
H W
H W
H W
H W
H W
H W
H W
H W
H W
H W
H W
H W
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
