Summary of Contents for Wouxun KG-905G

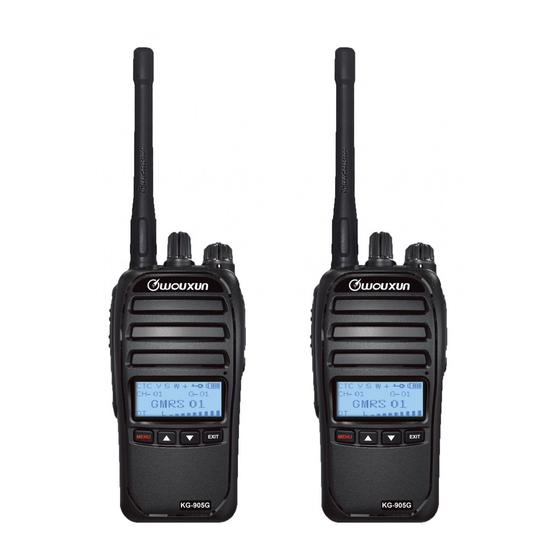

- Page 1 Thank you for purchasing the Wouxun KG-905G portable GMRS radio. Your feedback makes our products better. Please share your thoughts. feedback@buytwowayradios.com www.buytwowayradios.com...
-
Page 2: Table Of Contents
Front Panel Guide ..................10 Right / Left Side Guide ................11 Display Guide ....................12 Operation ����������������������������������������������������������������������������������������������� 13 Introducing GMRS and the KG-905G ............13 Your First Transmit ..................14 Channels and Channel Groups..............16 Using the Repeater Channels ...............17 Adjusting Volume and Power On/Off ............20... - Page 3 Scanning CTCSS / DCS Codes ..............21 Menu Functions ������������������������������������������������������������������������������������� 22 [01: ABR] Backlight ..................22 [02: SAVE] Battery Saver ................22 [03: TXPOW] Output Power ..............22 [04: VOX] Voice Activated Transmit ............23 [05: VOX-DLY] VOX Delay ...............23 [06: SQL] Squelch ..................24 [07: ROGER] Roger Beep ................24 [08: TOT] Transmit Overtime Timer ............25 [09: TOA] Transmit Overtime Alarm ............25 [10: VOICE] Voice Guide ................25...
- Page 4 [13: RX-DTC] Receive CTCSS/DCS Tone ..........26 [14: TX-DTC] Transmit CTCSS/DCS Tone ..........27 [15: SC-REV] Scan Method ................28 [16: CH-NAME] Channel Name ..............28 [17: PRI-CH] Priority Channel ..............29 [18: PRI-SCN] Priority Scan ...............29 [19: S-TONE] Single Tone Pulse Transmission ...........30 [20: SC-QT] CTCSS/DCS Scan Save Options ..........30 [21: PONMSG] Power On Message............30 [22: SCN-ADD] Scan Add / Delete ............31 [23: SCN-GP] Scan Group ................31...
- Page 5 [27: SECOND] Stopwatch Timer ...............33 [28: PF1] Side Key PF1 Assignment ............34 [29: PF2] Side Key PF2 Assignment ............34 [30: RPT-RCT] Repeater Reception Confirmation ........34 [31: DC-VLT] Battery Voltage Display ............35 [32: QT-SW] Tone Scanning Compatibility Check ........35 [33: CH-MDF] Channel Display Mode ............35 [34: RESET] Factory Reset................36 Troubleshooting �������������������������������������������������������������������������������������...
- Page 6 Limited Warranty ����������������������������������������������������������������������������������� 46...
-
Page 7: Safety Information
Safety Information Safety Information Safety Information The KG-905G is an electrical apparatus, as well as a generator of RF (Radio Frequency) energy, and you should exercise all safety precautions as are appropriate for this type of device. Please read the suggestions and warnings below before using the transceiver. - Page 8 Contact your dealer for further assistance. Notice ▪ These tips are important for safe operation of your KG-905G radio and its accessories. If the transceiver does not function normally, please get in touch with your dealer immediately.
- Page 9 Safety Information Safety Information Caution Please read this manual before using the radio, as it includes important instructions for the safe handling, use and operation of your radio. FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the follow- ing two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may...
-
Page 10: Fcc Licensing Information
DO NOT attempt to use the radio with a damaged antenna. FCC Licensing Information The Wouxun KG-905G is FCC Part 95E type accepted for use on the GMRS. The KG-905G operates on General Mobile Radio Service (GMRS) frequencies according to the Federal Communications Commission (FCC) Rules in the United States. As such, a GMRS license is required to transmit on these frequencies. -
Page 11: Getting Started
Getting Started Getting Started Getting Started Getting Started Feature Summary ▪ ▪ 30 GMRS Channels English Voice Guide ▪ ▪ 8 Built-In GMRS Repeater Channels PC Programming Software Support ▪ ▪ Up to 5 Watts Output Power Channel Scan ▪ ▪... -
Page 12: Front Panel Guide
Getting Started Front Panel Guide Channel Knob Antenna Volume Knob TX indicator(RED) RX indicator(Green) Speaker Microphone Exit/Cancel Menu/Confirm Up/Down Key... -
Page 13: Right / Left Side Guide
Getting Started Getting Started Right / Left Side Guide Earphone Jack Short Press: Group Up Long Press: Call Short Press: Scan Note: Defaults are shown for PF1 / PF2. These buttons can be assigned different functions in the radio menu. -
Page 14: Display Guide
Getting Started Display Guide Shift direction Battery save Keypad lockout CTCSS/DCS Battery voltage Current channel Current channel group Current channel DT/QT Status TX power... -
Page 15: Operation
10 years. The KG-905G was designed to allow you to take advantage of all that GMRS has to offer and more. Right out of the box this radio is configured to allow you to transmit on the 15 high powered GMRS simplex channels, 8 low powered simplex channels, as well as the 8 repeater channels. -
Page 16: Your First Transmit
Your First Transmit Selecting a Channel When you power on your KG-905G for the first time, the display will likely show “GMRS01” in the center with “CH-01” and “G-01” just above. GMRS01 is the name of the currently selected channel. G-01 is the currently selected channel group, and CH-01 is the channel number within the group. - Page 17 Group 04: This is the repeater group. These channels correspond to the channels in group 03, but transmit on a special offset frequency set aside for repeaters. See page 19 for more information about using the KG-905G with repeaters. Transmitting and Receiving With a channel selected, the radio is actively “listening”...
-
Page 18: Channels And Channel Groups
Channels and Channel Groups The KG-905G supports channel groups, which allow you to essentially categorize channels for easier access. By default the 30 built-in channels are divided into 4 channel groups, described in the Selecting a Channel section (page 16). -
Page 19: Using The Repeater Channels
[SCN-GP] menu option (page 33) to adjust the scan function to only scan a specific group number. The KG-905G supports 16 groups with 16 channels per group. Channels can be added, deleted or reordered via the PC programming software. Using the Repeater Channels The KG-905G is pre-configured with 8 GMRS repeater channels. - Page 20 Operation that transmission on a different frequency. Repeaters are often set up in a fixed location and connected to an antenna that is mounted at a higher elevation to provide better range than is normally available with radio-to-radio (simplex) communications. Locating a Repeater Using GMRS repeaters can significantly increase the range of your radio, but just tun- ing to one of the repeater channels isn’t necessarily going to work.
- Page 21 Operation Operation KG-905G Repeater Channels Group 04 channels (RPT-15 through RPT-22) have the same receive frequency as Group 03 channels (GMRS-15 through GMRS-22). However, the transmit frequency for these channels is assigned to a frequency specifically designated as a GMRS repeater input frequency.
-
Page 22: Adjusting Volume And Power On/Off
Operation Adjusting Volume and Power On/Off Rotate the volume knob clockwise to power on the radio. To power off the radio, rotate the volume knob counter-clockwise until a click is felt. To adjust the volume, use the volume knob when the radio is powered on. Turning the knob clockwise increases the volume, counter-clockwise decreases it. -
Page 23: Scanning Ctcss / Dcs Codes
(p 33). Scanning CTCSS / DCS Codes The KG-905G is equipped with the ability to scan an incoming signal for a CTCSS or DCS tone and update the current channel’s tone settings once the tone is identified. To activate CTCSS / DCS scan, press the [MENU] key and navigate to the SCN-CD menu item. -
Page 24: Menu Functions
Menu Functions Menu Functions [01: ABR] Backlight Function: Sets the timeout of the LCD display backlight while the radio is in standby. The timer can be set from 1-30 seconds in one second increments. It can also be set to turn off immediately or always remain on. Options: OFF/1-30S Default: 10 Seconds [02: SAVE] Battery Saver... -
Page 25: [04: Vox] Voice Activated Transmit
Menu Functions Menu Functions Options: HIGH/LOW Default: HIGH [04: VOX] Voice Activated Transmit Function: The VOX function allows you to transmit without pressing the PTT key. The VOX function will detect that you are speaking into the microphone and then automatically begin transmitting. VOX gain levels of 1-9 are provided to allow you to adjust the voice detection sensitivity. -
Page 26: [06: Sql] Squelch
Menu Functions [06: SQL] Squelch Function: The squelch function mutes the speaker when no signal is detected. Adjusting the squelch sensitivity allows you to control how strong of a signal is required in order to unmute the speaker. Selecting a lower number will allow weaker signals to be heard, higher numbers require a stronger signal. -
Page 27: [08: Tot] Transmit Overtime Timer
Menu Functions Menu Functions [08: TOT] Transmit Overtime Timer Function: When the transmission time exceeds the time set by the Transmit Overtime Timer, the unit will emit an error prompt and stop transmitting. Options: 15-900 seconds (15 second increments) Default: 60 seconds [09: TOA] Transmit Overtime Alarm Function: The Transmit Overtime Alarm warns when the Transmit Overtime Timer (TOT) is about to be exceeded. -
Page 28: [11: Beep] Button Beeps
Menu Functions Selectable: OFF/ENGLISH/CHINESE Default: ENGLISH [11: BEEP] Button Beeps Function: Enables an audio prompt to alert the operator of a key press, input or fault. Selectable: ON/OFF Default: ON [12: BCL] Busy Channel Lockout Function: Enabling Busy Channel Lockout prevents the transceiver from transmitting on a selected channel while another station or group is transmitting on it. -
Page 29: [14: Tx-Dtc] Transmit Ctcss/Dcs Tone
Menu Functions Menu Functions CTCSS, positive DCS, and negative DCS tone list. Options: OFF/CTCSS/DCS+/DCS- Default: OFF [14: TX-DTC] Transmit CTCSS/DCS Tone Function: Sets the transmitting CTCSS or DCS code for the selected channel. Use the arrow keys to select your preferred code and then [MENU] to confirm. Once the menu option is selected, use the [PF2] side key to toggle between the standard CTCSS, positive DCS, and negative DCS tone list. -
Page 30: [15: Sc-Rev] Scan Method
Menu Functions [15: SC-REV] Scan Method Function: Scan mode settings Options: TO/CO/SE Default: TO TO: When a signal is detected, scanning stops. Scanning will resume if no operation is carried out within 5 seconds. Pressing PTT will transmit on the currently selected channel. -
Page 31: [17: Pri-Ch] Priority Channel
Menu Functions Menu Functions Options: 6 Characters Default: None [17: PRI-CH] Priority Channel Function: Selects the priority channel. This is used during scanning when the Priority Scan (menu option 18) feature is enabled. To select a priority channel, use the [UP] and [DOWN] keys to select a channel number and the channel knob to select the channel group. -
Page 32: [19: S-Tone] Single Tone Pulse Transmission
Menu Functions [19: S-TONE] Single Tone Pulse Transmission Function: Activates the tone alert. Some relay systems used for single-tone pulse trans- missions need a single-tone pulse signal to activate. To send the tone, press the [PF1] side key while holding down [PTT]. Options: 1000Hz/1450Hz/1750Hz/2100Hz Default: 1750Hz [20: SC-QT] CTCSS/DCS Scan Save Options... -
Page 33: [22: Scn-Add] Scan Add / Delete
Function: Select the item displayed when the radio is powered on. Options: WELCOM/BATT-V Default: WELCOM WELCOM: A customizable message. Set to “KG-905G“ by default, and can be cus- tomized in the programming software. BATT-V: Battery voltage [22: SCN-ADD] Scan Add / Delete Function: Add or remove a channel to/from the list of channels to scan. -
Page 34: [24: Scn-Cd] Ctcss/Dcs Scanning
Menu Functions Default: ALL [24: SCN-CD] CTCSS/DCS Scanning Function: Scans the incoming signal for CTCSS or DCS tones to identify or confirm the correct tone. This function must be activated while receiving a signal. Options: None. Choose the function and press [MENU] to activate the scan. Note: The scan will stop when the signal ends and resume from where it left off the next time the signal is received, until it identifies the correct tone. -
Page 35: [25: Au-Lock] Auto Lock
Menu Functions Menu Functions [25: AU-LOCK] Auto Lock Function: Automatically locks the keypad after a specified number of seconds. Options: OFF/10-60 seconds (10 second increments) Default: OFF Note: To unlock the radio, hold the [EXIT] key for 3 seconds. [26: LOCK-M] Lock Mode Function: Select which keys are disabled when the radio is locked. -
Page 36: [28: Pf1] Side Key Pf1 Assignment
Menu Functions pressing [EXIT] from the main screen. Options: ON/OFF Default: OFF [28: PF1] Side Key PF1 Assignment Function: Assigns a function to the [PF1] side key. A function can be assigned to both a short and a long button press. Options: OFF/SCAN/LAMP/VOX/TXPOW/CALL/ALARM/SOS/TALK-A/ GRP-UP/GRP-DO Default: GRP-UP (Short), CALL (Long) -
Page 37: [31: Dc-Vlt] Battery Voltage Display
Menu Functions Menu Functions Options: ON/OFF Default: OFF [31: DC-VLT] Battery Voltage Display Function: Provides the current battery voltage. Options: None Default: None [32: QT-SW] Tone Scanning Compatibility Check Function: Check that the detected tones are compatible when scanning. Options: ON/OFF Default: OFF [33: CH-MDF] Channel Display Mode Function: Select how a channel is displayed on the main screen. -
Page 38: [34: Reset] Factory Reset
Menu Functions NAME: Display the name assigned to the channel (Example: GMRS01) CHFREQ: Display the receive frequency (Example: 462.56250) [34: RESET] Factory Reset Function: Resets the transceiver to factory defaults. Options: ALL Default: ALL ALL: Resets all of the function settings and channel parameters to factory defaults. -
Page 39: Troubleshooting
Troubleshooting Troubleshooting Before assuming your KG-905G is defective, please check the following list of possi- ble problems and solutions. The RESET option provided in the menu can be used to restore factory standard settings and programming, and will often solve issues. - Page 40 Troubleshooting Problem Solution ▪ Cannot power on Check that the battery pack is attachecd correctly. ▪ Check that the battery pack is fully charged. ▪ Battery life lower than Be sure the charger indicates the battery is fully expected charged. ▪...
-
Page 41: Technical Information
Technical Information Technical Information Technical Information Technical Information Specifications Entire Radio 462.5500-462.7250MHz (Group 3) Frequency Range 462.5625-462.7125MHz (Group 1) 467.5500-467.7250MHz (Group 4) 467.5675-467.7125MHz (Group 2) Work Mode Work Temperature Antenna Impedance Power Supply Weight Size... - Page 42 Technical Information Group 1/3/4 Group 2 Group 1/3/4 Group 2 Transmitter band Receiver band Adjacent Channel Modulation Selectivity Adjacent Channel Power Inter-modulation Spurious Spurious Response Audio Response Audio Response Squelch Rate Max Frequency Offset Audio Distortion Frequency Stability Audio Distortion...
-
Page 43: Standard Ctcss And Dcs Tones
The following is a list of the standard CTCSS and DCS tones supported by the KG-905G. Many FRS or GMRS radios display a number instead of a specific tone. The number to the left of the tone matches what is used by most manufacturers. - Page 44 Technical Information D454N D624N DN017 D072N D156N D252N D346N D455N D627N D023N D073N D162N D255N D351N D462N D631N D025N D074N D165N D261N D356N D464N D632N D172N D026N D114N D263N D364N D465N D645N D174N D265N D031N D115N D365N D466N D654N D205N D266N D032N D116N...
-
Page 45: Default Gmrs Channels And Frequencies
Technical Information Technical Information Default GMRS Channels and Frequencies Simplex Channels Name Frequency Power Name Frequency Power G1-1 GMRS01 462.5625 G2-5 GMRS12 467.6625 0.5W G1-2 GMRS02 462.5875 G2-6 GMRS13 467.6875 0.5W G1-3 GMRS03 462.6125 G2-7 GMRS14 467.7125 0.5W G1-4 GMRS04 462.6375 G3-1 GMRS15 462.5500... - Page 46 Technical Information Repeater Channels Name Receive Frequency Transmit Frequency Max Power G4-1 RPT-15 462.5500 467.5500 5 Watts G4-2 RPT-16 462.5750 467.5750 5 Watts G4-3 RPT-17 462.6000 467.6000 5 Watts G4-4 RPT-18 462.6250 467.6250 5 Watts G4-5 RPT-19 462.6500 467.6500 5 Watts G4-6 RPT-20 462.6750...
-
Page 47: Optional Accessories
Optional Accessories Optional Accessories Optional Accessories Optional Accessories Shop Wouxun Accessories: www.buytwowayradios.com/accessories/by-radio-brand/wouxun-radio-accessories.html... - Page 48 Limited Warranty Limited Warranty We warrant this product against defects in material and workmanship as follows: Radio and its original primary components for a period of one (1) year from date of purchase. Accessories (including battery, charger, belt clip, antenna and adapter) for a period of six (6) months from date of purchase.
- Page 49 Limited Warranty Limited Warranty transferable. THIS LIMITED WARRANTY IS THE ENTIRE WARRANTY FOR THIS PRODUCT AND IS IN LIEU OF ALL OTHER WARRANTIES, EITHER EX- PRESSED OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANT- ABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THIS WARRAN- TY DOES NOT COVER OR PROVIDE FOR THE REIMBURSEMENT OR PAYMENT OF ANY DAMAGES, INCLUDING INCIDENTAL OR CONSE- QUENTIAL DAMAGES RELATED TO THE USE OF THIS PRODUCT.
- Page 50 2.5cm Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
