ASSEMBLY

IMPORTANT: Read entire owner's manual before you
attempt to assemble or operate your new pressure washer.
Remove Pressure Washer From
Carton
• Remove the high pressure hose, handle, and parts box
included with pressure washer.
• Slice two corners at the end of carton from top to
bottom so the panel can be folded down flat, then
remove all packing material.
• Roll pressure washer out of carton.
Carton Contents
Items in the carton include:
• Main Unit
• High Pressure Hose
• Handle
• Accessory Box (includes the following):
• (2) Bottles of engine oil
• Owner's registration card
• Safety goggles
• Bag containing 5 multi–colored quick connect
spray tips
• Maintenance kit
• Owner's manual
• Engine manual
• Engine warranty card
• Emissions control warranty card
• Pump information sheet
• Spark arrester screen
• Spray gun with quick connect fitting
• Nozzle extension with quick connect fitting
• Handle hardware, including 4 carriage bolts and
4 flange nuts
If any of the above parts are missing or damaged, call the
pressure washer helpline at 1–800–270–1408.
PREPARING PRESSURE
WASHER FOR USE
If you have any problems with the assembly of your
pressure washer or if parts are missing or damaged, call the
pressure washer helpline at 1-800-270-1408.
Generac Portable Products 3500 PSI Pressure Washer
To prepare your pressure washer for operation, you
will need to perform these tasks:
1.
2.
3.
4.
5.
6.
7.
8.
9.
Attach Handle to the Pressure
Use either a 13mm or adjustable wrench to attach the
handle to the pressure washer.
To attach handle to the pressure washer:
1.
2.
3.
4.
5.
6
Fill out and send in registration card.
Attach handle to main unit.
Add oil to engine.
Add fuel to fuel tank.
Remove and discard tape from domed oil filler cap on
top of pump.
Connect high pressure hose to spray gun and pump.
Connect water supply to pump.
Connect nozzle extension to spray gun.
Select and install desired quick connect spray tip.
Washer
Slowly tip pressure washer forward and let it gently
rest on front bumper.
Align holes on handle with holes on base.
Insert carriage bolts provided to hold handle in place
(Figure 1).

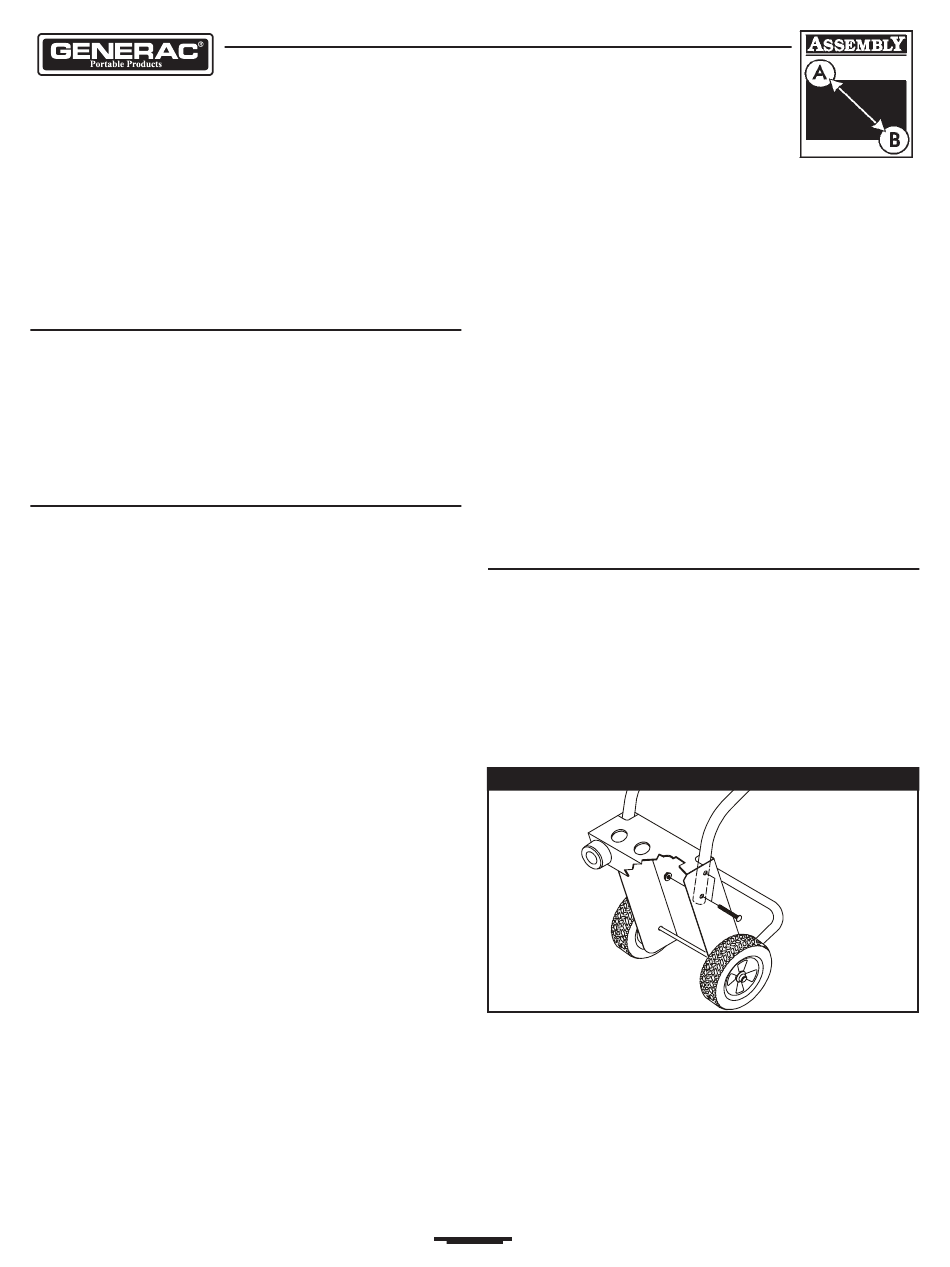

Figure 1 — Attach Handle to Pressure Washer
Secure handle to pressure washer using four provided
flange nuts.
Slowly tip pressure washer back in place and insert
multi–colored quick connect spray tips in spaces
provided in handle.
