How to Use Spray Tips
The quick–connect on the nozzle extension allows you to
switch between several different spray tips. The spray tips
vary the spray pattern as shown below (Figure 6).
Follow these instructions to change spray tips:
1.
Engage safety latch on spray gun.
CAUTION
A pressure washer produces a high pressure spray
which increases risk of injury and damage to unit.
• NEVER exchange spray tips without locking the safety latch
on the trigger.
2.
Pull back collar on quick–connect and pull current
spray tip off. Store spray tips in space provided on
handles storage panel.
3.
Select desired spray tip:
•
For gentle rinse, select white 40° or green 25°
spray tip.
•
To scour surface, select yellow 15° or red 0° spray
tip.
•
To apply chemical, select black spray tip.
4.
Pull back on collar, insert new spray tip and release collar.
Tug on spray tip to make sure it is securely in place.
5.
For most effective cleaning, keep spray tip from 8 to
24 inches away from cleaning surface. If you get spray
tip too close, you may damage cleaning surface. DO
NOT get closer than 6 inches when cleaning tires.

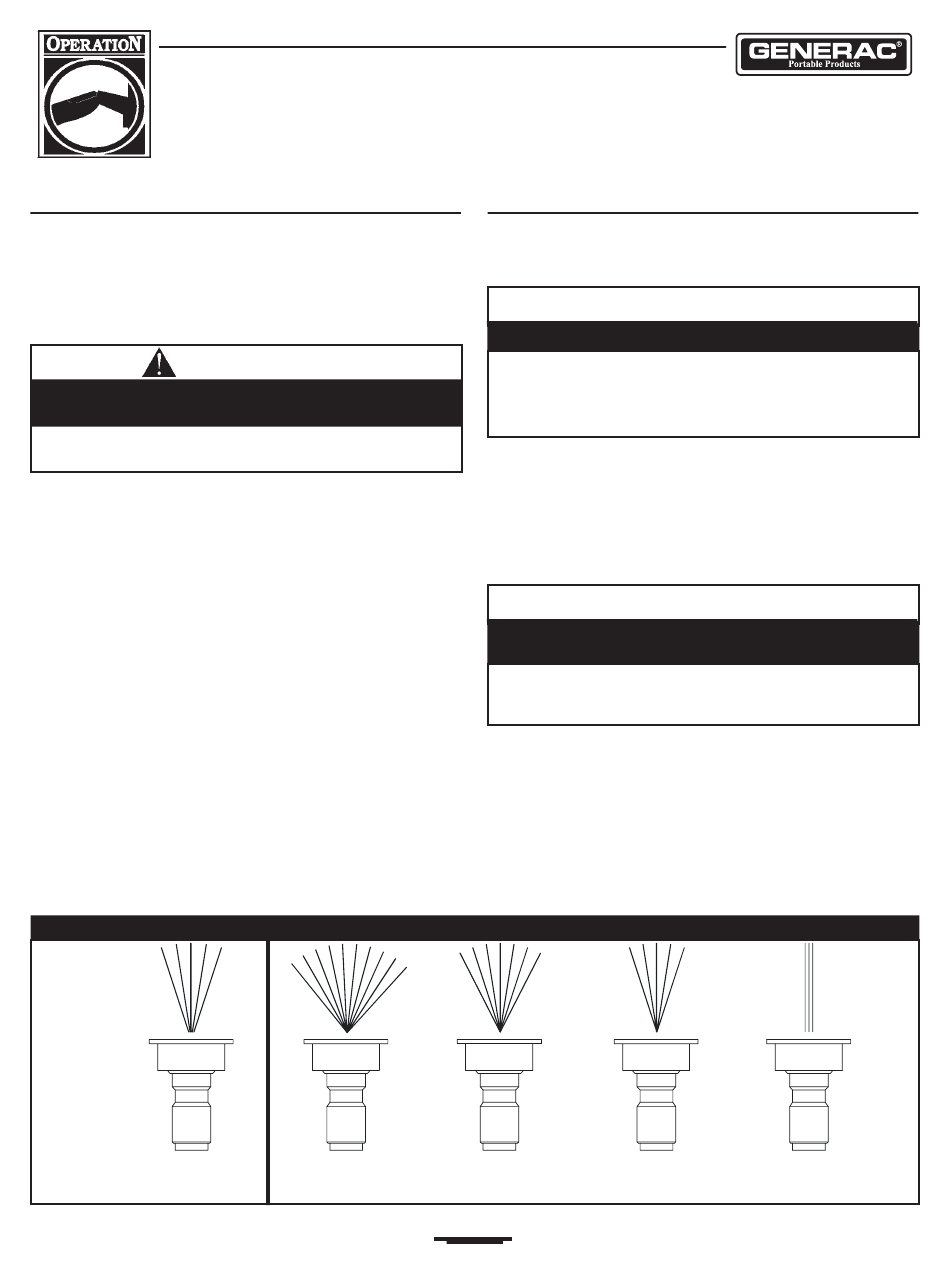

Figure 6 — Quick Connect Spray Tips
Low Pressure
Use to apply
chemical
Black
Generac Portable Products 3500 PSI Pressure Washer
White
40°
Cleaning and Applying Chemical
IMPORTANT: Use soaps designed specifically for
pressure washers. Household detergents could damage
the pump.
CAUTION
You must attach all hoses before you start the engine.
• Starting the engine without all the hoses connected and
without the water turned ON will damage the pump.
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
To apply detergent follow these steps:
1.
Review spray tip use.
2.
Prepare detergent solution as required by
manufacturer.
3.
Place small filter end of detergent siphoning tube into
detergent container.
CAUTION
Keep the chemical injection tube from coming in contact
with the hot muffler.
• When inserting the filter into a detergent solution bottle,
route the tube so as to keep it from inadvertently contacting
the hot muffler.
4.
Make sure black spray tip is installed.
NOTE: Detergent cannot be applied with the high
pressure spray tips (White, Green, Yellow, or Red).
Green
Yellow
25°
15°
9
High
Pressure
Red
0°
