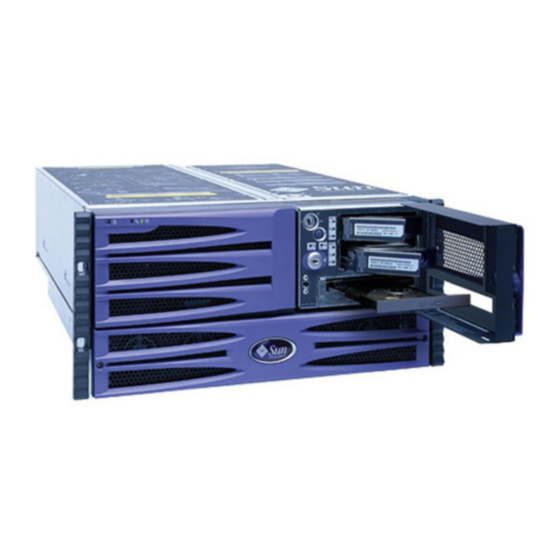

Page 1 Sun StorEdge 3000 Family ™ Installation, Operation, and Service Manual Sun StorEdge 3510 FC Array Sun StorEdge 3511 FC Array with SATA Sun Microsystems, Inc. www.sun.com Part No. 816-7300-16 May 2004, Revision 01 Submit comments about this document at: http://www.sun.com/hwdocs/feedback...
Page 2 Copyright © 2004 Dot Hill Systems Corporation, 6305 El Camino Real, Carlsbad, California 92009, USA. All rights reserved. Sun Microsystems, Inc. and Dot Hill Systems Corporation may have intellectual property rights relating to technology embodied in this product or document. In particular, and without limitation, these intellectual property rights may include one or more of the U.S. patents listed at http://www.sun.com/patents and one or more additional patents or pending patent applications in the U.S.
Page 3: Table Of Contents
Contents Product and Architecture Overview 1–1 Comparison of Sun StorEdge 3510 FC Arrays and Sun StorEdge 3511 FC Arrays 1–2 1.1.1 Sun StorEdge 3510 and 3511 FC Array Configurations 1–3 Field-Replaceable Units (FRUs) 1–5 1.2.1 RAID I/O Controller Modules 1–5 1.2.2 I/O Expansion Modules 1–6 1.2.3...
Page 4 1.5.1 Redundant Configuration Considerations 1–12 1.5.1.1 Host Bus Adapters 1–12 1.5.1.2 Active-to-Active Redundant Controller 1–12 1.5.1.3 Host Redundant Paths 1–12 Additional Software Tools 1–13 Site Planning 2–1 Customer Obligations 2–2 Safety Precautions 2–2 Environmental Requirements 2–3 2.3.1 Electromagnetic Compatibility (EMC) 2–3 Electrical and Power Specifications 2–4 Physical Specifications 2–5 Layout Map 2–5...
Page 5 Fibre Channel Array Connections 4–4 4.2.1 Sun StorEdge 3510 FC Array 4–5 4.2.2 Sun StorEdge 3511 FC Array 4–6 Connecting the Chassis to AC Power Outlets 4–7 Connecting the Chassis to DC Power Outlets 4–8 Powering Up and Checking LEDs 4–10 Reviewing Channels, Ports, and SFPs 4–11 4.6.1 Drive Port Connectivity in a Dual-Controller Array 4–12...
Page 6 5.1.2 Dual-Controller Considerations 5–2 5.1.3 Single-Controller Considerations 5–4 5.1.4 Write-Back and Write-Through Cache Options 5–5 Software Management Tools 5–5 5.2.1 Out-of-Band Connection 5–5 5.2.2 In-Band Connection 5–6 Summary of Array Configuration 5–6 5.3.1 Point-to-Point Configuration Guidelines 5–9 5.3.2 A SAN Point-to-Point Configuration Example 5–10 5.3.3 A DAS Loop Configuration Example 5–16 5.3.4...
Page 7 6.1.8.2 Sun StorEdge 3511 FC Array Default Configurations 6–15 6.1.9 Completing Basic Configuration 6–16 6.1.10 Preparing for Logical Drives Larger Than 253 Gbyte 6–17 6.1.11 Deleting Logical Drives 6–19 6.1.12 Creating Logical Drives 6–21 6.1.13 Changing a Logical Drive Controller Assignment (Optional) 6–28 6.1.14 Creating or Changing a Logical Drive Name (Optional) 6–30 6.1.15 Partitioning a Logical Drive (Optional) 6–31 Mapping Logical Drive Partitions to Host LUNs 6–35...
Page 8 Maintaining Your Array 8–1 Quick Installation (Reserved) 8–2 Battery Operation 8–2 8.2.1 Battery Status 8–2 Silencing Audible Alarms 8–4 Checking Status Windows 8–6 8.4.1 Logical Drive Status Table 8–6 8.4.2 Physical Drive Status Table 8–8 8.4.3 Channel Status Table 8–10 8.4.4 Controller Voltage Temperature Status 8–13 8.4.4.1...
Page 9 Troubleshooting Your Array 9–1 RAID LUNs Not Visible to the Host 9–2 Controller Failover 9–2 Rebuilding Logical Drives 9–3 9.3.1 Automatic Logical Drive Rebuild 9–3 9.3.2 Manual Rebuild 9–6 9.3.3 Concurrent Rebuild in RAID 1+0 9–7 Identifying a Failed Drive for Replacement 9–8 9.4.1 Flash Selected Drive 9–9 9.4.2...
Page 10 Supported Host Platforms and Connection Methods (JBOD Arrays) B–2 Known Limitations Affecting Sun StorEdge 3510 FC JBOD Arrays B–3 Using Sun StorEdge 3000 Family Software Monitoring and Management Tools with JBOD Arrays B–4 Setting the Loop ID on a Sun StorEdge 3510 FC JBOD Array B–6 Connecting Sun StorEdge 3510 FC JBOD Arrays B–7 Enabling Sun StorEdge 3510 FC JBOD Array Support B–11 Downloading Firmware to Disk Drives in a JBOD B–13...
Page 11 Determining the WWN in the Solaris Operating Environment F–4 G. Configuring a Windows 200x Server or Windows 200x Advanced Server G–1 Setting Up the Serial Port Connection G–2 Accessing the Firmware Application From a Windows 200x Server or Windows 200x Advanced Server G–5 Enabling a Windows 200x Server or Windows 200x Advanced Server to Recognize New Devices and LUNs G–5 Determining the World Wide Name for Windows 200x Servers and...
Page 12 Mounting the New File System I–8 Verifying That the New File System Is Mounted I–9 I.10 Determining the World Wide Name for IBM Servers Running AIX I–9 J. Configuring an HP Server Running the HP-UX Operating Environment J–1 Setting Up a Serial Port Connection J–2 Accessing the Firmware Application From an HP Server Running HP-UX J–3 Attaching the Disk Array J–5...
Page 13 Figures Sun StorEdge 3510 and 3511 FC Array Front View 1–2 FIGURE 1-1 Front Bezel and Front Bezel Locks of an Array 4–2 FIGURE 4-1 Sequence of Steps to Change Front Bezel Locks So Keys Cannot Be Removed 4–3 FIGURE 4-2 Hardware Connections on the Back of a Dual-Controller Sun StorEdge 3510 FC Array 4–5 FIGURE 4-3 Hardware Connections on the Back of a Dual-Controller Sun StorEdge 3511 FC Array 4–6...
Page 14 Sun StorEdge 3511 FC Array Attached to Two Hosts and Two Expansion Units 4–24 FIGURE 4-19 Front Bezel and Front Bezel Locks of an Array 4–26 FIGURE 4-20 ID Switch Located on the Left Front Side of Arrays and Expansion Units 4–27 FIGURE 4-21 A Point-to-Point Configuration with a Dual-Controller Sun StorEdge 3510 FC Array and Two FIGURE 5-1...
Page 15 Power Supply or Fan Module Flowchart, 2 of 2 9–16 FIGURE 9-2 FC Drive LEDs Flowchart, 1 of 2 9–18 FIGURE 9-3 FC Drive LEDs Flowchart, 2 of 2 9–19 FIGURE 9-4 Front Panel LEDs (FC) Flowchart, 1 of 4 9–20 FIGURE 9-5 Front Panel LEDs Flowchart, 2 of 4 9–21 FIGURE 9-6...
Page 16 Sun StorEdge 3000 Family Installation, Operation, and Service Manual • May 2004...
Page 17 Tables Comparison of Sun StorEdge 3510 and 3511 FC Array Features 1–2 TABLE 1-1 Sun StorEdge 3510 and 3511 FC Array Configuration Options 1–4 TABLE 1-2 Environmental Specifications 2–3 TABLE 2-1 Power Specifications 2–4 TABLE 2-2 Physical Specifications 2–5 TABLE 2-3 Preinstallation Worksheet 2–8 TABLE 2-4 Host and Fabric Switch Connectivity Summarized 2–9...
Page 18 Maximum Number of Disks per Sun StorEdge 3510 FC Array Logical Drive 6–13 TABLE 6-2 Maximum Usable Capacity (Gbyte) per Sun StorEdge 3510 FC Array Logical Drive 6–13 TABLE 6-3 Maximum Number of Disks per Sun StorEdge 3511 FC Array Logical Drive 6–14 TABLE 6-4 Maximum Usable Capacity (Gbyte) per Sun StorEdge 3511 FC Array Logical Drive 6–14 TABLE 6-5...
Page 19 Sun StorEdge 3511 FC array for ease of reading. This guide is written for experienced system administrators who are familiar with Sun Microsystems hardware and software products. Caution – Read the Sun StorEdge 3000 Family Safety, Regulatory, and Compliance Manual before beginning any procedure in this manual.
Page 20 Chapter 9 describes troubleshooting procedures. Appendix A provides the Sun StorEdge 3510 and 3511 FC array specifications. Appendix B provides information about standalone JBOD arrays. Appendix C provides information about failed component alarm codes. Appendix D provides tables for recording configuration data. Appendix E provides pinout identification for each connector.
Page 21 Shell Prompts Shell Prompt C shell machine-name% C shell superuser machine-name# Bourne shell and Korn shell Bourne shell and Korn shell superuser Typographic Conventions Typeface Meaning Examples The names of commands, files, Edit your.login.login file. AaBbCc123 and directories; on-screen Use ls -a to list all files. computer output % You have mail.
Page 22 Related Documentation Title Part Number Sun StorEdge 3511 FC Array with SATA Release Notes 817-6597 Sun StorEdge 3000 Family Best Practices Manual (3510/3511) 816-7325 Sun StorEdge 3000 RAID Firmware 3.25 and 3.27 User’s Guide 817-3711 Sun StorEdge 3000 Family Configuration Service 1.5 User’s Guide 817-3337 Sun StorEdge 3000 Family Diagnostic Reporter 1.5 User’s Guide 817-3338...
Page 23 Contacting Sun Technical Support For late-breaking news and troubleshooting tips, review the Sun StorEdge 3511 FC Array Release Notes located at: http://www.sun.com/products-n-solutions/hardware/docs/ Network_Storage_Solutions/Workgroup/3511 If you have technical questions about this product that are not answered in the documentation, go to: http://www.sun.com/service/contacting To initiate or check on a USA-only service request, contact Sun support at: 800-USA-4SUN...
Page 24 Sun Welcomes Your Comments Sun is interested in improving its documentation and welcomes your comments and suggestions. You can submit your comments by going to: http://www.sun.com/hwdocs/feedback Please include the title and part number of your document with your feedback: Sun StorEdge 3000 Family Installation, Operation, and Service Manual, part number 816- 7300-16.
Page 25: Product And Architecture Overview
C H A P T E R Product and Architecture Overview This Installation, Operation and Service Manual describes both the Sun Storage 3510 FC Array and the Sun StorEdge 3511 FC Array with SATA. The Sun StorEdge 3511 FC Array with SATA is also known as the Sun StorEdge 3511 FC Array, which is the term used throughout the documentation.
Page 26: Comparison Of Sun Storedge 3510 Fc Arrays And Sun Storedge 3511 Fc Arrays
Comparison of Sun StorEdge 3510 FC Arrays and Sun StorEdge 3511 FC Arrays Sun StorEdge 3510 and 3511 FC Array Front View FIGURE 1-1 Before installing and configuring your array, please review the key differences between the Sun StorEdge 3510 FC array and the Sun StorEdge 3511 FC array with SATA, listed in TABLE 1-1 Note –...
Page 27: Sun Storedge 3510 And 3511 Fc Array Configurations
Comparison of Sun StorEdge 3510 and 3511 FC Array Features (Continued) TABLE 1-1 Sun StorEdge 3510 FC Array Sun StorEdge 3511 FC Array Maximum FC Host Ports per I/O Controller Module (one SFP port each for channels 0, 1, (two SFP ports each for channels 1 and 4, and 5) 0;...
Page 28: Table 1-2 Sun Storedge 3510 And 3511 Fc Array Configuration Options
Sun StorEdge 3510 and 3511 FC Array Configuration Options TABLE 1-2 Internal RAID controllers Up to 2, with a minimum of 1 2-Gbit/sec Fibre Channel disks Up to 12 per array or per expansion unit, with a (Sun StorEdge 3510 FC Array) minimum of 4 plus 1 spare 1.5-Gbit/sec serial ATA disks (Sun StorEdge 3511 FC array)
Page 29: Field-Replaceable Units (Frus)
information, using an “A” designator for RAID arrays and a “D” designator for disks in a JBOD array. For example, “StorEdge 3510F D1000” identifies a JBOD array with SES firmware version 1000, and “StorEdge 3510F A1000” identifies a Sun StorEdge 3510 FC RAID array with firmware version 1000. For a list of supported racks and cabinets, refer to the release notes for the model of array that you are installing.
Page 30: I/O Expansion Modules
In the unlikely event of an I/O Controller Module failure, the redundant RAID controller immediately begins servicing all I/O requests. The failure does not affect application programs. Each RAID I/O controller module can support up to 1 gigabyte of Synchronous Dynamic Random Access Memory (SDRAM) with Error Control Check (ECC) memory.
Page 31: Sun Storedge 3510 Fc Array Disk Drives
Each disk drive is slot-independent, meaning that once a logical drive has been initialized, the system can be shut down and the drives can be removed and replaced in any order. In addition, disk drives are field-upgradeable to larger drives without interruption of service to user applications.
Page 32: Power And Fan Modules
1.2.5 Power and Fan Modules Note – The Sun StorEdge 3511 FC array can only be ordered in an AC configuration. However, DC power supplies can be ordered in an x-option kit, and the Sun StorEdge 3511 FC array’s can be reconfigured using the DC power supplies. Refer to the Sun StorEdge 3000 Family FRU Installation Guide.
Page 33: Fibre Channel Technology Overview
Fibre Channel Technology Overview As a device protocol capable of high data transfer rates, Fibre Channel simplifies data bus sharing and supports not only greater speed than SCSI, but also more devices on the same bus. Fibre Channel can be used over both copper wire and optical cable.
Page 34: Fibre Hubs And Switches
1.4.3 Fibre Hubs and Switches A storage network built on a Fibre Channel architecture might employ several of the following components: Fibre Channel host adapters, hubs, fabric switches, and fibre- to-SCSI bridges. Fibre hubs. An arbitrated loop hub is a wiring concentrator. “Arbitrated” means that all nodes communicating over this fibre loop are sharing a 100 megabits per second (Mbps) segment.
Page 35: Scalability
1.4.5 Scalability The Fibre Channel architecture brings scalability and easier upgrades to storage. Storage expansion can be as easy as cascading another expansion unit to a configured RAID array without powering down the running system. The maximum number of expansion units supported by a single Sun StorEdge Fibre Channel array Sun StorEdge 3510 FC Array.
Page 36: Redundant Configuration Considerations
1.5.1 Redundant Configuration Considerations This section provides information about setting up redundant configurations for increased reliability. For more detailed information about configuration requirements, refer “First-Time Configuration” on page 6-1 and to the Sun StorEdge 3000 Family Best Practices Manual. 1.5.1.1 Host Bus Adapters Fibre Channel is widely applied to storage configurations with topologies that aim to avoid loss of data because of component failure.
Page 37: Additional Software Tools
Additional Software Tools The following additional software tools are available on the Sun StorEdge 3000 Family Professional Storage Manager CD, provided with your array: Sun StorEdge Configuration Service, a management and monitoring program Sun StorEdge Diagnostic Reporter software, a monitoring utility Sun StorEdge CLI, a command-line utility to monitor and manage the array.
Page 38 1-14 Sun StorEdge 3000 Family Installation, Operation, and Service Manual • May 2004...
Page 39: Site Planning
C H A P T E R Site Planning This chapter outlines the site-planning requirements and basic safety requirements for the installation and use of the Sun StorEdge 3510 and 3511 FC arrays. Complete a preinstallation worksheet and prepare the site for installation according to the worksheet details and the specified site-planning requirements.
Page 40: Customer Obligations
Customer Obligations The customer is obliged to inform Sun Microsystems, Inc. of any and all ordinances and regulations that would affect installation. Caution – When selecting an installation site for the Sun StorEdge 3510 or 3511 FC array, choose a location that avoids excessive heat, direct sunlight, dust, or chemical exposure.
Page 41: Environmental Requirements
To reduce the risk of electric shock, do not plug Sun products into any other type of power system. Sun products are designed to work with single-phase power systems having a grounded neutral conductor. Contact your facilities manager or a qualified electrician if you are not sure what type of power is supplied to your building.
Page 42: Electrical And Power Specifications
The supplied arrays require voltages within minimum fluctuation. The facilities voltage supplied by the customer must maintain a voltage with not more than (+/–) 5 percent fluctuation. The customer facilities must provide suitable surge protection. Electrical and Power Specifications Sun StorEdge 3510 and 3511 FC arrays require two independent power sources. Each array has two power supply and fan modules for redundancy.
Page 43: Physical Specifications
Physical Specifications Use the physical specifications in to plan the location of your array. TABLE 2-3 Physical Specifications TABLE 2-3 Category Description Dimensions 2U (3.45 inches / 8.76 cm) height 20 inches / 50.8 cm chassis depth 17.5 inches / 44.6 cm width (19 inches / 48.26 cm with ears) Installation clearances For FRU component removal and replacement, 15-inches (37 cm) is required front and back.
Page 44: Tabletop Placement
Provide two separate power sources for the array. These power sources must be independent of each other, and each must be controlled by a separate circuit breaker at the power distribution point. 2.6.2 Tabletop Placement Sun StorEdge 3510 and 3511 FC arrays can be positioned on a desk or a table. Follow these guidelines when preparing a tabletop placement for your system: Choose a desk or a table that can support 60 pounds for each fully configured array you plan to place on it.
Page 45: Console And Other Requirements
Console and Other Requirements A console with at least one serial port connection is necessary for installation and configuration of your Sun StorEdge 3510 or 3511 FC array. Once you have configured your array with an IP address, an Ethernet port can also be useful for configuring the array.
Page 46: Table 2-4 Preinstallation Worksheet
What cable lengths are required? _________________ Are there any power strips or power sequencers in the rack? Yes / No Are they supplied by Sun Microsystems, Inc.? Yes / No If yes, part number: ___________ If not, quantity of plugs/outlets required: __________ / __________ IP address Array IP address: ______.______.______.______...
Page 47: Table 2-5 Host And Fabric Switch Connectivity Summarized
Host and Fabric Switch Connectivity Summarized TABLE 2-5 Host or Fabric Switch Connectivity - Host or Fabric Switch #1 Host or fabric switch name: _____________________________________ Host or fabric switch make/model: ________________________________ HBA connector types: _____________________________ Cable distance from the array to the host(s): ___________ Operating environment: ________________________________ Patches installed: ________________________________ IP addresses:...
Page 48 2-10 Sun StorEdge 3000 Family Installation, Operation, and Service Manual • May 2004...
Page 49: Unpacking Your Fc Array
C H A P T E R Unpacking Your FC Array This chapter describes the procedure for unpacking your Sun StorEdge 3510 or 3511 FC array package. The following topics are covered in this chapter: “Opening Your Package” on page 3-2 “Checking the Package Contents”...
Page 50: Opening Your Package
Opening Your Package Follow these guidelines for unpacking the equipment. Caution – To avoid personal injury or damage to the equipment during installation, always use two people to remove the unit from its container. This unit weighs approximately 60 pounds. 1.
Page 51: Checking The Package Contents
Checking the Package Contents Inspect your Sun StorEdge 3510 or 3511 FC array packages for standard items as well as purchased options before you begin installation. If any parts are missing or damaged, contact your sales representative immediately. 3.2.1 Standard Sun StorEdge Fibre Channel Array Package Quantity Item...
Page 52: Field-Replaceable Units
3.2.2 Field-Replaceable Units Check that you received all field-replaceable units (FRUs) ordered with your Sun StorEdge 3510 or 3511 FC array. For additional FRUs, consult your sales representative. For instructions on how to install or replace FRUS, review the following manuals located on the product web site or on your documentation CD: Sun StorEdge 3000 Family Rack Installation Guide for 2U Arrays Sun StorEdge 3000 Family FRU Installation Guide All FRUs are hot-swappable except the I/O controller and I/O expansion modules,...
Page 53: Customer-Provided Cables
List of Available Sun StorEdge 3511 FC Array FRUs TABLE 3-2 FRU Model Number Description F370-6775-01 BOX, 2U, SATA, Chassis + Backplane (RAID/JBOD) F370-6773-01 I/O-RAID CONT SATA, 1GB, BAT, 2U F370-5540-01 CABLE, FC, 1.5 FT, EXPANSION F370-5545-01 BATTERY, SATA, 2U F370-6774-01 I/O JBOD SATA, 2U F370-6776-01...
Page 54: Converting A Jbod To A Raid Array
Converting a JBOD to a RAID Array If you want to convert a JBOD into a RAID array, refer to the Sun StorEdge 3000 Family FRU Installation Guide. Sun StorEdge 3000 Family Installation, Operation, and Service Manual • May 2004...
Page 55: Connecting Your Fibre Channel Array
C H A P T E R Connecting Your Fibre Channel Array This chapter describes procedures for cabling a Sun StorEdge 3510 or 3511 FC array and for connecting an array to power and to network devices. The following topics are covered in this chapter: “Converting Your Front Bezel Locks So the Keys Cannot Be Removed”...
Page 56: Converting Your Front Bezel Locks So The Keys Cannot Be Removed
Caution – When positioning the array, do not block the air vents at the front or back of the unit. Follow all safety precautions specified in the Sun StorEdge 3000 Family Safety, Regulatory, and Compliance Manual. Caution – When you power off an array, wait five seconds before you power it back on.
Page 57: Figure 4-2 Sequence Of Steps To Change Front Bezel Locks So Keys Cannot Be Removed
Caution – Be sure to hold the key in place. Otherwise there is a risk of breaking the small tab on the lock that serves as a stop. 4. Lift the pawl off the threaded part of the lock body, as shown in the second panel FIGURE 4-2 Sequence of Steps to Change Front Bezel Locks So Keys Cannot Be Removed FIGURE 4-2...
Page 58: Fibre Channel Array Connections
7. Replace the pawl in the same orientation as before, as shown in the fourth panel FIGURE 4-2 8. Hold the key in place and use the nut driver to refasten the locking nut that holds the pawl in place, as shown in the fifth panel of .
Page 59: Sun Storedge 3510 Fc Array
4.2.1 Sun StorEdge 3510 FC Array identifies the hardware connections on the back of a dual controller Sun FIGURE 4-3 StorEdge 3510 FC Array Servers and consoles FC devices Management console FC expansion units/FC arrays FC device connections application/data servers and consoles Hardware Connections on the Back of a Dual-Controller Sun StorEdge 3510 FC Array FIGURE 4-3 Chapter 4 Connecting Your Fibre Channel Array...
Page 60: Sun Storedge 3511 Fc Array
4.2.2 Sun StorEdge 3511 FC Array identifies the hardware connections on the back of a dual-controller Sun FIGURE 4-4 StorEdge 3511 FC array. Servers and consoles FC devices Management console FC expansion units/FC arrays FC device connections application/data servers and consoles Hardware Connections on the Back of a Dual-Controller Sun StorEdge 3511 FC Array FIGURE 4-4 Sun StorEdge 3000 Family Installation, Operation, and Service Manual •...
Page 61: Connecting The Chassis To Ac Power Outlets
Connecting the Chassis to AC Power Outlets When you connect the AC power cords, install the provided two cord locks at the same time. The AC cord locks are used to securely fasten the AC cable connectors. Caution – If the array is connected to AC power sources not within the designated 90–135, 180–264 VAC range, the unit might be damaged.
Page 62: Connecting The Chassis To Dc Power Outlets
Installing a Cord Lock FIGURE 4-5 Connecting the Chassis to DC Power Outlets Note – The Sun StorEdge 3511 FC Array can only be ordered in an AC configuration. However, DC power supplies can be ordered in an x-option kit, and a Sun StorEdge 3511 FC Array can be reconfigured using the DC power supplies.
Page 63 1. Check the DC cable part number and wire labels carefully before connecting the cable to the source. DC Cable Wiring for Cable 35-00000148 TABLE 4-1 Pin Number Voltage Color Return GND (Chassis Ground) Green/Yellow -48vdc Black DC Cable Wiring for Cable 35-00000156 TABLE 4-2 Pin Number Voltage...
Page 64: Powering Up And Checking Leds
Powering Up and Checking LEDs Perform the initial check of the array according to the following procedure: 1. Connect two AC (or DC) power cables to the power and fan modules on the back of the array. 2. Power on the array by turning on each power switch. “Power-On Sequence”...
Page 65: Reviewing Channels, Ports, And Sfps
See the chapter “Checking LEDs” on page 7-1 for more information about your array’s LEDs. Reviewing Channels, Ports, and SFPs I/O controller modules have ports that accept SFP transceivers. These ports are labeled FC0 through FC5, to indicate channels 0 through 5. Default configurations do not include an SFP connector in every SFP port.
Page 66: Drive Port Connectivity In A Dual-Controller Array
4.6.1 Drive Port Connectivity in a Dual-Controller Array Drive channels connect to the internal drives in the array and can also connect to drives in external expansion units. The key difference between the Sun StorEdge 3510 and 3511 FC array drive channels is the assignment of two ports for each channel: The Sun StorEdge 3510 FC array has a drive channel assigned to two ports on each I/O controller module.
Page 67: Sun Storedge 3511 Fc Array
4.6.1.2 Sun StorEdge 3511 FC Array Drive channels 2 and 3 are dedicated drive channels. Configured for redundancy, each drive channel of the top I/O controller module shares a loop with the matching drive channel on the bottom I/O controller module. For example, drive channel 2 of the top I/O controller module shares the same loop as channel 2 on the bottom I/O controller module (see ).
Page 68: Sun Storedge 3510 Fc Array
Number of Host Ports and Supported Host Port Speeds TABLE 4-4 Data Transfer Speed Sun StorEdge 3510 FC Array Sun StorEdge 3511 FC Array 1-Gbit or 2-Gbit Maximum of 4 host ports per I/O Maximum of 4 host ports (FC0 and FC1) per I/O controller module controller module 2-Gbit only...
Page 69: Default Sfp Placement
controller, and both ports on a redundant controller, cannot be used. Similarly, if channel 1 (FC1) is connected to a fabric switch, the second port on that controller and the two FC1 ports on a redundant controller, cannot be used. Two hosts can be directly connected to either channel 0 (ports FC0) or channel 1 (ports FC1), but in that configuration, host filters are required if you want to control host access to storage.
Page 70: Figure 4-11 Default Dual-Controller Sun Storedge 3510 Fc Array Sfp Placement
The lower I/O controller module has SFPs in the FC1, FC3, and FC5 ports. This configuration provides connections to all six host channels as well as to both drive channels (see FIGURE 4-11 FIGURE 4-12 Host port FC0 Drive port FC2 Host port FC4 Host port FC5 Host port FC1...
Page 71: Sun Storedge 3510 Fc Array Default Single Controller Sfp Placement
Host port FC0 Host port FC1 Host port FC5 Host port FC4 Sun StorEdge 3510 FC Array Default Single Controller SFP Placement FIGURE 4-13 H/D/RCC Host port FC4 Host port FC5 Host port FC0 Host port FC1 Sun StorEdge 3511 FC Array Default Single-Controller SFP Placement FIGURE 4-14 In a default Sun StorEdge 3510 FC expansion unit, SFPs are initially plugged into the left-most port of the upper I/O expansion module and right-most port of the lower...
Page 72: Changing Your Sfp Configuration
In a default Sun StorEdge 3511 FC expansion unit, SFPs are initially plugged into the left-most Loop A port in the upper I/O expansion module and in the left-most Loop B port in the lower I/O expansion module ( FIGURE 4-16 Default SFP Placement Sun StorEdge 3511 Expansion Unit Default SFP Placement FIGURE 4-16...
Page 73: Configuring A Com Port To Connect To A Raid Array
Configuring a COM Port to Connect to a RAID Array The RS-232 COM port on either controller module is used to configure and monitor the RAID array. It can be connected to a VT100 terminal or terminal emulation program, to a terminal server, or to the serial port of a server. 1.
Page 74: Setting Up Out-Of-Band Management Over Ethernet
2. From the Main Menu, choose “view and edit Configuration parameters → Communication Parameters → Internet Protocol (TCP/IP).” 3. Choose the chip hardware address. 4. Choose “Set IP Address → IP Address.” 5. Type in the desired IP address, subnet mask, and gateway address, choosing each menu option in turn.
Page 75 With the Ethernet connection, you can configure and monitor RAID arrays and expansion units remotely by using the telnet command to access the firmware application on the array and by using the Sun StorEdge Configuration Service or CLI software. Caution – If you assign an IP address to an array to manage it out-of-band, for security reasons make sure that the IP address is on a private network rather than a publicly routable network.
Page 76: Cabling To Expansion Units
4.10 Cabling to Expansion Units Caution – When connecting expansion units to a RAID array, always connect channel 2 of the RAID array to the A channel of the expansion units, and connect channel 3 of the RAID array to the B channel of the expansion units. Otherwise, unexpected behavior might occur.
Page 77: Figure 4-18 Sun Storedge 3510 Fc Array Attached To Two Hosts And Two Expansion Units
RAID array Expansion unit 1 Expansion unit 2 Loop A (left-side drive ports) Loop B (right-side drive ports) Cable to drive Cable to host Sun StorEdge 3510 FC Array Attached to Two Hosts and Two Expansion FIGURE 4-18 Units Chapter 4 Connecting Your Fibre Channel Array 4-23...
Page 78: Figure 4-19 Sun Storedge 3511 Fc Array Attached To Two Hosts And Two Expansion Units
H/D/RCC RAID array H/D/RCC Expansion unit 1 Loop A (left-side drive ports) Expansion unit 2 Cable to drive Loop B (right-side drive ports) Cable to host Sun StorEdge 3511 FC Array Attached to Two Hosts and Two Expansion Units FIGURE 4-19 4-24 Sun StorEdge 3000 Family Installation, Operation, and Service Manual •...
Page 79: Scaling A Sun Storedge Fibre Channel Array Into A High Capacity Configuration
4.10.1 Scaling a Sun StorEdge Fibre Channel Array Into a High Capacity Configuration Note – High capacity Sun StorEdge 3510 and 3511 FC array configurations are supported with certain limitations. For example, only the sequential cache optimization mode can be used. Other important limitations may exist. A Sun StorEdge 3510 FC array with more than two expansion units is a high capacity configuration.
Page 80: Setting Loop Ids On Expansion Units
4.11 Setting Loop IDs on Expansion Units When an expansion unit is attached to a RAID array, unique, hard-assigned loop IDs are assigned to each expansion unit drive. A loop ID is the decimal version of an arbitrated loop physical address (AL_PA). The lowest number loop ID is the lowest priority address on the loop.
Page 81 Press to change the ID number ID Switch Located on the Left Front Side of Arrays and Expansion Units FIGURE 4-21 4. Press the upper or lower switch button to change the ID number so that each connected RAID array and expansion unit uses a different loop ID. Note –...
Page 82: Connecting Ports To Hosts
switches so that the RAID array is assigned loop ID 0, expansion unit 1 has loop ID 1, and expansion unit 2 has loop ID 2. The range of IDs assigned to the drives is shown in TABLE 4-6 Sample Array and Expansion Units With Different Loop IDs and Drive IDs TABLE 4-6 Fibre Channel Device Loop ID Switch Setting...
Page 83: Power-On Sequence
If you want to connect a Sun StorEdge 3510 FC array to more than four host computers, or connect a Sun StorEdge 3511 FC array to more than six host computers, without changing the default configuration, you can connect these four host channels to ports on storage switches in a storage area network (SAN) configuration.
Page 84: Power-Off Procedure
3510 Disk Array is installed with 1024MBytes SDRAM Total SCSI channels: 6 SCSI channel: 0 is a host channel, id: 40 SCSI channel: 1 is a host channel, id: 41 SCSI channel: 2 is a drive channel, id: 14, 15 SCSI channel: 3 is a drive channel, id: 14, 15 SCSI channel: 4 is a host channel, id: 70 SCSI channel: 5 is a host channel, id: 71...
Page 85: Configuration Overview
C H A P T E R Configuration Overview This chapter highlights the tools and the important limitations and guidelines which must be understood prior to configuring your array. This chapter covers the following topics: “Controller Defaults and Limitations” on page 5-2 “Planning for Reliability, Availability, and Serviceability”...
Page 86: Controller Defaults And Limitations
Controller Defaults and Limitations This section describes default configurations and certain controller limitations. 5.1.1 Planning for Reliability, Availability, and Serviceability The Sun StorEdge 3510 and 3511 FC array entry-level configurations include only one controller. You can mirror two single-controller arrays using volume manager software on attached servers to ensure high reliability, availability, and serviceability (RAS).
Page 87 a field-replaceable unit (FRU) controller, the array automatically compares the firmware versions of the two controllers. If they differ, the FRU controller firmware is automatically changed to that of the existing controller in the array. The controller firmware assumes that two controllers are available, or might be made available during operation at any time.
Page 88: Single-Controller Considerations
5.1.3 Single-Controller Considerations In a single-controller configuration, it is important to review the following guidelines: In a single-controller configuration, keep the controller as the primary controller at all times and assign all logical drives to the primary controller. The primary controller controls all logical drive and firmware operations.
Page 89: Write-Back And Write-Through Cache Options
5.1.4 Write-Back and Write-Through Cache Options Unfinished writes are cached in memory in write-back mode. If power to the array is discontinued, data stored in the cache memory is not lost. Battery modules can support cache memory for 72 hours. Write cache is not automatically disabled when the battery is offline due to battery failure or a disconnected battery.
Page 90: In-Band Connection
5.2.2 In-Band Connection With in-band host connections, you can use Sun StorEdge Configuration Service software or the command-line interface (CLI). Refer to the: Sun StorEdge 3000 Family Configuration Service User’s Guide for the in-band setup procedures Sun StorEdge 3000 Family CLI User’s Guide Sun StorEdge 3000 Family Software Installation Guide.
Page 91 6. (Optional) Configure host channels as drive channels. See “Configuring FC Channels as a Host or Drive Channel (Optional)” on page 6-5. 7. Confirm or change the Fibre Connection Option (point-to-point or loop). See “Choosing Loop or Point-to-Point Fibre Connection” on page 6-7.
Page 92 Note – Each operating environment or operating system has a method for recognizing storage devices and LUNs and might require the use of specific commands or the modification of specific files. Be sure to check the information for your operating environment to ensure that you have performed the necessary procedures.
Page 93: Point-To-Point Configuration Guidelines
5.3.1 Point-to-Point Configuration Guidelines Remember the following guidelines when implementing point-to-point configurations in your array and connecting to fabric switches: The default mode is “Loop only.” You must change the Fibre Channel Connection mode to “Point-to-point only” with the firmware application (see “Choosing Loop or Point-to-Point Fibre Connection”...
Page 94: A San Point-To-Point Configuration Example
Caution – In point-to-point mode or in public loop mode, only one switch port is allowed per channel. Connecting more than one port per channel to a switch can violate the point-to-point topology of the channel, force two switch ports to “fight” over an AL_PA (arbitrated loop physical address) value of 0 (which is reserved for loop to fabric attachment), or both.
Page 95 When you use fabric point-to-point (F_port) connections between a Sun StorEdge 3510 or 3511 FC array and fabric switches, the maximum number of LUNs is limited to 128 LUNs for a nonredundant configuration and is limited to 64 LUNs for a redundant configuration. Fibre Channel standards allow only one ID per port when operating point-to- point protocols, resulting in a maximum of four IDs with a maximum of 32 LUNs for each ID, and a combined maximum of 128 LUNs.
Page 96 The port bypass circuit on each channel connects the upper and lower ports on the same channel and provides access to both controllers at the same time. If there are two host connections to the upper and lower ports on Channel 0, and one host connection is removed, the other host connection remains operational.
Page 97: Figure 5-1 A Point-To-Point Configuration With A Dual-Controller Sun Storedge 3510 Fc Array And Two Switches
Server 0 Server 1 Switch 0 Switch 1 PID 40 PID 43 SID 45 SID 46 Map LG0 to PIDs 40 and 43 Map LG1 to SIDs 45 and 46 : Host port on channel number N PID 40 / PID43 : Host IDs on primary controller SID 45 / SID46 : Host IDs on secondary controller N/A : Not applicable (no ID on that controller) : Port bypass circuit...
Page 98: Figure 5-2 A Point-To-Point Configuration With A Dual-Controller Sun Storedge 3511 Fc Array And Two Switches
Server 0 Server 1 Switch 0 Switch 1 PID 40 PID 43 SID 45 SID 46 Map LG0 to PIDs 40 and 43 Map LG1 to SIDs 45 and 46 : Host port on channel number N PID 40 / PID43 : Host IDs on primary controller SID 45 / SID46 : Host IDs on secondary controller N/A : Not applicable (no ID on that controller) : Port bypass circuit...
Page 99: Table 5-1 Example Point-To-Point Configuration With Two Logical Drives In A Dual-Controller Array
Example Point-to-Point Configuration With Two Logical Drives in a Dual- TABLE 5-1 Controller Array Logical Channel Primary ID Secondary ID Task Drive Number Number Number Map 32 partitions of LG0 to CH0 LG 0 0-31 Duplicate-map 32 partitions of LG 0 0-31 LG0 to CH1 Map 32 partitions of LG1 to CH4...
Page 100: A Das Loop Configuration Example
7. Map logical drive 0 to channels 0 and 1 of the primary controller. Map LUN numbers 0 through 31 to the single ID on each host channel. 8. Map logical drive 1 to channels 4 and 5 of the secondary controller. Map LUN numbers 0 through 31 to the single ID on each host channel.
Page 101: Figure 5-3 A Das Configuration With Four Servers, A Dual-Controller Sun Storedge 3510 Fc Array, And Two Expansion Units
Server 1 Server 2 Server 3 Server 4 Server connections Expansion units A DAS Configuration With Four Servers, a Dual-Controller Sun StorEdge FIGURE 5-3 3510 FC Array, and Two Expansion Units Chapter 5 Configuration Overview 5-17...
Page 102: Figure 5-4 A Das Configuration With Four Servers, A Dual-Controller Sun Storedge 3511 Fc Array, And Two Expansion Units
Server 4 Server 3 Server 1 Server 2 H/D/RCC H/D/RCC A DAS Configuration With Four Servers, a Dual-Controller Sun StorEdge FIGURE 5-4 3511 FC Array, and Two Expansion Units Establishing complete redundancy and maintaining high availability requires the use of multipathing software such as Sun StorEdge Traffic Manager software. To configure for multipathing: 1.
Page 103 3. Map the logical drive each server is using to the controller channels that the server is connected to. DAS configurations are typically implemented using a fabric loop (FL_port) mode. A loop configuration example is described under “A DAS Loop Configuration Example”...
Page 104: Connecting Two Hosts To One Host Channel (Sun Storedge 3511 Fc Array Only)
6. Set up to eight IDs on each channel, if needed (see TABLE 5-3 Example Primary and Secondary ID Numbers in a Loop Configuration With TABLE 5-3 Two IDs per Channel Channel Primary Secondary Number ID Number ID Number 7. Map logical drive 0 to channels 0 and 5 of the primary controller. 8.
Page 105: Larger Configurations
Larger Configurations Larger configurations are possible using Sun StorEdge Fibre Channel arrays and additional expansion units: Up to eight expansion units are supported when connected to a Sun StorEdge 3510 FC array. Up to five expansion units are supported when connected to a Sun StorEdge 3511 FC array.
Page 106 5-22 Sun StorEdge 3000 Family Installation, Operation, and Service Manual • May 2004...
Page 107: First-Time Configuration
C H A P T E R First-Time Configuration This chapter summarizes the most common procedures used for first-time configuration. This chapter covers the following topics: “Initial Configuration Steps” on page 6-2 “Viewing the Initial Firmware Window” on page 6-2 “Checking Available Physical Drives”...
Page 108: Initial Configuration Steps
Subsequent chapters in this manual describe further procedures used to complete the installation and configuration of the arrays. The flexible architecture of the Sun StorEdge 3510 and 3511 FC arrays makes many configurations possible. Initial Configuration Steps The topics in this section present both required and commonly used optional procedures, which typically apply to both the point-to-point and loop mode configurations.
Page 109: Figure 6-1 Initial Firmware Window
Use the following keys to navigate within the application: ← → ↑ ↓ To select options Return or Enter To perform the selected menu option or display a submenu To return to the previous menu without performing the selected menu option Ctrl-L (Ctrl key and L key together) To refresh the screen information Press a letter as a keyboard shortcut...
Page 110: Checking Available Physical Drives
2. Proceed to configure the array using options from the Main Menu as described in the rest of this chapter. The firmware procedures use the term “Choose” as a shortcut description. Quotation marks are used to indicate a specific menu option or a series of menu options. Procedure Meaning Choose “menu option.”...
Page 111: Configuring Fc Channels As A Host Or Drive Channel (Optional)
Note – If a drive is installed but is not listed, it might be defective or installed incorrectly. When the power is initially turned on, the controller scans all hard drives that are connected through the drive channels. If a hard drive was connected after the controller completed initialization, use the “Scan scsi drive”...
Page 112 CH 0, CH 1, CH 4, and CH 5 = Host channels CH 2 and CH 3 = Drive channels On both the Sun StorEdge 3510 and 3511 FC arrays, channels 2 and 3 (CH 2 and CH 3) are dedicated drive channels. On the Sun StorEdge 3510 FC array, channels 0, 1, 4, and 5 can be host or drive channels.
Page 113: Choosing Loop Or Point-To-Point Fibre Connection
3. Choose “channel Mode.” A menu of channel mode options is displayed. 4. Select a channel mode from the displayed list. A confirmation message is displayed. 5. Choose Yes to confirm. A confirmation message is displayed: NOTICE: Change made to this setting will NOT take effect until the controller is RESET.
Page 114: Editing And Creating Additional Host Ids (Optional)
2. If you want to view or change the “Fibre Connection Option,” choose either “Loop only” or “Point to point only.” Caution – Do not use the bottom command, “Loop preferred, otherwise point to point.” This command is reserved for special use and should be used only if directed by technical support.
Page 115: Table 6-1 Default Host Channel Ids
Default Host Channel IDs TABLE 6-1 Channel Primary Controller ID Secondary Controller ID (PID) (SID) Channel 0 Channel 1 Channel 4 Channel 5 The number of host IDs depends on the configuration mode: In point-to-point mode, only one ID should be assigned to each channel. In loop mode, up to 16 IDs can be assigned to each Fibre Channel, not to exceed a maximum of 32 IDs per array.
Page 116 1. From the Main Menu, choose “view and edit Scsi channels.” 2. Select the host channel whose Primary/Secondary ID you want to edit and press Return. 3. Choose “view and edit scsi Id.” If host IDs have already been configured on the host channel, they will be displayed. If no host IDs have been configured, a dialog is displayed that says “No SCSI ID Assignment - Add Channel SCSI ID?”...
Page 117: Selecting Sequential Or Random Optimization
7. Choose Yes to confirm. A confirmation message is displayed: NOTICE: Change made to this setting will NOT take effect until the controller is RESET. Prior to resetting the controller, operation may not proceed normally. Do you want to reset the controller now? 8.
Page 118: Maximum Number Of Disks And Maximum Usable Capacity For Random And Sequential Optimization
Note – Your array is preconfigured with Sequential Optimization. If Random Optimization is more appropriate for your use, you need to delete all of the preconfigured logical drives, change the optimization mode, reboot the array, and then create new logical drives. The type of application accessing the array determines whether random or sequential I/O should be applied.
Page 119: Sun Storedge 3510 Fc Array
6.1.7.1 Sun StorEdge 3510 FC Array contains the maximum number of disks that the Sun StorEdge 3510 FC TABLE 6-2 array can support in a logical drive. contains the maximum usable capacity TABLE 6-3 of a Sun StorEdge 3510 FC array logical drive. Note –...
Page 120: Table 6-4 Maximum Number Of Disks Per Sun Storedge 3511 Fc Array Logical Drive
Maximum Number of Disks per Sun StorEdge 3511 FC Array Logical Drive TABLE 6-4 Disk Capaci- RAID 5 RAID 5 Se- RAID 3 RAID 3 Se- RAID 1 RAID 1 Se- RAID 0 RAID 0 Se- ty (GB) Random quential Random quential Random...
Page 121: Sun Storedge 3510 Fc Array Default Configurations
6.1.8.1 Sun StorEdge 3510 FC Array Default Configurations For a 12-drive array, the RAID array is preconfigured as follows: Two RAID 5 logical drives, consisting of five physical drives each Two global spares For a 5-drive array, the RAID array is preconfigured as follows: One RAID 5 logical drive, consisting of four physical drives One global spare 6.1.8.2...
Page 122: Completing Basic Configuration
RAID Level Definitions TABLE 6-6 RAID Level Description RAID 5 Striping with distributed parity. This is the best-suited RAID level for multitasking or transaction processing.The data and parity are striped across each drive in the logical drive, so that each drive contains a combination of data and parity blocks.
Page 123 Note – Alternatively, you can use the graphical user interface described in the Sun StorEdge 3000 Family Configuration Service User’s Guide to map partitions and logical drives to host LUNs. 6.1.10 Preparing for Logical Drives Larger Than 253 Gbyte The Solaris operating environment requires drive geometry for various operations, including newfs.
Page 124 1. Choose “view and edit Configuration parameters → Host-Side SCSI Parameters → Host Cylinder/Head/Sector Mapping Configuration → Head Ranges - Variable → 255 Heads.” A confirmation dialog is displayed. 2. Choose Yes to confirm. 3. Choose “Cylinder Ranges - Variable → < 65536 Cylinders.” A confirmation dialog is displayed.
Page 125: Deleting Logical Drives
6.1.11 Deleting Logical Drives To assign a different RAID level or a different set of drives to a logical drive, you must unmap and delete the logical drive, and then create a new logical drive. Deleting logical drives is an optional operation when configuring a Sun StorEdge 3510 FC array.
Page 126 7. From the Main Menu, choose “view and edit Logical drives.” 8. Select a logical drive you unmapped and want to delete, and press Return. 9. Choose “Delete logical drive.” A warning notice is displayed asking if you are certain you want to delete the logical drive and its data.
Page 127: Creating Logical Drives
10. Choose Yes to confirm. 6.1.12 Creating Logical Drives If you are configuring a Sun StorEdge 3511 FC array, the NRAID logical drives in your array must be reconfigured to meet your network needs (see “Reviewing Default Logical Drives and RAID Levels” on page 6-14).
Page 128: Figure 6-3 Example Of An Allocation Of Local And Global Spare Drives In Logical Configurations
Note – Logical volumes are unsuited to some modern configurations, such as Sun Cluster environments, and do not work in those configurations. Use logical drives instead. For more information see “Summary of Array Configuration” on page 5-6. Note – If you want to create 1024 LUNs in loop mode, you need eight logical drives with each having 128 partitions.
Page 129 Create a logical drive with the following steps: 1. From the Main Menu, choose “view and edit Logical drives.” 2. Select the first available unassigned logical drive (LG) and press Return. You can create as many as eight logical drives using physical drives on any loop. 3.
Page 130 Note – RAID 5 is used as an example in the following steps. For brief descriptions of RAID levels, see “Reviewing Default Logical Drives and RAID Levels” on page 6-14. For more information about RAID levels, refer to the Sun StorEdge 3000 Family RAID Firmware User’s Guide. 5.
Page 131 b. After all physical drives have been selected for the logical drive, press the Escape key. A list of selections is displayed. 6. (Optional) Set the maximum physical drive capacity. a. (Optional) Choose “Maximum Drive Capacity.” Note – Changing the maximum drive capacity reduces the size of the logical drive and leaves some disk space unused.
Page 132 Note – A global spare cannot be created while creating a logical drive. The spare chosen here is a local spare and automatically replaces any failed disk drive in this logical drive. The local spare is not available for any other logical drive.
Page 133 a. Choose “Logical Drive Assignments.” A confirmation message is displayed. If you use two controllers for a redundant configuration, a logical drive can be assigned to either of the controllers to balance the workload. Logical drive assignments can be changed later, but that operation requires a controller reset to take effect.
Page 134: Changing A Logical Drive Controller Assignment (Optional)
Note – You can press the Escape key to remove the initialization progress bar and continue working with menu options to create additional logical drives. The percentage of completion for each initialization in progress is displayed in the upper left corner of the window. The following message appears when the initialization is completed: 12.
Page 135 To balance the workload between both controllers, you can distribute your logical drives between the primary controller (displayed as the Primary ID or PID) and the secondary controller (displayed as the Secondary ID or SID). Caution – In single-controller configurations, do not disable the Redundant Controller Function and do not set the controller as a secondary controller.
Page 136: Creating Or Changing A Logical Drive Name (Optional)
4. Choose Yes to confirm. A confirmation message is displayed: NOTICE: Change made to this setting will NOT take effect until the controller is RESET. Prior to resetting the controller, operation may not proceed normally. Do you want to reset the controller now? 5.
Page 137: Partitioning A Logical Drive (Optional)
6.1.15 Partitioning a Logical Drive (Optional) You can divide a logical drive into several partitions, or use the entire logical drive as a single partition. You can configure up to 128 partitions on each logical drive. For guidelines for setting up 1024 LUNs, see “Planning for 1024 LUNs (Optional, Loop Mode Only)”...
Page 138 1. From the Main Menu, choose “view and edit Logical drives.” 2. Select the logical drive you want to partition and press Return. 3. Choose “Partition logical drive.” If the logical drive has not already been partitioned, the following message is displayed: Partitioning the Logical Drive will make it no longer eligible for membership in a logical volume.
Page 139 4. Choose Yes to confirm that you want to partition the logical drive if you do not want to include it in a logical volume. A list of the partitions on this logical drive is displayed. If the logical drive has not yet been partitioned, all the logical drive capacity is listed as “partition 0.”...
Page 140 7. Choose Yes to confirm. The remaining capacity of the logical drive is automatically allotted to the next partition. In the following figure, a partition size of 20000 MB was entered; the remaining storage of 14476 MB is allocated to the partition below the newly-created partition.
Page 141: Mapping Logical Drive Partitions To Host Luns
Mapping Logical Drive Partitions to Host LUNs The next step is to map each partition you created as one system drive (host ID/LUN). The host adapter recognizes the system drives after reinitializing the host bus. Note – The UNIX and Solaris format and Solaris probe-scsi-all commands do not display all mapped LUNs if there is not a partition or logical drive mapped to LUN 0.
Page 142: Figure 6-5 Mapping Partitions To Host Id/Luns
To create a total of 1024 LUNs, see “Planning for 1024 LUNs (Optional, Loop Mode Only)” on page 6-37. Each ID/LUN looks like a storage device to the host computer. Channel 1 Channel 3 ID 0 ID 1 5 GB Logical drive 0 LUN 0 LUN 0...
Page 143: Planning For 1024 Luns (Optional, Loop Mode Only)
6.2.1 Planning for 1024 LUNs (Optional, Loop Mode Only) If you want to create 1024 LUNs, which is the maximum number of storage partitions that can be mapped for a RAID array, you must map 32 IDs to the array’s channels.
Page 144 1. From the Main Menu, choose “view and edit Host luns.” A list of available channels and their associated controllers is displayed. 2. Select a channel and host ID on the primary controller and press Return. 6-38 Sun StorEdge 3000 Family Installation, Operation, and Service Manual • May 2004...
Page 145 3. If the Logical Drive and Logical Volume menu options are displayed, choose Logical Drive. The LUN table is displayed. 4. Use the arrow keys to highlight the desired LUN and press Return to select it. Note – A device must be mapped to LUN 0 as a minimum. A list of available logical drives is displayed.
Page 146 5. Select a logical drive (LD). The partition table is displayed. 6. Select a partition. A menu displays Map Host LUN and Create Host Filter Entry. 7. Choose Map Host LUN. A dialog displays your configured host LUN mapping. 6-40 Sun StorEdge 3000 Family Installation, Operation, and Service Manual •...
Page 147 8. Choose Yes to confirm the host LUN mapping. The partition is now mapped to a LUN. 9. Repeat Step 4 through Step 8 to map additional partitions to host LUNs on this channel and logical drive. 10. Press Escape. 11.
Page 148: Setting Up Host Filter Entries
14. To verify unique mapping of each LUN (unique LUN number, unique DRV number, or unique Partition number): a. From the Main Menu, choose “view and edit Host luns.” b. Select the appropriate controller and ID and press Return to review the LUN information.
Page 149 WWN1 WWN2 WWN3 LUN ID LUN ID LUN ID (1) 210000E08B021D15 (2) 210000E08B02DE2F (3) 210000E08B22DE2F Example of LUN Filtering FIGURE 6-6 An advantage of LUN filtering is that it allows many hosts to attach to an array through a common Fibre Channel port and still maintain LUN security. Each Fibre Channel device is assigned a unique identifier called a world wide name (WWN).
Page 150: Creating Host Filter Entries
Prior to using the LUN Filter feature, identify which array is connected to which HBA card, and the WWN assigned to each card. This procedure varies according to the HBA you are using. Refer to the appendix for your host for instructions on identifying the WWN for your host.
Page 151 3. If the Logical Drive and Logical Volume menu options are displayed, choose Logical Drive. The LUN table is displayed. 4. Use the arrow keys to highlight the desired LUN and press Return to select it. Note – A device must be mapped to LUN 0 as a minimum. A list of available logical drives is displayed.
Page 152 5. Select a logical drive (LD). The partition table is displayed. 6. Select a partition. A menu displays Map Host LUN and Create Host Filter Entry. 7. Choose “Create Host Filter Entry → Add from current device list.” This step automatically performs a discovery of the attached HBAs. Alternatively, you can add them manually.
Page 153 8. From the device list, select the WWN number of the server for which you are creating a filter and press Return. A confirmation dialog is displayed. 9. Choose Yes to confirm. A filter configuration screen displays the filter you are creating. 10.
Page 154 a. To edit the WWN, use the arrow keys to highlight “Host-ID/WWN” and press Return. Type the desired changes, and press Return. Caution – Be sure that you edit the WWN correctly. If the WWN is incorrect, the host will be unable to recognize the LUN. b.
Page 155 Note – If no host has been granted access to the selected LUN (by having its Filter Type set to Include), all hosts can access that LUN. In this configuration, you can deny specific hosts access to that LUN by configuring their Filter Type to Exclude. Once any host is granted access to the LUN, only hosts with explicit access (Filter Type set to Include) can access that LUN.
Page 156 11. Verify all settings and press Esc to continue. Note – Unlike most firmware operations where you must complete each entry individually and repeat the procedure if you want to perform a similar operation, you can add multiple WWNs to your list before you actually create the host filter entry in Step 13.
Page 157: Creating Device Files For The Solaris Operating Environment
15. At the confirmation screen, verify the settings, choose Yes and press Return to complete the host LUN filter entry. A mapped LUN displays a number and a filtered LUN displays an “M” for masked LUN in the host LUN partition window. 6.2.4 Creating Device Files for the Solaris Operating Environment...
Page 158: Saving Configuration (Nvram) To A Disk
# reboot -- -r 6.2.5 Saving Configuration (NVRAM) to a Disk You can back up your controller-dependent configuration information. Use this function to save configuration information whenever you change your array’s configuration. The controller-dependent configuration information is stored in the disk reserved space of all drives that have been configured into logical drives.
Page 159: Using Software To Monitor And Manage The Sun Storedge Fibre Channel Array
If you prefer to save and restore all configuration data, including LUN mapping information, use Sun StorEdge Configuration Service and CLI software in addition to saving your NVRAM controller configuration to disk. The information saved this way can be used to rebuild all logical drives and therefore can be used to completely duplicate an array configuration to another array.
Page 160: Other Supported Software
6.3.1 Other Supported Software Multipathing for the Sun StorEdge 3510 and 3511 FC arrays is provided by Sun StorEdge Traffic Manager software. Multipathing software is required when you have multiple connections from a server to an array (directly or through a switch), want to avoid a single point of failure, and are setting up a configuration with redundant pathing.
Page 161: The Veritas Volume Manager Asl
Note – JBOD arrays require a license from VERITAS to enable any of its advanced features. Refer to VERITAS Volume Manager Release Notes or contact VERITAS Software Corporation for licensing terms and information. 6.3.3 The VERITAS Volume Manager ASL VERITAS has provided an Array Software Library (ASL) that must be installed on the same host system as the Volume Manager 3.2 or 3.5 software to enable the software to recognize a Sun StorEdge 3510 or 3511 FC array.
Page 162 6-56 Sun StorEdge 3000 Family Installation, Operation, and Service Manual • May 2004...
Page 163: Table 7-1 Front Panel Led Status When Array Is First Powered On
C H A P T E R Checking LEDs This chapter describes the front and back panel LEDs, which display the operating status of all drives and modules. Topics covered in this chapter are: “LEDs When The Array Is First Powered On” on page 7-1 “Front Panel LEDs”...
Page 164: Table 7-2 Front Panel Leds
Front Panel LEDs The drive LEDs are located between the rows of drives on the front panel as shown . The system operation LEDs are located on the right ear of the chassis FIGURE 7-1 and shown in FIGURE 7-2 •...
Page 165: Checking Leds
Power Temp Event Reset push button Chassis Ear LEDs and Reset Button on Front Panel FIGURE 7-2 lists the front panel LEDs and describes LED activity. TABLE 7-2 Front Panel LEDs TABLE 7-2 LED Color Description Drive Solid green Good: Drive power-up and spin-up OK. Blinking green Good: Indicates drive activity.
Page 166: Correcting Ses Or Pld Firmware Version Conflicts
Front Panel LEDs (Continued) TABLE 7-2 LED Color Description Event (Caution icon) Indicates any abnormal or failure Solid green Normal operation of I/O board. event in the I/O board. Solid amber Failed I/O board. Blinking amber Indicates that the version of the SES firmware or associated hardware PLD code on one controller does not match that on the other controller.
Page 167: I/O Controller Module Leds
7.3.1 I/O Controller Module LEDs shows the Sun StorEdge 3510 FC Array I/O controller module and the FIGURE 7-3 LEDs on its back panel. shows the Sun StorEdge 3511 FC Array I/O FIGURE 7-4 controller module and the LEDs on its back panel. Ethernet link Ethernet active Battery...
Page 168: Figure 7-5 I/O Expansion Module For A Sun Storedge 3510 Fc Expansion Unit
show I/O expansion modules and their LEDs for the Sun FIGURE 7-5 FIGURE 7-6 StorEdge 3510 FC expansion unit and the Sun StorEdge 3511 FC expansion unit SFP link status I/O activity RAID controller status SFP speed I/O Expansion Module for a Sun StorEdge 3510 FC Expansion Unit FIGURE 7-5 SFP link status Activity LED...
Page 169 I/O Controller Module and Battery Module LEDs (Continued) TABLE 7-3 Purpose LED Color Definition Status of Ethernet Off – Active connection on inactive controller, Ethernet link link or inactive connection (inactive controller) Status of Ethernet Flashing green – Busy Ethernet active activity RAID controller Status of controller...
Page 170: Power Supply And Fan Module Leds
7.3.2 Power Supply and Fan Module LEDs Power Supply LEDs TABLE 7-4 Purpose LED Color Definition Monitors the DC output voltage within Solid green Power supply and fans are tolerance specification. Overcurrent good. protection shutting down any voltage output is also displayed. Solid amber Failed: One or more output Voltage thresholds:...
Page 171: Maintaining Your Array
C H A P T E R Maintaining Your Array This chapter covers the following maintenance and troubleshooting topics: “Quick Installation (Reserved)” on page 8-2 “Battery Operation” on page 8-2 “Silencing Audible Alarms” on page 8-4 “Checking Status Windows” on page 8-6 “Logical Drive Status Table”...
Page 172: Quick Installation (Reserved)
Quick Installation (Reserved) This menu option is not used in normal operation. It is reserved for special use in special situations, and only when directed by technical support. Caution – Do not use this menu option unless directed by technical support. Using this menu option will result in the loss of your existing configuration and all data you have on the devices.
Page 173: Table 8-1 Battery Status Indicators
Battery Status Indicators TABLE 8-1 Battery Display Description ----- Discharged; the battery is automatically recharged when it reaches this state. +---- Adequately charged to maintain cache memory for 72 hours or more in case of power loss. Automatic recharging occurs when the battery status drops below this level.
Page 174: Silencing Audible Alarms
Silencing Audible Alarms An audible alarm indicates that either a component in the array has failed or a specific controller event has occurred. Error conditions and controller events are reported by event messages and event logs. Component failures are also indicated by LED activity on the array.
Page 175: Table 8-2 Silencing The Alarm
2. Depending on whether the cause of the alarm is a failed component or a controller event and which application you are using, silence the alarm as specified in the following table. Silencing the Alarm TABLE 8-2 Cause of Alarm To Silence Alarm Failed Component Use a paperclip to push the Reset button on the right ear of the array.
Page 176: Checking Status Windows 8-6
Checking Status Windows The status windows used to monitor and manage the array are described in the following sections: “Logical Drive Status Table” on page 8-6 “Physical Drive Status Table” on page 8-8 “Channel Status Table” on page 8-10 “Controller Voltage Temperature Status” on page 8-13 “Viewing SES Status”...
Page 177: Table 8-3 Parameters Displayed In The Logical Drive Status Window
shows definitions and values for logical drive parameters. TABLE 8-3 Parameters Displayed in the Logical Drive Status Window TABLE 8-3 Parameter Description Logical drive number P0: Logical drive 0 of the primary controller where P = primary controller and 0 = logical drive number S1: Logical drive 1 of the secondary controller where S = secondary controller and 1 = logical drive number Logical drive ID number (controller-generated)
Page 178: Physical Drive Status Table
Parameters Displayed in the Logical Drive Status Window (Continued) TABLE 8-3 Parameter Description Number of standby drives available for the logical drive. This includes local spare and global spare drives available for the logical drive. Number of failed drive members in the logical drive Name Logical drive name (user configurable) To handle failed, incomplete, or fatal failure status, see...
Page 179: Table 8-4 Parameters Displayed In The Physical Drive Status Window
Parameters Displayed in the Physical Drive Status Window TABLE 8-4 Parameters Description Slot User configurable drive slot number. This field is blank unless you enter a slot number using “view and edit scsi Drive → set slot Number.” Channel that is assigned to the drive ID of the drive Size (MB) Drive capacity in megabytes...
Page 180: Channel Status Table
A physical drive has a USED status when it was once part of a logical drive but no longer is. This can happen, for instance, when a drive in a RAID 5 array is replaced by a spare drive and the logical drive is rebuilt with the new drive. If the removed drive is later reinstalled in the array and scanned, the drive status is identified as USED because the drive still has data on it from a logical drive.
Page 181: Table 8-5 Parameters Displayed In The Channel Status Table
The Channel Status Table is displayed with the status of all channels on the array. Note – Each controller has a separate RS232 port, as well as an Ethernet port. This architecture ensures continuous communication should a controller fail. Since the connection is established with only one controller (even when the array is in redundant mode), the CurSyncClk and CurWid settings are displayed for the connected controller.
Page 182 Parameters Displayed in the Channel Status Table (Continued) TABLE 8-5 Parameters Description Secondary controller’s ID mapping: Multiple IDs (Host Channel mode only). The ID to which host LUNs are mapped in the host channel mode. ID for the secondary controller in drive channel mode.
Page 183: Controller Voltage Temperature Status
8.4.4 Controller Voltage Temperature Status 8.4.4.1 View Controller Voltage and Temperature Status Perform the following steps to check the controller voltage and temperature. 1. Choose “view and edit Peripheral devices → Controller Peripheral Device Configuration → View Peripheral Device Status.” Components with voltage and temperatures monitoring are displayed and identified as normal or out-of-order.
Page 184 2. Select a threshold you want to view or edit and press Return. 3. Repeat Step 2 as many times as necessary to display the threshold ranges and triggering events. 4. To edit a threshold level or other editable value, backspace over the existing information and type the new value.
Page 185: Viewing Ses Status
8.4.5 Viewing SES Status The array’s SCSI Enclosure Services (SES) processor, located on the controller I/O module, monitors environmental conditions and is supported by Sun StorEdge Configuration Service and the command-line interface. For Sun StorEdge 3510 FC JBOD arrays only, both Sun StorEdge Configuration Service and the CLI access the SES processor using device files in /dev/es, such as /dev/es/ses0, as shown in the following example: # sccli...
Page 186: Ses Temperature Sensor Locations
2. Select an item from the list and press Return to display information about it or see a submenu of its component attributes. Choosing Overall Status displays the status of the SES device and its operating temperature. 3. Select other attributes in which you are interested and press Return to view additional environmental conditions.
Page 187: Identifying Fans
Sun StorEdge 3510 and 3511 FC Array Temperature Sensor Locations TABLE 8-6 Element ID Description Drive Midplane Right Temperature Sensor #5 Drive Midplane Right Temperature Sensor #6 Upper IOM Left Temperature Sensor #7 Upper IOM Left Temperature Sensor #8 Lower IOM Temperature Sensor #9 Lower IOM Temperature Sensor #10 Left PSU Temperature Sensor #11 Right PSU Temperature Sensor #12...
Page 188: Viewing Event Logs On The Screen
Front of Array FAN 0 FAN 2 FAN 1 FAN 3 PS 0 PS 1 Back of Array Cooling Fan Locations FIGURE 8-1 8.4.8 Viewing Event Logs on the Screen A controller event log records events and alarms that occur after the system is powered on.
Page 189 1. From the Main Menu, choose “view and edit Event logs” to view the event logs. A log of recent events is displayed. Note – The controller can store up to 1000 event log entries. The event log records configuration and operational events as well as error messages and alarm events. 2.
Page 190: Restoring Your Configuration (Nvram) From Disk
3. To clear events from the log after you have read them, use your arrow keys to move down to the last event you want to clear and press Return. A “Clear Above xx Event Logs?” confirmation message is displayed. 4.
Page 191 Caution – Before restoring a configuration file, be certain that the configuration file you apply matches the array to which you apply it. If host IDs, logical drive controller assignments, or other controller-dependent configuration information described in the Chapter 6 has changed since the configuration file was saved, you might lose access to mismatched channels or drives.
Page 192: Upgrading Firmware
Upgrading Firmware From time to time, firmware upgrades are made available as patches that you can download from SunSolve Online, located at: http://sunsolve.sun.com Each patch applies to one or more particular piece of firmware, including: Controller firmware Drive firmware SES firmware PLD firmware SunSolve has extensive search capabilities that can help you find these patches, as well as regular patch reports and alerts to let you know when firmware upgrades...
Page 193: Patch Downloads
Caution – Before updating your firmware, make sure that the version of firmware you want to use is supported by your array. Refer to the release notes for your array for Sun Microsystems patches containing firmware upgrades that are available for your array. See SunSolve Online for subsequent patches containing firmware upgrades.
Page 194: Controller Firmware Upgrade Features
Note – Disk drive firmware is provided through Sun disk firmware patches which include the required download utility. Sun disk firmware patches are separate from the Sun StorEdge 3000 family firmware patches. Do not use the CLI or Sun StorEdge Configuration Service to download disk drive firmware.
Page 195: Installing Controller Firmware Upgrades From The Firmware Application (Windows Only)
8.6.4 Installing Controller Firmware Upgrades From the Firmware Application (Windows Only) You can use a Microsoft Windows terminal emulation session with ZMODEM capabilities to access the firmware application. To upgrade the RAID controller firmware through the serial port and the firmware application, perform one of the following procedures: 8.6.4.1 Install Boot Record and Firmware Binary...
Page 196: Upgrading Ses And Pld Firmware
8.6.5 Upgrading SES and PLD Firmware When you replace an I/O controller, the new controller might have a version of SES or PLD firmware different from the other controller in your array. If this mismatch occurs, when you install a controller you hear an audible alarm and see a blinking amber Event LED.
Page 197: Placing The Bezel And Ear Caps Back Onto The Chassis
4. Note the location of the chassis bezel holes on each ear. 5. Remove the plastic caps from the front left and right ears of the array. Both plastic caps are removed in the same way. a. Squeeze both sides of the cap at the top and the bottom. b.
Page 198 8-28 Sun StorEdge 3000 Family Installation, Operation, and Service Manual • May 2004...
Page 199: Troubleshooting Your Array
C H A P T E R Troubleshooting Your Array This chapter covers the following maintenance and troubleshooting topics: “RAID LUNs Not Visible to the Host” on page 9-2 “Controller Failover” on page 9-2 “Rebuilding Logical Drives” on page 9-3 “Automatic Logical Drive Rebuild”...
Page 200: Raid Luns Not Visible To The Host
RAID LUNs Not Visible to the Host Caution – When mapping partitions to LUN IDs, there must be a LUN 0. Otherwise, none of the LUNs will be visible. By default, all RAID arrays are preconfigured with one or two logical drives. For a logical drive to be visible to the host server, its partitions must be mapped to host LUNs.
Page 201: Rebuilding Logical Drives
A failed controller is managed by the surviving controller, which disables and disconnects from its counterpart while gaining access to all the signal paths. The surviving controller then manages the ensuing event notifications and takes over all processes. It is always the primary controller regardless of its original status, and any replacement controller afterward assumes the role of the secondary controller.
Page 202 If there is no local spare drive available, the controller searches for a global spare drive. If there is a global spare, the controller automatically uses the global spare to rebuild the logical drive. Failed Drive Swap Detect. If neither a local spare drive nor a global spare drive is available, and the “Periodic Auto-Detect Failure Drive Swap Check Time”...
Page 203: Figure 9-1 Automatic Rebuild
One member drive fails in a logical drive Any local spare Rebuild using the drive assigned to local spare drive logical drive? Any global spare Rebuild using the drive assigned to global spare drive logical drive? “Periodic Auto- Waiting for Detect Failure spare drive to be Drive Swap Check...
Page 204: Manual Rebuild
9.3.2 Manual Rebuild When a user applies forced-manual rebuild, the controller first determines whether there is a local spare assigned to the logical drive. If there is, the controller automatically starts to rebuild. If no local spare is available, the controller searches for a global spare. If there is a global spare, the controller begins to rebuild the logical drive.
Page 205: Concurrent Rebuild In Raid 1+0
User applies forced- manual rebuild Any local spare Rebuild using the drive assigned to local spare drive logical drive? Any global spare Rebuild using the drive assigned to global spare drive logical drive? Has the failed Rebuild using the drive been new drive replaced? Exit...
Page 206: Identifying A Failed Drive For Replacement
Identifying a Failed Drive for Replacement If there is a failed drive in a RAID 5 logical drive, replace the failed drive with a new drive to keep the logical drive working. Caution – When trying to remove a failed drive, if you mistakenly remove the wrong drive in the same logical drive, you will no longer be able to access the logical drive.
Page 207: Flash Selected Drive
3. Choose “Identify scsi drive → flash All drives.” This option flashes the activity LEDs of all of the drives in the drive channel. The option to change the Flash Drive Time is displayed. 4. (Optional) Type a Flash Drive Time from 1 to 999 seconds and press Return. A confirmation message is displayed.
Page 208: Flash All Scsi Drives
LED flashes Disk 1 Disk 4 Disk 7 Disk 10 Disk 5 Disk 8 Disk 11 Disk 2 Disk 3 Disk 6 Disk 9 Disk 12 Flashing the Drive LED of a Selected Drive FIGURE 9-3 9.4.2 Flash All SCSI Drives The “Flash All SCSI Drives”...
Page 209: Flash All But Selected Drive
9.4.3 Flash All But Selected Drive With this menu option, the read/write LEDs of all connected drives except the selected drive flash for a configurable period of time from 1 to 999 seconds. LED is not flashing Disk 1 Disk 4 Disk 7 Disk 10 Disk 5...
Page 210 3. Physically check that all the drives are firmly seated in the array and that none have been partially or completely removed. 4. In the firmware Main Menu, choose “view and edit Logical drives,” and look for: Status: FAILED DRV (one failed drive) Status: FATAL FAIL (two or more failed drives) 5.
Page 211: Using The Reset Push Button
http://www.sun.com/products-n-solutions/hardware/docs/ Network_Storage_Solutions/Workgroup/3510 http://www.sun.com/products-n-solutions/hardware/docs/ Network_Storage_Solutions/Workgroup/3511 Using the Reset Push Button The Reset push button servers two purposes: To test that LEDs work. To test that the LEDs work, use a paperclip to press and hold the Reset button for 5 seconds. All the LEDs should change from green to amber when you perform this test.
Page 212: Troubleshooting Flowcharts
and Editing Configuration Parameters” chapter of the Sun StorEdge 3000 Family RAID Firmware User’s Guide for cautions about particular parameter settings that should be avoided. In particular, do not set the “Periodic SAF-TE and SES Device Check Time” to less than one second, and do not set the “SCSI I/O Timeout” to anything less than 15 seconds, and preferably no less than the Fibre Channel default of 30 seconds.
Page 213 Notes Power supply or fan problem A fan can continue to spin normally even when a power supply has failed. Prior to replacing a chassis, try the following: --Reseat the FRU that is not operating correctly. --Swap the questionable FRU with a known-good FRU from the same array. Front panel Check power power LED...
Page 214: Figure 9-2 Power Supply Or Fan Module Flowchart, 2 Of
Power supply or fan problem Power supply Is the power module LED Plug it in. cord connected? amber? Resolved? Is the power supply Reseat the module module completely and turn on the seated and the power switch. switch turned on? Resolved? Try a known Is the fan...
Page 215: Drive Leds
9.9.2 Drive LEDs Before you perform the drive LED troubleshooting procedures, you might want to use the firmware application to identify a failed drive. See “Identifying a Failed Drive for Replacement” on page 9-8 for more details. For overview information about drive LEDs and how they work, see “Front Panel LEDs”...
Page 216: Figure 9-3 Fc Drive Leds Flowchart, 1 Of
Drive LEDs problem (FC) Power off. Move drive to new slot. Is only Check View and Is drive Power on. one drive LED Edit SCSI displayed? amber? drives menu. Check drive to see if it is displayed. All drive Does drive Rotate drive into Replace chassis.
Page 217: Front Panel Leds
Drive LEDs problem (FC) Remove the right end cap. Refer to Check that the Reset button is FRU Installation All front panel not jammed. LEDs stop Guide for Replace chassis. LEDs flashing flashing? Check that LED ribbon cable in instructions amber? right ear is not loose.
Page 218 Front panel LEDs problem (FC) Adjust end cap to ensure reset button is not depressed. Remove the right end cap. front panel Check that the Reset button LEDs flashing is not jammed. amber? Check that LED ribbon cable in right ear is not loose. Replace the end cap.
Page 219 Front panel LEDs problem (FC) Front Are both Are the Is either panel power Is the power power cords power/cooling power Replace FRU. switches connected? well FRU LED seated? amber? amber? Turn them Connect Seat them. them. Front Is either Is the LED panel fan power/cooling...
Page 220: Figure 9-7 Front Panel Leds Flowchart, 3 Of
Front panel LEDs problem (FC) Is the Check ambient Go to 3D. Is Temp LED Is Fan temperature temp. within amber? LED amber also? in Event Log environmental messages. limits? Check that LED Follow procedure ribbon cable in for "Fan LED right ear is not amber?"...
Page 221: Figure 9-8 Front Panel Leds Flowchart, 4 Of
Notes 55 degrees Celsius equals 131 degrees Front panel LEDs problem (FC) Fahrenheit. Prior to replacing a chassis, try the following: --Reseat the FRU that is not operating correctly. --Swap the questionable FRU with a known-good Verify the air FRU from the same array. conditioning is working properly.
Page 222: I/O Controller Module
9.9.4 I/O Controller Module The following flowchart provides troubleshooting procedures for the I/O controller module. 9-24 Sun StorEdge 3000 Family Installation, Operation, and Service Manual • May 2004...
Page 223: Figure 9-9 I/O Controller Module Flowchart
I/O controller module problem (FC) Replace Try a SFP Link LED Replace Replace I/O SFP with known known good amber? the cable. controller module. good SFP. HBA. Resolved? Resolved? Resolved? Power off. Check event messages in Replace I/O controller RAID controller Place known good I/O firmware or software module.
Page 224 9-26 Sun StorEdge 3000 Family Installation, Operation, and Service Manual • May 2004...
Page 225: Sun Storedge 3510 And 3511 Fc Array Specifications
A P P E N D I X Sun StorEdge 3510 and 3511 FC Array Specifications This appendix provides the specifications for the Sun StorEdge 3510 and 3511 FC arrays. The topics covered are: “Physical Specifications” on page A-2 “Sun StorEdge 3510 and 3511 FC Array Highlights” on page A-3 “Agency Approvals and Standards”...
Page 226: Physical Specifications
Physical Specifications Sun StorEdge 3510 and 3511 FC Array Physical Specifications TABLE A-1 Description Desktop Rackmount Height 3.64 in. / 9.25 cm 2U (3.45 in. / 8.76 cm) Width 19 in. / 48.26 cm 17.56 in. / 44.60 cm (body) Depth Main chassis 18 in.
Page 227: Sun Storedge 3510 And 3511 Fc Array Highlights
Sun StorEdge 3510 and 3511 FC Array Highlights Feature Description General • Up to 12 hot-pluggable drives in a 2U (3.45 in. / 8.76 cm high) chassis • Autosensing AC or DC power supplies • Dual-host access in certain configurations Density •...
Page 228 A.2.1 Hardware Loop ID Each device communicating on an arbitrated loop requires an AL_PA, the Arbitrated Loop Physical Address. The host Fibre Channel supports a single hard loop ID in the range from 0 to 125. The drive channel allows up to 125 devices to be connected to a single loop.
Page 229: Agency Approvals And Standards
A.2.5 Firmware Dynamic Load Balancing The controller provides a mechanism to equally distribute I/O loads between channels in a redundant loop configuration. Agency Approvals and Standards Product Safety Standard Country U.S. UL Listed to UL60950:2000, 3rd Edition Canada CSA Standard CAN/CSA-C22.2 No. 60950-00 3rd Edition Germany TÜV European Union...
Page 230 Product Safety Standard Electromagnetic Interference Test Standard Harmonics Emissions EN 61000-3-2:2000 (No Limits) Voltage Flicker EN 61000-3-3:1995/A1:2001 (No Limits) EN 55024 (8kV Contact, 15kV Air) RF Field EN 55024 (10V/m) Electrical Fast Transient Burst EN 55024 (1kV I/O, 2kV Power) Surge EN 55024 (1kV I/O, 1kV Power L-L, 2kV Power L-G) RF Conducted...
Page 231: Using A Standalone Jbod Array (Sun Storedge 3510 Fc Array Only
A P P E N D I X Using a Standalone JBOD Array (Sun StorEdge 3510 FC Array Only) A single Sun StorEdge 3510 FC JBOD array can be connected directly to certain Solaris operating system hosts. This appendix describes the use of Sun StorEdge 3510 FC JBOD arrays.
Page 232: Supported Configurations (Jbod Arrays
Supported Configurations (JBOD Arrays) A Sun StorEdge 3510 FC JBOD array can be attached directly to a single Sun host computer using either single-port or dual-port configurations. See “Single-Port Connection to a Sun StorEdge 3510 FC JBOD Array” on page B-8 “Dual-Port Connections to a Sun StorEdge 3510 FC JBOD Array”...
Page 233: Known Limitations Affecting Sun Storedge 3510 Fc Jbod Arrays
Supported Sun Servers and Connection Methods (JBOD Arrays) (Continued) TABLE B-1 Server Sun Fire™ V120 server Sun Fire V280 server Sun Fire V880 server Known Limitations Affecting Sun StorEdge 3510 FC JBOD Arrays Limitations affecting the Sun StorEdge 3510 FC JBOD array are listed below: Booting from a JBOD disk is not supported in this release.
Page 234: Using Sun Storedge 3000 Family Software Monitoring And Management Tools With Jbod Arrays
Refer to the “Monitoring JBODs” appendix in the Sun StorEdge 3000 family CLI User’s Guide for more information about using these commands. Using Sun StorEdge 3000 Family Software Monitoring and Management Tools with JBOD Arrays The following software management tools are provided on the Sun StorEdge 3000 Family Professional Storage Manager CD, provided with your array.
Page 235 B.5.1.1 Enabling JBOD Support To monitor peripheral device conditions and events on a Sun StorEdge 3510 FC JBOD array from the Sun StorEdge Configuration Service Console, you first need to enable JBOD support. See “Enabling Sun StorEdge 3510 FC JBOD Array Support” on page B-11 for the procedure for enabling JBOD support.
Page 236: Setting The Loop Id On A Sun Storedge 3510 Fc Jbod Array
Setting the Loop ID on a Sun StorEdge 3510 FC JBOD Array When a Sun StorEdge 3510 FC JBOD array is directly attached to a host, unique, hard-assigned loop IDs are assigned to each drive in the JBOD array. A loop ID is the decimal version of an AL_PA.
Page 237: Connecting Sun Storedge 3510 Fc Jbod Arrays
B.6.1 Changing Your ID Switch Setting Perform the following steps to change your ID switch setting: 1. Remove the bezel (the front faceplate). “Replacing the Front Bezel and Ear Caps” on page 8-26 for step-by-step instructions for removing and replacing the front bezel and ear caps. Caution –...
Page 238: Figure B-2 Sun Storedge 3510 Fc Jbod Array Attached To A Single Hba Port
B.7.1 Single-Port Connection to a Sun StorEdge 3510 FC JBOD Array You can connect a Sun StorEdge 3510 FC JBOD array to an FC port, a port on a single-port HBA, or a single port on a dual-port HBA. shows an example FIGURE B-2 of a Sun StorEdge 3510 FC JBOD array with 12 drives, connected to a host computer over a single loop to a single FC port.
Page 239: Figure B-3 Sun Storedge 3510 Fc Jbod Array Attached To Two Hba Ports
B.7.2 Dual-Port Connections to a Sun StorEdge 3510 FC JBOD Array You can also connect a Sun StorEdge 3510 FC JBOD array to both ports on a dual- port HBA, ports on two single-port HBAs, or a port on a single-port HBA and a single port on a dual-port HBA.
Page 240: Table B-4 Example Of 24 Drives Shown On A 12-Disk Sun Storedge 3510 Fc Jbod Array Connected To
Example of 24 Drives Shown on a 12-Disk Sun StorEdge 3510 FC JBOD Array TABLE B-4 Connected to a Host Over Two FC Loops Drive Identifier Drive Identifier (First Loop) (Second Loop) c1t0d0 c2t0d0 c1t1d0 c2t1d0 c1t2d0 c2t2d0 c1t3d0 c2t3d0 c1t4d0 c2t40d0 c1t5d0...
Page 241: Enabling Sun Storedge 3510 Fc Jbod Array Support
B.7.4 Connecting the Sun StorEdge 3510 FC JBOD Array to a Host Computer Use fiber-optic cables to connect one or two HBA ports on the host computer to the Sun StorEdge 3510 FC JBOD array, as shown in FIGURE B-2 FIGURE B-3 1.
Page 242 2. Select the Enable JBOD Support checkbox. 3. To immediately display the JBOD array in the main window, you need to probe for new inventory. Choose “View → View Server” and click Probe. 4. Click OK. The JBOD array is displayed in the main window. In a single-bus configuration, both ports of the JBOD array are connected to one HBA on the server, as shown in the following example:.
Page 243: Downloading Firmware To Disk Drives In A Jbod
Downloading Firmware to Disk Drives in a JBOD For instructions on how to download firmware to disk drives in a JBOD directly attached to a host, refer to the README file in the patch that contains the firmware. B.10 Resizing LUNs Greater than 1 TByte When a LUN is created larger than 1 TByte, the Solaris operating system identifies the LUN as an EFI drive.
Page 244: Troubleshooting Sun Storedge 3510 Fc Jbod Arrays
3. Select option 0 (SMI). Specify Label type[0]: 0 4. Respond to the on-screen prompts to relabel the device. B.11 Troubleshooting Sun StorEdge 3510 FC JBOD Arrays This section describes troubleshooting procedures and error messages you can use to isolate configuration and hardware problems. For additional troubleshooting information refer to the “Troubleshooting Your Array”...
Page 245 After hardware replacement, a problem can usually be considered solved if it does not resurface during a period equal to twice its original frequency of occurrence. For example, if a problem was occurring once a week on average before a potential fix was made, running two weeks without seeing the problem again suggests a successful fix took place.
Page 246 1. From the Main Menu, choose “view and edit Configuration parameters → Drive- side SCSI Parameters → Periodic Drive Check Time.” A list of Periodic Drive Check Time intervals is displayed. 2. Select Disable. A confirmation message is displayed. 3. Select Yes to confirm. Caution –...
Page 247: Figure B-4 Jbod Or Expansion Unit Troubleshooting Flowchart, 1
JBOD or expansion unit problem (FC) Switch drive with Is the Replace Drive light known drive light Replace drive drive with known- Resolved? amber? drive from another green in new again. good drive. slot. slot? Is the drive light green in the original slot? Check event Go to 11B...
Page 248: Figure B-5 Jbod Or Expansion Unit Troubleshooting Flowchart, 2
JBOD or expansion unit problem (FC) Has a Replace Possible midplane controller failure I/O expansion Resolved? failure. occurred? module. Replace chassis. Has a data error Correct data error. occurred? Switch controller with know good controller. Resolved? Replace chassis. Notes Prior to replacing a chassis, try the following: --Reseat the FRU that is not operating correctly.
Page 249: Converting A Jbod To A Raid Array
B.12 Converting a JBOD to a RAID array If you have an FC JBOD and want to convert it to an FC RAID array, refer to the Sun StorEdge 3000 Family FRU Installation Guide for instructions. Appendix B Using a Standalone JBOD Array (Sun StorEdge 3510 FC Array Only) B-19...
Page 250 B-20 Sun StorEdge 3000 Family Installation, Operation, and Service Manual • May 2004...
Page 251: Failed Component Alarm Codes
A P P E N D I X Failed Component Alarm Codes This appendix describes failed component alarm codes. Failed component alarm codes use Morse code dot and dash characters. The dot “.” is a short tone sounding for one unit of time. The dash “-” is a long tone sounding for three units of time.
Page 252: Table C-1 Failed Component Alarm Codes
Failed Component Alarm Codes (Continued) TABLE C-1 Failure Morse Code Letter Morse Code Sound Pattern . . . - Voltage failure Temperature failure . - . SES/PLD firmware mismatch “Front Panel LEDs” on page 7-2 for more information about the SES/PLD firmware mismatch mentioned in TABLE C-1 Caution –...
Page 253: Record Of Settings
A P P E N D I X Record of Settings This appendix provides tables for recording configuration data. Topics covered are: “View and Edit Logical Drives” on page D-2 “LUN Mappings” on page D-4 “View and Edit SCSI Drives” on page D-5 “View and Edit SCSI Channels”...
Page 254: View And Edit Logical Drives
View and Edit Logical Drives D.1.1 Logical Drive Information Disk RAID Reserved Level Size (MB) Status Name Space Sun StorEdge 3000 Family Installation, Operation, and Service Manual • May 2004...
Page 255 D.1.2 Logical Drive Partition Information Partition Size (MB) Partition Size (MB) Appendix D Record of Settings...
Page 256: Lun Mappings
LUN Mappings Pri. / Sec. Logical Drive / Host Channel Controller SCSI ID Logical Volume Partition Size Sun StorEdge 3000 Family Installation, Operation, and Service Manual • May 2004...
Page 257: View And Edit Scsi Drives
View and Edit SCSI Drives LG DRV? Global Spare? Vendor and Slot Channel Size (MB) Speed Local Spare? Product ID Appendix D Record of Settings...
Page 258: View And Edit Scsi Channels
View and Edit SCSI Channels Secondary Controller SCSI Channel Mode (Host / Drive) Primary Controller SCSI IDs Sun StorEdge 3000 Family Installation, Operation, and Service Manual • May 2004...
Page 259: View And Edit Peripheral Devices
View and Edit Peripheral Devices D.5.1 View System Information Firmware version Boot record version Serial number Appendix D Record of Settings...
Page 260: Save Nvram To Disk And Restore From Disk
Save NVRAM to Disk and Restore From Disk Update Save NVRAM to Restore NVRAM Firmware Date Disk or File Date/Location From Disk Date Sun StorEdge 3000 Family Installation, Operation, and Service Manual • May 2004...
Page 261: Cable Pinouts
A P P E N D I X Cable Pinouts This appendix identifies the pinouts for each connector used in the Sun StorEdge 3510 and 3511 FC arrays. Topics covered are: “RJ-45 Connector” on page E-1 “DB9 COM port” on page E-2 RJ-45 Connector Ethernet RJ-45 Socket 10/100 BASE-T FIGURE E-1...
Page 262: Db9 Com Port
Ethernet RJ-45 Pin Description (Continued) TABLE E-1 Pin No. Description Color RX – Green White with brown Brown DB9 COM port The COM port is a female DB9 connector that requires a male DB9 null modem cable. RS-232 DB9 (EIA/TIA 574) View of the Male End FIGURE E-2 Pin Names TABLE E-2...
Page 263: Configuring A Sun Server Running The Solaris Operating Environment
A P P E N D I X Configuring a Sun Server Running the Solaris Operating Environment This appendix provides access information and LUN setup information needed when you connect a Sun StorEdge 3510 or 3511 FC Array to a Sun server running the Solaris operating environment.
Page 264: Accessing The Firmware Application From A Solaris Host
1. Use a null modem serial cable to connect the COM port of the RAID array to an unused serial port on a Solaris workstation. A DB9-to-DB25 serial cable adapter is included in your package contents to connect the serial cable to a DB25 serial port on a workstation. COM port COM port RAID Array COM Port Connected Locally to the Serial Port of a Workstation...
Page 265: Redefining The Baud Rate For The Tip Command
Redefining the Baud Rate for the tip Command This section describes a method for using the Solaris operating environment’s tip command to access the array. Before you can use the tip command, you must redefine the baud rate. You can perform the following steps, or use the tip command with the appropriate command arguments as described in “Using the tip Command for Local Access to the Array”...
Page 266: Using The Tip Command For Local Access To The Array
Using the tip Command for Local Access to the Array You can access the RAID COM port (DB9 connector on the controller module) locally with the following steps. 1. Connect the RAID array COM port to the serial port of a Solaris workstation, as shown in .
Page 267: Figure F-2 Worldwide Name Information Displayed By The Luxadm Command
3. Scroll down the listing to see the Fibre Channel devices and the related WWNs. Worldwide Name Information Displayed by the luxadm command. FIGURE F-2 Appendix F Configuring a Sun Server Running the Solaris Operating Environment...
Page 268 Sun StorEdge 3000 Family Installation, Operation, and Service Manual • May 2004...
Page 269: Configuring A Windows 200X Server Or Windows 200X Advanced Server
A P P E N D I X Configuring a Windows 200x Server or Windows 200x Advanced Server This appendix provides platform-specific host installation and configuration information to use when you connect a Sun StorEdge 3510 or 3511 FC Array to a host running the Windows 2000 Server, Windows 2000 Advanced Server, Windows 2003 Server, or Windows 2003 Advanced Server operating system.
Page 270: Setting Up The Serial Port Connection
“Enabling a Windows 200x Server or Windows 200x Advanced Server to Recognize New Devices and LUNs” on page G-5 “Determining the World Wide Name for Windows 200x Servers and Windows 200x Advanced Servers” on page G-10 Setting Up the Serial Port Connection The RAID controller can be configured by means of a host system running a VT100 terminal emulation program or by a Microsoft Windows terminal emulation program such as HyperTerminal.
Page 271 5. In the Connect To window, select the COM port from the “Connect using:” drop- down menu for that array. 6. Click OK. 7. In the Properties window, set the serial port parameters using the drop-down menus. Set serial port parameters to: 38,400 baud 8 data bits 1 stop bit...
Page 272 8. To save the connection and its settings, choose File → Save. The connection file name is connection-name where connection-name is the name you gave this HyperTerminal connection in Step 9. To make a connection shortcut on your desktop, choose Start → Find → For Files or Folders.
Page 273: Accessing The Firmware Application From A Windows 200X Server Or Windows 200X Advanced Server
Accessing the Firmware Application From a Windows 200x Server or Windows 200x Advanced Server To access the array from a Windows 200x Server or Windows 200x Advanced Server through a serial port, use the HyperTerminal connection you configured in “Setting Up the Serial Port Connection”...
Page 274 1. Boot your system and verify that the HBA basic input/output system (BIOS) recognizes your new FC device. Note – While your system is starting up, you should see your new Fibre Channel devices. 2. If a Found New Hardware Wizard is displayed, click Cancel. You are now ready to partition and format your new devices.
Page 275 6. Choose Create Partition from the pop-up menu. The Create Partition wizard is displayed. 7. Click Next. 8. Select Primary partition and click Next. Appendix G Configuring a Windows 200x Server or Windows 200x Advanced Server...
Page 276 9. Specify the amount of disk space to use or accept the default value, and click Next. 10. Assign a drive letter, if desired, and click Next. 11. Select “Format this partition with the following settings.” a. Specify NTFS as the “File system to use.” Sun StorEdge 3000 Family Installation, Operation, and Service Manual •...
Page 277 b. Make sure the “Perform a Quick Format” checkbox is selected. c. Click Next. A confirmation dialog box displays the settings you have specified. Appendix G Configuring a Windows 200x Server or Windows 200x Advanced Server...
Page 278: Determining The World Wide Name For Windows 200X Servers And Windows 200X Advanced Servers
12. Click Finish. The new partition is formatted and the formatted partition is identified as NTFS in the Computer Management window. 13. Repeat Step 5 through Step 12 for any other new partitions and devices you want to format. Determining the World Wide Name for Windows 200x Servers and Windows 200x Advanced Servers Before you can create host filters, you need to know the world wide name (WWN)
Page 279 Vendor Product Node Name Port ID Qlogic QLA22xx Adapter 210000E08B02DE2F 0000EF “Setting Up Host Filter Entries” on page 6-42 for more information about creating host filters. Appendix G Configuring a Windows 200x Server or Windows 200x Advanced Server G-11...
Page 280 G-12 Sun StorEdge 3000 Family Installation, Operation, and Service Manual • May 2004...
Page 281: Configuring A Linux Server
A P P E N D I X Configuring a Linux Server This appendix provides access information and LUN setup information needed when you connect a Sun StorEdge 3510 or 3511 FC Array to a server running the Linux operating environment. For a list of supported adapters, refer to the release notes for your array.
Page 282 Note – You can also monitor and configure a RAID array over an IP network with the Sun StorEdge Configuration Service program after you assign an IP address to the array. For details, see “Setting Up Out-of-Band Management Over Ethernet” on page 4-20 and refer to the Sun StorEdge 3000 Family Configuration Service User’s Guide.
Page 283: Accessing The Firmware Application From A Linux Server
c. Backspace and edit to select the correct serial port: /dev/ttyS(x) where x is the proper serial port connecting the server to the array. After you edit the line, press Return and the cursor goes back to the line Change which Settings? d.
Page 284: Checking The Adapter Bios
1. To start the Minicom program from the terminal window, type: minicom A pop-up window stating “Initializing Modem” is displayed. When initialization is complete, the following banner is displayed: Welcome to Minicom 2.00.0 Options: History Buffer, F-Key Macros, Search History Buffer, I18n Compiled on Jun 23 2002, 16:14:20.
Page 285: Multiple Lun Linux Configuration
5. Press Escape and go back to Configuration Settings. Highlight Selectable Boot Settings and press Return. This is where you can make the interface bootable or not bootable. 6. Highlight Select Boot Device. Press the Return key to toggle from disabled to enabled.
Page 286: Making An Ext3 File System For Linux
1. Log in as root, or su to root if you are logged in as a user. 2. Add this line to the end of the /etc/modules.conf file and save the file: options scsi_mod max_scsi_luns=255 3. At the system prompt, enter this command and press Return: mkinitrd -f /boot/initrd-2.4.9-e.3.img 2.4.9-e.3 The 2.4.9-e.3 entries refer to the current kernel.
Page 287: Creating A File System
4. On the displayed menu, select “n” for the command action and press Return. Two choices are displayed: e extended p primary partition (1-4) Note – Only four primary partitions are allowed per array. All additional partitions must be added as extended LUNs under one primary partition. Only one primary partition is allowed to have extended LUNs.
Page 288: Creating A Mount Point And Mounting The File System Manually
Creating a Mount Point and Mounting the File System Manually 1. Go to the directory where you want to create a directory that will be the mount point. Then type the following command: mkdir (name) 2. To mount your file system, type the following: mount /dev/sdb(x) / directory-path where x is 1 for this partition and the directory-path is the directory that was created and its location.
Page 289: Determining The World Wide Name For Linux Hosts
4. To verify that fstab was set up correctly, type: mount -a If the mount point and the fstab file are correctly set up, no errors are displayed. 5. To verify that the file system is mounted and list all mounted file systems, type: df -k 6.
Page 290 H-10 Sun StorEdge 3000 Family Installation, Operation, and Service Manual • May 2004...
Page 291: Configuring An Ibm Server Running The Aix Operating Environment
A P P E N D I X Configuring an IBM Server Running the AIX Operating Environment This appendix provides platform-specific host installation and configuration information to use when you connect a Sun StorEdge 3510 or 3511 FC Array to an IBM server running the AIX operating environment.
Page 292: Setting Up A Serial Port Connection
“Mounting the New File System” on page I-8 “Verifying That the New File System Is Mounted” on page I-9 “Determining the World Wide Name for IBM Servers Running AIX” on page I-9 Setting Up a Serial Port Connection The RAID controller can be configured by means of a host system running a VT100 terminal emulation program or by a Microsoft Windows terminal emulation program such as HyperTerminal.
Page 293: Accessing The Firmware Application From An Ibm Server Running Aix
Accessing the Firmware Application From an IBM Server Running AIX The RAID controller can be configured from the host system by means of terminal emulators such as Kermit. Note – You can also monitor and configure a RAID array over an IP network with the Sun StorEdge Configuration Service program after you assign an IP address to the array.
Page 294: Identifying The Device On Which You Will Create A Logical Volume
4. Start the Kermit program and set the parameters as shown. Use the device-specific name for the serial port you are using. In the example, the serial port being configured is /dev/tty0p1. # kermit Executing /usr/share/lib/kermit/ckermit.ini for UNIX... Good Morning! C-Kermit 7.0.197, 8 Feb 2000, for HP-UX 11.00 Copyright (C) 1985, 2000, Trustees of Columbia University in the City of New York.
Page 295: Using Smit To Enable An Aix Host To Recognize New Luns
3. Verify that the disk you’ve identified is the one you want. # lscfg -v -l device-name Detailed information about the device you specified is displayed. 4. Examine the manufacturer information and model information to make sure you have specified the device you want. Using SMIT to Enable an AIX Host to Recognize New LUNs The simplest way to configure your IBM AIX host to use your array is to use the...
Page 296: Creating A Volume Group
Logical Volume Manager Volume Groups Logical Volumes Physical Volumes Paging Space Volume groups are a way of dividing and allocating disk storage capacity. Volume groups can be used to subdivide a large partition of storage into smaller units of usable space called logical volumes. Each volume group is divided into logical volumes, which are seen by applications as individual disks.
Page 297: Creating A Logical Volume
7. Choose Activate a Volume Group from the Volume Groups menu. 8. Next to VOLUME GROUP name, type the name you gave the volume group. When the volume group is activated, a status screen displays “Command: OK.” Creating a Logical Volume 1.
Page 298: Mounting The New File System
4. Choose Journaled File System to display the Journaled File System screen. 5. Choose Add a Journaled File System from the Journaled File System menu. 6. Choose Add a Standard Journaled File System to display the Volume Group Name screen. The Volume Group Name screen displays the names of available volume groups.
Page 299: Verifying That The New File System Is Mounted
Verifying That the New File System Is Mounted 1. Use the mount command to verify that the logical volume is mounted correctly. # mount The mounted file systems and directories are displayed. 2. Examine the list to make sure your new file system is mounted at the mount point you specified.
Page 300: Figure I-2 Network Address Corresponding To Wwn
Output similar to the following is displayed. The network address is the WWN. Network Address Corresponding to WWN FIGURE I-2 I-10 Sun StorEdge 3000 Family Installation, Operation, and Service Manual • May 2004...
Page 301: Configuring An Hp Server Running The Hp-Ux Operating Environment
A P P E N D I X Configuring an HP Server Running the HP-UX Operating Environment This appendix provides platform-specific host installation and configuration information to use when you connect a Sun StorEdge 3500 or 3511 FC Array to an HP server running the HP-UX operating environment.
Page 302: Setting Up A Serial Port Connection
“Logical Volume Manager” on page J-6 “Definitions of Common Terms” on page J-6 “Creating a Physical Volume” on page J-7 “Creating a Volume Group” on page J-7 “Creating a Logical Volume” on page J-10 “Creating an HP-UX File System” on page J-10 “Mounting the File System Manually”...
Page 303: Accessing The Firmware Application From An Hp Server Running Hp-Ux
Accessing the Firmware Application From an HP Server Running HP-UX The RAID controller can be configured from the host system by means of terminal emulators such as cu or Kermit. These instructions show the use of Kermit. For information about cu, see cu(1). Note –...
Page 304 3. After the array is powered up, power on the HP server and log in as root, or su to root if you are logged in as a user. 4. Start the Kermit program and set the parameters as shown. Use the device-specific name for the serial port you are using.
Page 305: Attaching The Disk Array
Note – To return to the Kermit prompt, type Ctrl \ and then C. To exit Kermit, first return to the Kermit prompt and then type exit. Attaching the Disk Array The simplest way to configure a disk array is to use System Administration Manager (SAM), HP-UX’s system administration tool.
Page 306: Logical Volume Manager
Logical Volume Manager The Logical Volume Manager (LVM) is a disk management system provided by HP in all versions of HP-UX 11. The LVM allows you to manage storage as logical volumes. This section describes some concepts used by the LVM and explains how to create logical volumes on your Sun StorEdge Fibre Channel Array.
Page 307: Creating A Physical Volume
Creating a Physical Volume To use a storage resource in the LVM, it must first be initialized into a physical volume (also called an LVM disk). Log in as root, or su to root if you are not logged in with root user privileges. 1.
Page 308 1. Create a directory for the volume group and a device file for the group in that directory: mkdir /dev/vgmynewvg mknod /dev/vgmynewvg/group c 64 0x060000 The name of the directory is the name of the volume group. By default, HP-UX uses names of the format vgNN, but you can choose any name that is unique within the list of volume groups.
Page 309 To verify the creation and view the volume group properties, use the vgdisplay command: # vgdisplay vg02 --- Volumegroups --- VG Name /dev/vg02 VG Write Access read/write VG Status available Max LV Cur LV Open LV Max PV Cur PV Act PV Max PE per PV 2167...
Page 310: Creating A Logical Volume
Creating a Logical Volume To create a logical volume within the volume group, use the lvcreate command with the -L option to specify the size of the logical volume in megabytes. The logical volume size should be a multiple of the physical extent size. In this example, a logical volume of 4092 MB is created: # lvcreate -L 4092 /dev/vg02 Both character and block device files for the new logical volume are created in the...
Page 311: Mounting The File System Automatically
1. Create a directory to be the mount point for your new file system: # mkdir /usr/local/myfs 2. To mount your file system, type the following: # mount /dev/vgmynewvg/lvol1 /usr/local/myfs J.11 Mounting the File System Automatically By placing information about your file system in the fstab file, you can have HP- UX mount the file system automatically during bootup.
Page 312: Determining The World Wide Name For Hp-Ux Hosts
5. To unmount the file system, type: # umount /usr/local/myfs J.12 Determining the World Wide Name for HP-UX Hosts Before you can create host filters, you need to know the world wide name (WWN) for the FC HBA that connects your host to your FC array. For supported HP-UX host HBAs, follow these steps: 1.
Page 313: Configuring A Windows Nt Server
A P P E N D I X Configuring a Windows NT Server This appendix provides platform-specific host installation and configuration information to use when you connect a Sun StorEdge 3510 or 3511 FC array to a host running the Windows NT Server operating system. The Sun StorEdge 3510 and 3511 FC Arrays support Microsoft Windows NT 4.0, Service Pack 6A or greater, in either single-path or dual-path configurations.
Page 314: Setting Up The Serial Port Connection
Setting Up the Serial Port Connection The RAID controller can be configured by means of a host system running a VT100 terminal emulation program or by a Microsoft Windows terminal emulation program such as Hyperterminal. Note – You can also monitor and configure a RAID array over an IP network with the Sun StorEdge Configuration Service program after you assign an IP address to the array.
Page 315 5. In the Connect To window, select the COM port that is connected to the array from the “Connect using:” drop-down menu. 6. Click OK. 7. In the Properties window, set the serial port parameters using the drop-down menus. 38,400 baud 8 data bits 1 stop bit No parity...
Page 316 8. Click OK. 9. To save the connection and its settings, choose File → Save. The connection file name is connection-name, where connection-name is the name you gave this HyperTerminal connection in Step 10. To make a connection shortcut on your desktop, choose Start → Find → For Files or Folders.
Page 317: Accessing The Firmware Application From A Windows Nt Server
Accessing the Firmware Application From a Windows NT Server To access the array from a Windows NT server through a serial port, use the HyperTerminal connection you configured in “Setting Up the Serial Port Connection” on page K-2 or install a VT100 terminal emulation program and use the parameters described there.
Page 318 Note – While your system is starting up, you should see your new Fibre Channel devices. You are now ready to partition and format your new devices. 2. Open the Disk Administrator application. a. Click Start. b. Choose Administrative Tools from the Programs menu. c.
Page 319 4. Select the Unformatted partition. 5. Choose Commit Changes Now from the Partition menu. A confirmation dialog box is displayed. 6. Click Yes to save the changes you have made. A dialog box confirms that disks were updated successfully. 7. Click OK. The partition is now identified as Unknown in the Disk Administrator window.
Page 320 a. Select the Unknown partition. b. Choose Format from the Tools menu. A Format dialog box is displayed. c. Choose NTFS from the File System drop-down menu. d. Make sure the Quick Format checkbox is selected. e. When you have specified the settings you want, click Start. A dialog box warns you that any existing data on the disk will be erased.
Page 321: Determining The World Wide Name For Windows Nt Servers
Determining the World Wide Name for Windows NT Servers Before you can create host filters, you need to know the world wide name (WWN) for the FC HBA that connects your host to your FC array. 1. Boot a specific host system and note the BIOS version and HBA card models connected to your host.
Page 322 K-10 Sun StorEdge 3000 Family Installation, Operation, and Service Manual • May 2004...
Page 323 Index active-active configuration, 5-2 cables customer-provided, 3-5 active-standby configuration, 5-2 standard package, 3-5, 8-25 agent cabling Agent Options Management window, B-11 cables supplied, 3-3 alarms Ethernet connection, 4-20 failed component description, C-1 procedures, 4-1 silencing, 8-4 RS-232 connection, 4-19 amber blinking on Event LED, 7-4 to expansion units, B-8 array cache options, 5-5...
Page 324 restoring from a ﬁle, 8-20 Sun StorEdge 3510 FC array, 4-12 serial port connection, F-1, G-2, J-2, K-2 sun StorEdge 3511 FC array, 4-13 Configuring drive failure Sun server running the Solaris operating recovering from a fatal, 9-11 environment, F-1 drive ports configuring Sun StorEdge 3510 FC array, 4-12...
Page 325 identiﬁcation on chassis, 1-4 Linux, H-1 scaling, 4-25 Solaris operating environment, F-1 Windows 2000, G-1 Field-Replaceable Units, 1-5 Windows NT, B-1, C-1, K-1 field-replaceable units host connections, 4-28 Sun StorEdge 3510 FC array, 3-4 Sun StorEdge 3511 FC array, 3-5 Host Cylinder/Head/Sector Mapping Configuration command, 6-18 filter entries...
Page 326 layout map, 2-5 management tools accessing, 5-5 LEDs drives, 7-2 manual rebuild, 9-6 front panel, 7-2, 7-3 rear panel, 7-4 layout, 2-5 limitations maximum drive capacity, 6-25 controller, 5-2 maximum number of disks high capacity conﬁguration, 4-25 Sun StorEdge 3510 FC array, 6-13 host channels, 4-14 Sun StorEdge 3511 FC array, 6-13 local spare assignment, 6-25...
Page 327 deﬁned, 6-15 selected, 6-23 package contents, 3-3 RAID levels defined, 6-15 checking, 3-3 random I/O optimization parameters maximum size, 6-12 serial port, 4-19 RARP, 4-20 physical drive Rear-Panel LEDs, 7-4 size and speed, 8-8 status, 8-8 rebuild automatic, 9-3 physical drive capacity setting, 6-25 concurrent in RAID (1+0), 9-7 planning site, 2-1 manual, 9-6...
Page 328 serial port connection, F-1, G-2, J-2, K-2 topologies Fibre Channel, 1-9 serial port parameters, F-2, G-3, H-2, I-2, I-4, J-2, J-5 troubleshooting SES version conflict, 7-4 disks not visible, 9-2 Setting Loop IDs on Expansion Units, 4-26, B-6 LUNs not visible, 9-2 settings records to keep, D-1 SFP connectors, 4-28 inserting in ports, 4-18, B-10...
